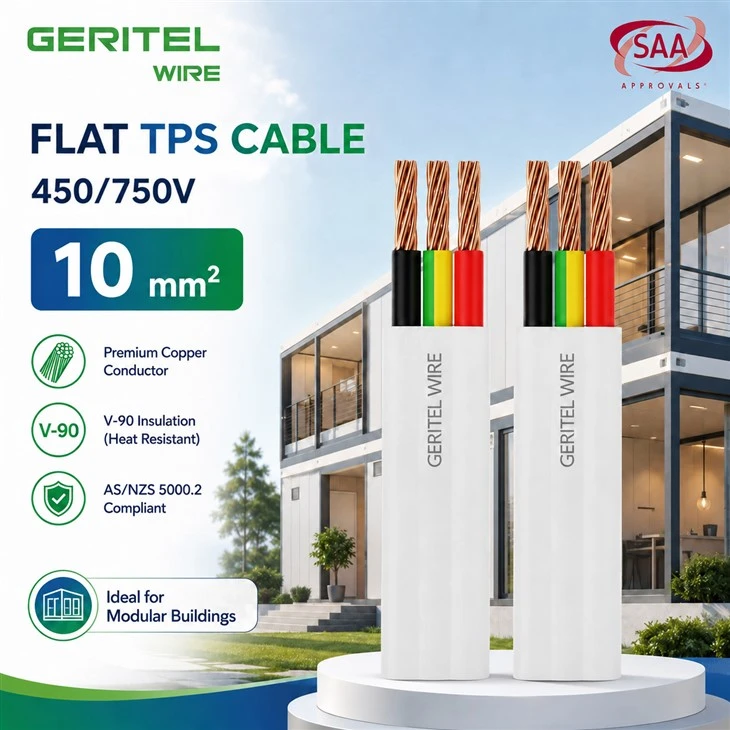

Name: China Integrated Housing TPS Cable – 450/750V V-90 Fixed Wiring Cable Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312581428

Description

Technical Parameters

Certification

tiny houses building wire

PRODUCT REAL SHOT

tiny houses V90 cable

Integrated Housing Electrical Wiring Cable – Reliable Cable for Integrated housing

This integrated housing TPS cable page targets fixed power and lighting work where installers value a flat profile and consistent cable construction. Copper conductors, V-90 PVC insulation and a PVC sheath provide a dependable fixed-wiring platform, including suitable 450/750V options. For Integrated housing, it suits factory-prewired lighting, socket and general power routes inside protected walls, ceilings or service cavities. Related search terms include integrated housing electrical wiring cable and building wire for integrated housing. GERITEL WIRE serves prefab-home factories, RV builders and capsule-house projects with direct-factory and export support. Final selection should follow the project specification and applicable local wiring rules.

PRODUCT SPECIFICATIONS

tiny houses twin and earth cable

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto AS/NZS 5000.2
Approvals	AS/NZS 5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black, Green/Yellow Sheath: 3V-90 PVC Colour: White
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
2C+E FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40
3C+E FLAT PVC
Red,White,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	11.4	4.5	11.7	4.6	10	20
Red,White,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	12.4	4.5	12.8	4.6	12	20
Red,White,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	15..4	5.4	15.8	5.5	19	20
Red,White,Green/Yellow,Black	4	7/0.85	2.6	0.8	17.9	6.3	18.3	6.5	26	25
Red,White,Green/Yellow,Black	6	7/1.04	3.1	0.8	19.5	6.9	20.1	7.1	33	30
Red,White,Green/Yellow,Black	10	7/1.35	4.1	1.0	24.9	8.4	25.8	8.8	52	35
Red,White,Green/Yellow,Black	16	7/1.70	5.1	1.0	28.8	9.7	29.7	10.0	75	40
3C FLAT PVC
Red, White, Blue	1.0	7/0.42	1.26	0.6	8.8	4.1	9.0	4.3	8	20
Red, White, Blue	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red, White, Blue	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20

CERTIFICATIONS

tiny houses 2 core and earth cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

tiny houses electrical cable manufacturer

Capsule Accommodation

cable for tiny houses power and lighting circuitscuits

Prefabricated Housing

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

granny flats V90 cable

CUSTOMER PHOTOS

granny flats twin and earth cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

cable for granny flats power and lighting circuits

flat TPS cable for transportable buildings

transportable buildings electrical wiring cable

transportable buildings fixed wiring cable

granny flats electrical cable manufacturer

transportable buildings power wiring cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

transportable buildings lighting wiring cable

FAQ

Why is AS/NZS 3008 relevant when choosing Flat TPS Cable size?

Cable size is affected by current capacity and voltage drop under real installation conditions. AS/NZS 3008 is commonly used for cable selection calculations in Australia and New Zealand. This application is commonly searched with terms such as AS/NZS 3008 cable selection and flat TPS cable size; the circuit design determines whether that specific construction is appropriate. GERITEL WIRE's direct-factory model helps purchasing teams coordinate specification, inspection, labeling and delivery in one workflow. This avoids treating a general building cable as a universal solution for every electrical environment.

What conductor standard should I ask about for Flat TPS Cable?

For Australian/New Zealand building cables, conductor construction is commonly referenced to AS/NZS 1125. GERITEL WIRE can confirm the conductor requirement used for the ordered model. For a purchasing team, the relevant product phrases are AS/NZS 1125 copper conductor TPS cable and plain annealed copper TPS cable; use them to find options, then verify the construction against the project. GERITEL WIRE focuses on matching the cable to the actual circuit rather than making broad application claims that could mislead installers. Always verify the ordered model, cable size and installation method before energizing the circuit.

Can GERITEL WIRE send certification documents before I place an order?

Yes. GERITEL WIRE can share available certificate and technical documents during qualification so your engineering or purchasing team can review them before commercial approval. Distributor catalogs may use phrases such as SAA TPS cable supplier and AS/NZS 5000.2 cable manufacturer, so matching the product marking and technical file is important. GERITEL WIRE supports buyers with technical clarification, OEM marking, export packing and repeat-order planning. The safest purchasing approach is to match the product construction to the circuit function and installation environment.

Can I use the GERITEL WIRE SAA certificate in my tender documents?

You can reference the supplier's applicable certificate when permitted, but the tender model must match the certificate scope. GERITEL WIRE can help map the requested model to the supporting file. Buyers searching the market may encounter SAA certified cable factory and Australian standard cable supplier; GERITEL WIRE recommends confirming size, cores and standard before treating products as equivalent. GERITEL WIRE can provide product data and available certificate documents so engineering and purchasing teams can review the model before ordering. Where conditions differ from normal protected fixed wiring, select the cable only after a project-specific review.
