Name: China Space Capsule Cabins TPS Cable Supplier For Space Capsule Cabins Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312631329

Description

Technical Parameters

Certification

thermoplastic sheathed flat cable 450/750V version

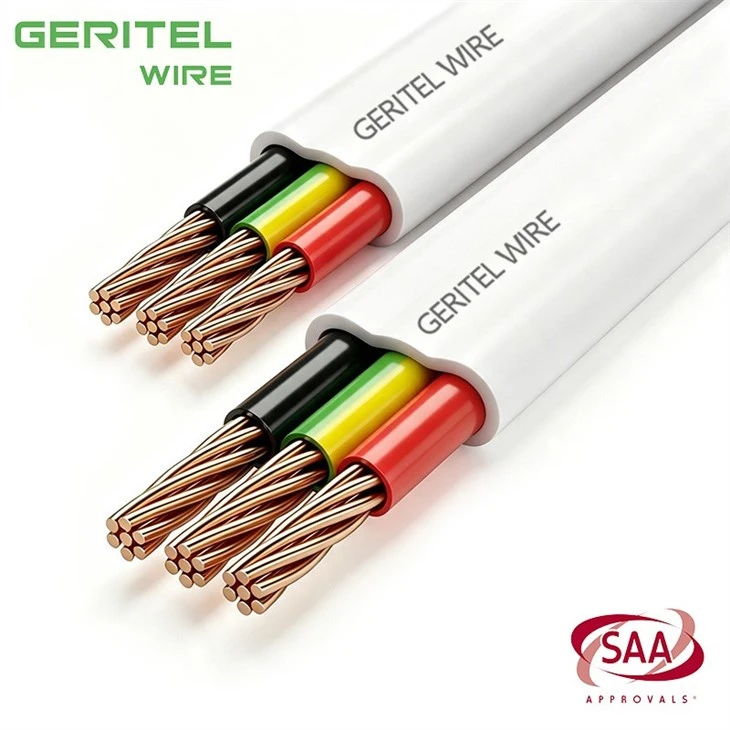

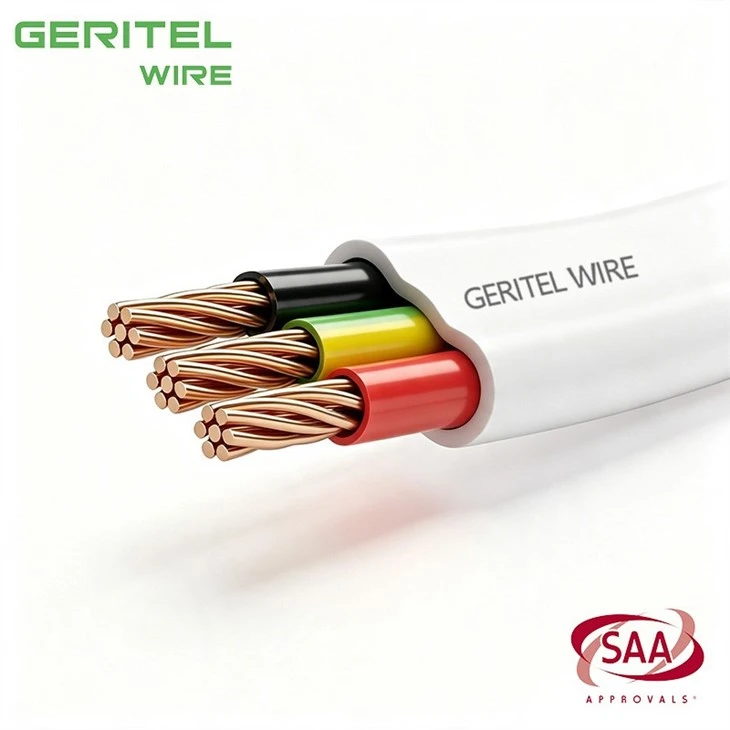

PRODUCT REAL SHOT

thermoplastic sheathed flat cable V90 version

thermoplastic sheathed flat cable AS/NZS 5000.2 compliant

thermoplastic sheathed flat cable copper conductor type

thermoplastic sheathed flat cable PVC insulated type

Space Capsule Cabin Wiring Cable for Space capsule cabins Power and Lighting Circuits

For projects sourcing space capsule cabins TPS cable, the focus is reliable fixed installation, clear construction and repeatable project supply. Copper conductors, V-90 PVC insulation and a PVC sheath provide a dependable fixed-wiring platform, including suitable 450/750V options. In Space capsule cabins, it can support protected internal lighting and general power circuits when the size and installation method are verified. Related search terms include space capsule cabin wiring cable and building wire for space capsule cabins. For modular buildings, RV production and capsule accommodation, GERITEL WIRE provides OEM identification and stable batch delivery. Final selection should follow the project specification and applicable local wiring rules.

PRODUCT SPECIFICATIONS

thermoplastic sheathed flat cable fixed power and lighting use

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto AS/NZS 5000.2
Approvals	AS/NZS 5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black, Green/Yellow Sheath: 3V-90 PVC Colour: White
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
2C+E FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40
3C+E FLAT PVC
Red,White,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	11.4	4.5	11.7	4.6	10	20
Red,White,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	12.4	4.5	12.8	4.6	12	20
Red,White,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	15..4	5.4	15.8	5.5	19	20
Red,White,Green/Yellow,Black	4	7/0.85	2.6	0.8	17.9	6.3	18.3	6.5	26	25
Red,White,Green/Yellow,Black	6	7/1.04	3.1	0.8	19.5	6.9	20.1	7.1	33	30
Red,White,Green/Yellow,Black	10	7/1.35	4.1	1.0	24.9	8.4	25.8	8.8	52	35
Red,White,Green/Yellow,Black	16	7/1.70	5.1	1.0	28.8	9.7	29.7	10.0	75	40
3C FLAT PVC
Red, White, Blue	1.0	7/0.42	1.26	0.6	8.8	4.1	9.0	4.3	8	20
Red, White, Blue	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red, White, Blue	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20

CERTIFICATIONS

flat thermoplastic cable product

PACKAGING

Roll

Plastic Reel

flat thermoplastic cable for New Zealand

Small Wooden Reel

APPLICATION

flat thermoplastic cable 450/750V version

Capsule Accommodation

Prefabricated Housing

flat thermoplastic cable AS/NZS 5000.2 compliant

Recreational Vehicle Wiring

CASE

flat thermoplastic cable copper conductor type

2020 Ford Transit AWD Camper Van Conversion

flat thermoplastic cable PVC insulated type

Epping Forest District Council Modular Homes

flat thermoplastic cable fixed power and lighting use

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

TPS building cable AS/NZS 5000.2 compliant

GLOBAL CERTIFICATIONS

TPS building cable copper conductor type

CUSTOMER PHOTOS

TPS building cable PVC insulated type

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

TPS building cable fixed power and lighting use

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

TPS building wire AS/NZS 5000.2 compliant

TPS building wire fixed power and lighting use

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can Flat TPS Cable be installed behind caravan wall linings?

Protected wall cavities can be a suitable route, but cable must be secured and protected from screws, sharp framing, insulation compatibility issues and future service damage. Buyers searching the market may encounter caravan flat TPS cable and protected location TPS cable; GERITEL WIRE recommends confirming size, cores and standard before treating products as equivalent. GERITEL WIRE can provide product data and available certificate documents so engineering and purchasing teams can review the model before ordering. Where conditions differ from normal protected fixed wiring, select the cable only after a project-specific review.

Should I use non-migratory cable in foam-insulated caravans?

If the cable will contact polystyrene or another material affected by PVC plasticiser migration, specify a non-migratory cable rather than assuming standard white TPS is compatible. In international sourcing, useful equivalent search terms include non-migratory flat TPS cable and caravan wiring cable, but final approval should be based on the technical specification. If the project has special installation or certification requirements, GERITEL WIRE can review them before quotation to reduce later changes. The electrician or project engineer should confirm final cable selection for the actual installation.

Can Flat TPS Cable be used on the chassis of an RV?

Not as exposed flexible chassis wiring. Chassis routes face vibration, abrasion, water and movement, so a cable designed and protected for that vehicle environment is more appropriate. Related catalog descriptions include RV wiring cable and fixed wiring cable; the correct choice still depends on the ordered model and application. For project orders, GERITEL WIRE can align cable size, core arrangement, packaging and documentation with the approved BOM. Clear technical confirmation before purchase helps reduce rework, approval delays and site substitutions.

Can Flat TPS Cable be used in a mobile home that rarely moves?

The regulatory category matters more than how often it moves. If it is classed as a mobile or transportable installation, the applicable special wiring rules still need to be followed. For procurement, this requirement may be listed as mobile home TPS cable or mobile home electrical wiring cable, so the datasheet and core configuration should be checked with the supplier. For distributors and OEM builders, GERITEL WIRE can support stable production batches, custom identification and export-ready packaging. For regulated projects, certificate scope and installation requirements should be checked together.
