Name: China Capsule Hotels TPS Cable For Project Fixed Wiring Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312631184

Description

Technical Parameters

Certification

data center HVAC auxiliary circuits power wiring cable

PRODUCT REAL SHOT

data center HVAC auxiliary circuits lighting wiring cable

data center HVAC auxiliary circuits building wire

data center HVAC auxiliary circuits copper wiring cable

data center HVAC auxiliary circuits 450/750V cable

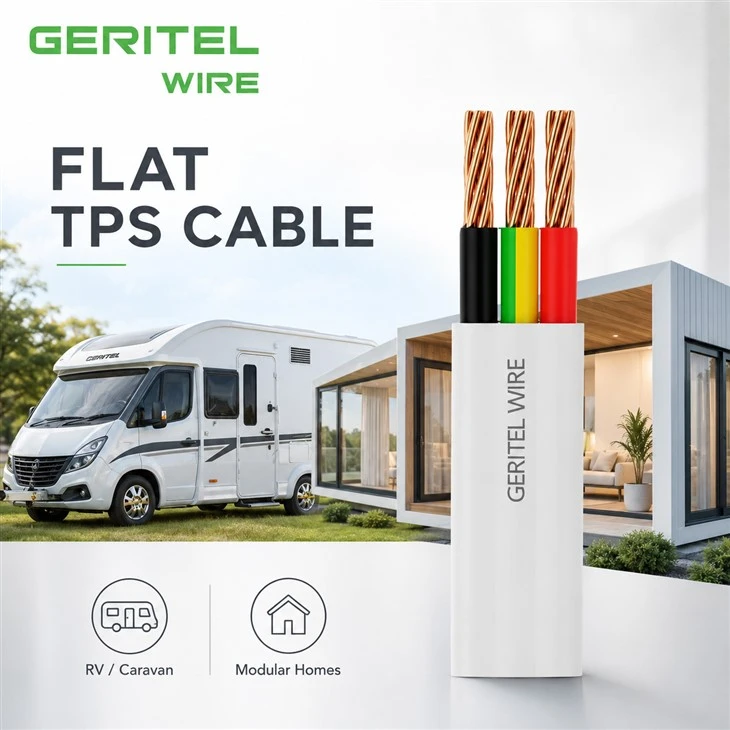

Capsule Hotel Electrical Cable for Modular and Building Electrical Projects

This capsule hotels TPS cable page targets fixed power and lighting work where installers value a flat profile and consistent cable construction. The construction combines copper conductors, V-90 PVC insulation and a durable PVC sheath for protected fixed building routes. In Capsule hotels, it can support protected internal lighting and general power circuits when the size and installation method are verified. Related search terms include capsule hotel electrical cable and lighting wiring cable for capsule hotels. GERITEL WIRE supplies prefab-home factories, RV builders and capsule-house projects with direct-factory service and export support. Before ordering, confirm cable size, core configuration, certificate scope and installation method against the project specification.

PRODUCT SPECIFICATIONS

data center HVAC auxiliary circuits AS/NZS 5000.2 cable

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto AS/NZS 5000.2
Approvals	AS/NZS 5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black, Green/Yellow Sheath: 3V-90 PVC Colour: White
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
2C+E FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40
3C+E FLAT PVC
Red,White,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	11.4	4.5	11.7	4.6	10	20
Red,White,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	12.4	4.5	12.8	4.6	12	20
Red,White,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	15..4	5.4	15.8	5.5	19	20
Red,White,Green/Yellow,Black	4	7/0.85	2.6	0.8	17.9	6.3	18.3	6.5	26	25
Red,White,Green/Yellow,Black	6	7/1.04	3.1	0.8	19.5	6.9	20.1	7.1	33	30
Red,White,Green/Yellow,Black	10	7/1.35	4.1	1.0	24.9	8.4	25.8	8.8	52	35
Red,White,Green/Yellow,Black	16	7/1.70	5.1	1.0	28.8	9.7	29.7	10.0	75	40
3C FLAT PVC
Red, White, Blue	1.0	7/0.42	1.26	0.6	8.8	4.1	9.0	4.3	8	20
Red, White, Blue	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red, White, Blue	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20

CERTIFICATIONS

data center HVAC auxiliary circuits V90 cable

PACKAGING

data center HVAC auxiliary circuits twin and earth cable

Roll

data center HVAC auxiliary circuits 2 core and earth cable

Plastic Reel

data center HVAC auxiliary circuits SAA building cable

Small Wooden Reel

APPLICATION

data center HVAC auxiliary circuits wiring cable supplier

Capsule Accommodation

data center HVAC auxiliary circuits electrical cable manufacturer

Prefabricated Housing

cable for data center HVAC auxiliary circuits power and lighting circuits

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

thermoplastic sheathed cable for Australia

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

thermoplastic sheathed cable for New Zealand

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

thermoplastic sheathed cable 450/750V version

thermoplastic sheathed cable V90 version

thermoplastic sheathed cable AS/NZS 5000.2 compliant

thermoplastic sheathed cable copper conductor type

thermoplastic sheathed cable PVC insulated type

thermoplastic sheathed cable fixed power and lighting use

GLOBAL CERTIFICATIONS

thermoplastic-sheathed cable product

CUSTOMER PHOTOS

thermoplastic-sheathed cable wire

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

thermoplastic sheathed flat cable product

thermoplastic sheathed flat cable for Australia

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

thermoplastic sheathed flat cable for New Zealand

FAQ

Does a caravan need RCD protection when using Flat TPS Cable?

RCD requirements come from the caravan electrical installation rules, not from the cable alone. The cable must be part of a properly designed and protected AC installation. When comparing supplier listings, buyers may also see the terms caravan electrical wiring cable and RCD caravan wiring; always compare the actual construction, not the label alone. GERITEL WIRE can confirm the ordered construction, marking and available compliance files before production. Final installation should follow the project drawings and applicable local electrical rules.

Should Flat TPS Cable be separated from 12V wiring in an RV?

AC and extra-low-voltage wiring need the segregation required by the applicable rules. Route planning should avoid confusion and reduce the chance of unsafe contact between systems. This application is commonly searched with terms such as RV electrical cable and caravan AC wiring cable; the circuit design determines whether that specific construction is appropriate. GERITEL WIRE's direct-factory model helps purchasing teams coordinate specification, inspection, labeling and delivery in one workflow. This avoids treating a general building cable as a universal solution for every electrical environment.

Can Flat TPS Cable be used from the caravan inlet to the switchboard?

That depends on the mobile-installation design and the cable construction permitted for the inlet circuit. GERITEL WIRE recommends the vehicle electrician confirm the standard before specification. For a purchasing team, the relevant product phrases are caravan power wiring cable and fixed AC wiring cable; use them to find options, then verify the construction against the project. GERITEL WIRE focuses on matching the cable to the actual circuit rather than making broad application claims that could mislead installers. Always verify the ordered model, cable size and installation method before energizing the circuit.

Can Flat TPS Cable feed fixed sockets in a motorhome?

It may suit fixed socket circuits if the installation standard, cable size, route protection and RCD arrangement are all satisfied. Distributor catalogs may use phrases such as motorhome fixed wiring cable and RV fixed AC wiring cable, so matching the product marking and technical file is important. GERITEL WIRE supports buyers with technical clarification, OEM marking, export packing and repeat-order planning. The safest purchasing approach is to match the product construction to the circuit function and installation environment.

Hot Tags: capsule hotels tps cable for project fixed wiring, China capsule hotels tps cable for project fixed wiring manufacturers, suppliers, factory, 3 Core TPS Cable, SAA Australia Flat 2C E Electrical TPS Cable, SAA Australia Flat Twin Active TPS Cable, tps cable
