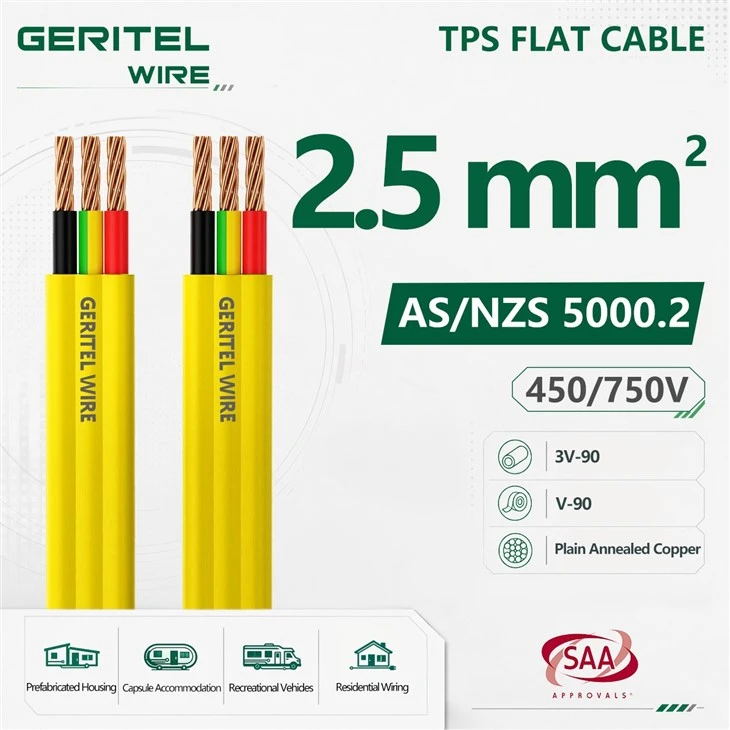

2.5mm Yellow Flat TPS Power And Lighting Cable 2C+E

2.5mm Yellow Flat TPS Power And Lighting Cable 2C+E
Details:
·Insulation: V-90 PVC
·Sheath: 3V-90 PVC
·APPROVALS: AS/NZS 5000.2
·Normal operating temperature: +90℃
·Minimum operating temperature: 0℃
Send Inquiry
Download
Description
Technical Parameters
Certification

2.5mm yellow TPS cable

PRODUCT REAL SHOT



1.5mm2 flat TPS cable
1.5 mm² white TPS cable
1.5mm PVC flat cable

1.5mm 3 core and earth cable

2.5 mm² Yellow Building Cable for Container Homes and Offices
GERITEL WIRE manufactures 2.5mm Yellow Flat TPS Cable for protected fixed power and lighting circuits requiring a two-core-plus-earth construction. Plain annealed copper, V-90 PVC insulation and a yellow flat sheath support practical routing in building cavities and factory-assembled modules. As a Yellow 2C+E Building Cable, it can be considered for container homes, portable offices and selected commercial interiors after design approval. The page also targets Yellow TPS Cable for Container House Wiring. Samples, custom marking and project lengths are available for 2.5 mm² Yellow Twin and Earth Cable; final sizing depends on load, voltage drop, protection and installation method.
PRODUCT SPECIFICATIONS



2.5mm² yellow flat TPS cable

Applications



For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description PVC insulated laid flat and PVC sheathed cableto AS/NZS 5000.2
Approvals A5/NZS 5000.2
Behaviour in flame and fire Flame retardant
Temperature range

Normal operating temperature: +90°C

Minimum operating temperature: 0°C
Flexibility Semi-rigid
Resistance to

Chemical exposure: Occasional

Mechanical impact: Light

Water exposure:Occasional condensation

Solar radiation and weather exposure:Occasional
Cable design

Conductor:

Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation(see AS/NZS 3008.1).

Insulation: V-90 PVC
Colours: Red, Black, Green/Yellow

Sheath: 3V-90 PVC

Colour: Yellow
Installation conditions

In free air

In conduit

In ground with protection

In duct

External building with protection

Insulation Colours

Conductor

Cable

Min.

installed

bending

radius(a)

mm

Nominal

C.S.A

mm²

Nominal

diameter

of wires
No/mm

Nominal

diameter

mm

Nominal

insulation

thickness

mm

Overall diameter mm

Approx.

mass

kg/100m

Minimum

Maximum
Major axis Major axis Major axis Major axis
2C+E FLAT PVC
Red,Green/Yellow,Black 1.0 7/0.42 1.26 0.6 9.5 4.3 9.6 4.4 8 20
Red,Green/Yellow,Black 1.5 7/0.50 1.56 0.6 9.8 4.5 10.1 4.6 10 20
Red,Green/Yellow,Black 2.5 7/0.67 2.0 0.7 12.1 5.4 12.4 5.5 15 20
Red,Green/Yellow,Black 4 7/0.85 2.6 0.8 13.8 6.3 14.1 6.5 19 30
Red,Green/Yellow,Black 6 7/1.04 3.1 0.8 14.9 6.9 15.3 7.1 24 30
Red,Green/Yellow,Black 10 7/1.35 4.1 1 18.9 8.4 19.6 8.8 38 35
Red,Green/Yellow,Black 16 7/1.70 5.1 1 21.8 9.7 22.5 10.0 54 40
3C+E FLAT PVC
Red,White,Green/Yellow,Black 1.0 7/0.42 1.26 0.6 11.4 4.5 11.7 4.6 10 20
Red,White,Green/Yellow,Black 1.5 7/0.50 1.56 0.6 12.4 4.5 12.8 4.6 12 20
Red,White,Green/Yellow,Black 2.5 7/0.67 2.0 0.7 15..4 5.4 15.8 5.5 19 20
Red,White,Green/Yellow,Black 4 7/0.85 2.6 0.8 17.9 6.3 18.3 6.5 26 25
Red,White,Green/Yellow,Black 6 7/1.04 3.1 0.8 19.5 6.9 20.1 7.1 33 30
Red,White,Green/Yellow,Black 10 7/1.35 4.1 1.0 24.9 8.4 25.8 8.8 52 35
Red,White,Green/Yellow,Black 16 7/1.70 5.1 1.0 28.8 9.7 29.7 10.0 75 40
3C FLAT PVC
Red, White, Blue 1.0 7/0.42 1.26 0.6 8.8 4.1 9.0 4.3 8 20
Red, White, Blue 1.5 7/0.50 1.56 0.6 9.8 4.5 10.1 4.6 10 20
Red, White, Blue 2.5 7/0.67 2.0 0.7 12.1 5.4 12.4 5.5 15 20
CERTIFICATIONS



2.5 mm2 yellow sheath electrical cable





PACKAGING



2.5mm yellow twin and earth cable

Roll

2.5mm² yellow 2 core and earth cable

Plastic Reel

2.5 mm2 yellow 2C+E TPS cable

Small Wooden Reel

APPLICATION



2.5mm V-90 yellow flat cable
Capsule Accommodation
2.5mm² 450/750V yellow TPS cable
Prefabricated Housing
2.5 mm2 AS/NZS 5000.2 yellow cable

Recreational Vehicle Wiring



CASE



2.5mm yellow copper building cable

2020 Ford Transit AWD Camper Van Conversion

2.5mm² yellow fixed wiring cable

Epping Forest District Council Modular Homes

2.5 mm2 yellow power cable 100m

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US



30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

2.5mm yellow lighting cable

15K
Finished Projects
150+
professional staff
15K
happy clients
92+
awards & certifacates
PLANT EQUIPMENT



2.5mm² yellow switch cable

2.5 mm2 yellow TPS cable supplier

2.5mm yellow flat cable manufacturer

2.5mm² yellow TPS cable price

2.5 mm2 yellow electrical cable wholesale

2.5mm yellow cable 100m roll

GLOBAL CERTIFICATIONS



2.5mm² yellow cable datasheet

CUSTOMER PHOTOS


yellow residential wiring cable

INTERNATIONL TRANSPORTATION



01

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

02

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

03

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

yellow commercial wiring cable
COOPERATIVE PARTNER



We are looking for a cooperative partner to expand our business.

yellow TPS cable 100m roll
yellow flat cable manufacturer
yellow TPS cable supplier
yellow lighting cable
yellow TPS lighting cable
yellow switch cable
yellow switch TPS cable
SWITCH 3C TPS cable
yellow 3 core TPS cable
yellow three core cable
How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

3 core yellow flat cable
FAQ



Is the GERITEL yellow cable the same as Nexans SWITCH cable?
Not necessarily. Nexans markets yellow SWITCH as a three-working-core cable without an earth core, while the GERITEL product shown is a Yellow 2C+E Cable. Both may have yellow sheaths, but their conductor functions differ. GERITEL WIRE therefore recommends using Yellow Twin and Earth TPS Cable wording on this product page rather than copying a no-earth SWITCH description.
What is the difference between Yellow SWITCH and Yellow SWITCH PLUS cable?
Yellow SWITCH is commonly a three-core lighting cable without earth, whereas SWITCH PLUS is a four-core-plus-earth product for more complex lighting control. The GERITEL product in this workbook is a separate Yellow 2 Core Earth Cable. Buyers needing multiway switching should not substitute it for Yellow Switch Plus Cable without checking the required conductor count.
Can I order yellow TPS with a different conductor arrangement?
GERITEL WIRE can review OEM requests for alternative core counts, colours and markings, subject to technical feasibility, minimum order quantity and certification scope. A buyer requesting Custom Yellow TPS Cable should provide the circuit function and target standard. We will confirm whether the project needs OEM Flat Building Cable, 2C+E, three-core or four-core-plus-earth construction.
How can I verify that the delivered cable matches the ordered structure?
Check the cable print, reel label, conductor colours, conductor count and sample cross-section against the approved specification. GERITEL WIRE can provide pre-production photos and sample approval for Yellow TPS Cable Manufacturer orders. This helps buyers verify the requested 2 Core and Earth Flat Cable before full production and shipment.



Hot Tags: 2.5mm yellow flat tps power and lighting cable 2c+e, China 2.5mm yellow flat tps power and lighting cable 2c+e manufacturers, suppliers, factory, 3 Core TPS Cable, SAA Australia Flat 2C E Electrical TPS Cable, SAA Australia Flat Twin Active TPS Cable, tps cable

You Might Also Like
  • 1.5mm Yellow Twin And Earth Cable For Residential Lighting
    1.5mm Yellow Twin And Earth Cable For Residential Li...

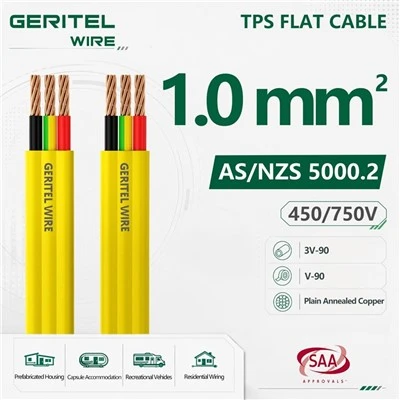

  • 1mm Yellow 2 Core And Earth Flat TPS Lighting Cable
