Name: China White Flat TPS Cable | AS/NZS 5000.2 Building Wire Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312571735

Description

Technical Parameters

Certification

flat TPS cable for power circuits

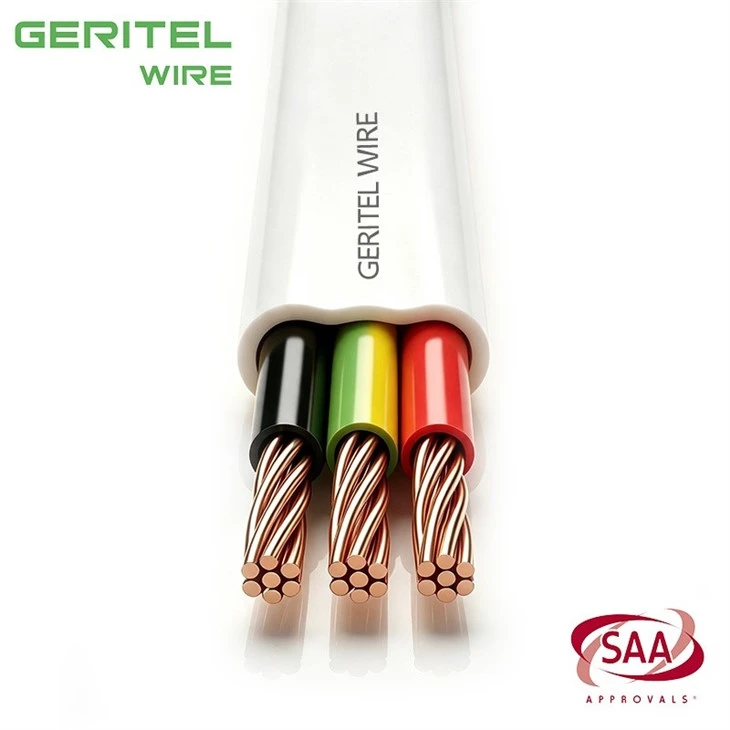

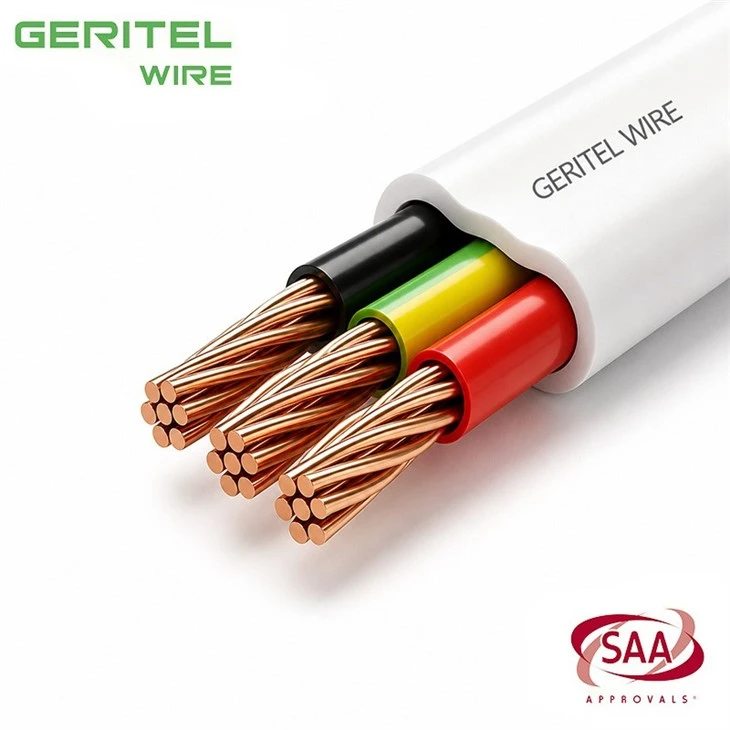

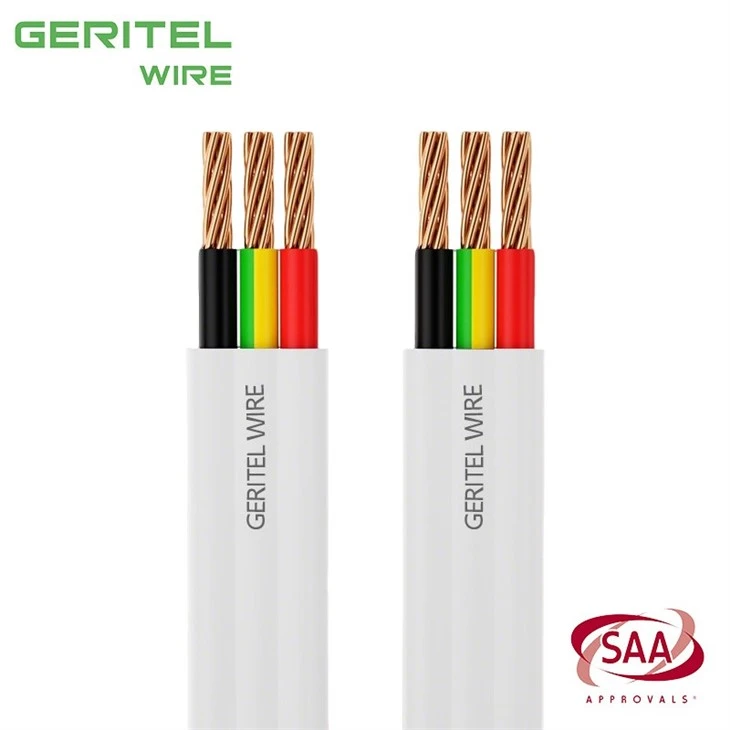

PRODUCT REAL SHOT

copper conductor flat TPS cable

PVC Sheathed Flat Cable with Copper Conductors and PVC Sheath

For projects sourcing white flat TPS cable, the focus is reliable fixed installation, clear construction and repeatable project supply. It uses copper conductors with V-90 PVC insulation and a PVC sheath; relevant 450/750V constructions can be supplied to AS/NZS 5000.2. For Residential buildings, it can serve suitable fixed power and lighting routes after cable size and installation conditions are confirmed. Related search terms include PVC sheathed flat cable and residential wiring cable. For modular buildings, RV production and capsule accommodation, GERITEL WIRE provides OEM identification and stable batch delivery. Final size, core configuration and installation method should follow the project drawings and local electrical rules.

PRODUCT SPECIFICATIONS

PVC insulated flat TPS cable

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto AS/NZS 5000.2
Approvals	AS/NZS 5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 Can also be operated at temperatures up to 90°C when not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black, Green/Yellow Sheath: 3V-90 PVC Colour: White
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
2C+E FLAT PVC
Red,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	9.5	4.3	9.6	4.4	8	20
Red,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20
Red,Green/Yellow,Black	4	7/0.85	2.6	0.8	13.8	6.3	14.1	6.5	19	30
Red,Green/Yellow,Black	6	7/1.04	3.1	0.8	14.9	6.9	15.3	7.1	24	30
Red,Green/Yellow,Black	10	7/1.35	4.1	1	18.9	8.4	19.6	8.8	38	35
Red,Green/Yellow,Black	16	7/1.70	5.1	1	21.8	9.7	22.5	10.0	54	40
3C+E FLAT PVC
Red,White,Green/Yellow,Black	1.0	7/0.42	1.26	0.6	11.4	4.5	11.7	4.6	10	20
Red,White,Green/Yellow,Black	1.5	7/0.50	1.56	0.6	12.4	4.5	12.8	4.6	12	20
Red,White,Green/Yellow,Black	2.5	7/0.67	2.0	0.7	15..4	5.4	15.8	5.5	19	20
Red,White,Green/Yellow,Black	4	7/0.85	2.6	0.8	17.9	6.3	18.3	6.5	26	25
Red,White,Green/Yellow,Black	6	7/1.04	3.1	0.8	19.5	6.9	20.1	7.1	33	30
Red,White,Green/Yellow,Black	10	7/1.35	4.1	1.0	24.9	8.4	25.8	8.8	52	35
Red,White,Green/Yellow,Black	16	7/1.70	5.1	1.0	28.8	9.7	29.7	10.0	75	40
3C FLAT PVC
Red, White, Blue	1.0	7/0.42	1.26	0.6	8.8	4.1	9.0	4.3	8	20
Red, White, Blue	1.5	7/0.50	1.56	0.6	9.8	4.5	10.1	4.6	10	20
Red, White, Blue	2.5	7/0.67	2.0	0.7	12.1	5.4	12.4	5.5	15	20

CERTIFICATIONS

PVC sheathed flat TPS cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Capsule Accommodation

Prefabricated Housing

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

PVC sheathed TPS flat cable

CUSTOMER PHOTOS

TPS flat cable for building wiring

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

Australian standard twin and earth cable

twin and earth cable for lighting circuits

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

twin and earth cable for residential wiring

FAQ

What does the 450/750V marking on Flat TPS Cable mean?

The voltage marking identifies the cable's rated voltage class. It does not determine allowable current by itself; conductor size, grouping, ambient conditions and installation method still need to be checked. This application is commonly searched with terms such as 450/750V TPS cable and 450/750V flat cable; the circuit design determines whether that specific construction is appropriate. GERITEL WIRE's direct-factory model helps purchasing teams coordinate specification, inspection, labeling and delivery in one workflow. This avoids treating a general building cable as a universal solution for every electrical environment.

What does fixed wiring mean for TPS cable?

Fixed wiring means the cable is installed as part of a permanent electrical installation rather than used as a portable flexible lead that is repeatedly moved, twisted or flexed. For a purchasing team, the relevant product phrases are fixed wiring cable and flat fixed wiring cable; use them to find options, then verify the construction against the project. GERITEL WIRE focuses on matching the cable to the actual circuit rather than making broad application claims that could mislead installers. Always verify the ordered model, cable size and installation method before energizing the circuit.

Is Flat TPS Cable considered a low-voltage building cable?

Yes, this product family is used for low-voltage building power and lighting applications within its rated voltage and standard scope. Project-specific design rules still apply. Distributor catalogs may use phrases such as low voltage flat cable and low voltage building cable, so matching the product marking and technical file is important. GERITEL WIRE supports buyers with technical clarification, OEM marking, export packing and repeat-order planning. The safest purchasing approach is to match the product construction to the circuit function and installation environment.

Can Flat TPS Cable be used for both power and lighting circuits?

It can be used in suitable fixed power and lighting circuits when the core configuration, conductor size and installation method are correctly selected for the load. Buyers searching the market may encounter power and lighting cable and fixed lighting wiring cable; GERITEL WIRE recommends confirming size, cores and standard before treating products as equivalent. GERITEL WIRE can provide product data and available certificate documents so engineering and purchasing teams can review the model before ordering. Where conditions differ from normal protected fixed wiring, select the cable only after a project-specific review.
