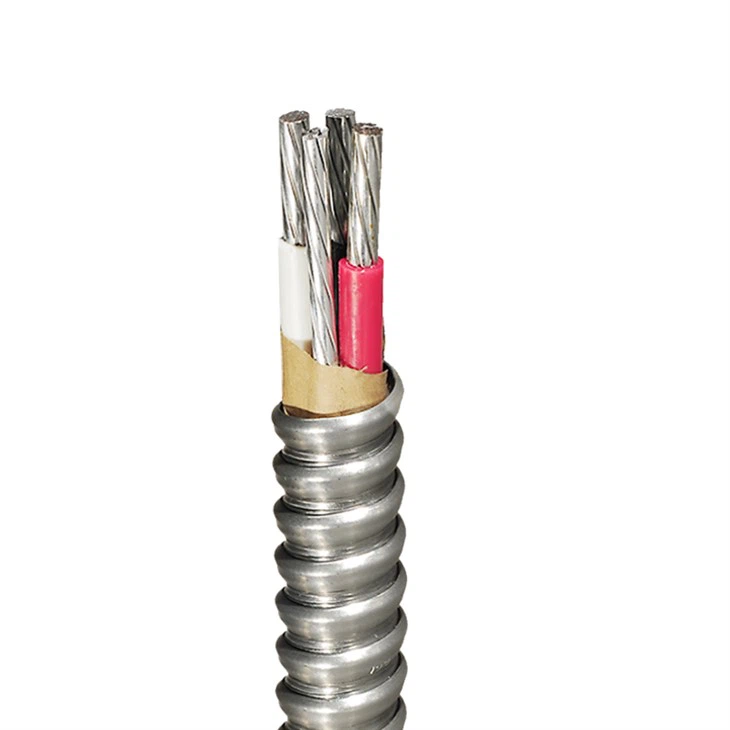

- Conductor: Bare Aluminum, ACM Compact or Compressed, Class B Stranded
- Insulation: Cross-linked Polyethylene (XLPE) Type RW90 or Polyvinyl Chloride (PVC)
- Ground (Bonding) Conductor: Bare aluminum bonding wire, available in solid or stranded construction
- Armour: Durable Aluminum Interlocked Armour (AIA)
- Operating Temperature Range: Suitable for low-temperature environments, from -40°C to +90°C
- Optional Configurations: Copper conductors or Galvanized Steel Interlocked Armour (GSIA) available upon request
- Compliance: In accordance with CSA C22.2 No. 51
Application
CSA AC90 BX Cable adopts aluminum conductor (ACM) structure, rated voltage is 600V, with excellent conductivity and economy, suitable for a wide range of commercial and industrial occasions. Compared with copper conductors, aluminum conductors greatly reduce the overall cable weight and cost, especially suitable for building wiring, large equipment power supply, and light industrial facilities with high cost-effectiveness requirements.
PVC or XLPE (RW90) materials can be selected. PVC insulation has good flexibility and is suitable for indoor applications in dry or humid environments, while XLPE insulation has higher heat resistance and electrical strength, especially suitable for occasions with high requirements for thermal stability and chemical resistance, such as mechanical workshops, distribution rooms or HVAC system power supply.
The external aluminum interlocking armor (AIA) structure effectively enhances the mechanical protection ability of the cable, without the need for additional pipes or bridge support, suitable for high-density wiring areas such as open laying, ceiling or underground garage, greatly simplifying the installation process and saving labor costs.
Certification
AC90 BX Cable has passed UL certification (certification number: E544860), which can be checked and verified on the UL official website. In addition, this cable complies with CSA C22.2 No. 51 standard and is widely recognized and recommended in local Canadian buildings, electrical engineering and industrial and commercial projects.
Package
Factory
Greater Wire is a reliable AC90 BX Cable manufacturer. It adopts advanced technology and strict quality control in the production process. It is completed in one step through high-speed forming and coating process, providing excellent mechanical protection, pressure resistance and impact resistance, and meeting the requirements of pipeless laying. In addition, some models are also equipped with bare aluminum grounding conductors to improve the grounding performance and overall safety of the system.
We are equipped with an automated online detection system at every step from raw material selection, conductor twisting, insulation extrusion, armor forming, to final inspection to ensure that each roll of Cable shipped out of the factory has consistency, reliability, and excellent electrical safety performance.
Case
Partner
FAQ
Q: Is bx the same as AC90?
Q: What is AC90 cable used for?
Hot Tags: csa ac90 bx cable aluminum conductor pvc or xlpe/aia 600v, China csa ac90 bx cable aluminum conductor pvc or xlpe/aia 600v manufacturers, suppliers, factory, h05vv-f, ul1015 hook up wire, hook up wire, ac cable, HO7RN F Cable, solar cable
| No. of Conductors |
AWG Size | Insulation Thickness | Approximate Diameter | Net Weight | ||||
| Cond. | Bond Wire | in. | mm. | in. | mm. | LB/MFT | KG/KM | |
| 3 | 6 | 8(7) | 0.045 | 1.140 | 0.810 | 20.600 | 255 | 380 |
| 3 | 4 | 6(7) | 0.045 | 1.140 | 0.910 | 23.100 | 330 | 490 |
| 3 | 2 | 6(7) | 0.045 | 1.140 | 1.020 | 25.900 | 430 | 640 |
| 3 | 1 | 4(7) | 0.055 | 1.400 | 1.140 | 28.900 | 530 | 785 |
| 3 | 1/0 | 4(7) | 0.055 | 1.400 | 1.220 | 31.000 | 605 | 905 |
| 3 | 2/0 | 4(7) | 0.055 | 1.400 | 1.300 | 33.000 | 710 | 1055 |
