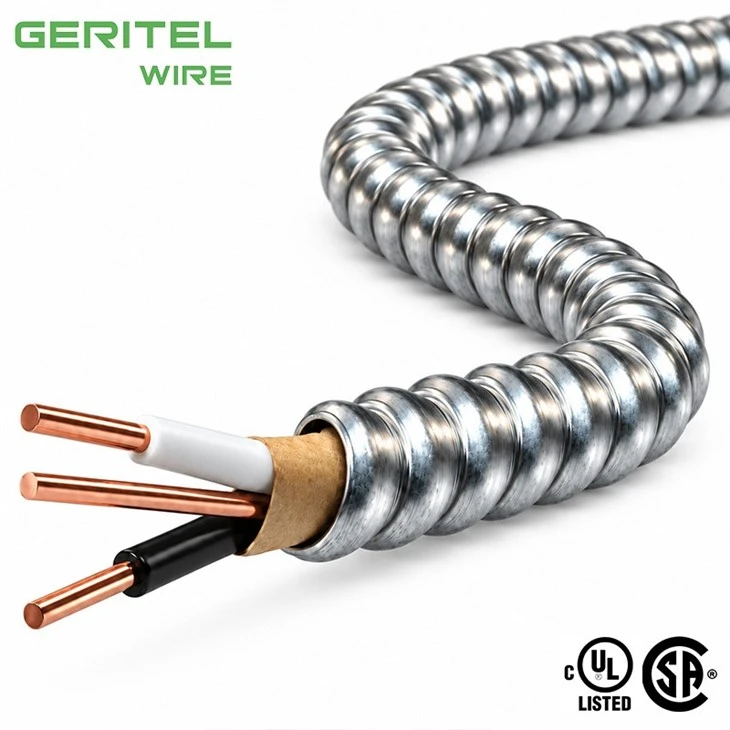

AC90 industrial BX cable

PRODUCT REAL SHOT

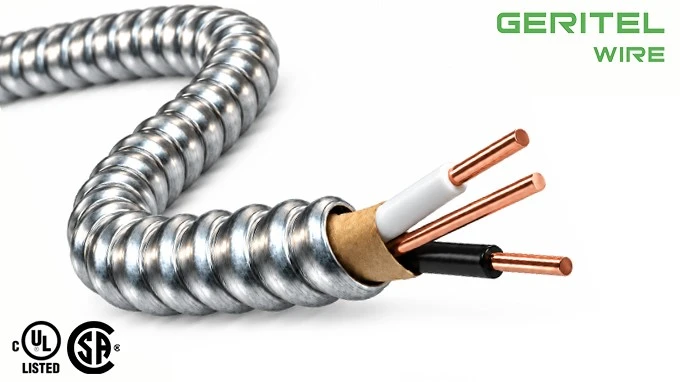

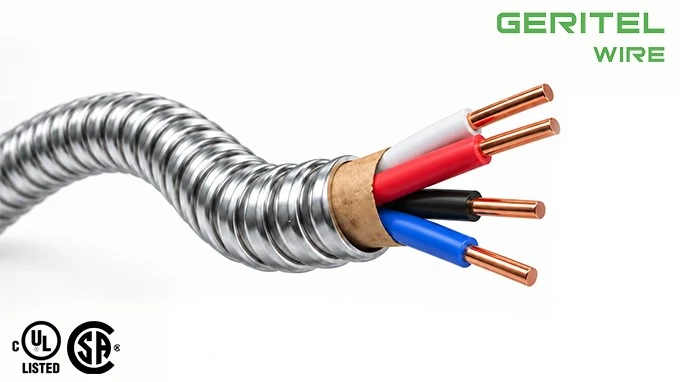

AC90 commercial BX wire

B2B armoured building wire for contractors distributors and developers

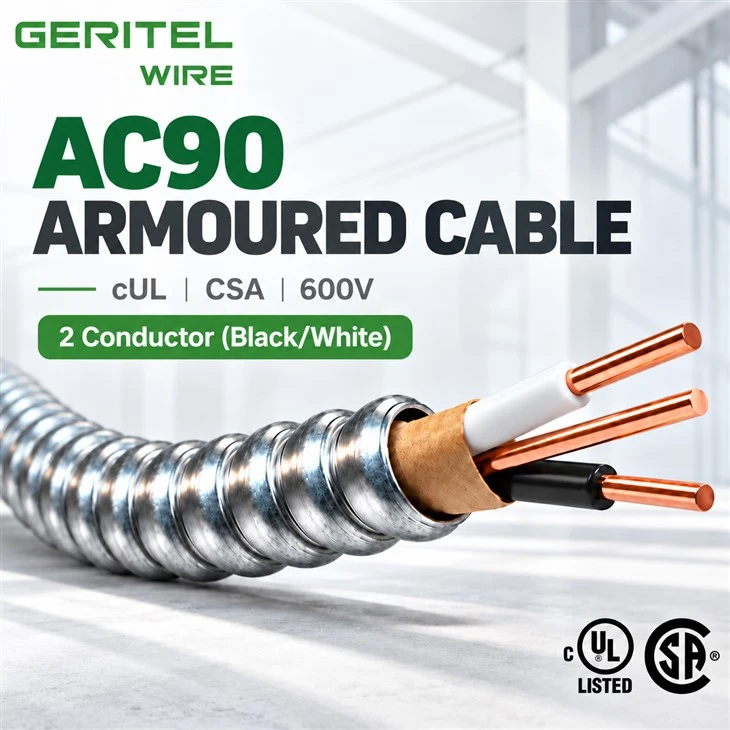

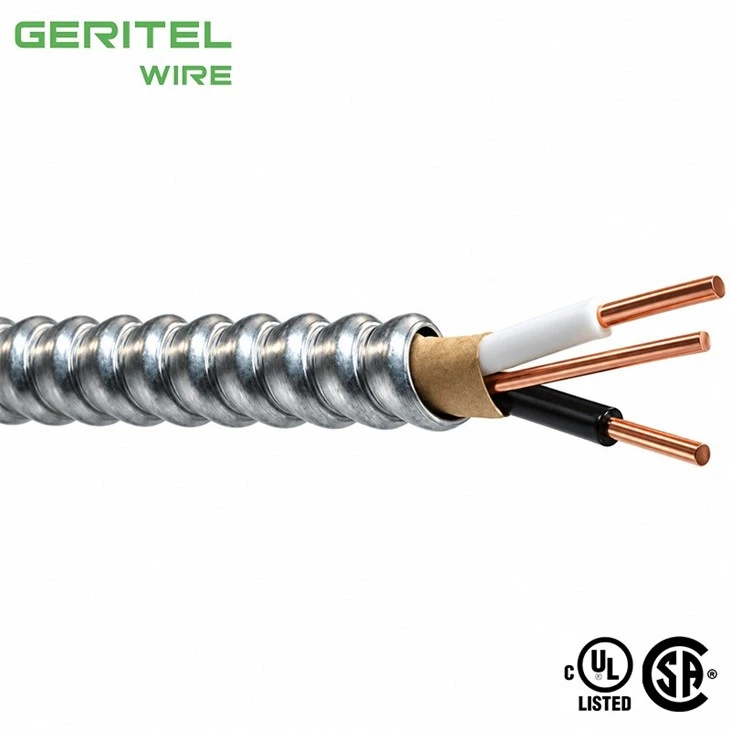

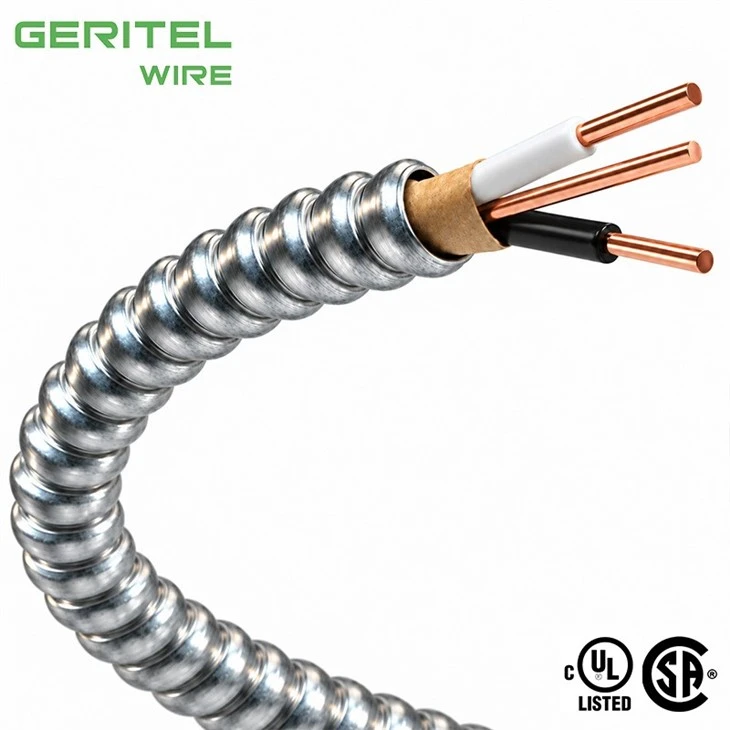

Commercial construction programs need reliable cable supply across many circuits, floors and project stages. GERITEL WIRE acts as an AC90 copper cable supplier for 600V AC90 with copper conductors, RW90 insulation, a bonding conductor and interlocked aluminum armour. The 2 conductor black/white layout supports many lighting, receptacle and general branch circuits in dry interior spaces. Buyers of commercial AC90 building wire can request custom printing, project packaging, batch documentation and scheduled production to align material supply with construction progress. The product is suited to offices, hotels, retail spaces, schools, apartments and other commercial or multi-residential building projects.

PRODUCT SPECIFICATIONS

AC90 flexible BX wire

APPLICATIONS

Manufactured, tested and certified in Canada, GERITEL WIRE AC90 armoured building wire is rated FT4-ST1 for -40°C to 90°C. Engineered specifically for demanding environments, superior flammability and smoke emission performance.

For use in ventilated, non-ventilated and ladder-type cable trays.

For dry locations, in ceiling air-handling plenums, exposed or concealed wiring and service entrance above ground.

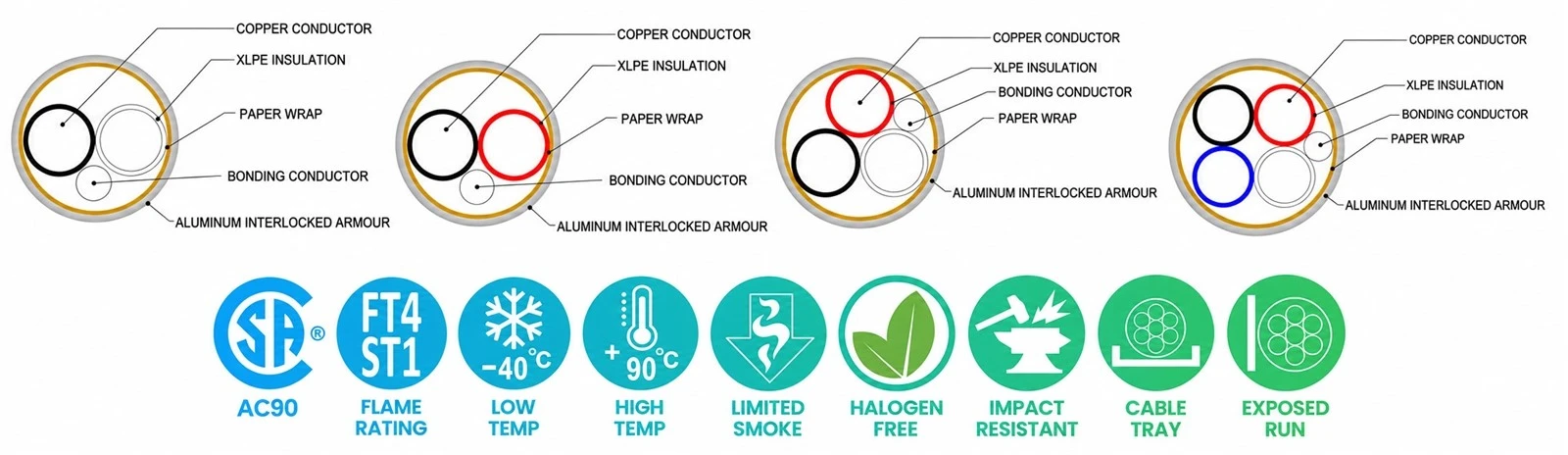

SPECIFICATIONS
Conductor	Solid Soft Copper, ASTM B3
Insulation	Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free
Colour Code	Black, White
Bonding Conductor	Solid ASTM B3 Soft Bare Copper
Armour	Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour
Specifications and Compliance	CSA C22.2 No. 51, Armoured Cables (Type AC90) CSA C22.2 No. 38 Thermoset-insulated wires and cables (Type RW90) CSA C22.2 No. 2556 FT4-ST1/UL 1685 Vertical-Tray Flame Test IEEE 383 & 1202, ICEA T-30-520 (70,000 BTU/hr) Vertical Flame Test rated -40°C Cold Bend and -40°C Cold Impact Limited Smoke and Halogen Free

AC90 & ISO-AC90 600V CSA FT4-ST1 LSZH

AC90

Power Conductor		Ground Conductor	Insulation Thickness		Armour O.D		Cable Weight		Max Pulling Tension		Min Bend Radius		Ampacity
Count	AWG	AWG	in	mm	in	mm	lbs/Mft	kg/km	lbs	kg	in	mm	A
2	14	14	0.030	0.76	0.430	10.9	81	120	66	30	6.0	151	25
2	12	14	0.030	0.76	0.454	11.5	99	148	104	47	6.4	164	30
2	10	12	0.030	0.76	0.512	13.0	138	206	166	75	6.9	174	40
3	14	14	0.030	0.76	0.445	11.3	105	156	99	45	6.2	158	25
3	12	14	0.030	0.76	0.490	12.4	130	193	157	71	6.9	174	30
3	10	12	0.030	0.76	0.535	13.6	182	271	249	113	7.5	190	40
3	8/7	10	0.045	1.14	0.714	18.1	309	460	418	190	10.0	254	55
3	6/7	8/7	0.045	1.14	0.770	19.6	417	621	702	318	10.8	274	75
3	4/7	8/7	0.045	1.14	0.940	23.9	601	894	1193	541	13.2	334	95
3	3/7	6/7	0.045	1.14	0.990	25.1	721	1073	1622	736	13.9	352	115
3	2/7	6/7	0.045	1.14	1.040	26.4	891	1326	1922	872	14.6	370	130
4	14	14	0.030	0.76	0.490	12.4	130	193	131	60	6.9	174	20
4	12	14	0.030	0.76	0.535	13.6	166	247	209	95	7.5	190	24
4	10	12	0.030	0.76	0.630	16.0	232	345	332	150	8.8	224	32

ISO-AC90

Conductor Count	Power Conductor	Ins.Ground Conductor	Ground Conductor	Insulation Thickness		Armour O.D		Cable Weight		Max Pulling Tension		Min Bend Radius		Ampacity
Conductor Count	AWG	AWG	AWG	in	mm	in	mm	lbs/Mft	kg/km	lbs	kg	in	mm	A
2	14	14	14	0.030	0.76	0.440	11.2	105	156	66	30	6.2	157	25
2	12	12	14	0.030	0.76	0.485	12.3	138	206	104	47	6.8	173	30
2	10	10	12	0.030	0.76	0.533	13.5	186	277	166	75	7.5	190	40
3	12	12	14	0.030	0.76	0.535	13.6	165	245	157	71	7.5	190	24
3	10	10	12	0.030	0.76	0.591	15.0	232	346	249	113	8.3	210	32

CERTIFICATIONS

AC90 flexible BX cable

PACKAGING

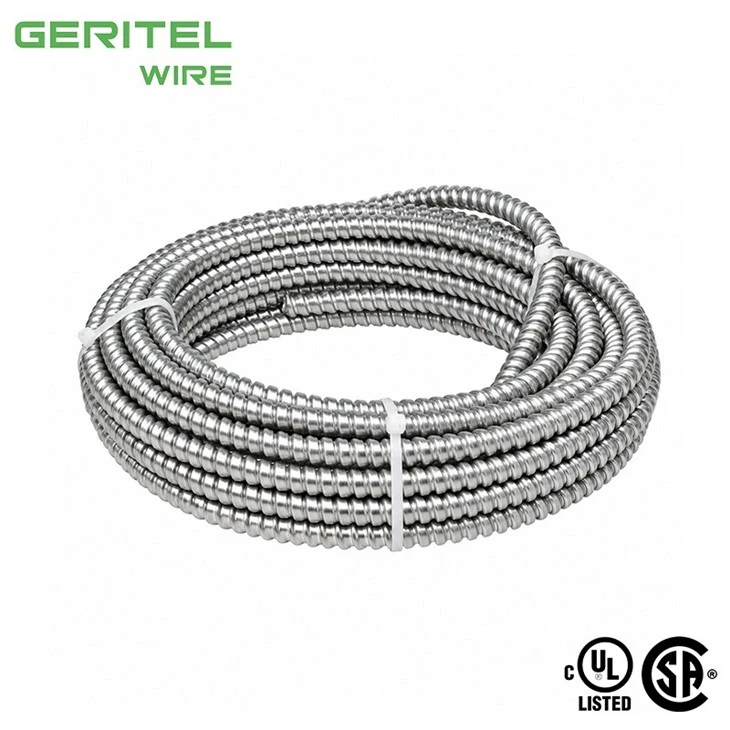

Roll

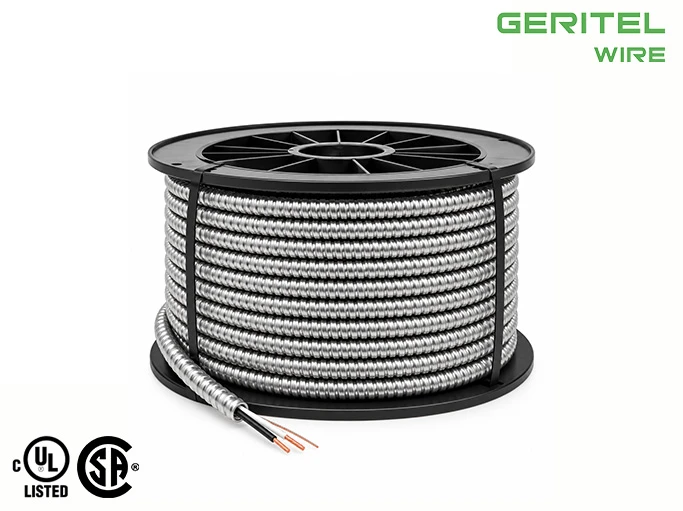

Plastic Reel

Small Wooden Reel

APPLICATION

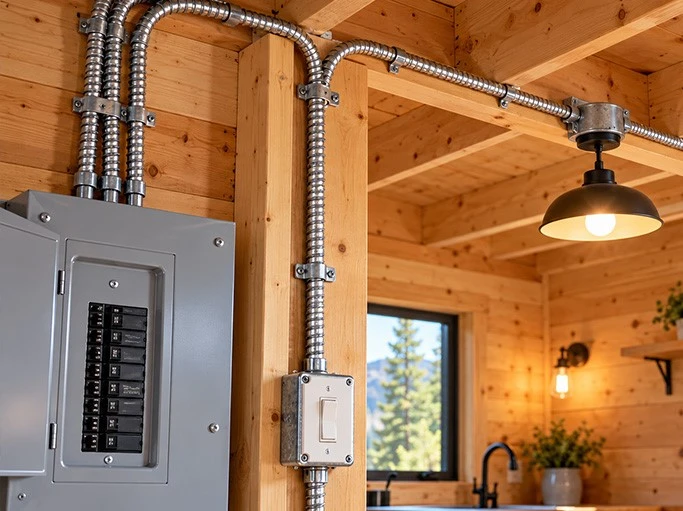

Apartment/Residential Building Electrical Distribution

Commercial Building Electrical Distribution

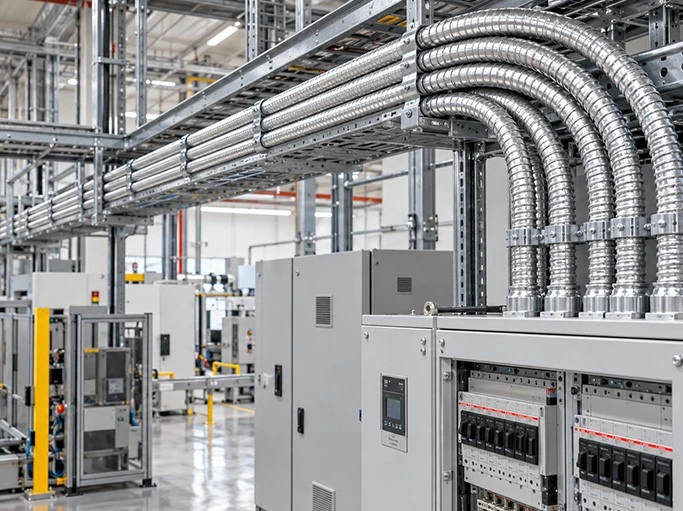

Industrial Factory Power Distribution

CASE

Calgary Alberta Multi Storey Apartment Construction Upgrade

Toronto Ontario Detached House Basement Panel Upgrade

Vancouver British Columbia Downtown Office Renovation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

AC90 vs ISO BX cable

CUSTOMER PHOTOS

AC90 standard vs ISO AC90 wire

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

AC90 dry location vs ACWU90 wet location wire

AC90 dry location vs ACWU90 wet location cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Why choose GERITEL WIRE for AC90 supply?

As an AC90 copper cable supplier, GERITEL WIRE focuses on B2B manufacturing, project consistency, custom service and documentation support. We work with distributors, contractors and project buyers that need repeatable production, clear specifications and coordinated delivery.

Can you supply AC90 for tender projects?

Yes. GERITEL WIRE can support AC90 tender cable requirements for construction tenders and distributor bids. Share the technical specification, certification requirements, estimated quantity, packaging and delivery schedule so the product can be matched correctly.

What information is needed for an AC90 quotation?

For an accurate AC90 cable quotation, please provide conductor size, conductor count, required length, quantity, certification or market requirement, packaging preference, delivery destination and any custom marking needs. This helps us prepare a project-specific offer.

Can you provide sample AC90 cable before a bulk order?

Sample arrangements for AC90 cable sample can be discussed with qualified B2B customers, depending on availability and the requested construction. Samples are useful for product evaluation but do not replace final certified production documentation.
