- Conductor: Class 1 or 2 Stranded Copper
-
Insulation: PVC (Polyvinyl Chloride)
-
Sheath： PVC (Polyvinyl Chloride)
-
Voltage Rating : Uo/U 300/500V
-
Test Voltage: AC 2kV
-
Temperature Rating Flexible: -5ºC to +70ºC
-
Temperature Rating Fixed: -40ºC to +70ºC

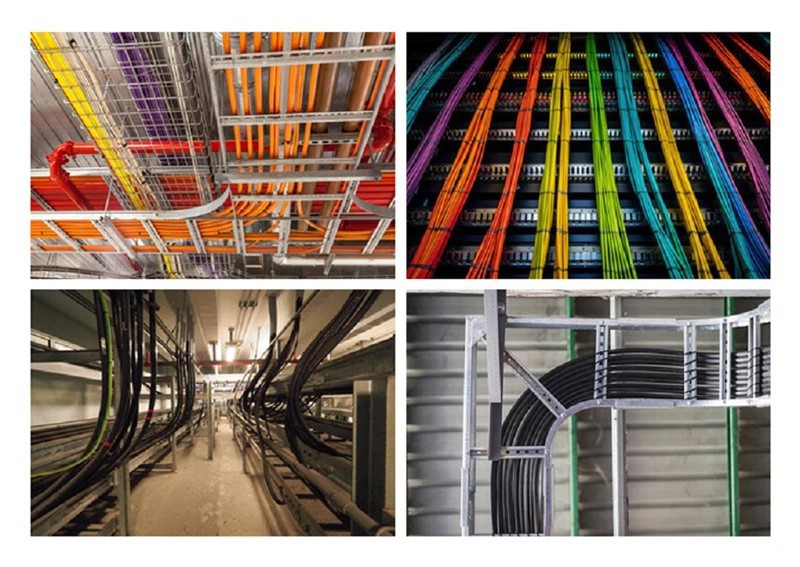

Application
NYM-J cable is certified to meet international safety and performance standards, ensuring its reliability and compliance in a wide range of electrical installations. It meets the necessary safety and performance requirements for low voltage wiring applications. It ensures the cable is suitable for industrial and domestic environments, providing protection against mechanical damage and environmental factors. The cable has passed various tests, and it can be trusted for use in indoor and outdoor environments, including concrete, brickwork and plaster installations.
Feature

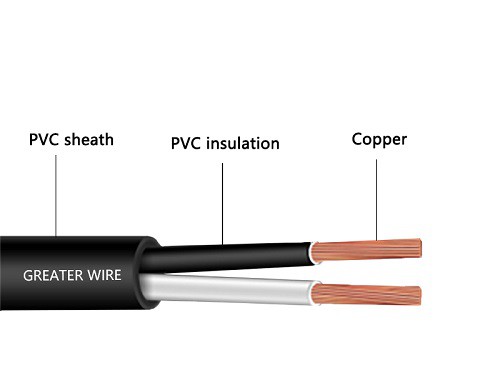

NYM-J cable is Class 1 or Class 2 stranded copper conductor, ensuring excellent conductivity while providing flexibility for installation in a variety of environments. The cable features PVC (Polyvinyl Chloride) insulation, which provides robust protection against electrical interference, mechanical damage, and environmental factors. The PVC jacket provides an additional layer of protection, enhancing the cable's overall durability and abrasion resistance, making it suitable for installation in both indoor and outdoor environments (with appropriate protection).
Certification
NYM-J cable is certified to meet international safety and performance standards, ensuring its reliability and compliance in a wide range of electrical installations. It meets the necessary safety and performance requirements for low voltage wiring applications. It ensures the cable is suitable for industrial and domestic environments, providing protection against mechanical damage and environmental factors. The cable has passed various tests, and it can be trusted for use in indoor and outdoor environments, including concrete, brickwork and plaster installations.
Package
Factory
Dongguan Greater Wire & Cable Co., Ltd. was established in 1995, it is a professional wire and cable manufacturer. Our company has advanced production equipment and production technology, complete testing equipment, and strong product technology strength. After years of hard work and the support of clients from all over the World, our company has developed rapidly and won a high honor and share in overseas markets. The company has passed the ls09001 quality management system certification, National high-tech enterprise certification, national specialization, and special new enterprise certification.
Case
Partner
FAQ
Q: What is a NYM-J cable?
Q: Can NYM-J Cables be Used in Outdoor Applications?
Hot Tags: nym-j cable, China nym-j cable manufacturers, suppliers, factory, australia cable, 3 Core TPS Cable, HO7V-R, spt 1 cable, H07ZZ F Cable, 110 elastomer cables
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL OVERALL DIAMETER mm |
NOMINAL kg/km |
| 1 | 1.5 | 5.3 | 44 |
| 1 | 2.5 | 5.8 | 57 |
| 1 | 4 | 6.5 | 79 |
| 1 | 6 | 7.05 | 101 |
| 1 | 10 | 8.2 | 152 |
| 1 | 16 | 9.25 | 213 |
| 1 | 25 | 10.95 | 310 |
| 1 | 35 | 12 | 411 |
| 2 | 1.5 | 8.2 | 106 |
| 2 | 2.5 | 9.5 | 148 |
| 2 | 4 | 11.2 | 215 |
| 2 | 6 | 12.3 | 277 |
| 2 | 10 | 15 | 429 |
| 2 | 25 | 20.5 | 873 |
| 3 | 1.5 | 8.5 | 121 |
| 3 | 2.5 | 9.95 | 174 |
| 3 | 4 | 11.8 | 258 |
| 3 | 6 | 13 | 337 |
| 3 | 10 | 15.85 | 528 |
| 3 | 16 | 18.1 | 731 |
| 3 | 25 | 22.2 | 1.115 |
| 3 | 35 | 24.45 | 1.462 |
| 4 | 1.5 | 9.8 | 160 |
| 4 | 2.5 | 11.05 | 218 |
| 4 | 4 | 13.7 | 341 |
| 4 | 6 | 14.7 | 431 |
| 4 | 10 | 17.4 | 654 |
| 4 | 16 | 19.8 | 907 |
| 4 | 25 | 24.3 | 1383 |
| 4 | 35 | 26.85 | 1825 |
| 5 | 1.5 | 10.6 | 187 |
| 5 | 2.5 | 11.95 | 255 |
| 5 | 4 | 14.2 | 379 |
| 5 | 6 | 15.7 | 501 |
| 5 | 10 | 18.8 | 771 |
| 5 | 16 | 22.05 | 1110 |
| 5 | 25 | 26.65 | 1661 |
| 5 | 35 | 30.4 | 2276 |
| 7 | 1.5 | 12.5 | 269 |
| 7 | 2.5 | 12.8 | 320 |
| 10 | 1.5 | 12.85 | 302 |
| 12 | 1.5 | 13.55 | 344 |
