Conductor:
Stranded Bare Copper per ASTM B-3, B-8
- Insulation: XLPE
14 AWG -.030"
12 AWG -.030"
- Jacket- PVC or HDPE
14 AWG -.030"
12 AWG-.030"
- Voltage Rating: 600 V
- Temp. Rating: 75℃
Application
IMSA 51-7 Tube Loop Detector Cable is widely used in parking management and access control systems. The cable connects the induction coil buried in the ground with the control device. When a vehicle passes through or stays in the detection area, the induction coil generates a signal and transmits it to the controller, thereby realizing the automatic opening and closing of the gate or railing. The cable's XLPE insulation layer and PVC or HDPE sheath provide the system with excellent weather resistance and mechanical strength, suitable for long-term outdoor and underground environments.
Feature
IMSA 51-7 tube loop detector cable features premium XLPE (cross-linked polyethylene) insulation for enhanced resistance to heat, moisture, and electrical stress, ensuring reliable operation even in harsh environmental conditions. Conductors are available in 14 AWG and 12 AWG sizes with a consistent 0.030-inch insulation thickness, providing uniform electrical performance and dielectric strength. To protect against mechanical damage and environmental exposure, IMSA 51-7 cables feature either PVC (polyvinyl chloride) or HDPE (high-density polyethylene) jacketing.
Certification
IMSA 51-7 tube loop detector cables are UL certified, ensuring superior efficiency, reliability, and safety in traffic signal and vehicle detection systems. The UL certification confirms that the cables meet stringent industry standards for electrical performance and safety, reducing the risk of system failures and potential hazards. By using UL-certified cables, system designers can minimize unnecessary redundancy, enhance signal transmission accuracy, and improve the overall design and operational efficiency of the system.
Package
Production Line
Greater Wire Manufacturer has a highly professional and experienced sales team dedicated to providing comprehensive pre-sales and after-sales services. By actively listening to customer feedback, Greater Wire can gain valuable insights into the performance of its products under real-world conditions, identify potential problems in a timely manner, and implement effective solutions to improve product reliability and functionality. Greater Wire regularly conducts customer satisfaction surveys to collect detailed information on various aspects, including product quality, delivery speed, technical support, and overall service experience.
customer
Partner
FAQ
Q: Where is your factory?
A: Our factory is located in Dongguan City, Guangdong Province, China. Welcome to visit!
Q: How long is your delivery time to complete the order?
Hot Tags: traffic imsa 51-7 tube loop detector cable, China traffic imsa 51-7 tube loop detector cable manufacturers, suppliers, factory, nmd90, Super Flexible Welding Cable, h05vv-f, 3 Core TPS Cable, multicore flexible cable, ul thhn wire

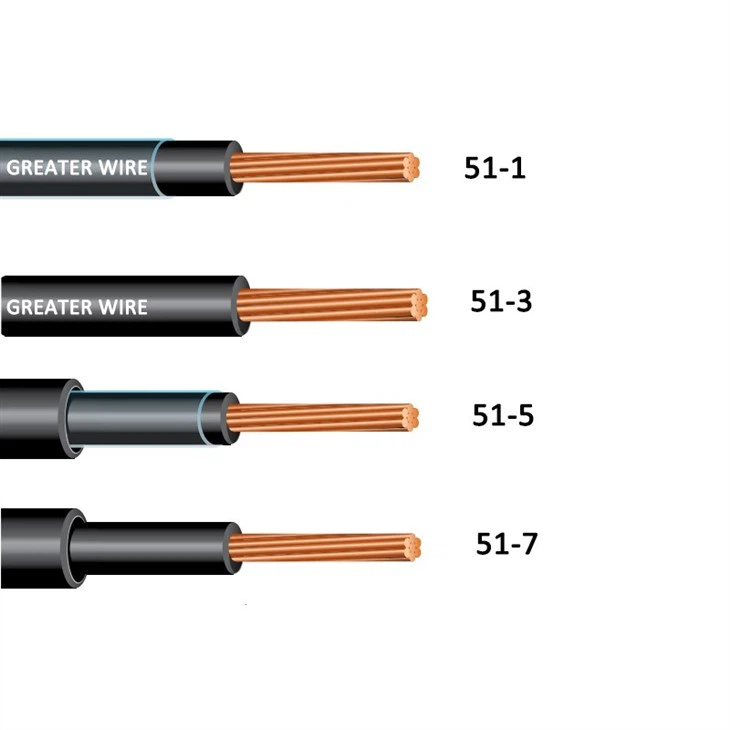

51-5 Tube Loop Detector Cable
| NO. OF COND | OUTER JKT THICKNESS | NOMINAL O.D. | WEIGHT lbs. / 1M' |
||
| INCH | mm | INCH | mm | ||
| PVC | |||||
| 14 | .030 | .762 | .250 | 6.35 | 30 |
| 12 | .030 | .762 | .250 | 6.35 | 36 |
| HDPE | |||||
| 14 | .030 | .762 | .250 | 6.35 | 22 |
| 12 | .030 | .762 | .250 | 6.35 | 29 |

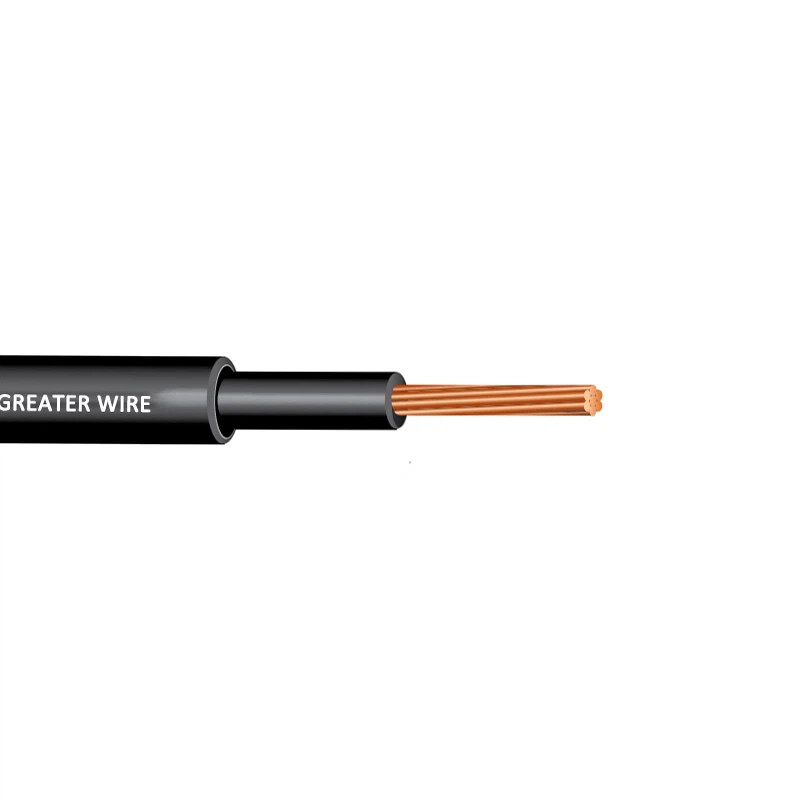

51-7 Tube Loop Detector Cable
| NO. OF COND |
OUTER JKT THICKNESS | NOMINAL O.D. | WEIGHT lbs./1M' | ||
| INCH | mm | INCH | mm | ||
| PVC | |||||
| 14 | .030 | .762 | .133 | 3.38 | 17 |
| 12 | .030 | .762 | .150 | 3.81 | 26 |
| HDPE | |||||
| 14 | .030 | .762 | .191 | 4.85 | 26 |
| 12 | .030 | .762 | .213 | 5.33 | 31 |
