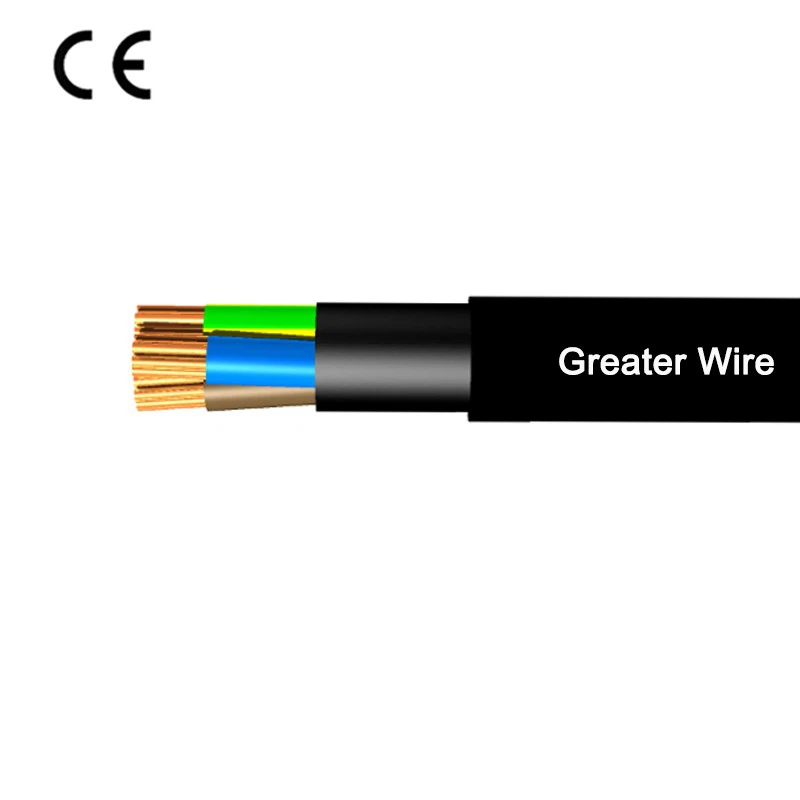

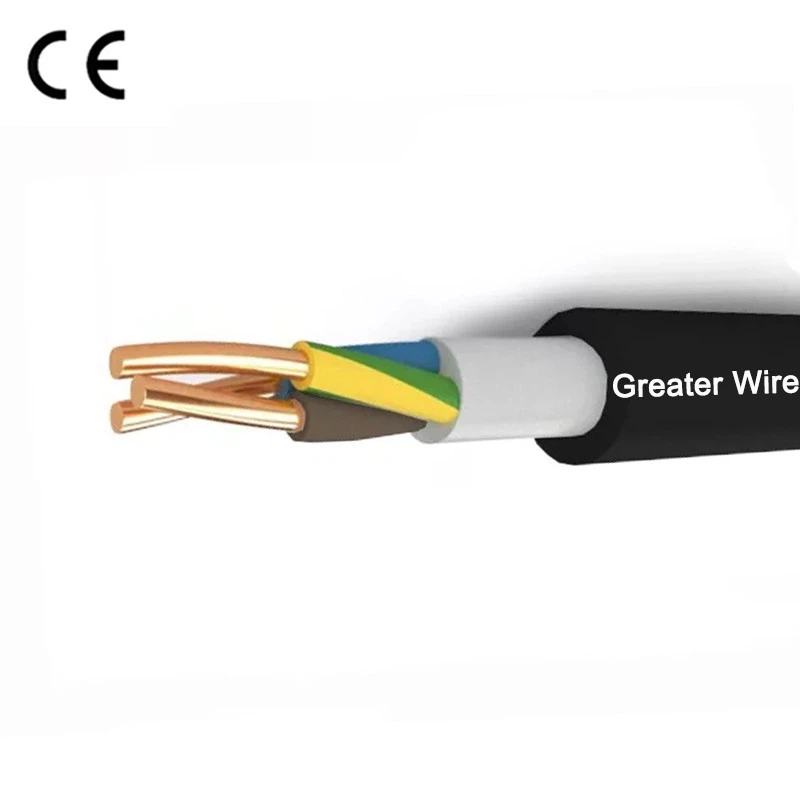

N2XH Cable

Conductor: Copper conductor
Insulation: Halogen-free cross-linked insulation
Filler: HFFR bedding
Sheath: HFFR sheath
Rated voltage Uo/U : 0.6/1 kV
Test voltage: 4 (AC) kV
Temperature range: -40 up to 90 °C
Standard: VDE 0276-604 5G

Application

N2XH cables are made with halogen-free cross-linked insulation and HFFR lining and jacket, specially designed to minimize the release of toxic gases and smoke in the event of a fire, making them a safe choice for installations in sensitive environments.
The cables are suitable for indoor and outdoor applications, especially in areas with strict fire safety regulations, such as public buildings, hospitals, schools, industrial plants and underground facilities. The 0.6/1 kV rated voltage makes them ideal for medium voltage power distribution, control circuits and lighting systems in commercial and industrial facilities.

Feature

N2XH cables feature copper conductors, ensuring excellent electrical conductivity, and making them suitable for power distribution in industrial and commercial environments. The insulation is made of halogen-free, cross-linked material, providing increased safety and environmental protection in the event of a fire, without the generation of toxic gases.
The filling consists of an HFFR (Halogen Free Fire Retardant) matting, which enhances the mechanical strength and fire resistance of the cable. This matting ensures that the cable remains intact even in extreme conditions. The outer jacket is also made of HFFR material, which provides additional protection against abrasion, chemicals, and other environmental factors while maintaining the halogen-free nature of the cable.

Certification

Our products have passed UL, SAA, TUV, VDE, CE, CB and other certifications. Our company has corresponding certifications for each region. We have more than 10 years of experience in foreign trade export, exporting to more than 90 countries around the world, and are familiar with the wire and cable specifications and standards of many countries.

Package

n2xh-j cable package

Production Line

Dongguan Greater Wire & Cable Co., Ltd. was established in 1995, it is a professional wire and cable manufacturer. Our company has advanced production equipment and production technology, complete testing equipment, and strong product technology strength. After years of hard work and the support of clients from all over the World, our company has developed rapidly and won a high honor and share in overseas markets. The company has passed the ls09001 quality management system certification, National high tech enterprise certification, national specialization, and special new enterprise certification.

customer

As a wire and cable manufacturer with more than 10 years of export experience, we have supplied wires and cables to more than 90+ countries around the world. We serve global customers and are familiar with the wire and cable standards of various countries. We have agents and electrical engineers in multiple regions to ensure local support and expertise.

power cable factory

Partner

greater wire Partner

FAQ

Q: What is N2XH?

A: N2XH cable is a halogen-free cross-linked low-voltage power cable with a rated voltage of typically 0.6/1 kV. It is typically used in indoor and outdoor electrical equipment with high fire protection and environmental protection requirements.

Q: What is the difference between N2XH and NYY J?

A: N2XH cable insulation is halogen-free cross-linked polyethylene (XLPE) or similar material, and the sheath is halogen-free fire resistant (HFFR) material, mainly reducing the release of toxic gases in the event of a fire, and is very suitable for installations that prioritize fire protection, environmental protection, and halogen-free properties.
NYY-J cable insulation is PVC (polyvinyl chloride) and the sheath is PVC. More suitable for general, less sensitive applications where the focus is on mechanical strength and cost-effectiveness, but fire protection may not be as important.

Hot Tags: n2xh cable, China n2xh cable manufacturers, suppliers, factory, ac cable, cul standard rw75 rw90 rwu75 rwu90 cable, ul thhn wire, single core cable, NMD90 Cable, SAA Approval SDI Cable

N2XH

No. of cores and cross-section	Shape of conductor	Diameter (height) of conductor	Thickness - nominal insulation	Thickness - nominal sheath	Diameter informative	Weight informative	Minimal radius of bend	Max. permitted pulling force
mm²		mm	mm	mm	mm	kg/km	mm	N
1*1.5	RE	1.3	0.7	1.2	5.2	40	78	75
1*2.5	RE	1.7	0.7	1.2	5.6	53	84	125
1*4	RE	2.2	0.7	1.2	6.1	68	91	200
1*6	RE	2.7	0.7	1.2	6.5	89	98	300
1*10	RE	3.5	0.7	1.2	7.3	129	110	500
1*16	RE	4.4	0.7	1.2	9	206	131	800
1*16	RMV	4.7	0.7	1.2	9	209	135	800
1*25	RMV	5.9	0.9	1.2	11	311	159	1250
1*35	RMV	7.0	0.9	1.2	12	408	176	1750
1*50	RMV	8.2	1.0	1.2	13	534	197	2500
1*70	RMV	10.0	1.1	1.2	15	743	227	3500
1*95	RMV	11.7	1.1	1.3	17	1002	255	4750
1*120	RMV	13.2	1.2	1.3	19	1243	281	6000
1*150	RMV	14.6	1.4	1.3	21	1509	309	7500
1*185	RMV	16.4	1.6	1.4	23	1882	345	9250
1*240	RMV	18.6	1.7	1.4	25	2422	381	12000
1*300	RMV	21.1	1.8	1.5	28	3015	425	15000
1*400	RMV	24.2	2.0	1.5	32	3820	477	20000
1*500	RMV	27.3	2.2	1.6	36	4866	533	25000
2*1.5	RE	1.3	0.7	1.2	9.5	126	114	150
2*2.5	RE	1.7	0.7	1.2	10.2	156	123	250
2*4	RE	2.2	0.7	1.2	11.2	200	134	400
2*6	RE	2.7	0.7	1.2	12.2	253	146	600
2*10	RE	3.5	0.7	1.2	13.8	355	165	1000
3*1.5	RE	1.3	0.7	1.2	9.9	148	119	225
3*2.5	RE	1.7	0.7	1.2	10.7	187	129	375
3*4	RE	2.2	0.7	1.2	11.7	244	141	600
3*6	RE	2.7	0.7	1.2	12.8	315	153	900
3*10	RE	3.5	0.7	1.2	14.5	459	174	1500
3*16	RE	4.4	0.7	1.3	16	661	197	2400
3*25	RMV	5.9	0.9	1.3	21	1056	252	3750
3*35	RMV	7.0	0.9	1.4	24	1399	282	5250
3*50	SM	6.8	1.0	1.4	24	1656	292	7500
3*70	SM	8.2	1.1	1.5	28	2291	335	10500
3*95	SM	9.6	1.1	1.6	31	3058	373	14250
3*120	SM	10.8	1.2	1.7	35	3839	418	18000
3*150	SM	12.2	1.4	1.7	39	4696	463	22500
3*185	SM	13.6	1.6	1.8	43	5856	517	27750
3*240	SM	15.6	1.7	1.9	48	7546	577	36000
3*25+16	RMV/RE	5.9/4.4	0.9/0.7	1.4	22	1233	263	4550
3*35+16	SM/RE	6.3/4.4	0.9/0.7	1.4	23	1472	277	6050
3*50+25	SM/RMV	7.3/5.9	1.0/0.9	1.5	26	1994	317	8750
3*70+35	SM	8.8/7.6	1.1/0.9	1.5	30	2682	362	12250
3*95+50	SM	10.5/9.2	1.1/1.0	1.6	34	3591	412	16750
3*120+70	SM	11.6/10.9	1.2/1.1	1.7	38	4569	454	21500
3*150+70	SM	13.2/10.9	1.4/1.1	1.8	43	5463	510	26000
3*185+95	SM	14.6/12.9	1.6/1.1	1.9	47	6875	565	32500
3*240+120	SM	16.9/14.3	1.7/1.1	2.0	53	8823	636	42000
4*1.5	RE	1.3	0.7	1.2	10.6	171	127	300
4*2.5	RE	1.7	0.7	1.2	11.6	222	139	500
4*4	RE	2.2	0.7	1.2	12.7	293	153	800
4*6	RE	2.7	0.7	1.2	13.9	383	166	1200
4*10	RE	3.5	0.7	1.3	16.0	567	192	2000
4*16	RE	4.4	0.7	1.3	18	835	215	3200
4*35	SM	6.3	0.9	1.4	23	1630	277	7000
4*50	SM	7.3	1.0	1.5	26	2163	317	10000
4*70	SM	9.0	1.1	1.6	31	3010	371	14000
4*95	SM	10.6	1.1	1.7	35	4041	416	19000
4*120	SM	11.8	1.2	1.7	38	5040	458	24000
4*150	SM	13.4	1.4	1.8	43	6196	515	30000
4*185	SM	15.1	1.6	1.9	48	7729	580	37000
4*240	SM	17.4	1.7	2.0	54	9974	649	48000
5*1.5	RE	1.3	0.7	1.2	11.6	200	139	375
5*2.5	RE	1.7	0.7	1.2	12.4	258	149	625
5*4	RE	2.2	0.7	1.2	13.7	347	164	1000
5*6	RE	2.7	0.7	1.2	15.0	463	180	1500
5*10	RE	3.5	0.7	1.3	17.4	694	208	2500
5*16	RE	4.4	0.7	1.3	20	1049	235	4000
5*25	RMV	5.9	0.9	1.4	25	1681	305	6250
5*35	RMV	7.0	0.9	1.5	29	2241	343	8750
5*50	RMV	8.2	1.0	1.6	33	3003	396	12500
5*50	SM	7.9	1.0	1.6	31	2742	367	12500
5*70	RMV	10.0	1.1	1.6	38	4191	461	17500
5*70	SM	9.7	1.1	1.6	36	3801	427	17500
5*95	RMV	11.7	1.1	1.7	43	5614	518	23750
5*95	SM	11.0	1.1	1.7	39	5059	469	23750
5*120	RMV	13.2	1.2	1.8	48	7063	581	30000
5*120	SM	12.6	1.2	1.8	44	6359	530	30000

RE - Conductor class 1 - round solid;

RMV - Conductor class 2 - round stranded compacted;

SM - Conductor class 2 -sector-shaped stranded

Force is distributed over all cable conductors;

Force for the pulling head or conductor grip
