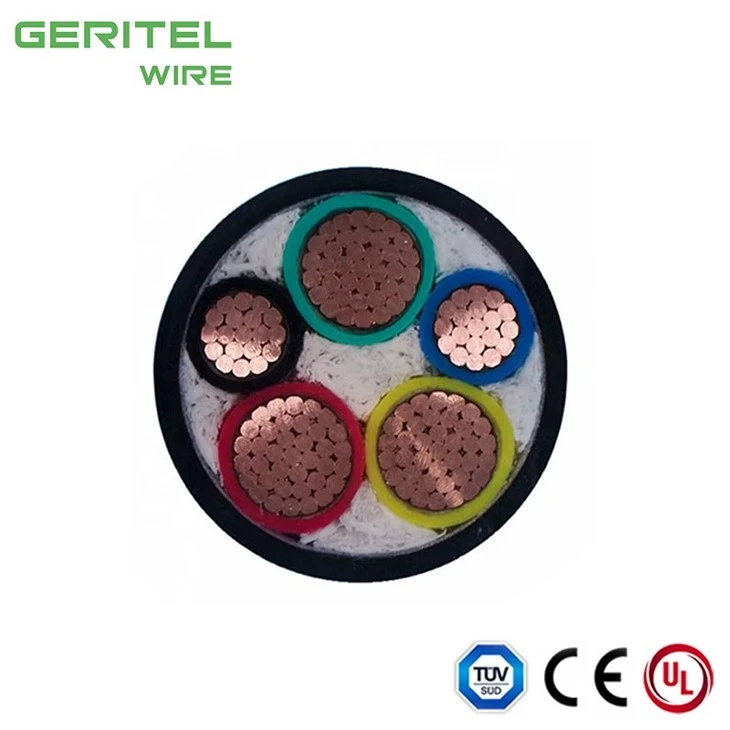

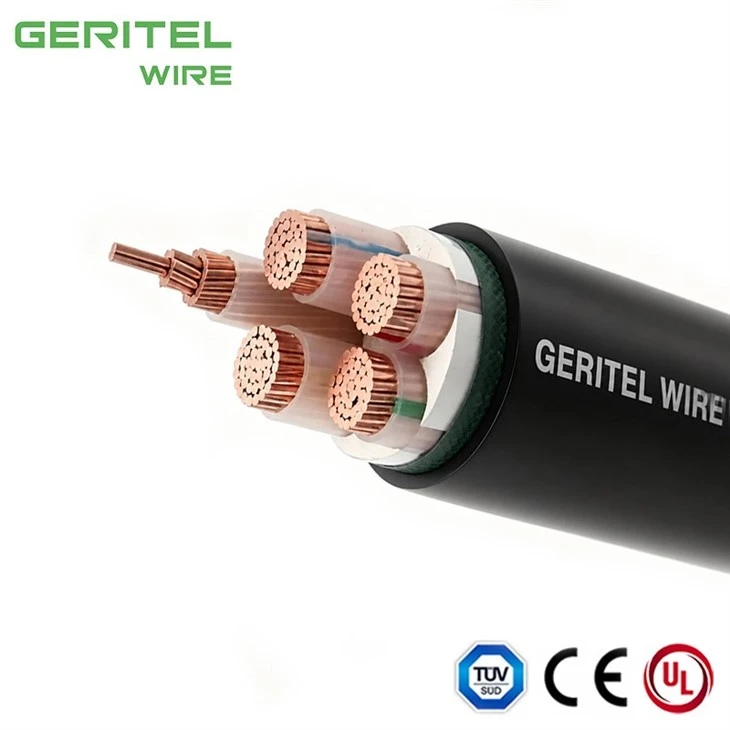

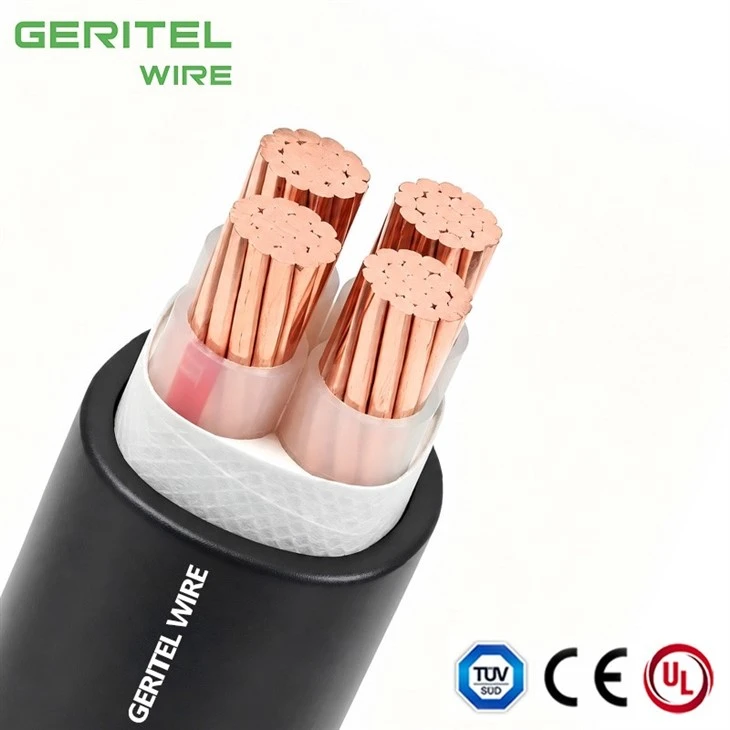

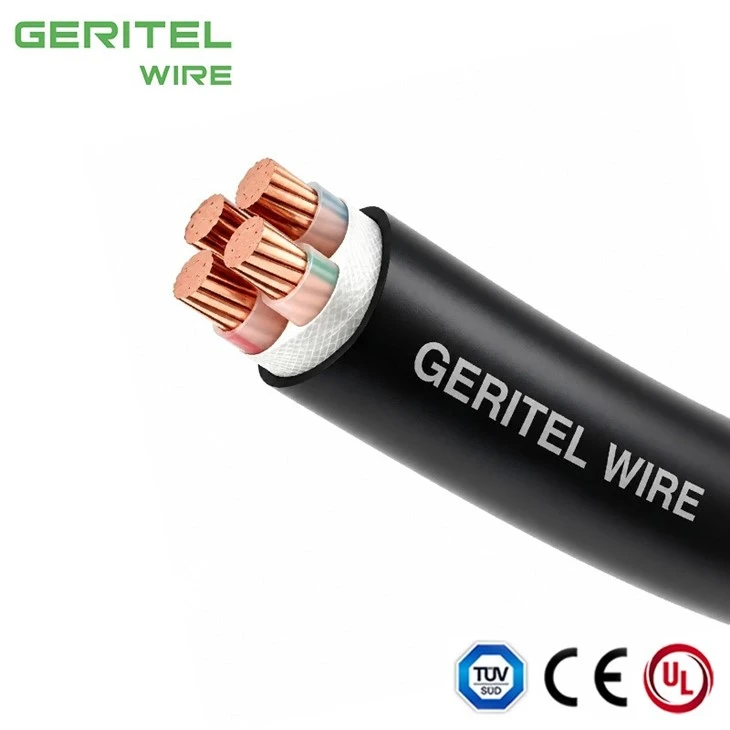

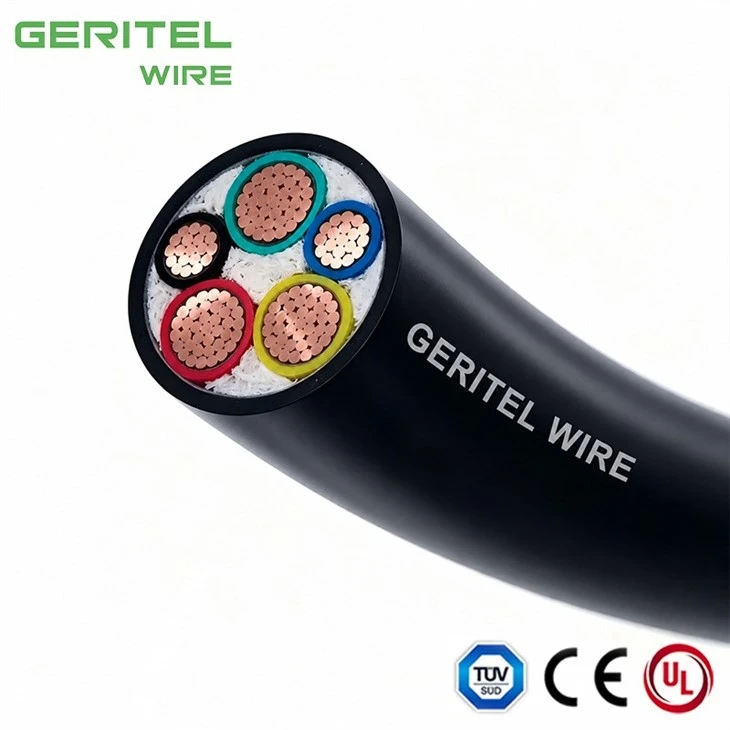

Copper XLPE Cable Ghana For Building, Factory And Utility Feeders

Copper XLPE Cable Ghana For Building, Factory And Utility Feeders
Details:
·Conductor:RE: Class 1 solid copper conductor RM: Class 2 stranded circular or circular compacted SM: Class 2 stranded sectoral shaped
·Insulation: XLPE (Cross-Linked Polyethylene)
·Bedding: PVC (Polyvinyl Chloride)
·Sheath: PVC (Polyvinyl Chloride)
·Voltage Rating Uo/U: 0.6/1kV
·Temperature Rating:During installation -5℃ to +50℃ Fixed Installation: -20℃ to +90℃
·Standards：IEC 60502-1, Gen to VDE 0276-603, IEC/EN 60228 Flame retardant according to IEC/EN 60332-1-2
Send Inquiry
Download
Description
Technical Parameters
Certification

prix câble électrique non armé 1 kV Bénin

PRODUCT REAL SHOT



fournisseur câble électrique non armé 1 kV Bénin
fabricant câble électrique non armé 1 kV Bénin
grossiste câble électrique non armé 1 kV Bénin

câble électrique non armé 1 kV fiche technique Bénin

Ghana 0.6/1kV power cable exporter with project drums and test documents
This Ghana landing page is built for contractors and dealers searching for copper XLPE cable for reliable fixed low-voltage distribution. The cable architecture is Cu/XLPE/PVC: copper for conductivity, XLPE for electrical and thermal performance, and PVC for external protection. Buyers using the phrase Cu XLPE PVC cable supplier Accra can compare this exact construction without mixing it with aluminium, armoured, LSZH or Class 5 flexible cable. The construction can support offices, apartments, manufacturing sites, hospitals, water systems and utility auxiliaries when installed with suitable protection. The designer remains responsible for route protection, bending, grouping, ambient correction and any exposed outdoor conditions.
PRODUCT SPECIFICATIONS



câble électrique non armé 1 kV catalogue Bénin

Applications



These power and fixed wiring cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.

SPECIFICATIONS
Voltage Rating Uo/U 0.6/1kV
Temperature Rating

During installation -5°C to +50°C

Fixed Installation: -20°C to +90°C
Minimum Bending Radius Fixed: 12 x overall diameter
Conductor

RE: Class 1 solid copper conductor

RM: Class 2 stranded circular or circular compacted

SM: Class 2 stranded sectoral shaped
Insulation XLPE (Cross-Linked Polyethylene)
Bedding PVC (Polyvinyl Chloride)
Sheath PVC (Polyvinyl Chloride)
Core Identification

3 core: Green/Yellow,Blue,Brown4 core

4 core: Green/Yellow,Brown,Black,Grey

5 core: Green/Yellow,Blue,Brown,Black,Grey

7 cores and above: Black cores and,White numbers
Sheath Colour Black
STANDARDS IEC 60502-1, Gen to VDE 0276-603, IEC/EN 60228 Flame retardant according to IEC/EN 60332-1-2

DIMENSIONS

NO. OF
CORES

NOMINALCROSS

SECTIONALAREA

mm²

CONDUCTOR

TYPE

NOMINAL

THICKNESS

OF INSULATION

mm

NOMINAL

THICKNESS

OF SHEATH

mm²

NOMINAL OVERALL

DIAMETER

mm

NOMINAL WEIGHT

kg/km
1 16 RM 0.7 1.8 9.8 216
1 25 RM 0.9 1.8 11.5 318
1 35 RM 0.9 1.8 12.6 415
1 50 RM 1 1.8 14.1 543
1 70 RM 1.1 1.8 15.6 746
1 95 RM 1.1 1.8 17.6 1000
1 120 RM 1.2 1.8 19.2 1239
1 150 RM 1.4 1.8 21.2 1515
1 185 RM 1.6 1.8 23.1 1872
1 240 RM 1.7 1.8 25.8 2403
1 300 RM 1.8 1.8 2.78 2974
1 400 RM 2 1.9 31.1 3834
1 500 RM 2.2 2 34.9 4892
1 630 RM 2.8 2.8 46.6 6544
2 1.5 RE 0.7 1.8 10.1 145
2 2.5 RE 0.7 1.8 10.9 179
2 4 RE 0.7 1.8 11.8 226
2 6 RE 0.7 1.8 12.8 284
2 6 RM 0.7 1.8 13.1 295
2 10 RM 0.7 1.8 15 416
2 16 RM 0.7 1.8 17 581
2 25 RM 0.9 1.8 20.4 859
2 35 RM 0.9 1.8 22.5 1109
3 1.5 RE 0.7 1.8 10.5 162
3 2.5 RE 0.7 1.8 11.4 205
3 4 RE 0.7 1.8 12.4 265
3 6 RE 0.7 1.8 13.4 338
3 10 RM 0.7 1.8 15.8 505
3 16 RM 0.7 1.8 18 719
3 25 RM 0.9 1.8 21.6 1072
3 35 RM 0.9 1.8 23.9 1403
3 50 SM 1 1.9 23.8 1581
3 16/10 SM 0.7 1.8 19.8 875.5
3 25/16 SM 0.9/0.7 1.8 22.4 1223
3 35/16 SM 0.9/0.7 1.8 24.3 1557
3 50/25 SM 1/0.9 1.9 26.9 1863
3 70/35 SM 1.1/0.9 2 30 2594
3 95/50 SM 1.1/1 2.2 33.8 3505
3 120/70 SM 1.2/1.1 2.3 37 4440
3 150/70 SM 1.4/1.1 2.4 41.6 5333
3 185/95 SM 1.6/1.1 2.6 45.8 6701
3 240/120 SM 1.7/1.2 2.8 51.6 8674
3 300/150 SM 1.8/1.4 3 67.2 10624
4 1.5 RE 0.7 1.8 11.3 188
4 2.5 RE 0.7 1.8 12.2 240
4 4 RE 0.7 1.8 13.3 314
4 6 RE 0.7 1.8 14.5 408
4 10 RE 0.7 1.8 17.1 615
4 16 RE 0.7 1.8 19.6 885
4 25 RE 0.9 1.8 23.7 1330
4 35 RE 0.9 1.8 26.2 1758
4 50 SM 1 2 27.1 2082
4 70 SM 1.1 2.1 31.4 2937
4 95 SM 1.1 2.2 35 3955
4 120 SM 1.2 2.4 39.3 4979
4 150 SM 1.4 2.6 43.6 6129
4 185 SM 1.6 2.7 48 7591
4 240 SM 1.7 2.9 53.9 9875
4 300 SM 1.8 2.6 68.9 15124
5 1.5 RE 0.7 1.8 12.1 218
5 2.5 RE 0.7 1.8 13.1 281
5 4 RE 0.7 1.8 14.3 372
5 6 RE 0.7 1.8 15.6 486
5 10 RM 0.7 1.8 18.6 740
5 16 RM 0.7 1.8 21.3 1071
5 25 RM 0.9 1.8 25.9 1619
5 35 RM 0.9 1.8 28.8 2138
5 50 RM 1 2.1 29.4 2578
5 70 RM 1.1 2.2 33.7 3616
5 95 RM 1.1 2.4 38.6 4933
5 120 RM 1.2 2.5 42.6 6153
5 150 RM 1.4 2.7 47.7 7587
5 185 RM 1.6 2.9 52.8 9454
5 240 RM 1.7 3.1 58.7 12242
7 1.5 RE 0.7 1.8 12.9 260
7 2.5 RE 0.7 1.8 14 342
7 4 RE 0.7 1.8 15.4 461
10 1.5 RE 0.7 1.8 15.6 357
10 2.5 RE 0.7 1.8 17.2 475
10 4 RE 0.7 1.8 19 646
12 1.5 RE 0.7 1.8 16.1 394
12 2.5 RE 0.7 1.8 17.6 528
14 1.5 RE 0.7 1.8 16.8 436
14 2.5 RE 0.7 1.8 18.5 592
16 4 RM 0.7 1.8 23 971
19 1.5 RE 0.7 1.8 18.4 543
19 2.5 RE 0.7 1.8 20.3 746
24 1.5 RE 0.7 1.8 21.2 675
24 2.5 RE 0.7 1.8 23.4 931
30 1.5 RE 0.7 1.8 22.3 788
30 2.5 RM 0.7 1.8 26.3 7764
40 1.5 RE 0.7 1.8 24.6 995
40 2.5 RE 0.7 1.9 27.5 1416

CONDUCTORS

Class 1 Solid Conductors for Single-Core and Multi-Core Cables

NOMINAL CROSSS

ECTIONAL AREA

mm²

MAXIMUM RESISTANCE OF CONDUCTOR AT 20°C

ohms/km
Circular, Annealed Copper Conductors
Plain
0.5 36
0.75 24.5
1 18.1
1.5 12.1
2.5 7.41
4 4.61
6 3.08



Class 2 Stranded Conductors for Single-Core and Multi-Core Cables

NOMINAL CROSS

SECTIONAL AREA

mm²

 MINIMUM NO. OF WIRES IN THE CONDUCTOR

MAXIMUM RESISTANCE OF CONDUCTOR AT 20°C

ohms/km
Circular Circular Compacted Annealed Copper Conductors
Cu Cu Plain Wires
4 7 6 4.51
6 7 6 3.08
10 7 6 1.83
16 7 6 1.15
25 7 6 0.727
35 7 6 0.524
50 19 6 0.387
70 19 12 0.268
95 19 15 0.193
120 37 18 0.153
150 37 18 0.124
185 37 30 0.0991
240 37 34 0.0754
300 61 34 0.0601
400 61 53 0.0470
500 61 53 0.0366

ELECTRICAL CHARACTERISTICS

Current Carrying Capacity at 30°C

NOMINAL CROSS

SECTIONAL AREA

mm²

 SINGLE CORE

2-40 CORE

Amps
In Ground In Air In Ground In Air
Flat Trefoil Flat Trefoil
1.5 - - - - 31 24
2.5 - - - - 40 32
4 82 54 57 44 52 42
6 102 67 72 56 64 53
10 136 89 99 77 86 74
16 176 115 131 102 112 98
25 229 148 177 138 145 133
35 275 177 217 170 174 162
50 326 209 265 207 206 197
70 400 256 336 263 254 250
95 480 307 415 325 305 308
120 548 349 485 380 348 359
150 616 393 557 437 392 412
185 698 445 646 507 444 475
240 815 517 774 604 517 564
300 927 663 901 697 585 649
400 1064 749 1060 811 - -
500 1227 843 1252 940 - -

DE-RATING FACTORS

For Ground Temperatures other than 20°C

AIR TEMPERATURE 10°C 15°C 20°C 25°C 30°C 35°C 40°C 45°C 50°C
DE-RATING FACTOR 1.07 1.04 1.00 0.96 0.93 0.89 0.85 0.80 0.76



For Air Temperatures other than 30°C

AIR TEMPERATURE 20°C 25°C 30°C 35°C 40°C 45°C 50°C 55°C 60°C
DE-RATING FACTOR 1.08 1.04 1.00 0.96 0.91 0.87 0.82 0.76 0.71
CERTIFICATIONS



câble électrique non armé 1 kV IEC 60502-1 Bénin

PACKAGING



câble électrique non armé 1 kV courant admissible Bénin

Roll

câble U-1000 R2V 0,6/1 kV Togo

Small Wooden Reel

prix câble U-1000 R2V 0,6/1 kV Togo

Steel Wooden Reel

APPLICATION



fournisseur câble U-1000 R2V 0,6/1 kV Togo
High-Rise Commercial Building Main Power Distribution
fabricant câble U-1000 R2V 0,6/1 kV Togo
Industrial Plant Low-Voltage Power Distribution
grossiste câble U-1000 R2V 0,6/1 kV Togo

Municipal Water Treatment and Pumping Station Power Supply



CASE



câble U-1000 R2V 0,6/1 kV fiche technique Togo

Babanusa–Adila Power Transmission Project

câble U-1000 R2V 0,6/1 kV catalogue Togo

Italy Electricity Test Project

câble U-1000 R2V 0,6/1 kV IEC 60502-1 Togo

Oyu Tolgoi Copper Mine Project

WHY CHOOSE US



30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

câble U-1000 R2V 0,6/1 kV courant admissible Togo

15K
Finished Projects
150+
professional staff
15K
happy clients
92+
awards & certifacates
PLANT EQUIPMENT



câble cuivre XLPE PVC Togo

prix câble cuivre XLPE PVC Togo

fournisseur câble cuivre XLPE PVC Togo

fabricant câble cuivre XLPE PVC Togo

grossiste câble cuivre XLPE PVC Togo

câble cuivre XLPE PVC fiche technique Togo

GLOBAL CERTIFICATIONS



câble cuivre XLPE PVC catalogue Togo

CUSTOMER PHOTOS


câble cuivre XLPE PVC IEC 60502-1 Togo

INTERNATIONL TRANSPORTATION



01

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

02

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

03

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

câble cuivre XLPE PVC courant admissible Togo
COOPERATIVE PARTNER



We are looking for a cooperative partner to expand our business.

câble électrique non armé 1 kV Togo
prix câble électrique non armé 1 kV Togo
fournisseur câble électrique non armé 1 kV Togo
fabricant câble électrique non armé 1 kV Togo
grossiste câble électrique non armé 1 kV Togo
câble électrique non armé 1 kV fiche technique Togo
câble électrique non armé 1 kV catalogue Togo
câble électrique non armé 1 kV IEC 60502-1 Togo
câble électrique non armé 1 kV courant admissible Togo
câble U-1000 R2V 0,6/1 kV Mali
How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

prix câble U-1000 R2V 0,6/1 kV Mali
FAQ



Can I run two cables in parallel for a large load?
For parallel run copper power cables: Parallel runs are common, but cables should match in conductor material, size, length, route, impedance and termination quality. Protective devices and current sharing must be checked. GERITEL WIRE can coordinate third-party inspection when scope and timing are agreed in the purchase order. State any CPR, flame, UV, water or mechanical requirement separately in the enquiry.
How do I make parallel cables share current evenly?
Use equal lengths, symmetrical phase arrangements, matched terminations and comparable thermal conditions. Imbalance can overheat one run even when total installed copper appears adequate. A reliable parallel cable current sharing decision therefore needs an approved construction and installation basis. GERITEL WIRE supports mixed-size project orders with cable-schedule review and practical export drum allocation. Confirm conductor class, core colours, drum lengths and inspection scope before production.
Can you supply 300mm² or larger copper conductors?
Large conductor sizes may be available subject to core arrangement, production capability, drum limits and project standard. Transport weight, bending radius, pulling force and termination hardware become critical. For buyers searching large size copper XLPE power cable, GERITEL WIRE can provide a marking proof, construction drawing and commercial packing proposal for approval. Use project-specific ampacity and voltage-drop calculations rather than a generic marketing value.
How should I size cable for a motor with high starting current?
When customers ask about motor feeder XLPE power cable sizing, the practical answer is: Check continuous load, starting current, start duration, permitted starting voltage drop, protective device and installation derating. A thermally adequate cable may still be too small for starting performance. GERITEL WIRE helps EPC buyers close technical gaps before production so site substitutions are reduced. Where mechanical, fire or environmental duty is higher, request the appropriate alternative construction.
