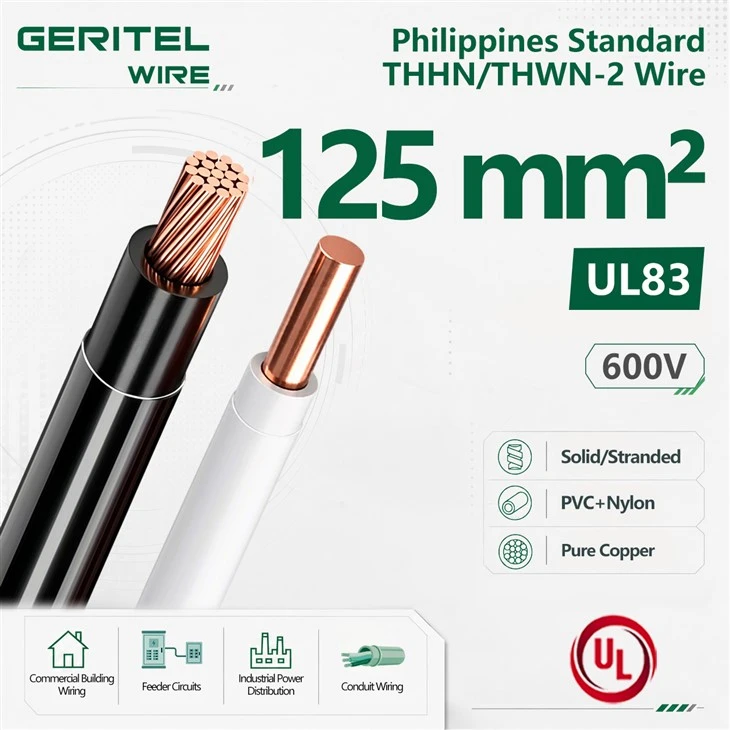

PRODUCT REAL SHOT
125 mm² THHN/THWN-2 for Commercial and Light Industrial Applications
PRODUCT SPECIFICATIONS
|
Size of Conductor |
No. & Nominal Diameter of Wire | Wall Thickness |
Approxi mate Overall Diameter |
Minimum Insulation Resistance |
Ampacity | Cable Nominal Weight | ||||||
| MM | Approxi mate AWG |
MM | MM | MM | M-Ohm-Km | 70℃ Wet |
90℃ Dry |
KG/KM | ||||
| Solid | PVC | NYLON | THWN | THHN | ||||||||
| 1.6 | 14 | 1x1.60 | 0.4 | 0.10 | 2.60 | 130 | 35 | 35 | 22.62 | |||
| 2.0 | 12 | 1x2.0 | 0.4 | 0.10 | 3.00 | 110 | 40 | 40 | 33.57 | |||
| 2.6 | 10 | 1x2.6 | 0.5 | 0.10 | 3.80 | 120 | 55 | 55 | 55.78 | |||
| 3.2 | 8 | 1x3.2 | 0.8 | 0.13 | 5.06 | 120 | 75 | 75 | 88.33 | |||
| Stranded | ||||||||||||
| 2.0 | 14/7 | 7x0.60 | 0.4 | 0.10 | 2.80 | 130 | 30 | 35 | 23.51 | |||
| 3.5 | 12/7 | 7x0.80 | 0.4 | 0.10 | 3.40 | 110 | 35 | 40 | 39.12 | |||
| 5.5 | 10/7 | 7x1.00 | 0.5 | 0.10 | 4.20 | 120 | 50 | 55 | 60.56 | |||
| 8.0 | 8/7 | 7x1.20 | 0.8 | 0.13 | 5.46 | 120 | 65 | 75 | 91.95 | |||
| 14 | 6/7 | 7x1.60 | 0.8 | 0.13 | 6.66 | 100 | 95 | 105 | 151.77 | |||
| 22 | 4/7 | 7x2.0 | 1.0 | 0.15 | 8.30 | 100 | 130 | 140 | 236.65 | |||
| 30 | 2/7 | 7x2.30 | 1.0 | 0.15 | 9.20 | 100 | 160 | 170 | 306.50 | |||
| 38 | 1-19 | 19x1.60 | 1.3 | 0.18 | 10.96 | 100 | 185 | 195 | 409.82 | |||
| 50 | 1/0-19 | 19x1.80 | 1.3 | 0.18 | 11.96 | 100 | 220 | 235 | 509.05 | |||
| 60 | 2/0-19 | 19x2.00 | 1.3 | 0.18 | 12.96 | 80 | 250 | 260 | 618.96 | |||
| 80 | 3/0-19 | 19x2.30 | 1.3 | 0.18 | 14.46 | 80 | 300 | 320 | 804.44 | |||
| 100 | 4/0-19 | 19x2.60 | 1.3 | 0.18 | 15.96 | 80 | 355 | 370 | 1013.94 | |||
| 125 | 250MCM | 37x2.10 | 1.6 | 0.18 | 18.26 | 80 | 400 | 420 | 1286.37 | |||
| 150 | 300MCM | 37x2.30 | 1.6 | 0.20 | 19.70 | 80 | 440 | 475 | 1542.02 | |||
| 350MCM | 37x2.47 | 1.6 | 0.20 | 20.90 | 80 | 505 | 570 | 1783.07 | ||||
| 200 | 400MCM | 37x2.60 | 1.6 | 0.20 | 21.80 | 60 | 540 | 570 | 1946.72 | |||
| 500MCM | 37x2.95 | 1.6 | 0.20 | 24.25 | 60 | 620 | 655 | 2486.02 | ||||
| 250 | 500MCM | 61x2.30 | 1.6 | 0.20 | 24.30 | 60 | 620 | 655 | 2437.34 | |||
| 600MCM | 61x2.52 | 1.8 | 0.23 | 26.76 | 60 | 690 | 715 | 2995.93 | ||||
| 325 | 650MCM | 61x2.60 | 1.8 | 0.23 | 27.46 | 60 | 720 | 770 | 3191.58 | |||
| 750MCM | 61x2.82 | 1.8 | 0.23 | 29.36 | 60 | 785 | 845 | 3719.63 | ||||
| 400 | 800MCM | 61x2.90 | 1.8 | 0.23 | 30.16 | 60 | 810 | 875 | 3927.55 | |||
| 500 | 1000MCM | 61x3.20 | 1.8 | 0.23 | 32.86 | 60 | 930 | 995 | 4750.91 | |||
CERTIFICATIONS
PACKAGING
Plastic Reel
Small Wooden Reel
Large Wooden Reel
APPLICATION
CASE
Bonifacio Global City, Taguig
SM Mall of Asia ,Pasay
Clark Freeport Zone ,Pampanga
WHY CHOOSE US
in one-stop service
Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.
With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.
We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.
Greater Cable - Certified Quality. Reliable Supply. Engineering Value.
