Name: China 4mm H1Z2Z2-K PV Cable TÜV Certified 1.5kV DC Solar Wire Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312446098

Description

Technical Parameters

Certification

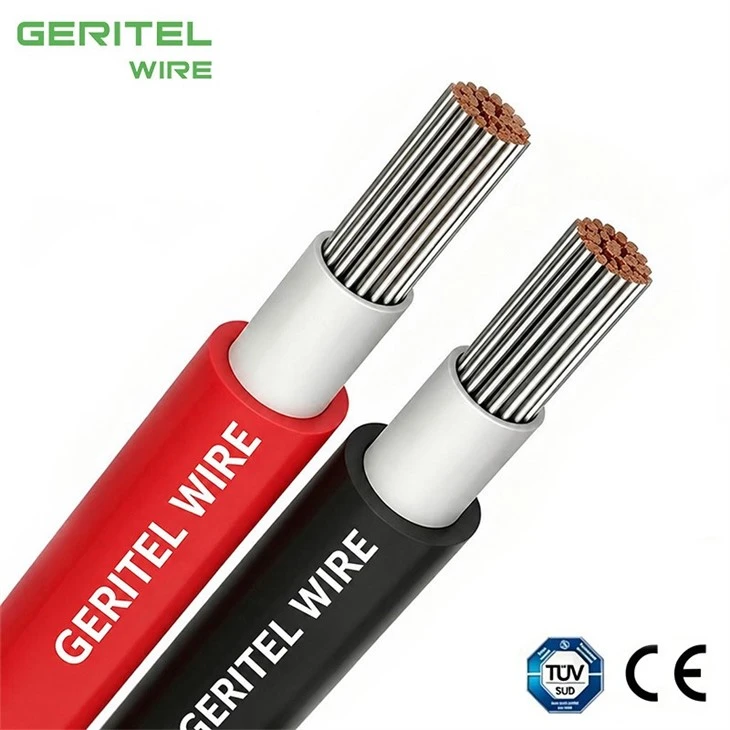

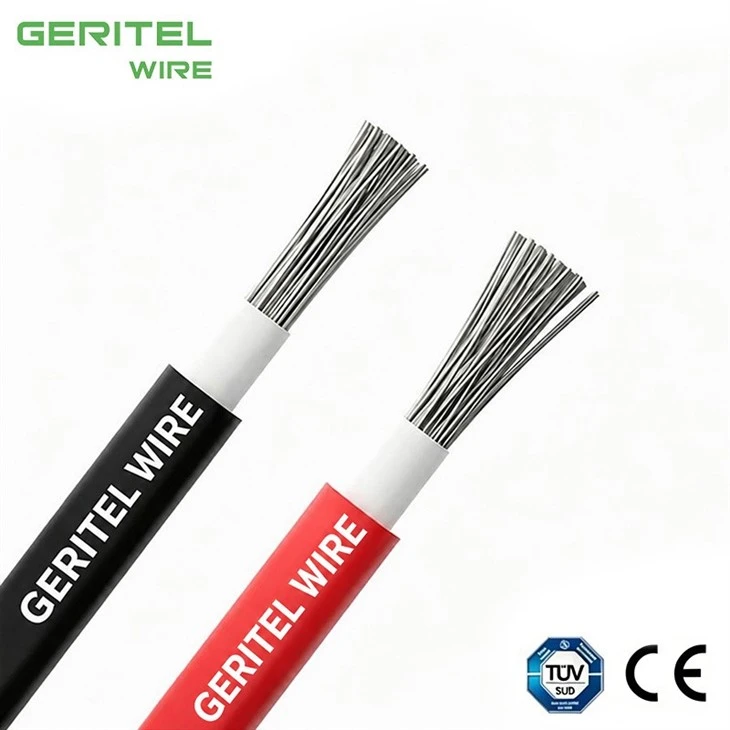

H1Z2Z2-K 1x4mm2 solar cable

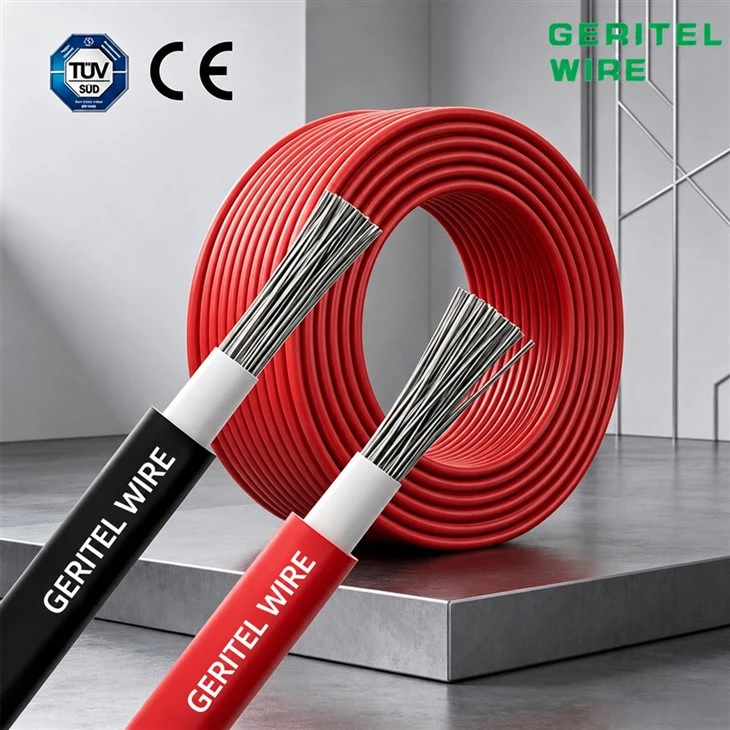

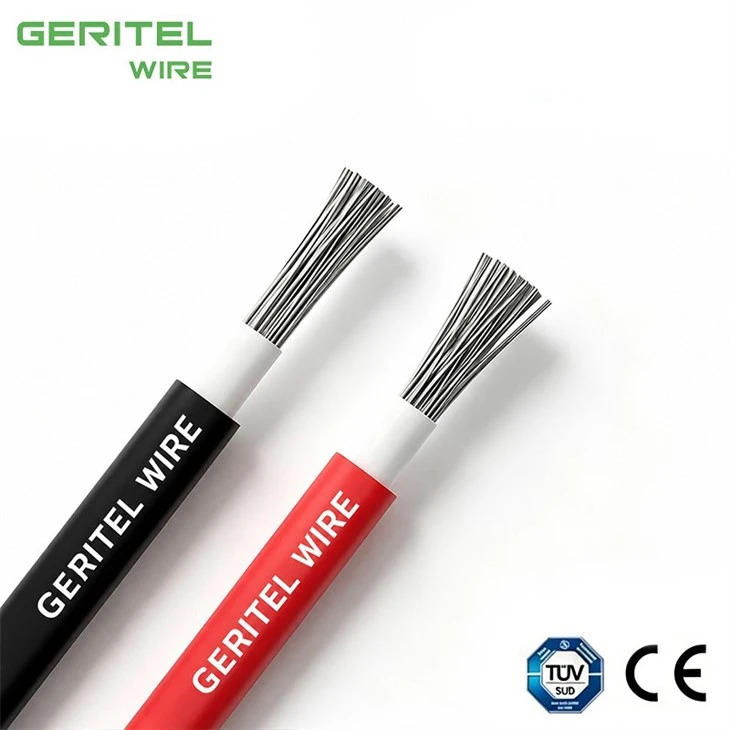

PRODUCT REAL SHOT

EN 50618 solar cable 4mm2

1500V DC Solar Cable 4mm² for Flexible Photovoltaic DC Installation

Designed for mainstream photovoltaic string connections, GERITEL WIRE offers this 4mm² single-core option for rooftop PV, combiner boxes and standard solar arrays. The 4mm² solar cable targets reliable DC transmission where installers need flexibility and long outdoor service. The construction combines corrosion-resistant Class 5 tinned copper with cross-linked halogen-free insulation and a durable outer sheath. For PV DC service, it combines high-voltage capability with UV, weather, ozone and moisture resistance. Buyers searching for Class 5 flexible PV cable can match this size to project current, route length and voltage-drop requirements. GERITEL WIRE can support OEM marking, packaging, technical documentation and export supply for projects and distributors.

PRODUCT SPECIFICATIONS

IEC 62930 solar cable 4mm2

Application

The GERITEL WIRE PV H1Z2Z2-K cable, which is TUV certifiedaccording to EN 50618 and AENOR certified according to IEC62930, it is suitable for both fixed and mobile solar installations(solar farms, rooftop solar installations and floating plants).It is a highly flexible cable compatible with all major connectorsand specially designed for the connection of photovoltaic panels.

This versatile single-conductor cable is designed to meet the varying needs of the solar industry.

Suitable for wet, damp and humid locations.

Solar PV installations string cable.

SPECIFICATIONS
Conductor	Electrolytic annealed tinned copper, class 5 (flexible) according toIEC 60228 and EN 60228.
Insulation	Halogen free cross-linked rubber according to table B1 in Annex Bof EN 50618 and IEC 62930.
Outer sheath	Halogen free cross-linked flexible rubber according to table B1 inAnnex B of EN 50618 and IEC 62930. Red or black colour.
Electrical performance	Low voltage: 1,5 (1,8) kV DC. 1,0/1,0 kV AC.
Thermal performance	Maximum conductor temperature:90°C (120°C during 20.000 h).Maximum short-circuit temperature: 250°C (max. 5 s).Minimum service temperature: -40°C (fixed and protected installations).
Fire performance	Flame non-propagation according to EN 60332-1-2 / IEC 60332-1-2. Fire non-propagation according to EN 50399.Reaction to fire CPR: Caa-slb, d2, al according to EN 50575.Low smoke halogen free according to EN 60754-1/IEC 60754-1.Low corrosive gases emission according to EN 60754-2 / IEC60754-2. Low smoke emission according to EN 61034 /IEC 61034: Light transmittance > 60%.
Mechanical performance	Minimum bending radius: 4x cable diameter (cable diameter ≤ 8 mm) 5x cable diameter (8 < cable diameter s 12 mm) 6x cable diameter (cable diameter >12 mm). Impact resistance: AG2 Medium severity.
Environmental performance	Chemical & Oil resistance: Excellent. Grease & mineral oils resistance: Excellent. Ozone resistant according to EN 50618. UV Resistant according to EN 50618 and IEC 62930. Water resistance: AD7+ Immersion. AD8 Submersion.
Installation conditions	Open Air. Buried. In conduit.

Conductor	Conductor Stranding	Insulation Thickness	Jacket Thickness	Nominal O.D.	Approx Net Weight	Allowable Ampacities(1) @30℃ Ambient
Nominal Area(mm2)	Number of Strands	mils	mils	Inch	lbs/1000ft	75℃	90℃
1X1.5	1.57	0.7	0.8	4.7	38	860	0.86	13.7
1X2.5	2.04	0.7	0.8	5.2	45	690	0.69	8.21
1X4	2.6	0.7	0.8	5.6	60	580	0.58	5.09
1X6	3.16	0.7	0.8	6.3	90	500	0.50	3.39
1X10	4.5	0.7	0.8	7.6	131	420	0.42	1.95
1X16	5.7	0.7	0.9	9.0	187	340	0.34	1.24
1X25	7.2	0.9	1.0	11.2	267	340	0.34	0.795
1X35	8.5	0.9	1.1	12.7	368	290	0.29	0.565
1X50	9.4	1.0	1.2	14.5	560	270	0.27	0.393
1X70	11.1	1.1	1.2	16.5	756	250	0.25	0.277
1X95	13.1	1.1	1.3	18.7	1036	220	0.22	0.210
1X120	14.8	1.2	1.3	20.4	1309	210	0.21	0.164
1X150	16.5	1.4	1.4	22.7	1636	210	0.21	0.132
1X185	18.3	1.6	1.6	25.2	2000	200	0.20	0.108
1X240	21.0	1.7	1.7	28.5	2607	200	0.20	0.0817
2X1.5	1.57	0.7	0.8	4.8*10.5	78	860	0.86	13.7
2X2.5	2.04	0.7	0.8	5.2*11.8	92	690	0.69	8.21
2X4	2.6	0.7	0.8	5.6*12.8	122	580	0.58	5.09
2X6	3.16	0.7	0.8	6.3*13.7	182	500	0.50	3.39
2X10	4.5	0.7	0.8	8.0*16.8	264	420	0.42	1.95
2X16	5.7	0.7	0.9	9.0*19.8	376	340	0.34	1.24

CERTIFICATIONS

1500V DC solar cable 4mm2

PACKAGING

1,Roll

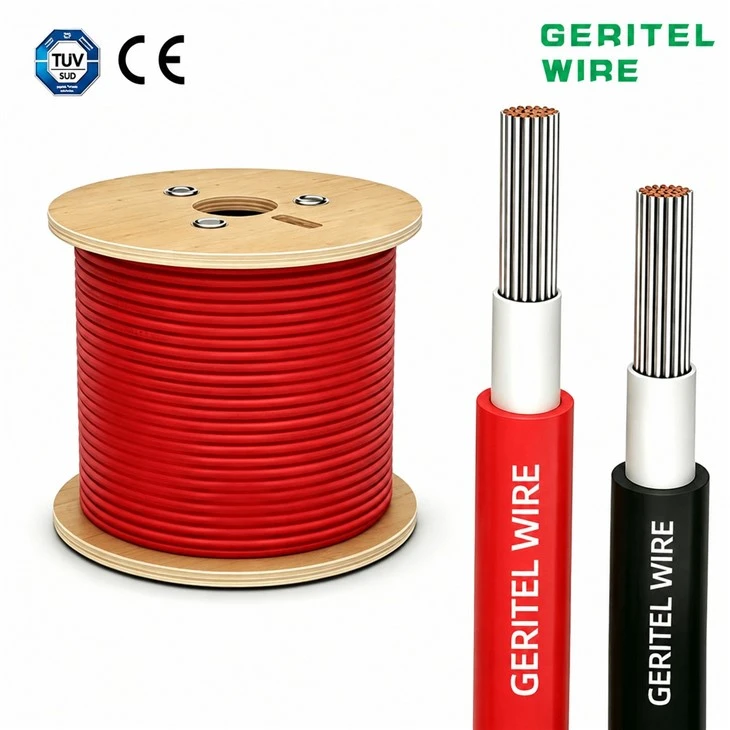

Small Wooden Reel

Large Wooden Reel

APPLICATION

Residential Rooftop Solar System

Solar Carport + EV Charging

Utility-Scale Solar Far

CASE

Mauritius Henrietta Solar Power Plant Wire Export

Somalia Mogadishu Solar PV System Project

Tunisia Hammamet New City Industrial Park Solar PV Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

single core solar cable

CUSTOMER PHOTOS

single core PV cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What does the 'K' in H1Z2Z2-K mean?

H1Z2Z2-K is a harmonized-style cable designation associated with a flexible photovoltaic cable construction. For purchasing, the important practical checks are the applicable EN 50618/IEC 62930 documentation, conductor class, insulation/sheath materials and rated voltage. For distributors and EPC buyers, GERITEL WIRE can provide specification confirmation, project packaging and documentation support. The relevant buyer keyword is H1Z2Z2-K cable.

What are the common names customers use for solar cable?

Overseas buyers commonly search for photovoltaic cable, PV cable, solar cable, solar DC cable, solar string cable, H1Z2Z2-K cable and 1500V solar cable. These terms overlap, but project documentation should determine the exact required standard and construction. GERITEL WIRE focuses on matching the ordered construction to the applicable certificate and can provide supporting technical documents for project review.

Is 'solar wire' the same as 'solar cable'?

In buyer searches, solar wire and solar cable are often used interchangeably for PV DC conductors. The safe approach is to verify the certification, voltage, conductor material, insulation system and intended installation instead of assuming two products are identical from the name alone. GERITEL WIRE can assist with OEM marking and packaging while keeping the electrical construction aligned with the approved product specification.

Can this cable be used in both fixed and mobile solar installations?

This flexible solar cable is suitable for fixed PV installation and can also support movable/flexible solar installation conditions where the project design permits. Its Class 5 stranded conductor improves handling compared with rigid conductors. GERITEL WIRE can help confirm the requested standard, size, color and marking before quotation so the cable matches the project specification.
