15kV 133% I.L. – Extra Insulation Margin for Medium Voltage Distribution with Enhanced Safety
PRODUCT SPECIFICATIONS

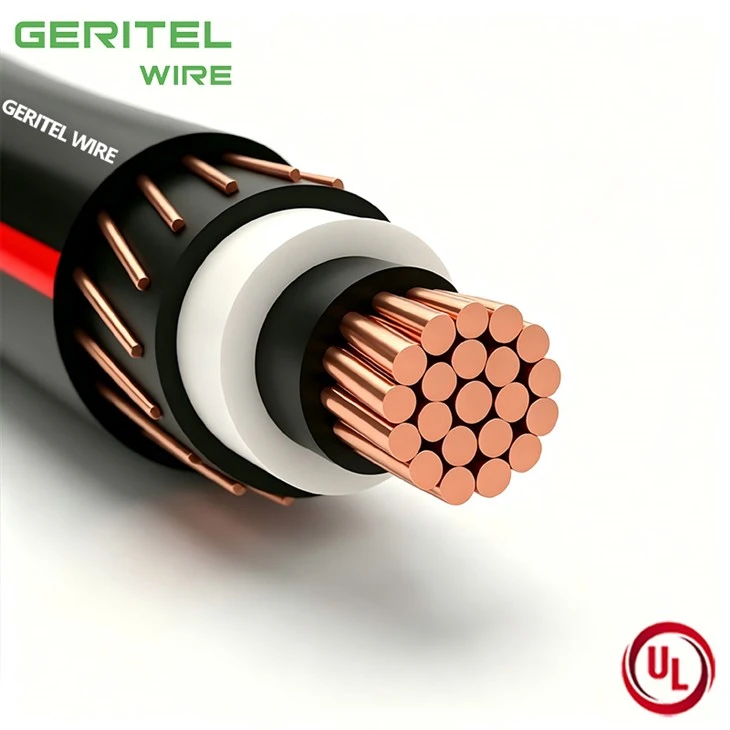

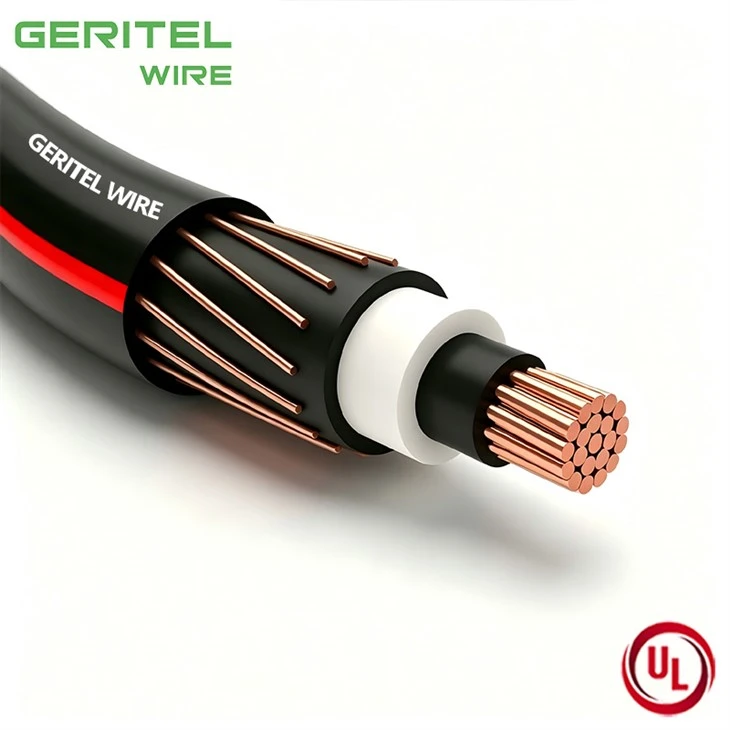

Product Description
The Medium Voltage Underground Distribution (UD) cables consist of a Copper (filled or unfilled) conductor, covered with ethylene propylene rubber (EPR), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.
Applications
- Suitable for underground primary power applications
- For wet or dry locations
- For direct burial or in duct
Features
- High dielectric strength
- Low moisture absorption
- Low dielectric loss
- Excellent resistance to treeing
- Jacket is sunlight-resistant
- Designed to operate continuously at a conductor temperature not exceeding
105°C for normal operations
130°C for emergency overload
250°C for short circuit
| SPECIFICATIONS | |
|
Conductor Count |
1 conductor |
|
Conductor |
Fully annealed bare copper Class B compressed strand (filled or unfilled) |
|
Gauge Sizes |
Available in 2 AWG through 1000 kcmil |
|
Conductor Strand Shield |
Extruded thermoset semi-conducting polymer over the conductor |
|
Insulation |
Ethylene Propylene Rubber (EPR) |
|
Insulation Shield |
Extruded thermoset semi-conducting polymer over the insulation |
| Neutral | Helically applied, annealed, solid bare copper wires |
|
Jacket |
Linear Low-Density Polyethylene (LLDPE)
|
|
Jacket Marking |
00000 FT GREATER WIRE XXXAWG (KCMIL) CU (FS) 1/C XXXV XXX% INSUL LEVEL XXXMILS EPR AA X #BB LLDPE JKT MV-90 (UL) MADE IN USA MMDDYYYY |
|
Packaging |
Non-returnable wood reels in a variety of lengths and dimensions |
|
Performance Compliances |
ASTM B3 ASTM B8 ICEA S-94-649 ICEA T-31-610 (water block compliance), as needed ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-90) RUS U1 |
Copper Unfilled/Filled 15kV 133% I.L. 220mils
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Concentric Neutral No. x AWG |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity | |
| Underground Duct | Direct Buried | |||||||
| 1/3 Reduced Neutral | ||||||||
| 2 | 0.283(7.2) | 0.78(19.8) | 6×14 | 0.050(1.3) | 1.10(27.9) | 665(990) | 160 | 195 |
| 1 | 0.322(8.2) | 0.82(20.8) | 7×14 | 0.050(1.3) | 1.14(29.0) | 750(1,116) | 180 | 220 |
| 1/0 | 0.362(9.2) | 0.86(21.8) | 9×14 | 0.050(1.3) | 1.19(30.2) | 865(1,287) | 200 | 250 |
| 2/0 | 0.405(10.3) | 0.90(22.9) | 11×14 | 0.050(1.3) | 1.23(31.2) | 1,000(1,488) | 230 | 285 |
| 3/0 | 0.456(11.6) | 0.96(24.4) | 14×14 | 0.050(1.3) | 1.28(32.5) | 1,170(1,741) | 260 | 320 |
| 4/0 | 0.512(13.0) | 1.01(25.7) | 18×14 | 0.050(1.3) | 1.34(34.0) | 1,380(2,053) | 300 | 360 |
| 250 | 0.558(14.2) | 1.07(27.2) | 21×14 | 0.050(1.3) | 1.41(35.8) | 1,590(2,366) | 330 | 385 |
| 350 | 0.661(16.8) | 1.17(29.7) | 29×14 | 0.050(1.3) | 1.52(38.6) | 2,050(3,050) | 390 | 460 |
| 500 | 0.789(20.0) | 1.30(33.0) | 26×12 | 0.050(1.3) | 1.69(42.9) | 2,765(4,114) | 455 | 525 |
| 750 | 0.968(24.6) | 1.50(38.1) | 25×10 | 0.075(1.9) | 1.97(50.0) | 4,010(5,967) | 545 | 580 |
| Full Neutral | ||||||||
| 2 | 0.283(7.2) | 0.69(17.5) | 16×14 | 0.050(1.3) | 1.10(27.9) | 785(1,168) | 155 | 195 |
| 1 | 0.322(8.2) | 0.73(18.5) | 20×14 | 0.050(1.3) | 1.14(29.0) | 905(1,347) | 175 | 220 |
| 1/0 | 0.362(9.2) | 0.77(19.6) | 25×14 | 0.050(1.3) | 1.19(30.2) | 1,055(1,570) | 200 | 250 |
| 2/0 | 0.405(10.3) | 0.81(20.6) | 32×14 | 0.050(1.3) | 1.23(31.2) | 1,250(1,860) | 225 | 280 |
| 3/0 | 0.456(11.6) | 0.86(21.8) | 25×12 | 0.050(1.3) | 1.32(33.5) | 1,505(2,239) | 260 | 315 |
| 4/0 | 0.512(13.0) | 0.92(23.4) | 32×12 | 0.050(1.3) | 1.37(34.8) | 1,800(2,678) | 295 | 355 |
