15kV Solid Aluminum MV-90 133% Insulation Level 220 Mils EPR CN LLDPE Underground Distribution Wire
PRODUCT SPECIFICATIONS
Product Description

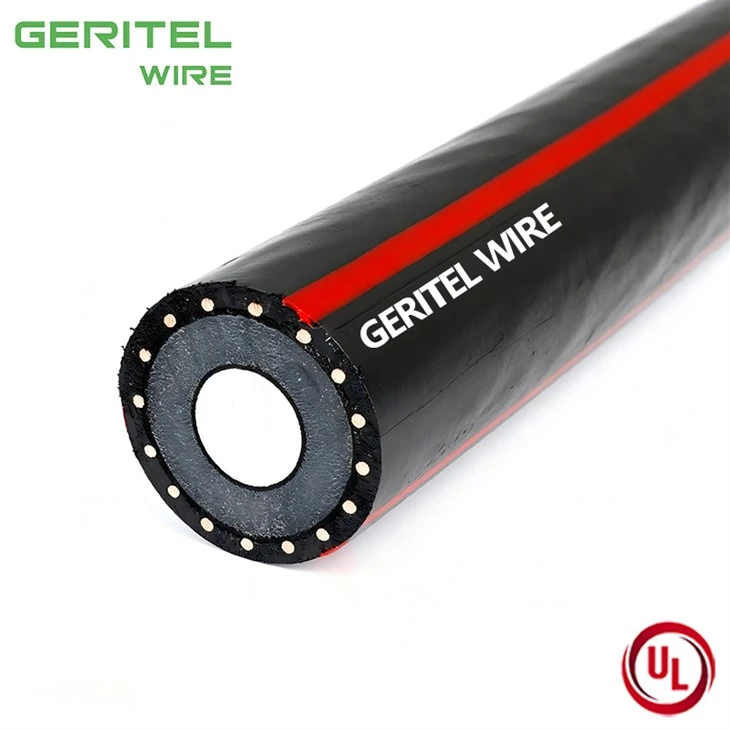

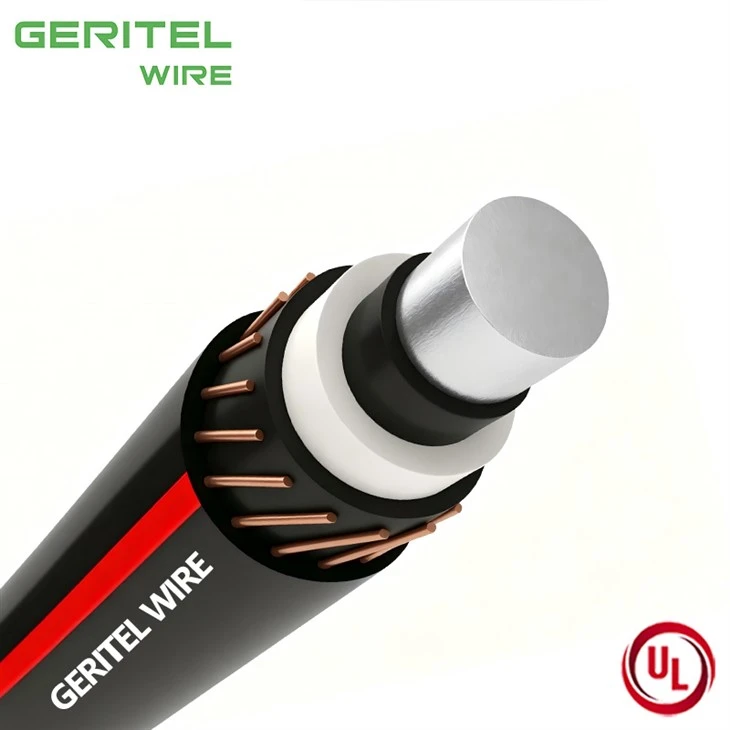

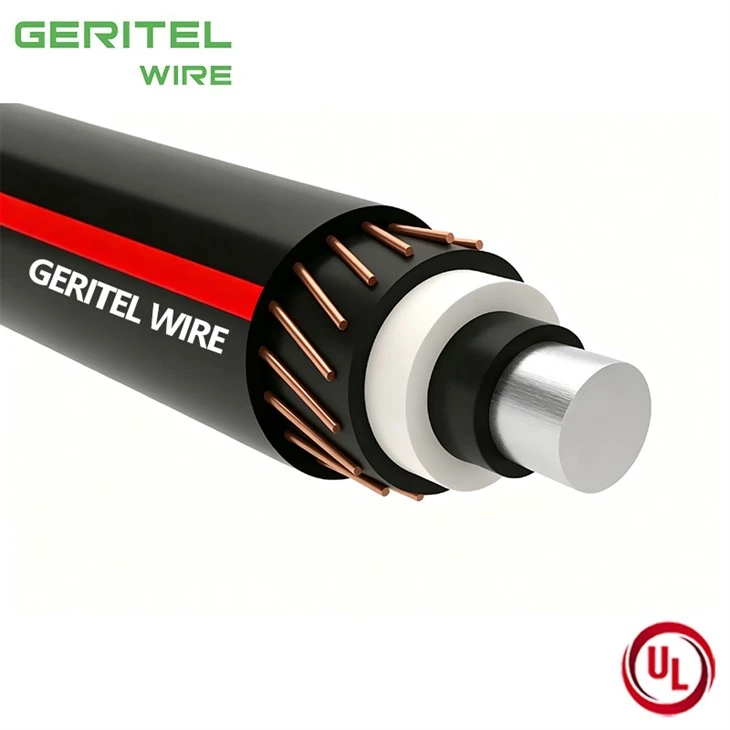

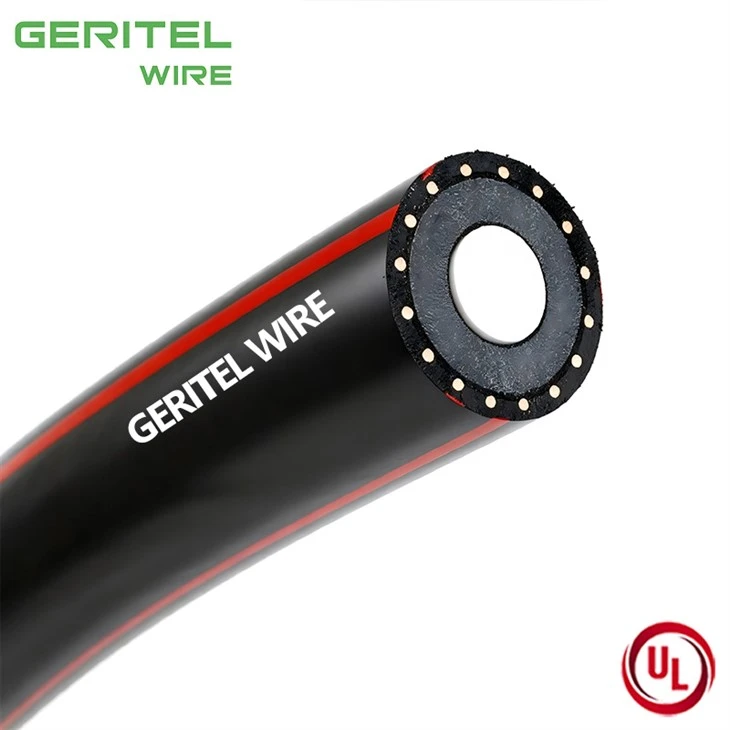

The Medium Voltage Underground Distribution (UD) cables consist of an Aluminum Solid conductor, covered with ethylene propylene rubber (EPR), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.
Applications
-
Suitable for underground primary power applications
-
For wet or dry locations
-
For direct burial or in duct
Features
-
High dielectric strength
-
Low moisture absorption
-
Low dielectric loss
-
Excellent resistance to treeing
-
Jacket is sunlight-resistant
-
Designed to operate continuously at a conductor temperature not exceeding
» 105°C for normal operations
» 140°C for emergency overload
» 250°C for short circuit
| SPECIFICATIONS | |
|
Conductor Count |
1 conductor |
|
Conductor |
Aluminum 1350 Solid |
|
Gauge Sizes |
Available in 2 AWG through 4/0AWG |
|
Conductor Strand Shield |
Extruded thermoset semi-conducting polymer over the conductor |
|
Insulation |
Tree-Retardant Cross-linked Polyethylene (TR-XLPE) |
|
Insulation Shield |
Extruded thermoset semi-conducting polymer over the insulation |
| Neutral | Helically applied, annealed, solid bare copper wires |
|
Jacket |
Linear Low-Density Polyethylene (LLDPE) |
|
Jacket Marking |
00000 FT GREATER WIRE CABLE XXAWG (KCMIL) AL SOL 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR AA X #BB LLDPE JKT TYPE MV-90 (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
|
Packaging |
Non-returnable wood reels in a variety of lengths and dimensions |
|
Performance Compliances |
ASTM B3 ASTM B230 ASTM B609 ICEA S-94-649 ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-90) RUS U1 |
Aluminum Solid, 15kV 133% I.L., 220 mils
|
Conductor AWG/Kcmil |
Nom. Conductor in (mm) |
Insulation Diameter in (mm) |
Concentric Neutral No. x AWG |
Jacket Thickness |
Approx. Overall Diameter |
Approx. Net Weight (kg/km) |
Ampacity | ||||
| Conduit in Air | Underground Duct | ||||||||||
| 1/3 Reduced Neutral | |||||||||||
| 2 | 0.258(6.6) | 0.75(19.1) | 6 x 14 | 0.050(1.3) | 1.08(27.4) | 510(759) | 120 | 150 | |||
| 1 | 0.289(7.3) | 0.78(19.8) | 6 x 14 | 0.050(1.3) | 1.11(28.2) | 545(811) | 140 | 175 | |||
| 1/0 | 0.325(8.3) | 0.82(20.8) | 6 x 14 | 0.050(1.3) | 1.15(29.2) | 585(870) | 155 | 195 | |||
| 2/0 | 0.365(9.3) | 0.86(21.8) | 7 x 14 | 0.050(1.3) | 1.19(30.2) | 645(960) | 180 | 220 | |||
| 3/0 | 0.410(10.4) | 0.91(23.1) | 9 x 14 | 0.050(1.3) | 1.23(31.2) | 730(1,086) | 200 | 250 | |||
| 4/0 | 0.460(11.7) | 0.96(24.4) | 11 x 14 | 0.050(1.3) | 1.29(32.8) | 820(1,220) | 235 | 285 | |||
| Full Neutral | |||||||||||
| 2 | 0.258(6.6) | 0.75(19.1) | 10 x 14 | 0.050(1.3) | 1.08(27.4) |
|
120 | 150 | |||
| 1 | 0.289(7.3) | 0.78(19.8) | 13 x 14 | 0.050(1.3) |
|
|
140 | 170 | |||
| 1/0 | 0.325(8.3) | 0.82(20.8) | 16 x 14 | 0.050(1.3) | 1.15(29.2) | 705(1,049) | 155 | 195 | |||
| 2/0 | 0.365(9.3) | 0.86(21.8) | 20 x 14 | 0.050(1.3) | 1.19(30.2) | 800(1,190) | 180 | 220 | |||
| 3/0 | 0.410(10.4) | 0.91(23.1) | 25 x 14 | 0.050(1.3) | 1.23(31.2) | 920(1,369) | 205 | 250 | |||
| 4/0 | 0.460(11.7) | 0.96(24.4) | 32 x 14 | 0.050(1.3) | 1.29(32.8) | 1,070(1,592) | 235 | 285 | |||
