Conductors: Three compact bare stranded copper conductors,
-
Conductor Shield: extruded semi-conducting conductor shield,
-
Insulation: lead free EPR insulation,
-
Insulation Shield: extruded semi-conducting insulation shield, 5 mil bare copper shield tape with 25% minimum overlap,
-
Ground Wire: cabled with applicably sized bare copper ground wire,
-
Jacket: overall low friction PVC jacket
Application
application scenarios
15 kV Medium Voltage Cable MV 105 Three Core is a robust and reliable power transmission solution designed for demanding medium-voltage applications in utility, industrial, and commercial infrastructures. With three compact bare stranded copper conductors, this 3 core cable provides balanced and stable power distribution at 15 kV voltage levels.
Commercial buildings
MV cables deliver stable power from utility service entrances to transformers in large commercial buildings like malls, offices, and hotels.
Factory
In industrial plants, medium voltage wire connect main substations to motor control centers (MCCs) for efficient power distribution.
Railway
In rail tunnels, medium cables feed lighting, exhaust fans, and emergency systems for safety.
Power stations
MV 105 cables carry medium voltage between generators and switchgear in power generation units.
Certification

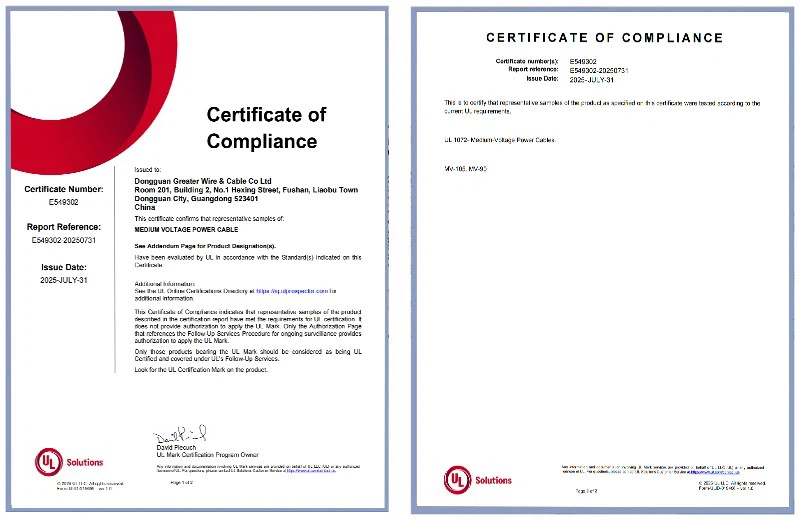

MV105 cables are UL E549302 certified, which can be easily verified on the UL website. UL certification confirms that the cables have undergone rigorous testing for electrical insulation breakdown, resistance stability, heat aging resistance, flame retardancy, and mechanical strength, ensuring long-term stable operation. UL-certified cables not only meet local regulations but also enhance customer project compliance and avoid engineering risks associated with substandard materials.
Package
MV 105 Cable Packaging
Depending on cable size and dimensions, we offer packaging options such as reels, wooden reels, steel reels, pallets, and others. We shrink-wrap or cover each reel with waterproof material for stability during transport. Each reel is clearly labeled with cable type, rated voltage, conductor size, length, and batch number for easy identification and inventory tracking.
Factory
We Are MV 105 Cable Manufacturer
With over 30 years of experience in cable manufacturing, Greater Wire specializes in the research, development, and production of high-performance medium-voltage cables. Equipped with advanced extrusion, cabling, and testing equipment, the company is committed to providing global customers with medium-voltage cables that comply with multiple international standards, including IEC, ICEA, UL, and GB. Our MV cables are widely used in power plants, subways, high-rise buildings, airports, industrial parks, and large-scale infrastructure projects. Each batch of cables undergoes rigorous electrical, mechanical, and aging tests.
Case
Success Case
As a seasoned exporter to the Americas, Greater Wire provides reliable wire and cable products. Our solutions support critical applications in airports, schools, hospitals, hotels, and industrial sites, consistently meeting the performance demands of diverse environments through certified quality and technical precision.
FAQ
Q: What are the common insulation materials used in MV cables?
Q: Where is your factory?
A: Our factory is located in Dongguan City, Guangdong Province, China. Welcome to visit us!
Q: Can you customize cable length and packaging?
A: Yes, we support customization. We support full cable customization to meet your project requirements.
Q: How long is the life of your wires and cables?
A: The life of our wires and cables is no less than 30 years.
Hot Tags: 15kv medium voltage cable mv 105 three core, China 15kv medium voltage cable mv 105 three core manufacturers, suppliers, factory
| Conductor Size (Stranding) | Nominal Insulation (Mils) | Minimum O.D.Over Insulation (Inches) | Maximum O.D.Over Insulation (Inches) | Ground Wire Size(AWG) | Jacke Tthickness (Mils) | Approx.Cable O.D. (Inches) | Approx.Net Weight (LBS/1000 FT) |
| 2 (7W) | 220 | 0.71 | 0.8 | 6 | 110 | 2.04 | 2226 |
| 1/0 (19W) | 220 | 0.78 | 0.87 | 4 | 110 | 2.2 | 2711 |
| 2/0 (19W) | 220 | 0.82 | 0.91 | 4 | 110 | 2.3 | 3163 |
| 4/0 (19W) | 220 | 0.92 | 1.01 | 3 | 110 | 2.52 | 4203 |
| 350(37W) | 220 | 1.07 | 1.16 | 2 | 110 | 2.94 | 6182 |
| 500(37W) | 220 | 1.19 | 1.28 | 1 | 140 | 3.21 | 7686 |
