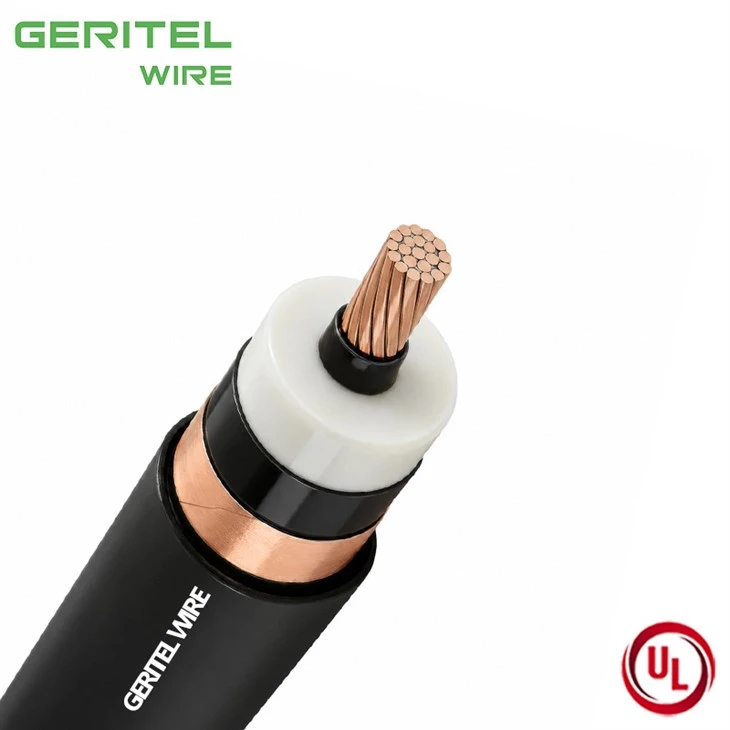

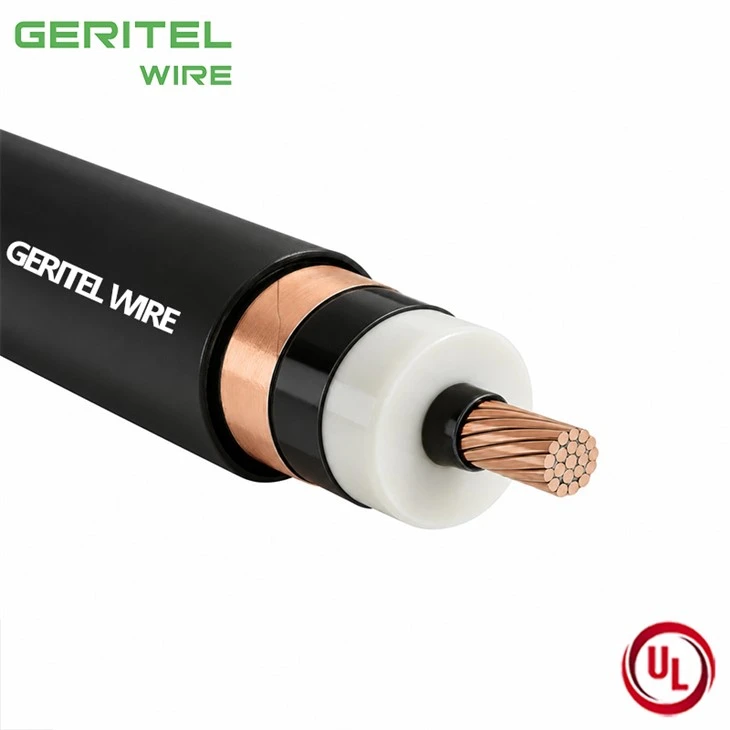

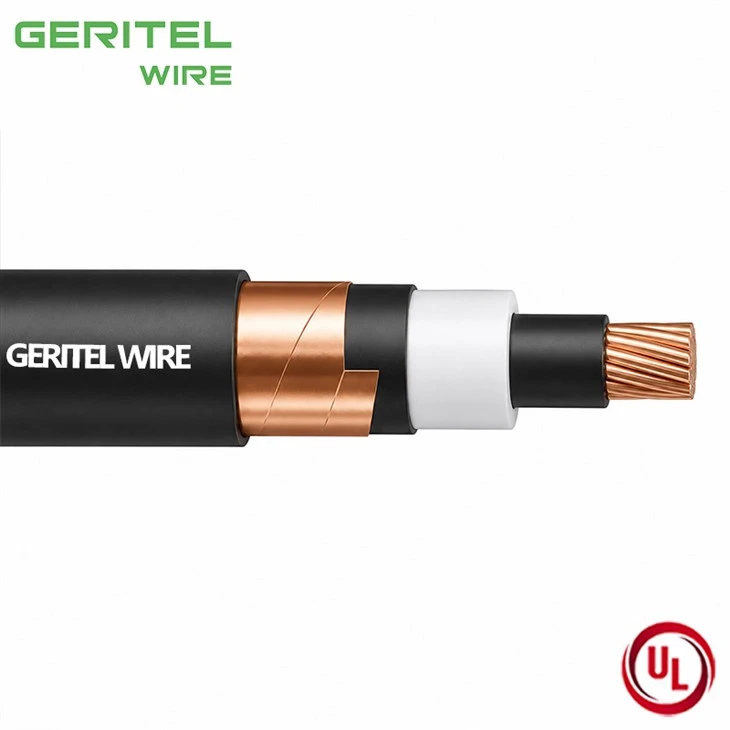

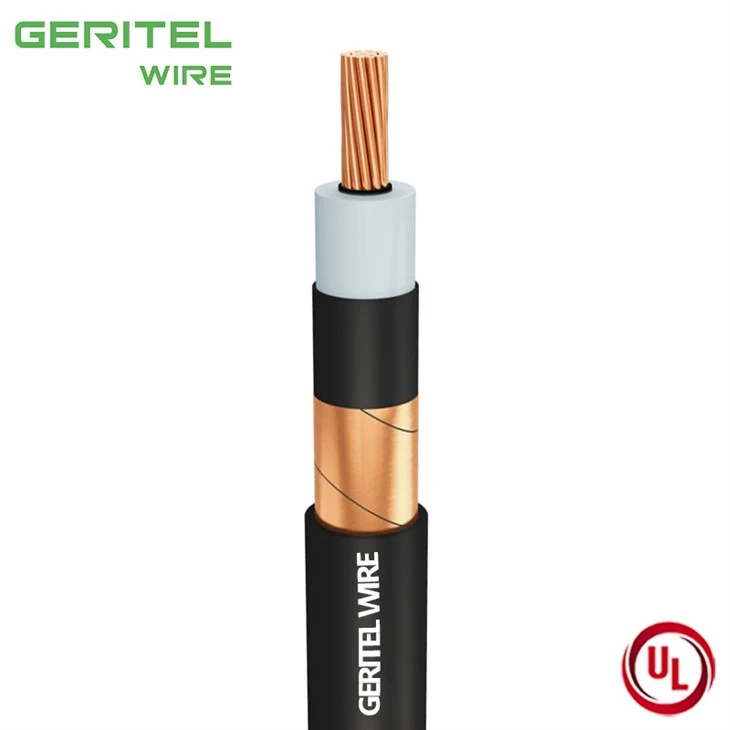

15kV 133% Insulation Level – 220 mils Copper Tape Shielded MV-105 Cable For Substation Project
PRODUCT SPECIFICATIONS
PRODUCT DESCRIPTION
The Medium Voltage, EPR/Cu Tape Shield/PVC, Type MV-105 Cable consist of fully annealed bare copper Class B stranded conductors, covered with ethylene propylene rubber (EPR), copper tape shield, and black PVC jacket. These cables are used in industrial power circuits.
APPLICATIONS
· In conduit, duct, free air, and raceways, primary installations include cable trays, and outdoor locations
· In direct burial if installed in a system with a ground conductor that is in close proximity, and conforms with NEC 250.4 (A)(5)
· In wet or dry locations
· Approved for Class I, Div. 2 industrial hazardous locations per NEC
· Designed to operate continuously at a conductor temperature not exceeding
》105°C for normal operations
》140°C for emergency overload
》250°C for short circuit
FEATURES
· Rated at 105°C wet or dry · Low dielectric loss
· Excellent corona resistance · Excellent sunlight resistance
· High dielectric strength · For CT USE for 1/0 AWG and larger, per UL® 1072
· Low moisture absorption · Meets cold bend test at -35°C
| SPECIFICATIONS | |
|
Conductor Count |
1 conductor |
|
Conductor |
Fully annealed bare copper Class B compressed strand (filled or unfilled) |
|
Gauge Sizes |
Available in 2 AWG through 1000 kcmil |
|
Conductor Strand Shield |
Extruded thermoset semi-conducting polymer over the conductor |
|
Insulation |
Ethylene Propylene Rubber (EPR) |
|
Insulation Shield |
Extruded thermoset semi-conducting polymer over the insulation |
|
Shield |
5 mil annealed copper tape helically applied with approximately 25% overlap |
|
Jacket |
Polyvinyl Chloride (PVC) |
|
Jacket Marking |
2 AWG - 1 AWG: 00000 FT LS CABLE XXAWG 1/C XXXV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 SUN RES (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) 1/0 AWG - 1000 kcmil: 00000 FT LS CABLE XXAWG (or XXXKCMIL) 1/C XXXV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 FOR CT USE (UL) SUN RES MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
|
Packaging |
Non-returnable wood reels in a variety of lengths and dimensions |
|
Performance Compliances |
ASTM B3 | ASTM B8 UL 1072, UL 1685 (flame exposure test) ANSI/NEMA WC 74/ICEA S-93-639 ANSI/ICEA S-97-682 AEIC CS8 NEC |
|
Other Compliances |
EPA 40 CFR, Part 261 OSHA |
Copper Unfilled/Filled Cdr 5kV 100% I.L. 90 mils, Shielded
|
Conductor |
Nom.Conductor |
Insulation Diameter2 |
Jacket Thickness2 | Approx. Overall Diameter2 | Approx. Net Weight2 | Ampacitiy | |
| AWG/Kcmil | in (mm) | in (mm) | in (mm) | in (mm) | lbs/kft(kg/km) | Conduit in Air3 |
Underground Duct4 |
| 2 | 0.283(7.2) | 0.78(19.8) | 0.075 (1.9) | 1.02 (25.9) | 645(960) | 165 | 165 |
| 1 | 0.322(8.2) | 0.82(20.8) | 0.075 (1.9) | 1.06 (26.9) | 725(1,079) | 185 | 185 |
| 1/0 | 0.362(9.2) | 0.86(21.8) | 0.075 (1.9) | 1.10 (27.9) | 815(1,213) | 215 | 215 |
| 2/0 | 0.405(10.3) | 0.90(22.9) | 0.075 (1.9) | 1.14 (29.0) | 930(1,384) | 245 | 245 |
| 3/0 | 0.456 (11.6) | 0.96(24.4) | 0.075 (1.9) | 1.20 (30.5) | 1,070(1,592) | 280 | 275 |
| 4/0 | 0.512(13.0) | 1.01(25.7) | 0.075 (1.9) | 1.25 (31.8) | 1,235(1,838) | 320 | 315 |
| 250 | 0.558(14.2) | 1.07(27.2) | 0.075 (1.9) | 1.31 (33.3) | 1,395(2,076) | 350 | 345 |
| 350 | 0.661(16.8) | 1.17(29.7) | 0.075 (1.9) | 1.42 (36.1) | 1,765(2,626) | 430 | 415 |
| 500 | 0.789(20.0) | 1.30(33.0) | 0.075 (1.9) | 1.55 (39.4) | 2,305(3,430) | 525 | 500 |
| 750 | 0.968(24.6) | 1.50(38.1) | 0.075 (1.9) | 1.74 (44.2) | 3,190(4,747) | 635 | 610 |
| 1000 | 1.117(28.4) | 1.65(41.9) | 0.105 (2.7) | 1.96 (49.8) | 4,165(6,197) | 725 | 690 |
