35kv copper conductor type mv-105 cable

PRODUCT REAL SHOT

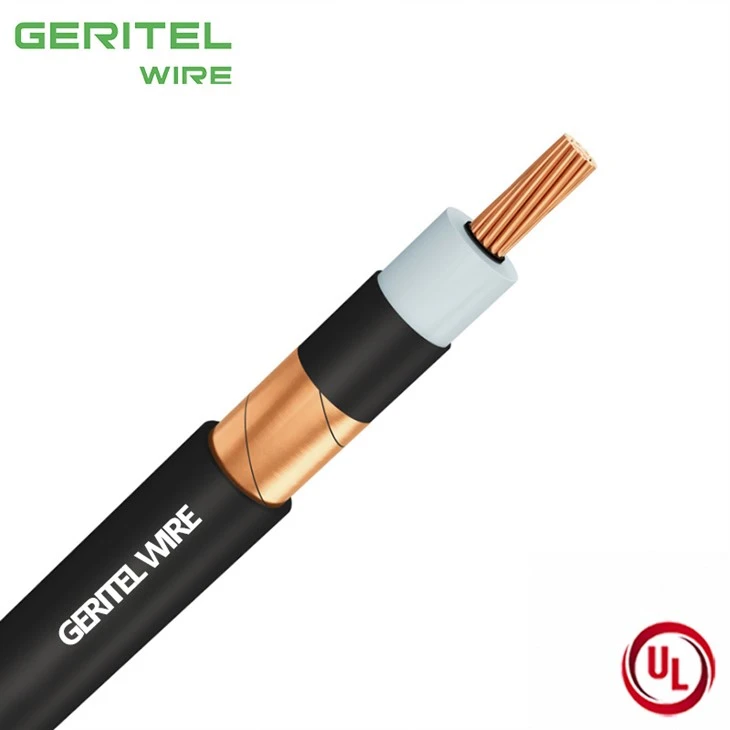

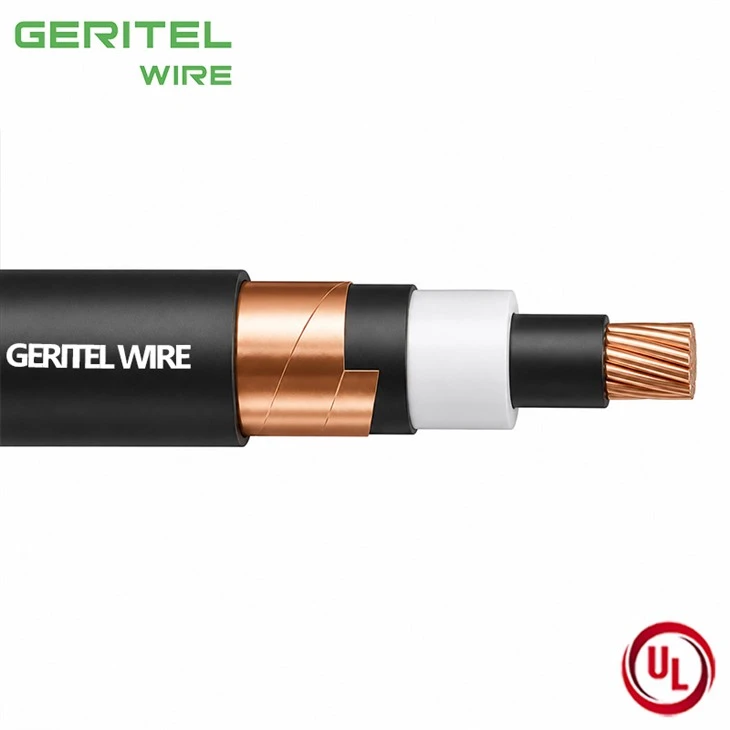

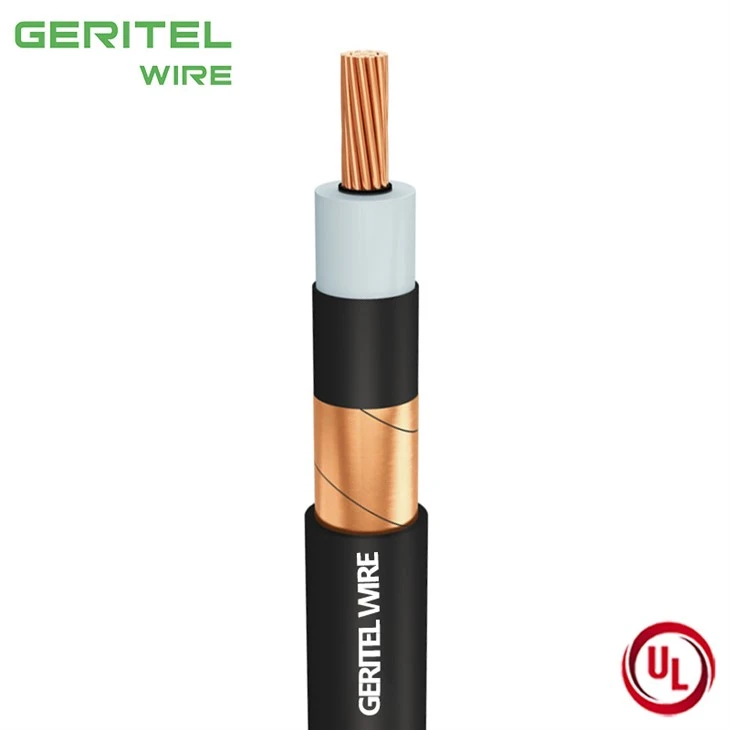

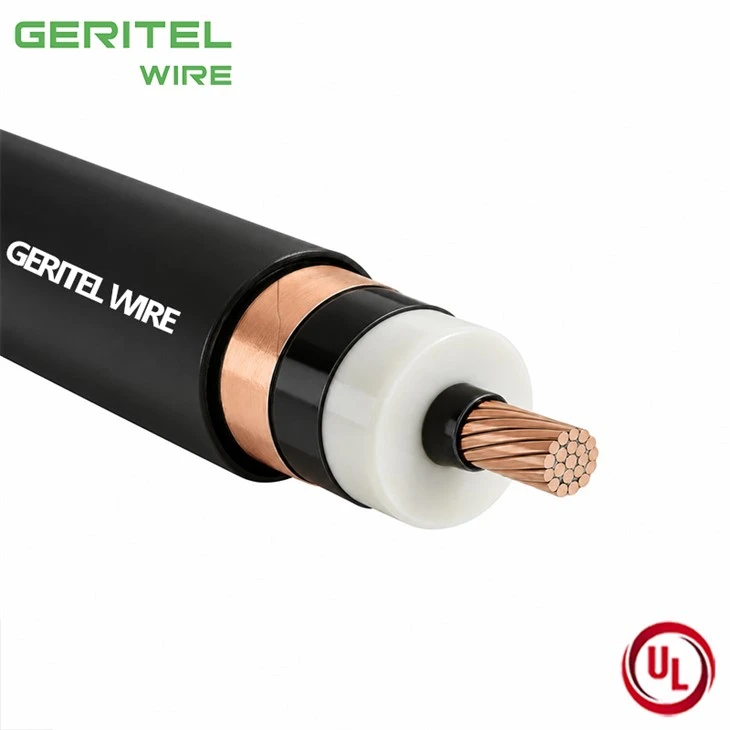

35kv medium voltage cable copper conductor mv-105

ul 1072 copper conductor mv-105 cable

35kV 133% Insulation Level – Maximum Dielectric Strength for Utility and Industrial Power

This 35kV 133% insulation level medium voltage cable delivers maximum dielectric strength and operational safety for the most demanding power infrastructure applications. Featuring 420 mils of EPR insulation-the thickest in the Type MV-105 product family-this cable provides the highest level of insulation protection available. The pure copper conductor ensures excellent conductivity, while the copper tape shield provides effective grounding, fault current management, and EMI protection for sensitive system components. UL1072 certified and rated for 5kV-35kV applications, this cable is Type MV-105 rated for continuous 105°C conductor temperature. The durable PVC overall jacket offers superior resistance to moisture, oil, chemicals, and mechanical damage, ensuring long-term reliability in utility-scale power substations, power generation facilities, large industrial plants, and mining operations. With 133% insulation level, this cable provides enhanced safety margin against voltage surges, switching transients, and temporary overvoltages, making it the preferred choice for critical power infrastructure where maximum insulation protection and system reliability are essential.

PRODUCT SPECIFICATIONS

ul 1072 15kv copper mv-105 cable

Product Description

The Medium Voltage, EPR/Cu Tape Shield/PVC, Type MV-105 Cable consist of fully annealed bare copper Class B stranded conductors, covered with ethylene propylene rubber (EPR), copper tape shield, and black PVC jacket.These cables are used in industrial power circuits.

Applications

In conduit, duct, free air, and raceways, primary installations include cable trays, and outdoor locations
In direct burial if installed in a system with a ground conductor that is in close proximity, and conforms with NEC 250.4 (A)(5)
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Designed to operate continuously at a conductor temperature not exceeding

105°C for normal operations

140°C for emergency overload

250°C for short circuit

Features

Rated at 105°C wet or dry
Excellent corona resistance
High dielectric strength
Low moisture absorption
Low dielectric loss
Excellent sunlight resistance
For CT USE for 1/0 AWG and larger, per UL 1072
Meets cold bend test at -35°C

SPECIFICATIONS
Conductor Count	1 conductor
Conductor	Fully annealed bare copper Class B compressed strand (filled or unfilled)
Gauge Sizes	Available in 2 AWG through 1000 kcmil
Conductor Strand Shield	Extruded thermoset semi-conducting polymer over the conductor
Insulation	Ethylene Propylene Rubber (EPR)
Insulation Shield	Extruded thermoset semi-conducting polymer over the insulation
Shield	5 mil annealed copper tape helically applied with approximately 25% overlap
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	2 AWG - 1 AWG: 00000 FT LS CABLE XXAWG 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 SUN RES (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) 1/0 AWG - 1000 kcmil: 00000 FT LS CABLE XXAWG (or XXXKCMIL) 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 FOR CT USE (UL) SUN RES MADE IN USA MMDDYYYY (LIGHTNING BOLT)
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3 \| ASTM B8 UL 1072, UL 1685 (flame exposure test) ANSI/NEMA WC 74/ICEA S-93-639 ANSI/ICEA S-97-682 AEIC CS8 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA

Copper Unfilled/Filled Cdr 35kV 133% I.L. 420 mils Shielded

Conductor Size AWG/Kcmil	Nom. Conductor Diameter	Insulation Diameter in(mm)	Jacket Thickness in(mm)	Approx.Overall Diameter in(mm)	Approx. Net Weight	Ampacity
Conductor Size AWG/Kcmil	Nom. Conductor Diameter	Insulation Diameter in(mm)	Jacket Thickness in(mm)	Approx.Overall Diameter in(mm)	lbs/kft(kg/km)	Conduit in Air	Underground Duct
1/0	0.362(9.2)	1.27(32.3)	0.075(1.9)	1.51(3.84)	1,255(1,867)	215	215
2/0	0.405(10.3)	1.31(3.33)	0.075(1.9)	1.55(3.94)	1,380(2,053)	245	245
3/0	0.456(11.6)	1.37(3.48)	0.075(1.9)	1.61(4.09)	1,535(2,284)	280	275
4/0	0.512(13.0)	1.42(3.61)	0.075(1.9)	1.66(4.22)	1,725(2,567)	320	315
250	0.558(14.2)	1.48(3.76)	0.075(1.9)	1.72(4.37)	1,895(2,820)	350	345
350	0.661(16.8)	1.58(4.01)	0.105(2.7)	1.89(4.80)	2,415(3,593)	430	415
500	0.789(20.0)	1.71(4.34)	0.105(2.7)	2.02(5.13)	3,000(4,464)	525	500
750	0.968(24.6)	1.91(4.85)	0.105(2.7)	2.22(5.64)	3,960(5,892)	635	610
1000	1.117(28.4)	2.06(5.23)	0.105(2.7)	2.40(6.10)	4,935(7,343)	725	690
