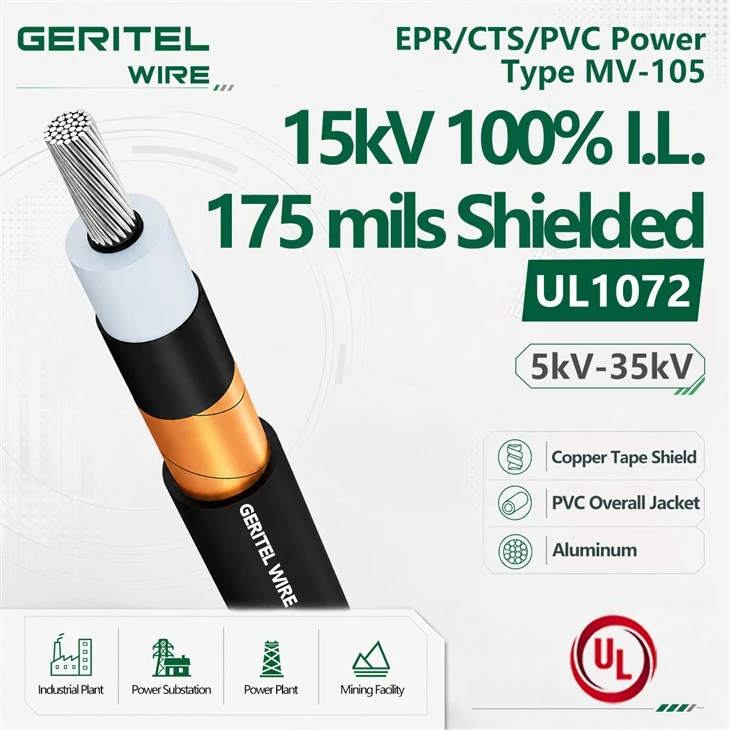

15kV 100% Insulation Level – Aluminum Conductor MV Cable for Substation and Industrial Feeders
PRODUCT SPECIFICATIONS
Product Description

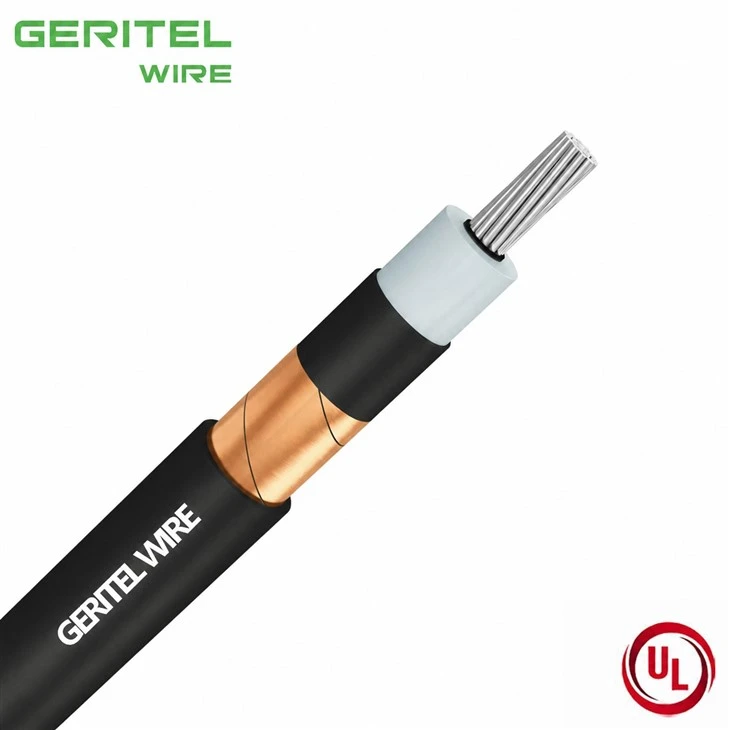

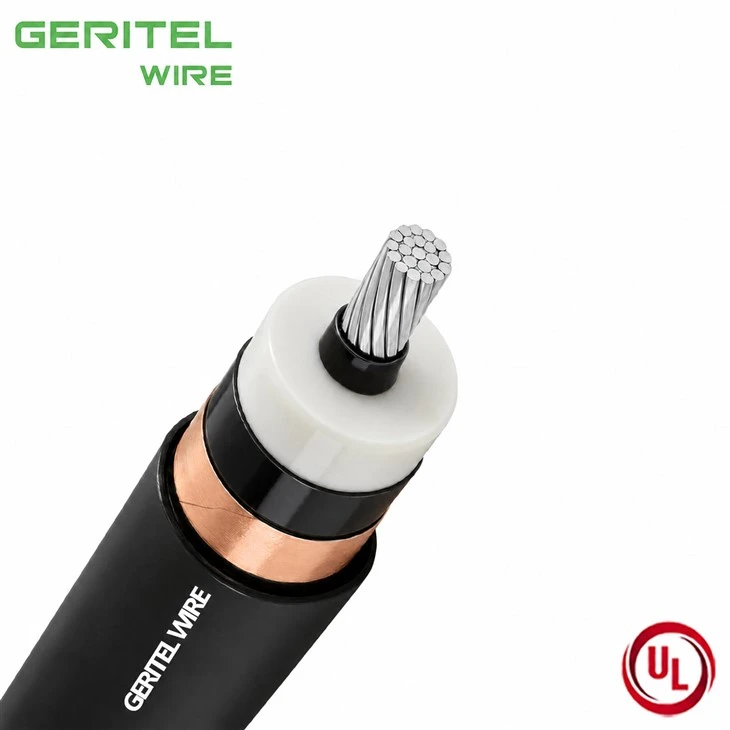

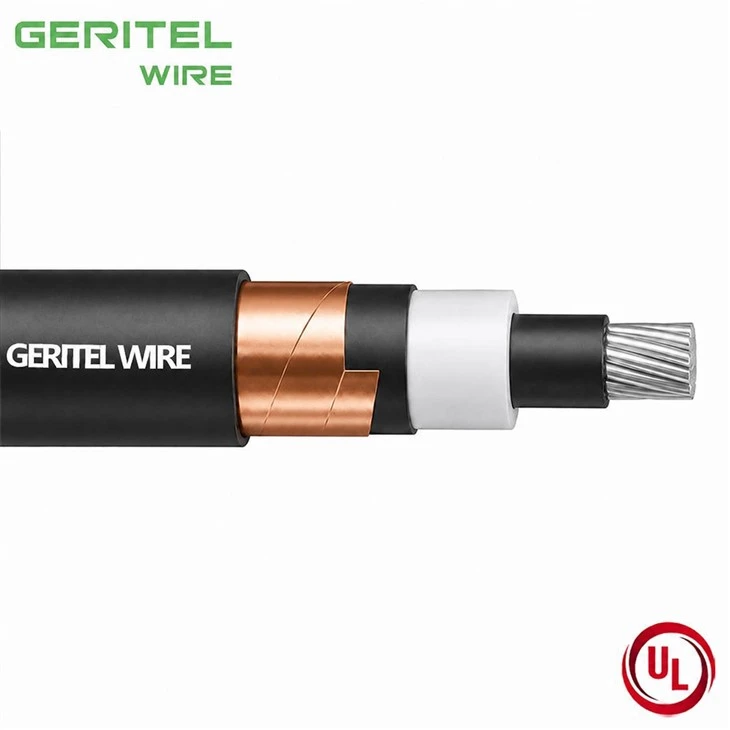

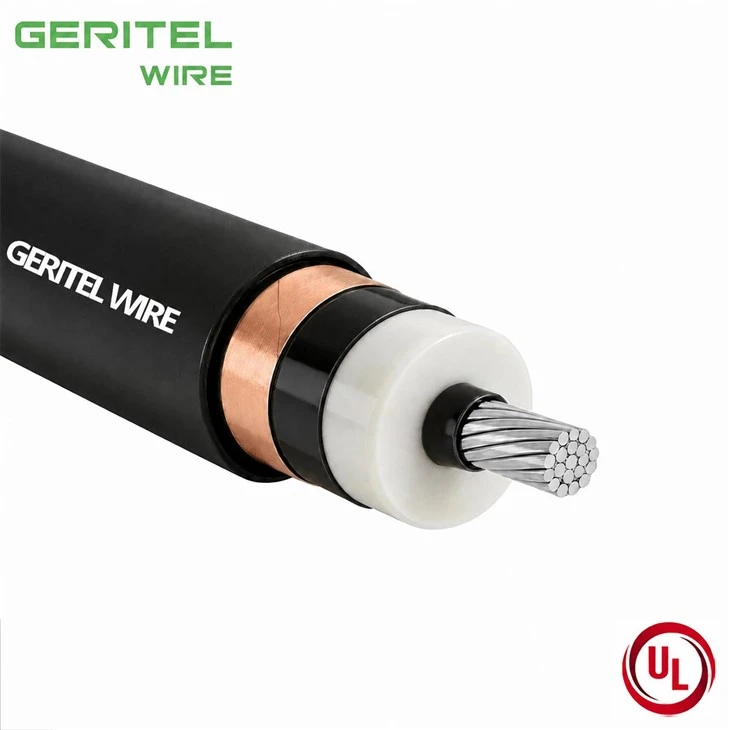

The Medium Voltage, EPR/Cu Tape Shield/PVC, Type MV-105 Cable consist of Aluminum Class B stranded conductors, covered with ethylene propylene rubber (EPR), copper tape shield, and black PVC jacket. These cables are used in industrial power circuits.
Applications
- In conduit, duct, free air, and raceways, primary installations include cable trays, and outdoor locations
- In direct burial if installed in a system with a ground conductor that is in close proximity, and conforms with NEC 250.4 (A)(5)
- In wet or dry locations
- Approved for Class I, Div. 2 industrial hazardous locations per NEC
- Designed to operate continuously at a conductor temperature not exceeding
105°C for normal operations
140°C for emergency overload
250°C for short circuit
Features
- Rated at 105°C wet or dry
- Excellent corona resistance
- High dielectric strength
- Low moisture absorption
- Low dielectric loss
- Excellent sunlight resistance
- For CT USE for 1/0 AWG and larger, per UL 1072
- Meets cold bend test at -35°C
| SPECIFICATIONS | |
|
Conductor Count |
1 conductor |
|
Conductor |
Aluminum 1350 Class B compressed stranded (filled or unfilled) |
|
Gauge Sizes |
Available in 2 AWG through 1000 kcmil |
|
Conductor Strand Shield |
Extruded thermoset semi-conducting polymer over the conductor |
|
Insulation |
Ethylene Propylene Rubber (EPR) |
|
Insulation Shield |
Extruded thermoset semi-conducting polymer over the insulation |
|
Shield |
5 mil annealed copper tape helically applied with approximately 25% overlap |
|
Jacket |
Polyvinyl Chloride (PVC) |
|
Jacket Marking |
2 AWG - 1 AWG: 00000 FT LS CABLE XXAWG 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 SUN RES (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) 1/0 AWG - 1000 kcmil: 00000 FT LS CABLE XXAWG AL (or XXXKCMIL) 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 FOR CT USE (UL) SUN RES MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
|
Packaging |
Non-returnable wood reels in a variety of lengths and dimensions |
|
Performance Compliances |
ASTM B230 , ASTM B231 UL 1072, UL 1685 (flame exposure test) ANSI/NEMA WC 74/ICEA S-93-639 ANSI/ICEA S-97-682 AEIC CS8 NEC |
|
Other Compliances |
EPA 40 CFR, Part 261 OSHA |
Aluminum Unfilled/Filled Cdr 15kV 100% I.L. 175 mils Shielded
|
Conductor AWG/Kcmil |
Nom. Conductor Diameter |
Insulation Diameter in(mm) |
Jacket Thickness in(mm) |
Approx.Overall Diameter in(mm) |
Approx. Net Weight | Ampacity | |
| lbs/kft(kg/km) | Conduit in Air | Underground Duct | |||||
| 2 | 0.283(7.2) | 0.69(17.5) | 0.060(1.5) | 0.90(22.9) | 405(603) | 125 | 130 |
| 1 | 0.322(8.2) | 0.73(18.5) | 0.075(1.9) | 0.97(24.6) | 470(699) | 145 | 145 |
| 1/0 | 0.362(9.2) | 0.77(19.6) | 0.075(1.9) | 1.01(25.7) | 515(766) | 170 | 165 |
| 2/0 | 0.405(10.3) | 0.81(20.6) | 0.075(1.9) | 1.05(26.7) | 565(841) | 190 | 190 |
| 3/0 | 0.456(11.6) | 0.86(21.8) | 0.075(1.9) | 1.10(27.9) | 630(937) | 220 | 215 |
| 4/0 | 0.512(13.0) | 0.92(23.4) | 0.075(1.9) | 1.16(29.5) | 700(1,042) | 255 | 245 |
| 250 | 0.558(14.2) | 0.98(24.9) | 0.075(1.9) | 1.22(31.0) | 775(1153) | 280 | 270 |
| 350 | 0.661(16.8) | 1.08(27.4) | 0.075(1.9) | 1.32(33.5) | 930(1,384) | 340 | 330 |
| 500 | 0.789(20.0) | 1.21(30.7) | 0.075(1.9) | 1.45(36.8) | 1,145(1,704) | 425 | 400 |
| 750 | 0.968(24.6) | 1.40(35.6) | 0.075(1.9) | 1.65(41.9) | 1,495(2,225) | 520 | 490 |
| 1000 | 1.117(28.4) | 1.56(39.6) | 0.105(2.7) | 1.87(47.5) | 1,930(2,872) | 615 | 565 |
