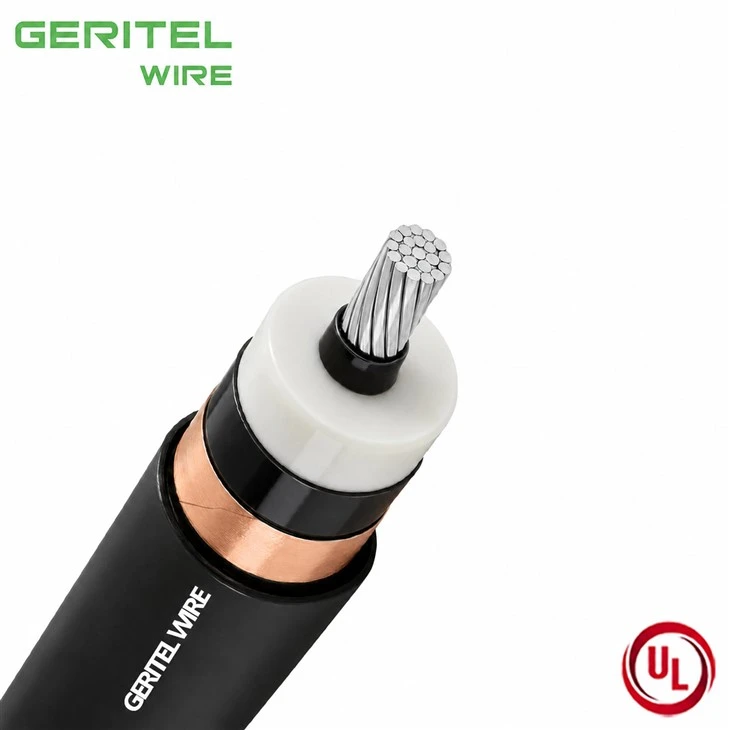

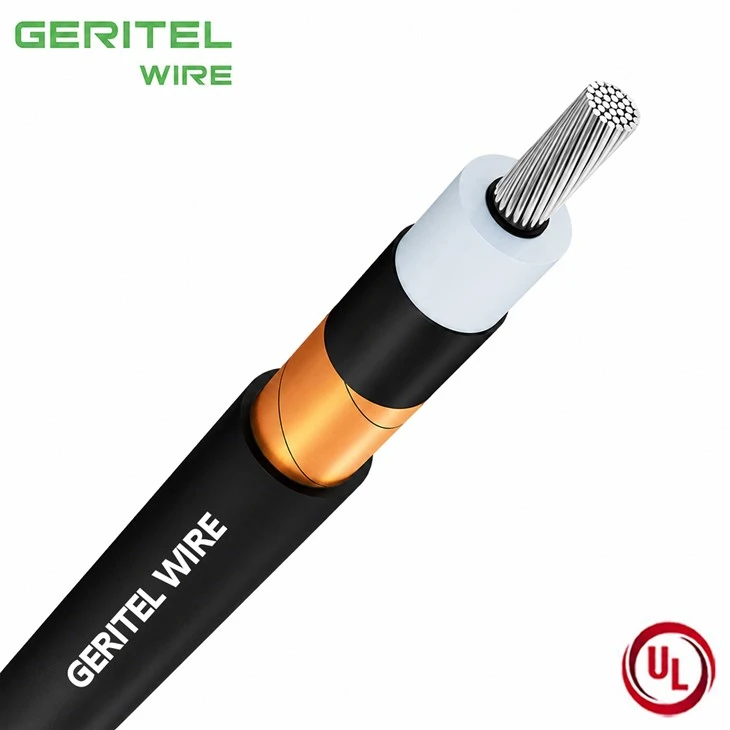

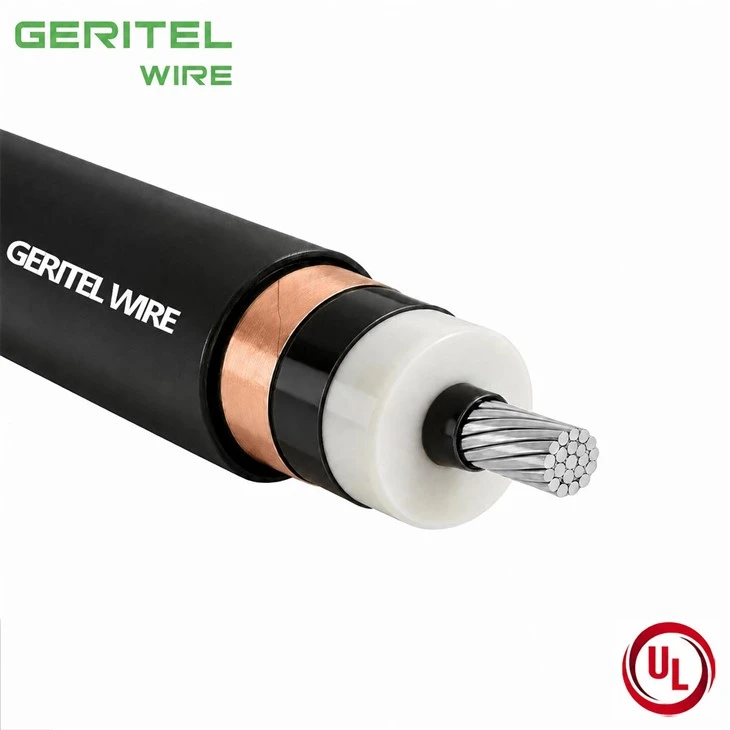

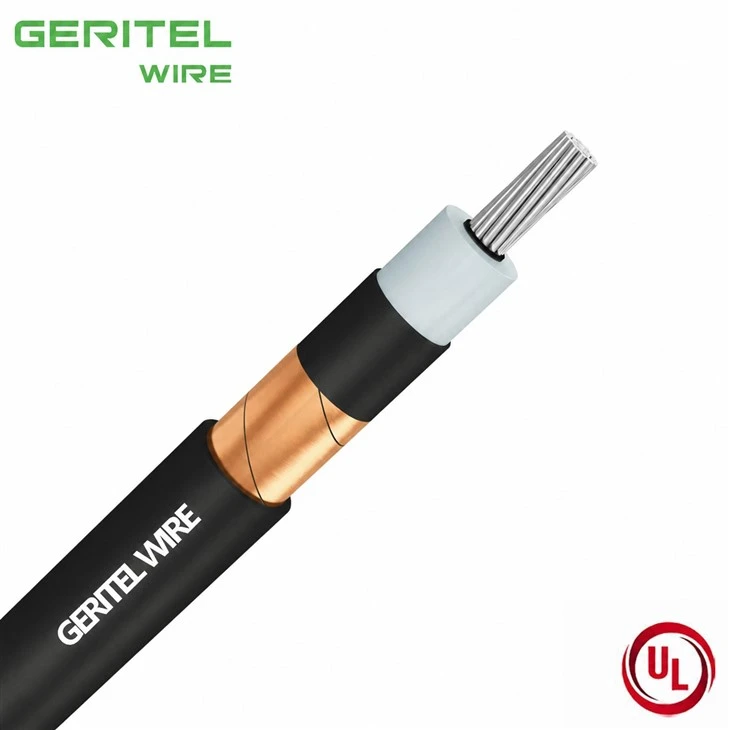

133% Insulation Level – 25kV AL EPR/CTS/PVC Power Type MV-105 Shielded Cable For Power Substation

This single core aluminum MV-105 cable is built with aluminum conductor, 320 mils EPR insulation at 133% I.L. insulation level, concentric CTS shield and PVC outer sheath. The AL EPR/CTS/PVC Power Type MV-105 cable is rated 25kV, designed for medium voltage distribution inside substations, industrial plants and mining facilities.

PRODUCT SPECIFICATIONS

aluminum conductor medium voltage cable for commercial building

PRODUCT DESCRIPTION

The Medium Voltage, EPR/Cu Tape Shield/PVC, Type MV-105 Cable consist of fully annealed bare copper Class B stranded conductors, covered with ethylene propylene rubber (EPR), copper tape shield, and black PVC jacket. These cables are used in industrial power circuits.

APPLICATIONS

· In conduit, duct, free air, and raceways, primary installations include cable trays, and outdoor locations

· In direct burial if installed in a system with a ground conductor that is in close proximity, and conforms with NEC 250.4 (A)(5)

· In wet or dry locations

· Approved for Class I, Div. 2 industrial hazardous locations per NEC

· Designed to operate continuously at a conductor temperature not exceeding

》105°C for normal operations

》140°C for emergency overload

》250°C for short circuit

FEATURES

·  Rated at 105°C wet or dry   · Low dielectric loss
·  Excellent corona resistance ·  Excellent sunlight resistance
·  High dielectric strength   ·  For CT USE for 1/0 AWG and larger, per UL^® 1072
·  Low moisture absorption   ·  Meets cold bend test at -35°C

SPECIFICATIONS
Conductor Count	1 conductor
Conductor	Aluminum 1350 Class B compressed strand (filled or unfilled)
Gauge Sizes	Available in 2 AWG through 1000 kcmil
Conductor Strand Shield	Extruded thermoset semi-conducting polymer over the conductor
Insulation	Ethylene Propylene Rubber (EPR)
Insulation Shield	Extruded thermoset semi-conducting polymer over the insulation
Shield	5 mil annealed copper tape helically applied with approximately 25% overlap
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	2 AWG - 1 AWG: 00000 FT LS CABLE XXAWG 1/C XXXV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 SUN RES (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) 1/0 AWG - 1000 kcmil: 00000 FT LS CABLE XXAWG (or XXXKCMIL) 1/C XXXV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 FOR CT USE (UL) SUN RES MADE IN USA MMDDYYYY (LIGHTNING BOLT)
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B230 \| ASTM B231 UL 1072, UL 1685 (flame exposure test) ANSI/NEMA WC 74/ICEA S-93-639 ANSI/ICEA S-97-682 AEIC CS8 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA

Copper Unfilled/Filled Cdr 5kV 100% I.L. 90 mils, Shielded

Conductor Size	Nom.Conductor Diameter	Insulation Diameter²	Jacket Thickness²	Approx. Overall Diameter²	Approx. Net Weight²	Ampacitiy
AWG/Kcmil	in (mm)	in (mm)	in (mm)	in (mm)	lbs/kft(kg/km)	Conduit in Air³	Underground Duct⁴
1/0	0.362(9.2)	1.06(26.9)	0.075 (1.9)	1.31(33.3)	800(1,190)	170	165
2/0	0.405(10.3)	1.11(28.2)	0.075 (1.9)	1.35 (34.3)	860(1,280)	190	190
3/0	0.456 (11.6)	1.16(29.5)	0.075 (1.9)	1.40 (35.6)	935(1,391)	220	215
4/0	0.512(13.0)	1.22(31.0)	0.075 (1.9)	1.46 (37.1)	1,020(1,518)	255	245
250	0.558(14.2)	1.27(32.3)	0.075 (1.9)	1.51 (38.4)	1,105(1,644)	280	270
350	0.661(16.8)	1.38(35.1)	0.075 (1.9)	1.62 (41.1)	1,285(1,912)	340	330
500	0.789(20.0)	1.51(38.4)	0.075 (1.9)	1.75 (44.5)	1,530(2,277)	425	400
750	0.968(24.6)	1.70(43.2)	0.105 (2.7)	2.01 (51.1)	2,045(3,043)	520	490
1000	1.117(28.4)	1.85(47.0)	0.105 (2.7)	2.16 (54.9)	2,410(3,586)	615	565
