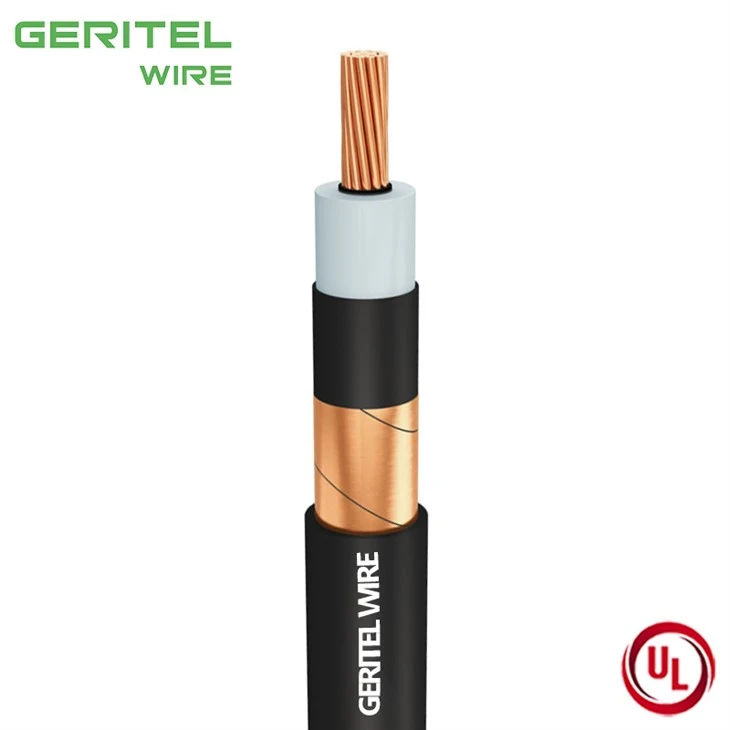

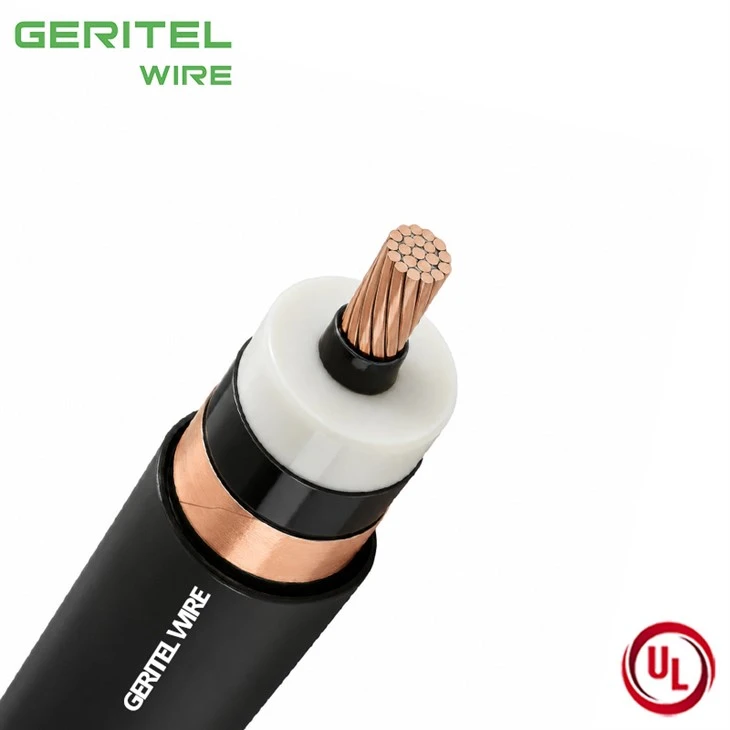

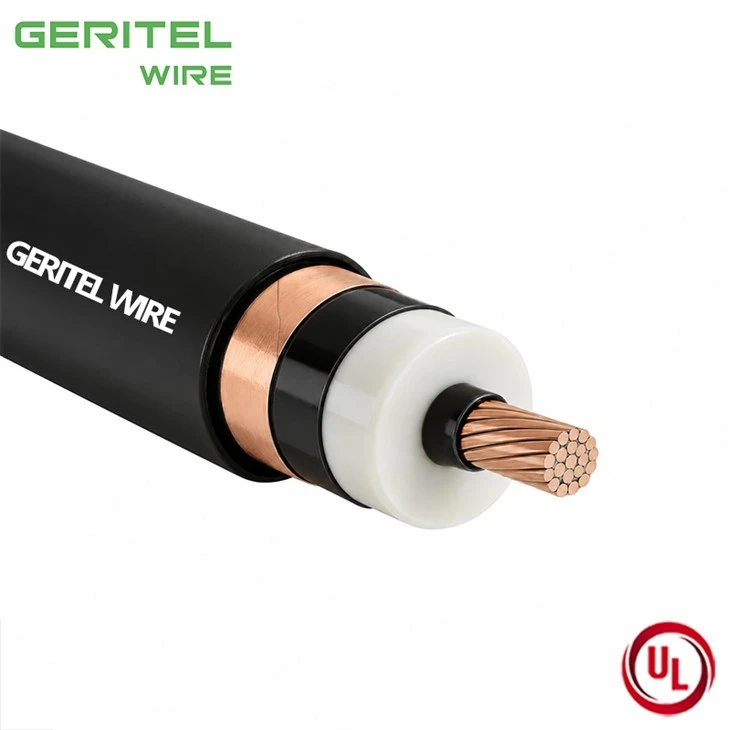

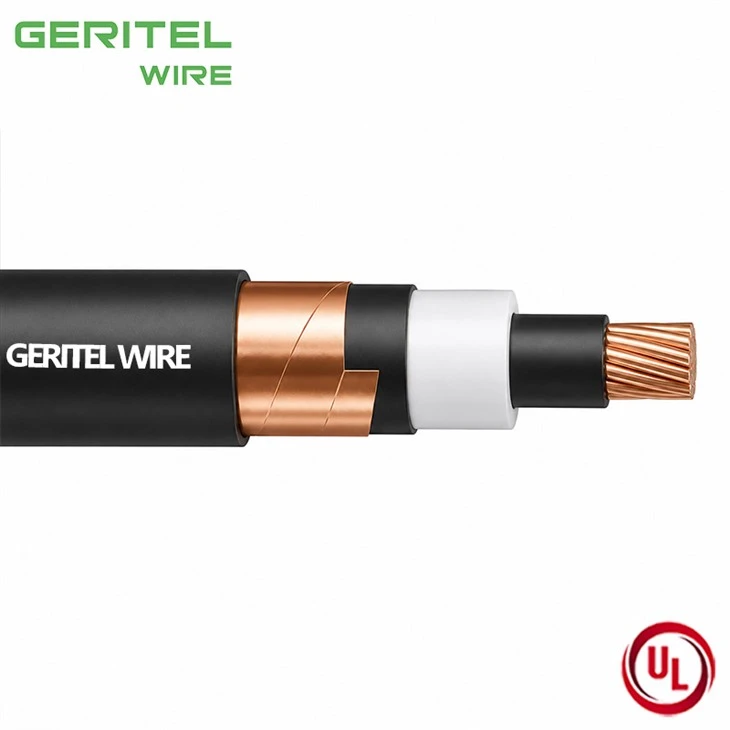

15kv single-core copper conductor mv-105 cable

15kv 105c mv cable copper single conductor

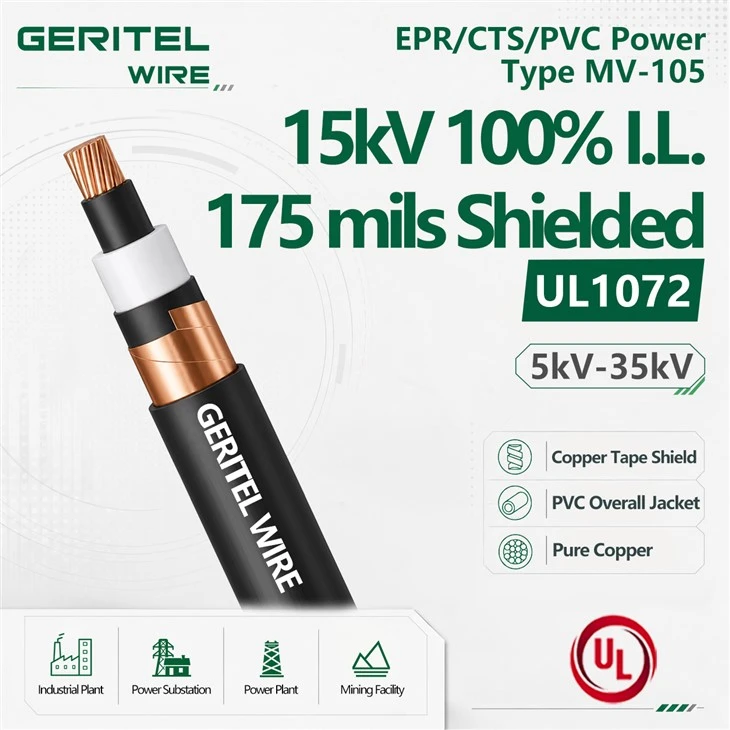

CU EPR/CTS/PVC Power Type MV-105 15kV 100% I.L. 175 Mils Shielded

CU EPR/CTS/PVC Power Type MV-105 15kV 100% I.L. 175 mils Shielded

CU EPR/CTS/PVC MV-105 shielded medium voltage cable is rated 15kV with 100% insulation level and heavy 175-mil copper tape shielding. Built with compact bare copper conductor, 105°C heat-resistant EPR insulation, full CTS copper tape shield and rigid PVC outer jacket, it delivers outstanding dielectric strength, ozone resistance and long-term thermal stability under continuous high-load operation. The extra-thick 175-mil copper tape uniformly controls internal electric field stress, eliminates partial discharge and blocks external electromagnetic interference, while the 100% insulation level ensures secure operation during full ground fault conditions. The robust PVC jacket provides strong protection against abrasion, UV radiation, moisture and mild chemical corrosion. Suited for underground conduit, direct burial and cable tray wiring, this cable serves large industrial parks, utility power grids and commercial medium-voltage distribution projects with superior safety margins.

PRODUCT SPECIFICATIONS

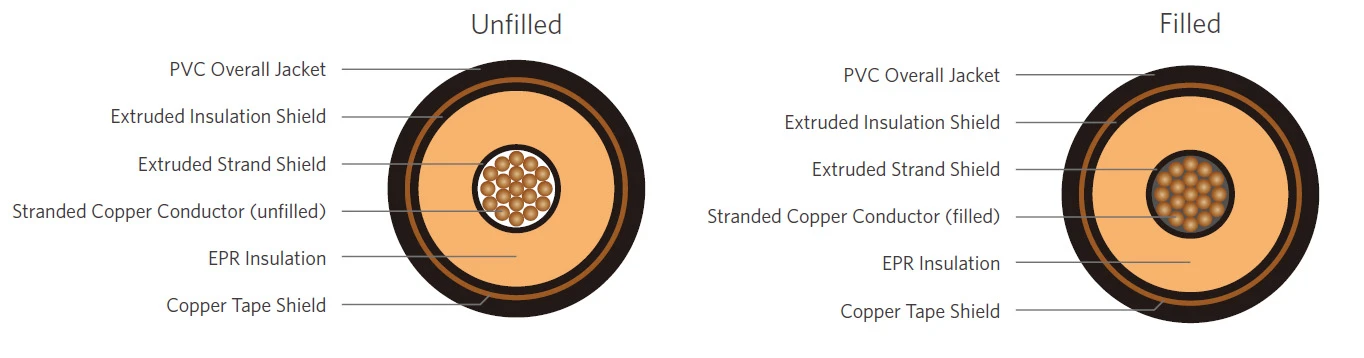

type mv-105 medium voltage cable copper

Product Description

The Medium Voltage, EPR/Cu Tape Shield/PVC, Type MV-105 Cable consist of fully annealed bare copper Class B stranded conductors, covered with ethylene propylene rubber (EPR), copper tape shield, and black PVC jacket.These cables are used in industrial power circuits.

Applications

In conduit, duct, free air, and raceways, primary installations include cable trays, and outdoor locations
In direct burial if installed in a system with a ground conductor that is in close proximity, and conforms with NEC 250.4 (A)(5)
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Designed to operate continuously at a conductor temperature not exceeding

105°C for normal operations

140°C for emergency overload

250°C for short circuit

Features

Rated at 105°C wet or dry
Excellent corona resistance
High dielectric strength
Low moisture absorption
Low dielectric loss
Excellent sunlight resistance
For CT USE for 1/0 AWG and larger, per UL 1072
Meets cold bend test at -35°C

SPECIFICATIONS
Conductor Count	1 conductor
Conductor	Fully annealed bare copper Class B compressed strand (filled or unfilled)
Gauge Sizes	Available in 2 AWG through 1000 kcmil
Conductor Strand Shield	Extruded thermoset semi-conducting polymer over the conductor
Insulation	Ethylene Propylene Rubber (EPR)
Insulation Shield	Extruded thermoset semi-conducting polymer over the insulation
Shield	5 mil annealed copper tape helically applied with approximately 25% overlap
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	2 AWG - 1 AWG: 00000 FT LS CABLE XXAWG 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 SUN RES (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) 1/0 AWG - 1000 kcmil: 00000 FT LS CABLE XXAWG (or XXXKCMIL) 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 FOR CT USE (UL) SUN RES MADE IN USA MMDDYYYY (LIGHTNING BOLT)
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3 \| ASTM B8 UL 1072, UL 1685 (flame exposure test) ANSI/NEMA WC 74/ICEA S-93-639 ANSI/ICEA S-97-682 AEIC CS8 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA

Copper Unfilled/Filled Cdr 35kV 100% I.L., 175 mils, Shielded

Conductor Size AWG/Kcmil	Nom. Conductor Diameter	Insulation Diameter in(mm)	Jacket Thickness in(mm)	Approx.Overall Diameter in(mm)	Approx. Net Weight	Ampacity
Conductor Size AWG/Kcmil	Nom. Conductor Diameter	Insulation Diameter in(mm)	Jacket Thickness in(mm)	Approx.Overall Diameter in(mm)	lbs/kft(kg/km)	Conduit in Air	Underground Duct
2	0.283 (7.2)	0.69 (17.5)	0.060 (1.5)	0.90 (22.9)	545(811)	165	165
1	0.322 (8.2)	0.73 (18.5)	0.075 (1.9)	0.97 (24.6)	645(960)	185	185
1/0	0.362 (9.2)	0.77 (19.6)	0.075 (1.9)	1.01 (25.7)	735 (1,094)	215	215
2/0	0.405 (10.3)	0.81 (20.6)	0.075 (1.9)	1.05 (26.7)	845 (1,257)	245	245
3/0	0.456 (11.6)	0.86 (21.8)	0.075 (1.9)	1.10 (27.9)	980(1,458)	280	275
4/0	0.512 (13.0)	0.92 (23.4)	0.075 (1.9)	1.16 (29.5)	1,145 (1,704)	320	315
250	0.558 (14.2)	0.98 (24.9)	0.075 (1.9)	1.22 (31.0)	1,295 (1,927)	350	345
350	0.661 (16.8)	1.08 (27.4)	0.075 (1.9)	1.32 (33.5)	1,660 (2,470)	430	415
500	0.789 (20.0)	1.21 (30.7)	0.075 (1.9)	1.45 (36.8)	2,190 (3,259)	525	500
750	0.968 (24.6)	1.40 (35.6)	0.075 (1.9)	1.65 (41.9)	3,065 (4,561)	635	610
1000	1.117 (28.4)	1.56 (39.6)	0.105 (2.7)	1.87 (47.5)	4,025(5,989)	725	690
