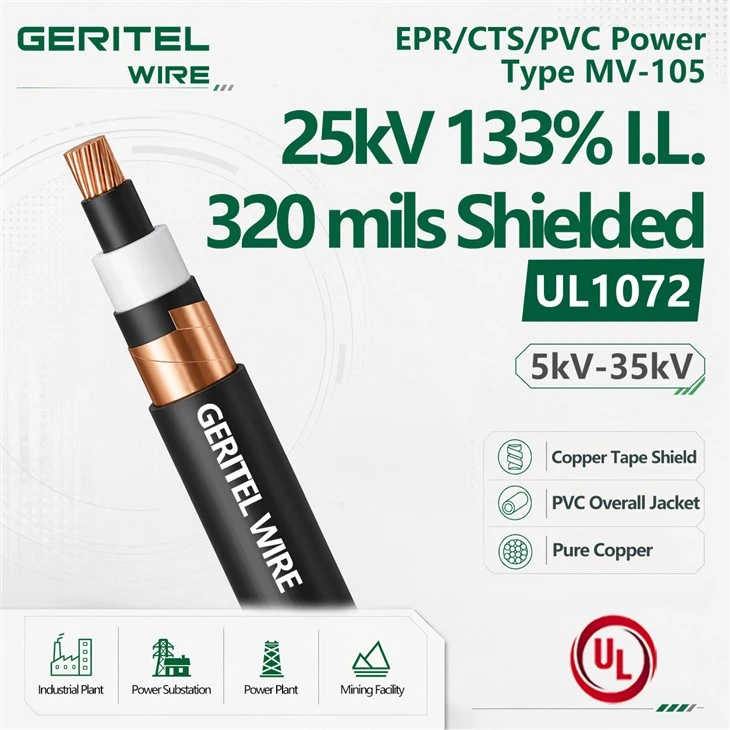

25kV 133% Insulation Level – Medium Voltage Cable for Critical Infrastructure

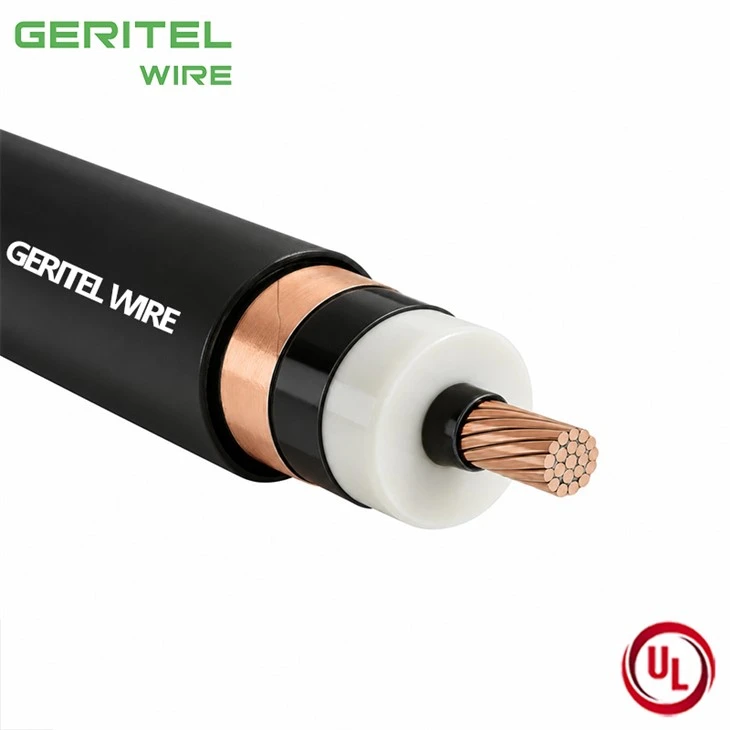

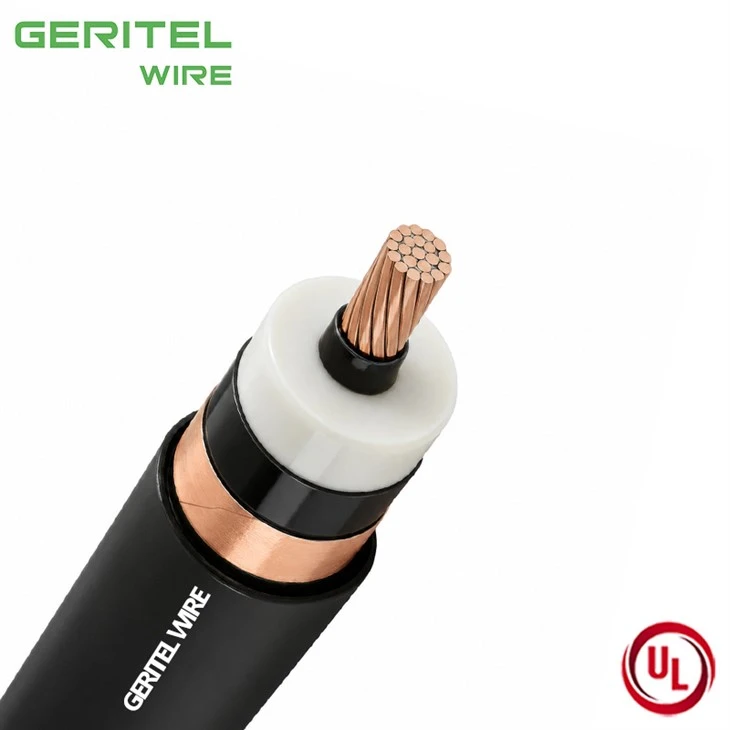

This 25kV 133% insulation level medium voltage cable is engineered for reliable power transmission in demanding industrial and utility environments. Featuring a pure copper conductor, EPR insulation, copper tape shield, and durable PVC jacket, it delivers exceptional electrical performance with 320 mils insulation thickness. UL1072 certified and Type MV-105 rated for 105°C continuous operation, this cable provides enhanced dielectric strength against voltage surges and system disturbances. Suitable for installation in industrial plants, power substations, power generation facilities, and mining operations, the copper tape shield ensures effective grounding while the PVC jacket resists moisture, oil, and chemicals commonly found in harsh industrial settings. The 133% insulation level offers superior safety margin compared to standard 100% construction, making it the preferred choice for critical medium voltage distribution systems where operational reliability is paramount.

PRODUCT SPECIFICATIONS

mv-105 cable datasheet explained

Product Description

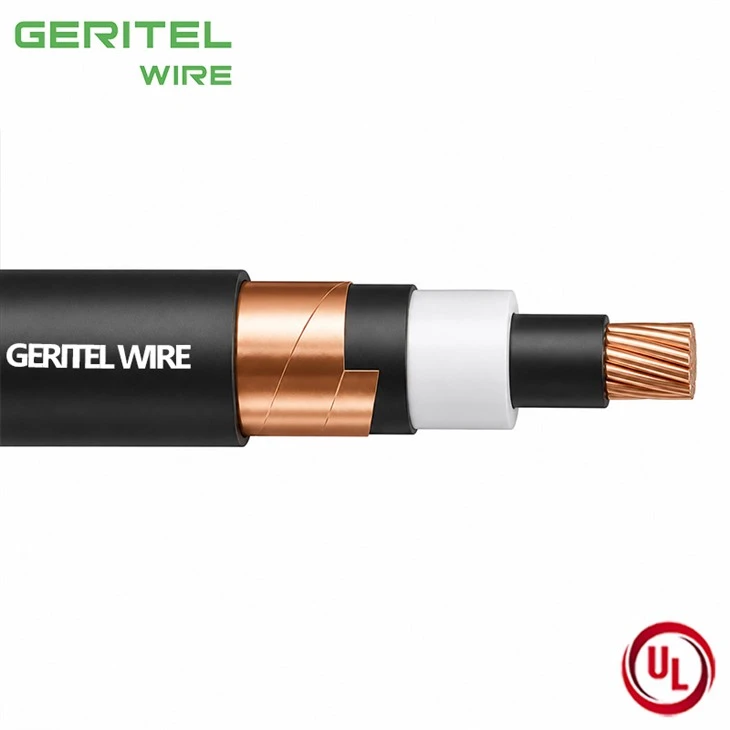

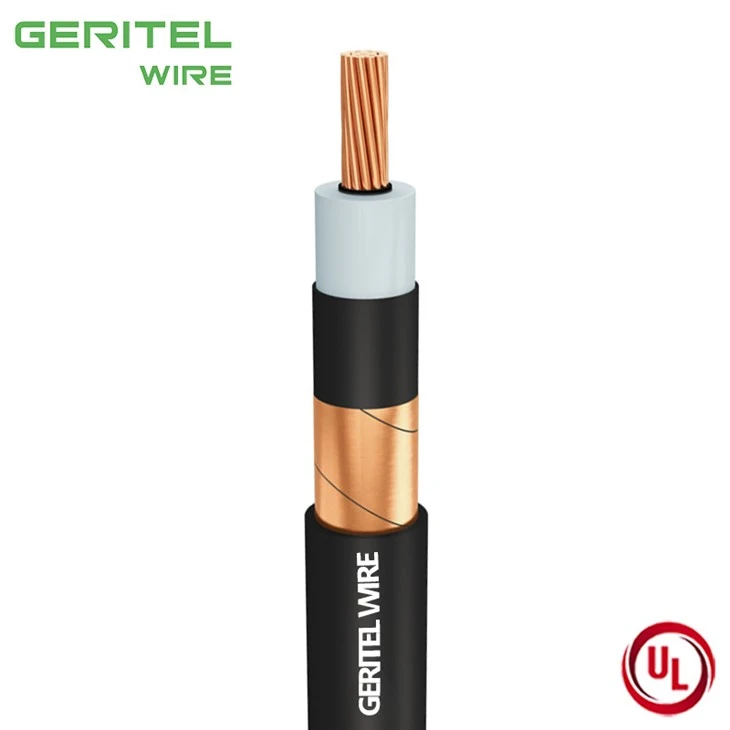

The Medium Voltage, EPR/Cu Tape Shield/PVC, Type MV-105 Cable consist of fully annealed bare copper Class B stranded conductors, covered with ethylene propylene rubber (EPR), copper tape shield, and black PVC jacket.These cables are used in industrial power circuits.

Applications

In conduit, duct, free air, and raceways, primary installations include cable trays, and outdoor locations
In direct burial if installed in a system with a ground conductor that is in close proximity, and conforms with NEC 250.4 (A)(5)
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Designed to operate continuously at a conductor temperature not exceeding

105°C for normal operations

140°C for emergency overload

250°C for short circuit

Features

Rated at 105°C wet or dry
Excellent corona resistance
High dielectric strength
Low moisture absorption
Low dielectric loss
Excellent sunlight resistance
For CT USE for 1/0 AWG and larger, per UL 1072
Meets cold bend test at -35°C

SPECIFICATIONS
Conductor Count	1 conductor
Conductor	Fully annealed bare copper Class B compressed strand (filled or unfilled)
Gauge Sizes	Available in 2 AWG through 1000 kcmil
Conductor Strand Shield	Extruded thermoset semi-conducting polymer over the conductor
Insulation	Ethylene Propylene Rubber (EPR)
Insulation Shield	Extruded thermoset semi-conducting polymer over the insulation
Shield	5 mil annealed copper tape helically applied with approximately 25% overlap
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	2 AWG - 1 AWG: 00000 FT LS CABLE XXAWG 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 SUN RES (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) 1/0 AWG - 1000 kcmil: 00000 FT LS CABLE XXAWG (or XXXKCMIL) 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 FOR CT USE (UL) SUN RES MADE IN USA MMDDYYYY (LIGHTNING BOLT)
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3 \| ASTM B8 UL 1072, UL 1685 (flame exposure test) ANSI/NEMA WC 74/ICEA S-93-639 ANSI/ICEA S-97-682 AEIC CS8 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA

Copper Unfilled/Filled Cdr 25kV 133% I.L. 320 mils Shielded

Conductor Size AWG/Kcmil	Nom. Conductor Diameter	Insulation Diameter in(mm)	Jacket Thickness in(mm)	Approx.Overall Diameter in(mm)	Approx. Net Weight	Ampacity
Conductor Size AWG/Kcmil	Nom. Conductor Diameter	Insulation Diameter in(mm)	Jacket Thickness in(mm)	Approx.Overall Diameter in(mm)	lbs/kft(kg/km)	Conduit in Air	Underground Duct
1/0	0.362(9.2)	1.06(26.9)	0.075(1.9)	1.31(33.3)	1,020(1,518)	215	215
2/0	0.405(10.3)	1.11(28.2)	0.075(1.9)	1.35(34.3)	1,140(1,696)	245	245
3/0	0.456(11.6)	1.16(29.5)	0.075(1.9)	1.40(35.6)	1,285(1,912)	280	275
4/0	0.512(13.0)	1.22(31.0)	0.075(1.9)	1.46(37.1)	1,465(2,180)	320	315
250	0.558(14.2)	1.27(32.3)	0.075(1.9)	1.51(38.4)	1,630(2,425)	350	345
350	0.661(16.8)	1.38(35.1)	0.075(1.9)	1.62(41.1)	2,015(2,998)	430	415
500	0.789(20.0)	1.51(38.4)	0.075(1.9)	1.75(44.5)	2,575(3,832)	525	500
750	0.968(24.6)	1.70(43.2)	0.105(2.7)	2.01(51.1)	3,615(5,379)	635	610
1000	1.117(28.4)	1.85(47.0)	0.105(2.7)	2.16(54.9)	4,505(6,703)	725	690

CERTIFICATIONS

medium voltage cable partial discharge test

PACKAGING

copper conductor vs aluminum conductor mv-105 cable

Large Wooden Reel

shielded single core mv-105 cable for renewable energy project

Large Wooden Reel

APPLICATION

type mv-105 copper medium voltage cable for mining facility

Industrial Plant

shielded single core mv-105 cable for data center

Mining Facility

25kv copper mv-105 cable 100% and 133% insulation level

Power Plant

CASE

type mv-105 cable copper conductor 133% insulation level

Battery energy storage system

shielded copper mv-105 power cable 133% insulation level

Bechatw Power Station

25kv copper mv-105 cable 133% insulation level

Bingham Canyon Mine

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

copper conductor mv-105 medium voltage cable 133% insulation level

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

single conductor copper type mv-105 cable 133% insulation level

metallic shield mv-105 power cable datasheet

metallic shield type mv cable 105c copper conductor

GLOBAL CERTIFICATIONS

25kv metallic shield copper mv-105 cable

CUSTOMER PHOTOS

copper conductor metallic shield mv-105 cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

single conductor metallic shield type mv-105 cable

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

tape shielded type mv cable 105c copper conductor

tape shielded single core copper medium voltage cable

single conductor tape shielded type mv-105 cable

wire shielded mv-105 power cable datasheet

wire shielded single core copper medium voltage cable

wire shielded medium voltage cable copper conductor mv-105

single conductor wire shielded type mv-105 cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

copper wire shield single core copper medium voltage cable

FAQ

What does 133% insulation level mean for 25kV cable?

It provides extra dielectric strength and safety margin against voltage surges and switching transients beyond standard 100% insulation.

Why copper tape shield instead of other shielding?

Copper tape offers excellent fault current capacity, low-impedance grounding, and superior EMI shielding for sensitive protection equipment.

What is the maximum operating temperature?

MV-105 rating allows continuous 105°C conductor operation, with short-circuit withstand up to 250°C for limited durations.

Can this cable be installed outdoors or direct burial?

Yes, the PVC jacket resists moisture, sunlight, and chemicals, though proper burial depth and mechanical protection are required per code.
