single conductor type mv-105 cable

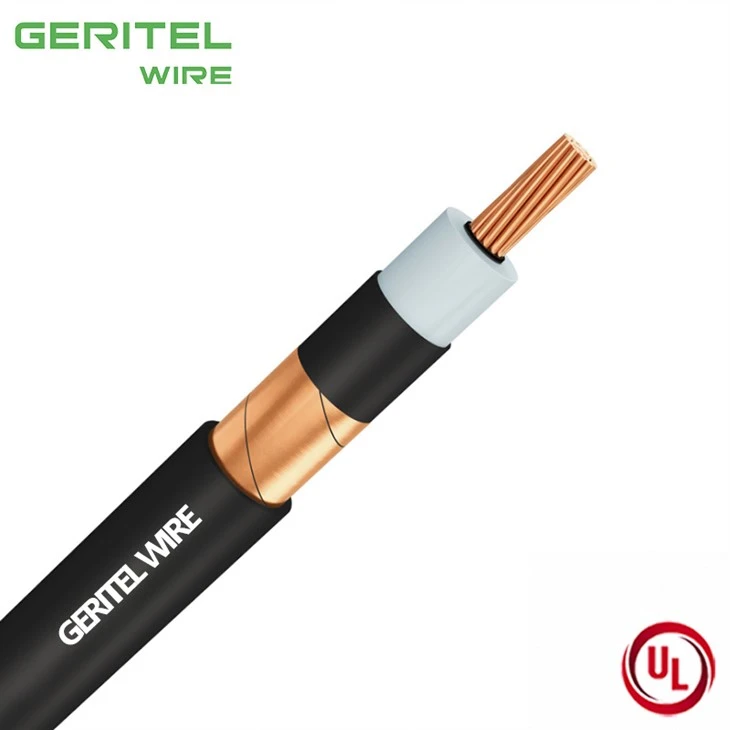

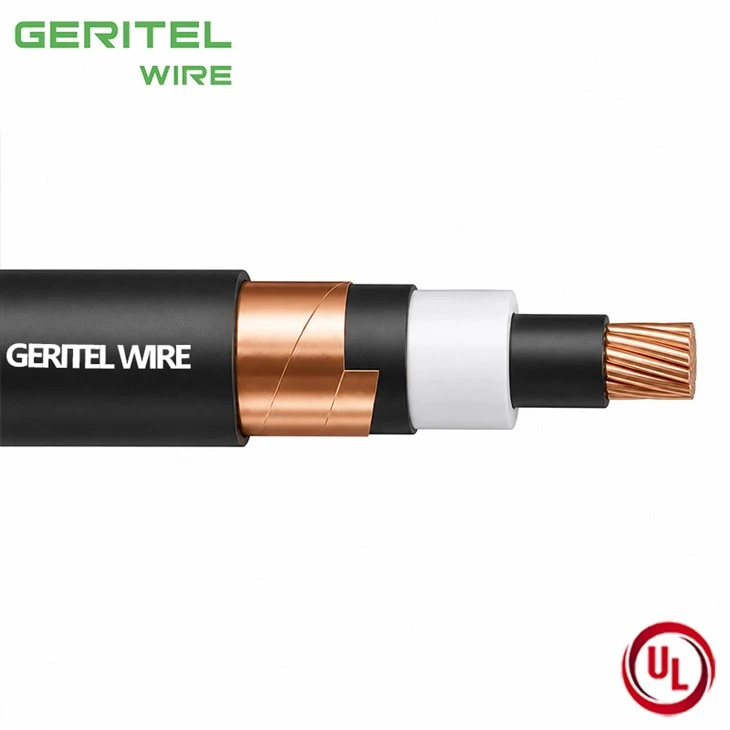

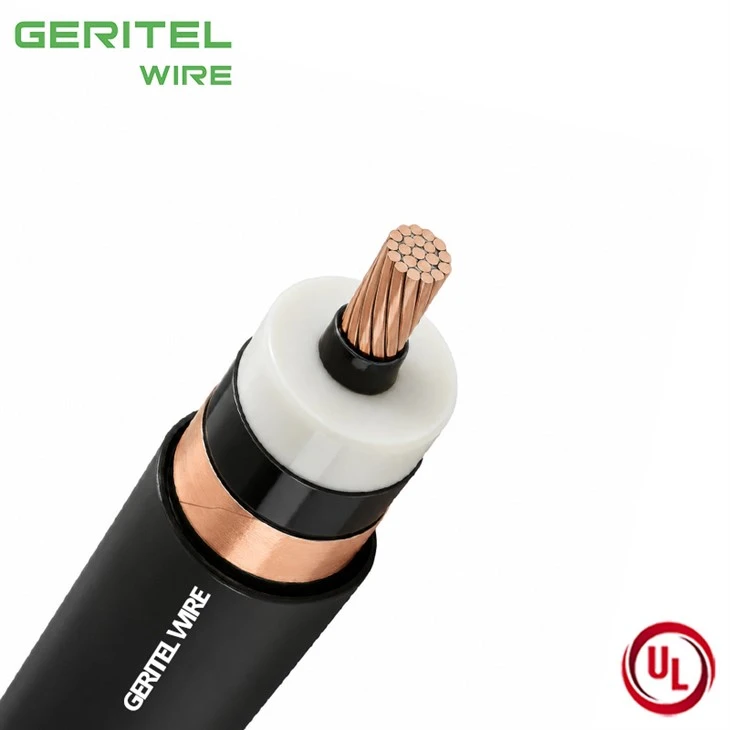

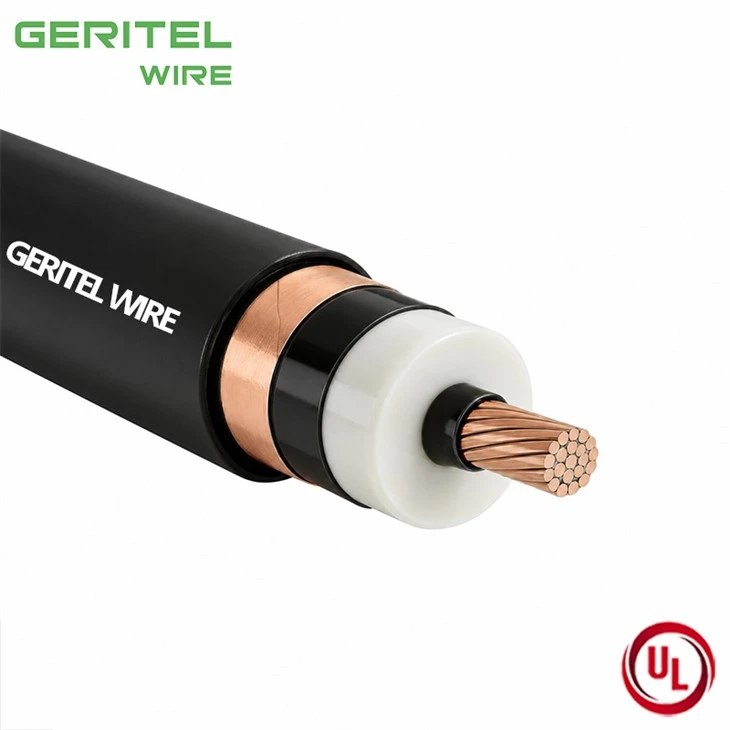

PRODUCT REAL SHOT

CU EPR/CTS/PVC Power Type MV-105 5kV 100% I.L. 90 Mils Shielded

CU EPR/CTS/PVC Power Type MV-105 5kV 100% I.L. 90 mils Shielded

CU EPR/CTS/PVC MV-105 medium voltage cable is rated 5kV with 100% insulation level and 90-mil copper tape shielding. It is structured with compact copper conductor, 105°C heat-resistant EPR insulation, CTS shielding and durable PVC jacket. The EPR insulation boasts great dielectric performance, ozone and aging resistance for long-term high-load operation. The thick copper tape shield stabilizes electric field, eliminates partial discharge and blocks electromagnetic interference, and the 100% insulation level guarantees safety under ground faults. The PVC outer jacket withstands abrasion, UV and moisture. With stable voltage resistance and strong anti-interference capability, it suits underground conduit, cable tray and direct burial for industrial and municipal medium voltage power distribution.

PRODUCT SPECIFICATIONS

copper conductor type mv-105 cable

PRODUCT DESCRIPTION

The Medium Voltage, EPR/Cu Tape Shield/PVC, Type MV-105 Cable consist of fully annealed bare copper Class B stranded conductors, covered with ethylene propylene rubber (EPR), copper tape shield, and black PVC jacket. These cables are used in industrial power circuits.

APPLICATIONS

· In conduit, duct, free air, and raceways, primary installations include cable trays, and outdoor locations

· In direct burial if installed in a system with a ground conductor that is in close proximity, and conforms with NEC 250.4 (A)(5)

· In wet or dry locations

· Approved for Class I, Div. 2 industrial hazardous locations per NEC

· Designed to operate continuously at a conductor temperature not exceeding

》105°C for normal operations

》140°C for emergency overload

》250°C for short circuit

FEATURES

·  Rated at 105°C wet or dry   · Low dielectric loss
·  Excellent corona resistance ·  Excellent sunlight resistance
·  High dielectric strength   ·  For CT USE for 1/0 AWG and larger, per UL^® 1072
·  Low moisture absorption   ·  Meets cold bend test at -35°C

SPECIFICATIONS
Conductor Count	1 conductor
Conductor	Fully annealed bare copper Class B compressed strand (filled or unfilled)
Gauge Sizes	Available in 2 AWG through 1000 kcmil
Conductor Strand Shield	Extruded thermoset semi-conducting polymer over the conductor
Insulation	Ethylene Propylene Rubber (EPR)
Insulation Shield	Extruded thermoset semi-conducting polymer over the insulation
Shield	5 mil annealed copper tape helically applied with approximately 25% overlap
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	2 AWG - 1 AWG: 00000 FT LS CABLE XXAWG 1/C XXXV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 SUN RES (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) 1/0 AWG - 1000 kcmil: 00000 FT LS CABLE XXAWG (or XXXKCMIL) 1/C XXXV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 FOR CT USE (UL) SUN RES MADE IN USA MMDDYYYY (LIGHTNING BOLT)
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3 \| ASTM B8 UL 1072, UL 1685 (flame exposure test) ANSI/NEMA WC 74/ICEA S-93-639 ANSI/ICEA S-97-682 AEIC CS8 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA

Copper Unfilled/Filled Cdr 5kV 100% I.L. 90 mils, Shielded

Conductor Size	Nom.Conductor Diameter	Insulation Diameter	Jacket Thickness	Approx. Overall Diameter	Approx. Net Weight	Ampacitiy
AWG/Kcmil	in (mm)	in (mm)	in (mm)	in (mm)	lbs/kft(kg/km)	Conduit in Air	Underground Duct
2	0.283(7.2)	0.52(13.2)	0.060 (1.5)	0.73 (18.5)	430(640)	135	155
1	0.322(8.2)	0.56 (14.2)	0.060 (1.5)	0.77 (19.6)	500(744)	155	180
1/0	0.362(9.2)	0.60 (15.2)	0.060 (1.5)	0.81 (20.6)	585(870)	185	210
2/0	0.405(10.3)	0.65 (16.5)	0.060 (1.5)	0.86 (21.8)	685 (1,019)	210	235
3/0	0.456 (11.6)	0.70 (17.8)	0.075 (1.9)	0.94 (23.9)	840(1,250)	245	270
4/0	0.512(13.0)	0.76 (19.3)	0.075 (1.9)	1.00 (25.4)	995 (1,481)	285	310
250	0.558 (14.2)	0.81 (20.6)	0.075 (1.9)	1.05 (26.7)	1,140 (1,696)	315	345
350	0.661 (16.8)	0.92(23.4)	0.075 (1.9)	1.16 (29.5)	1,495 (2,225)	390	415
500	0.789(20.0)	1.05 (26.7)	0.075 (1.9)	1.29 (32.8)	2,005(2,983)	475	505
750	0.968 (24.6)	1.24 (31.5)	0.075 (1.9)	1.48 (37.6)	2,860(4,256)	585	630
1000	1.117 (28.4)	1.39(35.3)	0.075 (1.9)	1.63 (41.4)	3,685 (5,483)	660	720

CERTIFICATIONS

copper conductor mv-105 cable

PACKAGING

Large Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Plant

Mining Facility

Power Plant

CASE

Battery energy storage system

single conductor medium voltage cable copper Bechatw Power Station

Bełchatów Power Station

Bingham Canyon Mine
