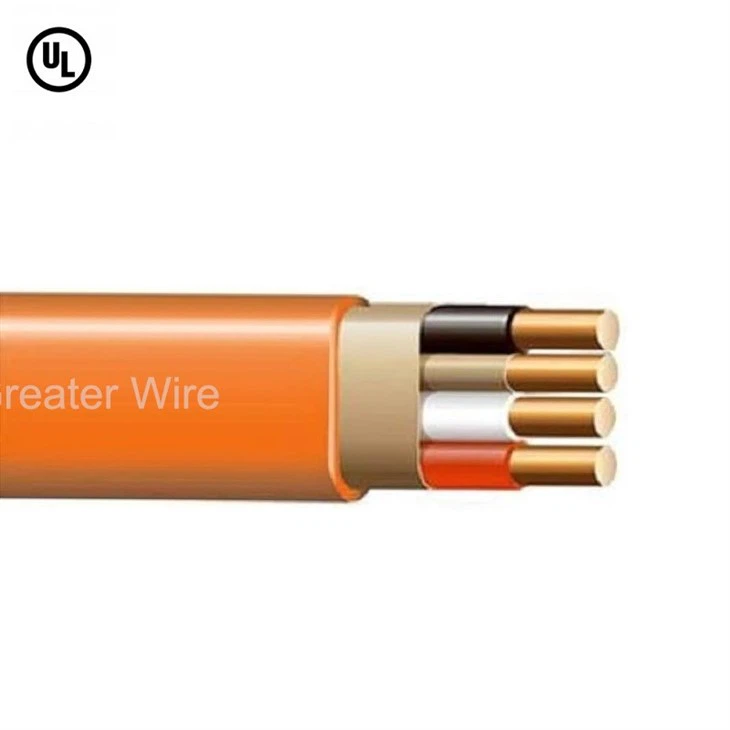

10/3 NM-B cable with ground is primarily used in residential settings. It serves as branch circuits for outlets, switches, and other electrical loads typically found in homes. This includes wiring for lighting fixtures, power outlets, and appliances. NM-B 10/3 cable can be used both for exposed and concealed electrical work. Exposed work refers to instances where the cable is visible, such as in unfinished basements or garages. Concealed work means the cable is hidden, like within walls or ceilings. NM-B 10/3 cable is suitable for use in normally dry locations, as it is not designed to be resistant to moisture or damp conditions. NM-B cable is designed to withstand temperatures not exceeding 90°C.
Application
1. Indoor lighting and sockets: 10/3 NM-B cable is often used to connect indoor lamps, switches, and sockets. Since its 14 AWG size is suitable for medium loads, it is ideal for home lighting and standard outlet circuits.
2. Security systems: 10/3 NM-B cable can be used for power and control circuits in residential security systems, such as alarm systems and smoke detectors.
Feature
Copper building wire
PVC Insulation
600-volt applications
Suitable for dry locations
UL Listed E-123775
Certification
The NM-B cable has achieved UL certification, affirming its compliance with stringent safety and performance standards. UL (Underwriters Laboratories) certification ensures that the NM-B cable meets the rigorous requirements for electrical safety, as outlined in UL 83 and UL 719 standards.
Package
Factory
Greater Wire boasts over 20 years in wire and cable production, suggesting a deep-rooted understanding of the industry. Emphasis on careful material selection indicates a focus on quality right from the start of the manufacturing process. The use of advanced manufacturing processes suggests a commitment to utilizing cutting-edge technology and techniques. Rigorous testing of products ensures reliability and safety, a critical factor in this industry. Greater Wire's products consistently meet and exceed international quality standards, showcasing their global competitiveness. Greater Wire offers customizations in lengths, sizes, and insulation materials, addressing the specific needs of different projects.
Case
Partner
FAQ
Q:What is the maximum voltage for NM-B wire?
Q: What is the color code for NM-B wire?
Yellow Sheath:12/2 NM-B & 12/3 NM-B
Orange Sheath:10/2 NM-B & 10/3 NM-B
Red Sheath: 6/2 NM-B & 6/3 NM-B
Q: What does NMB mean in wiring?
A: In wiring, NMB stands for Non-Metallic Sheathed Cable. This designation is used primarily in the United States and Canada for residential and light commercial electrical wiring. N is Non-Metallic, M is Moisture-Resistant, and B is Building.
Hot Tags: 10/3 nm-b cable with ground, China 10/3 nm-b cable with ground manufacturers, suppliers, factory, single core cable, NM B Wire, NMD90 Cable, CU XLPE SWA Cable, multicore rubber cable, Metal Clad Cable
| CONDUCTOR | INSULATION THICKNESS (MILS) |
GROUND WIRE | APPROX. CABLE DIMENSION (MILS) |
APPROX. NET WT. PER 1000' (LBS.) |
ALLOWABLE AMPACITY + |
|||
|
SIZE (AWG PACKAGE OR KCMIL) |
NO. OF CONDUCTORS |
NO. OF STRANDS |
Size (AWG) |
NO. OF STRANDS |
||||
| TWO CONDUCTOR | ||||||||
| 14 | 2 | 1 | 19 | 14 | 1 | 368X162 | 57 | 15 |
| 12 | 2 | 1 | 19 | 12 | 1 | 418X179 | 82 | 20 |
| 10 | 2 | 1 | 24 | 10 | 1 | 494X210 | 124 | 30 |
| 8 | 2 | 7 | 35 | 10 | 1 | 618X272 | 186 | 40 |
| 6 | 2 | 7 | 35 | 10 | 1 | 658X308 | 252 | 55 |
| THREE CONDUCTOR | ||||||||
| 14 | 3 | 1 | 19 | 14 | 1 | 462X176 | 78 | 15 |
| 12 | 3 | 1 | 19 | 12 | 1 | 524X190 | 112 | 20 |
| 10 | 3 | 1 | 24 | 10 | 1 | 630X220 | 166 | 30 |
| 8 | 3 | 7 | 35 | 10 | 1 | 572 | 255 | 40 |
| 6 | 3 | 7 | 35 | 10 | 1 | 659 | 360 | 55 |
| 4 | 3 | 7 | 46 | 8 | 1 | 825 | 565 | 70 |
| 2 | 3 | 7 | 46 | 8 | 1 | 870 | 818 | 95 |
| FOUR CONDUCTOR | ||||||||
| 14 | 2/2 | 1* | 19 | 14 | 1 | 336 | 91 | 15 |
| 14 | 4 | 1** | 19 | 14 | 1 | 336 | 91 | 15 |
| 12 | 2/2 | 1* | 19 | 12 | 1 | 381 | 132 | 20 |
| 12 | 4 | 1** | 19 | 12 | 1 | 381 | 132 | 20 |
| 10 | 4 | 1 | 24 | 10 | 1 | 465 | 201 | 30 |
