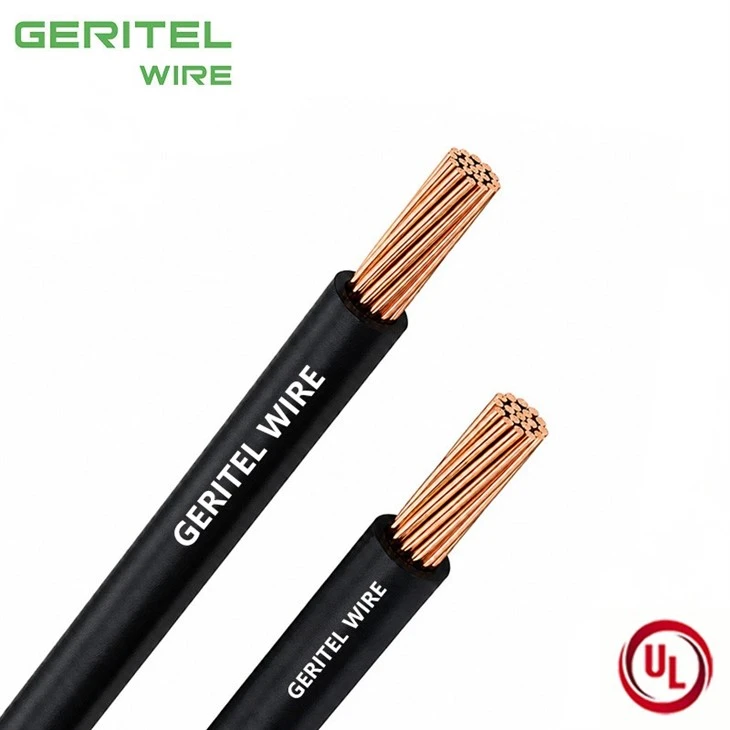

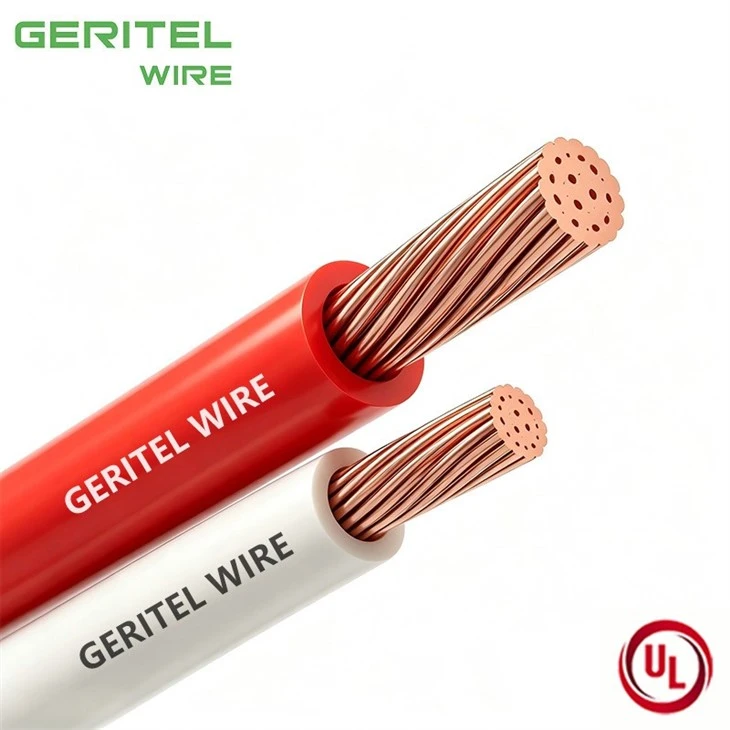

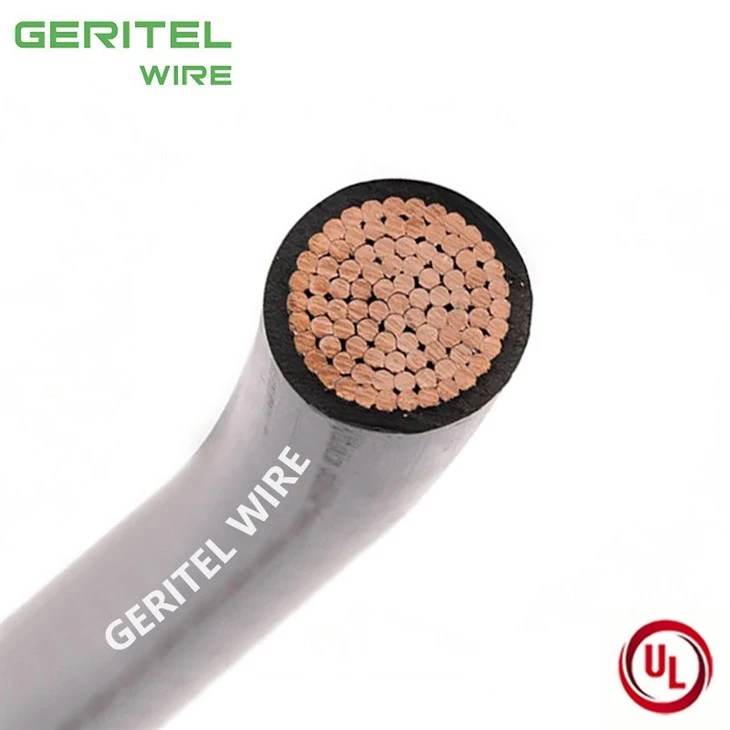

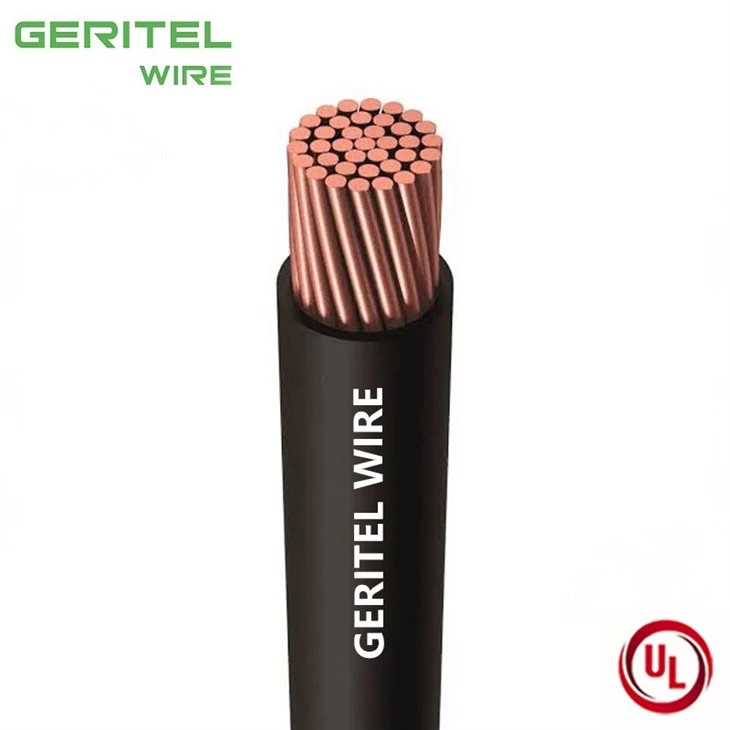

Name: China 600V Copper RHW/RHW-2 Wire For Building Power Feeders Manufacturers Suppliers Factory - Greater Wire
Brand: Greater Wire
SKU: 319485061

Description

Technical Parameters

Certification

Dongguan Greater Wire & Cable Co., Ltd. is one of the leading manufacturers and suppliers of 600v copper rhw/rhw-2 wire for building power feeders in China, also supports customized service. Please rest assured to wholesale durable 600v copper rhw/rhw-2 wire for building power feeders made in China here from our factory. If you have any enquiry about free sample, please feel free to email us.

RHW Copper Insulated Copper Conductor

PRODUCT REAL SHOT

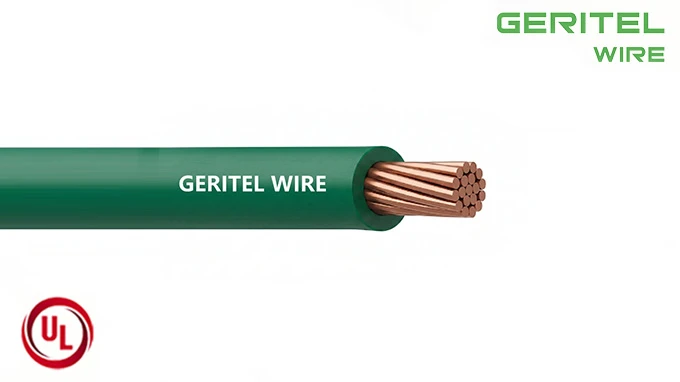

RHW Copper Single Conductor Building Wire

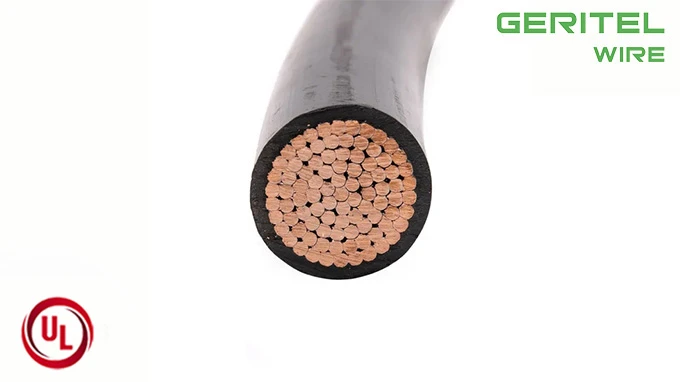

RHW Copper Fixed Installation Wire

Feeder Planning from Circuit Design to Delivery

Imagine an electrical room where the cable route passes through a basement duct before reaching a distribution board. A 600V copper RHW/RHW-2 product can be evaluated when the actual cable carries that rating and the proposed wiring method is permitted. For long runs, engineers should also review pulling tension and terminal temperature instead of choosing from nominal conductor size alone. GERITEL WIRE works with electrical procurement teams on the specifications needed to assess a feeder before the purchase commitment. Our quotation discussion can cover conductor dimensions, packing units and shipping arrangements aligned with the project schedule. For the relevant circuit, consider 600V copper RHW/RHW-2 wire.

PRODUCT SPECIFICATIONS

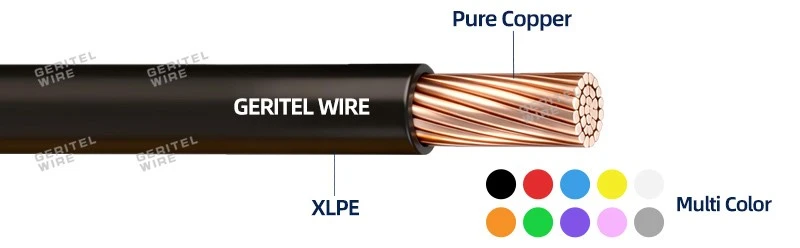

RHW Copper Low Voltage Power Wire

Application

Suitable for use in lighting and power applications and for other general purpose wiring applications. Suitable for use in circuits not exceeding 2000 volts. May be installed in raceway, duct, and sunlight resistant applications such as aerial installations.

SPECIFICATIONS
Conductors	Conforms to ASTM B-8 Class B with other classes available upon request.
Insulation	Cross-linked polyethylene (XLPE)
Colors	Black. Other colors available upon request. Consult factory for minimum requirements.
Industry Standards	90°C Wet or Dry ICEA S-95-658/NEMA WC70 Federal Specification A-A-59544 Meets UL 44 & 854 Requirements Sunlight Resistant

AWG	Strand	Insulation Thickness (mils)	Nominal O.D. (inch)	Approximate Net Weight lbs/1M
14	7	60	.191	24
12	7	60	.211	33
10	7	60	.234	46
8	7	70	.284	73
6	7	70	.321	106
4	7	70	.369	156
3	7	70	.397	195
2	7	70	.429	236
1	19	90	.509	311
1/0	19	90	.542	379
2/0	19	90	.586	468
3/0	19	90	.636	576
4/0	19	90	.692	722
250 MCM	37	105	.768	863
300 MCM	37	105	.815	1028
350 MCM	37	105	.871	1179
400 MCM	37	105	.916	1345
500 MCM	37	105	.999	1652
600 MCM	61	120	1.106	1988
750 MCM	61	120	1.208	2492

CERTIFICATIONS

RHW Copper General Purpose Building Wire

PACKAGING

Roll

Small Wooden Reel

RHW Copper Electrical Distribution Cable

Large Wooden Reel

APPLICATION

Underground Conduit Installation

Conduit Wiring

Feeder Circuit Wiring

CASE

Tesla Gigafactory Texas

Stanford University California USA

Mayo Clinic Hospital, Saint Marys Campus

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

RHW EPR Building Conductor

CUSTOMER PHOTOS

RHW EPR Insulated Copper Conductor

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

RHW Wire Wet Location RatingRHW EPR Low Voltage Power Wire

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can a single insulated core be sold as RHW-2 cable?

Yes, single conductor RHW-2 cable is a common product form. Its suitability depends on the conductor size, voltage rating, insulation and permitted raceway method for the final installation.

What should appear in a clear RHW-2 product specification?

A useful RHW-2 copper power cable specification includes conductor material and construction, insulation system, rated voltage, temperature designation, outside diameter, applicable standards and actual product markings.

What type of insulation is used on RHW-2 conductors?

RHW-2 thermoset insulated wire can use qualified thermoset formulations. Some products use XLPE, but do not assume every RHW-2 SKU has the same insulation polymer without checking the manufacturer's bill of materials.

Is XLPE insulation mandatory for every RHW-2 cable?

No single material claim should be generalized across every product family. If your tender asks for XLPE RHW-2 copper cable, obtain the actual material specification and confirm the offered construction meets that requirement.
