3 Awg THHN Building Wire

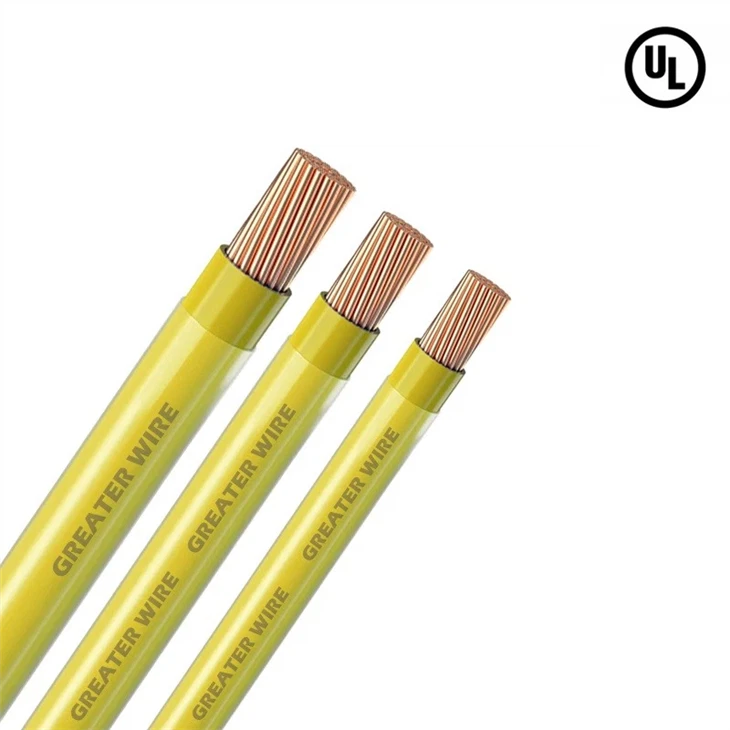

3 AWG single core THHN wire is perfect for circuits requiring significant current capacity. This wire uses high-quality copper conductors for superior electrical performance. It is sheathed in a heat-resistant PVC layer and protected by an outer nylon jacket, offering enhanced durability and resistance to environmental factors. Color options include white, yellow, orange, and brown.

Application

3 AWG THHN (Thermoplastic High Heat-resistant Nylon-coated) cable is a commonly used wire specification with large current carrying capacity and good heat resistance. It is suitable for power distribution systems within buildings. In industrial environments, it is widely used to connect various electrical equipment such as motors, generators and control panels, and can withstand high temperatures and current loads.

Feature

•UL 83

•Solid or stranded soft drawn copper conductor

•Heat and moisture resistant colored polyvinyl chloride (PVC) insulation

•With a clear nylon (polyamide) jacket

• UL & BPS certification

Certification

THHN/THWN/THWN-2 wire certificated UL. The UL mark indicates that our products have undergone rigorous testing and evaluation to meet strict safety standards.

Package

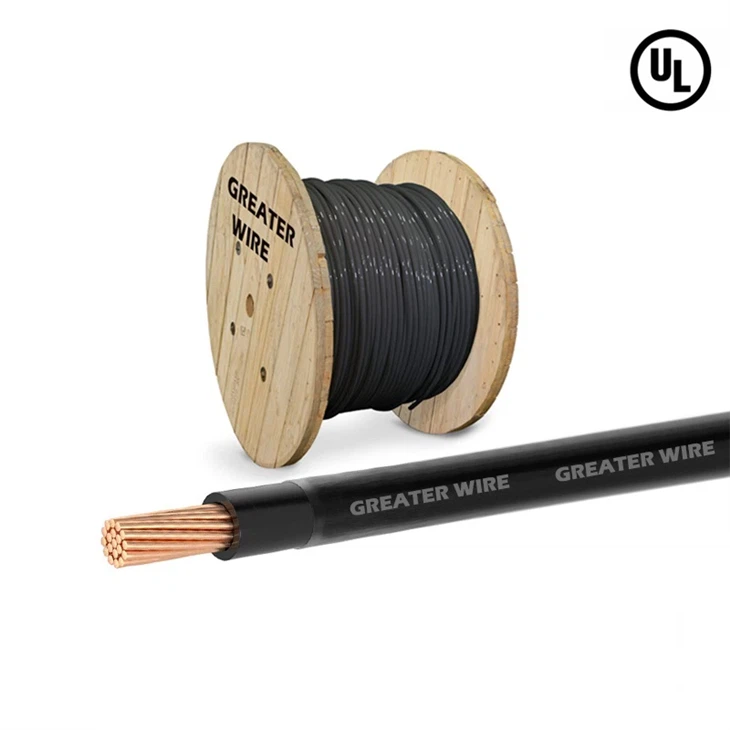

THHN wire package

Production Line

1. Greater Wire & Cable is a factory with more than 20 years of production experience, covering an area of 12,000m2.
2. Each production stage has strict quality control, including electrical testing, insulation testing, visual inspection, and dimensional measurement.
3. Our cables have complete certifications, such as SAA, UL, CUL, CSA, CE, CB, TUV, BPS, PSE, and others, and our cable is stable and reliable.
4. We have a professional foreign trade team that provides wires and cables for engineering projects in the Philippines, North America, South America, and more than 180 countries and regions around the world.

Case

thhn cable manufacturer

Partner

greater wire Partner

FAQ

1. Q: How many amps will 3 AWG wire carry?

A: 3 AWG THHN wire can carry up to 100 amps.

2. Q: What is 3 AWG wire used for?

A: 3 AWG wire is a versatile and heavy-duty electrical cable used in various applications due to its ability to handle significant electrical currents. Ideal for connecting high-current industrial equipment, such as large motors, generators, and transformers. And suitable for wiring large commercial lighting systems where high current is required.

3. Q: What is the ampacity of a #3 AWG copper conductor?

A:

The ampacity of a #3 AWG copper conductor can vary based on factors like insulation type, ambient temperature, and installation conditions.

For THHN Insulation: In a standard installation (such as in conduit or open air), a #3 AWG copper wire typically has an ampacity of 100 amps. This value assumes a temperature rating of 90°C (194°F) and standard installation conditions as per the National Electrical Code (NEC).

Hot Tags: single core 3 awg electrical thhn building wire, China single core 3 awg electrical thhn building wire manufacturers, suppliers, factory, australia cable, silicone insulated wire, SAA Australia Flat Twin Active TPS Cable, hook up wire, rubber cable, CU XLPE STA Cable

thwn wire

Conductor		Insulation Thickness (mils)	Jacket Thickness (mils)	Nominal 0.D.(mils)	Approx.Net Wt.Per 1000'(lbs.)	Allowable Ampacities+
Size (AWG or kcmil)	No.of strands	Insulation Thickness (mils)	Jacket Thickness (mils)	Nominal 0.D.(mils)	Approx.Net Wt.Per 1000'(lbs.)	60℃	75℃	90℃
14*	1	15	4	102	15	15	15	15
12*	1	15	4	119	23	20	20	20
10*	1	20	4	150	36	30	30	30
14*	19	15	4	109	16	15	15	15
12*	19	15	4	128	24	20	20	20
10*	19	20	4	161	38	30	30	30
8	19	30	5	213	63	40	50	55
6	19	30	5	249	95	55	65	75
4	19	40	6	318	152	70	85	100
3	19	40	6	346	189	85	100	115
2	19	40	6	378	234	95	115	130
1	19	50	7	435	299	110	130	145
1/0	19	50	7	474	372	125	150	170
2/0	19	50	7	518	462	145	175	195
3/0	19	50	7	568	575	165	200	225
4/0	19	50	7	624	718	195	230	260
250	37	60	8	694	851	215	255	290
300	37	60	8	747	1012	240	285	320
350	37	60	8	797	1174	260	310	350
400	37	60	8	842	1334	280	335	380
500	37	60	8	926	1655	320	380	430
600	61	70	9	1024	1987	350	420	475
750	61	70	9	1126	2464	400	475	535
1000	61	70	9	1275	3257	455	545	615
