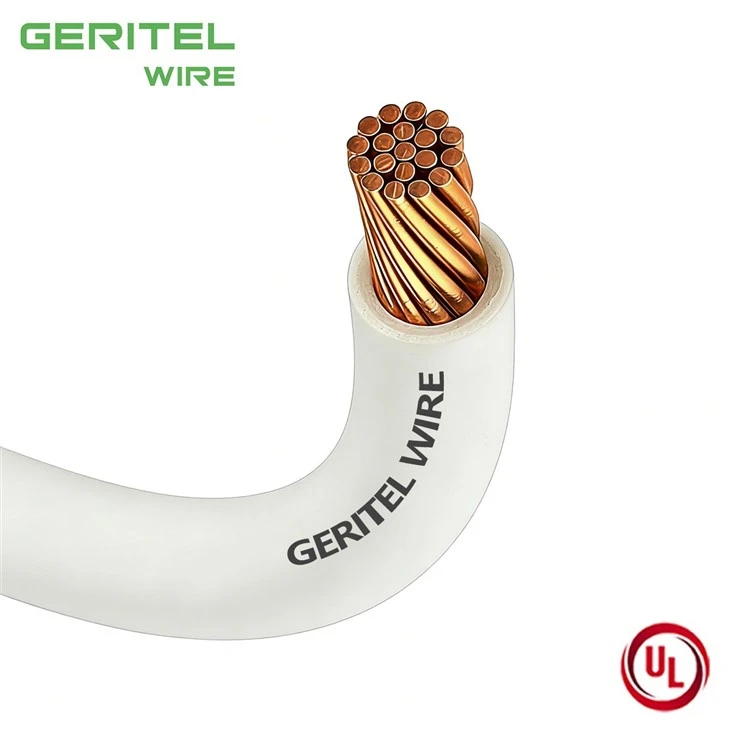

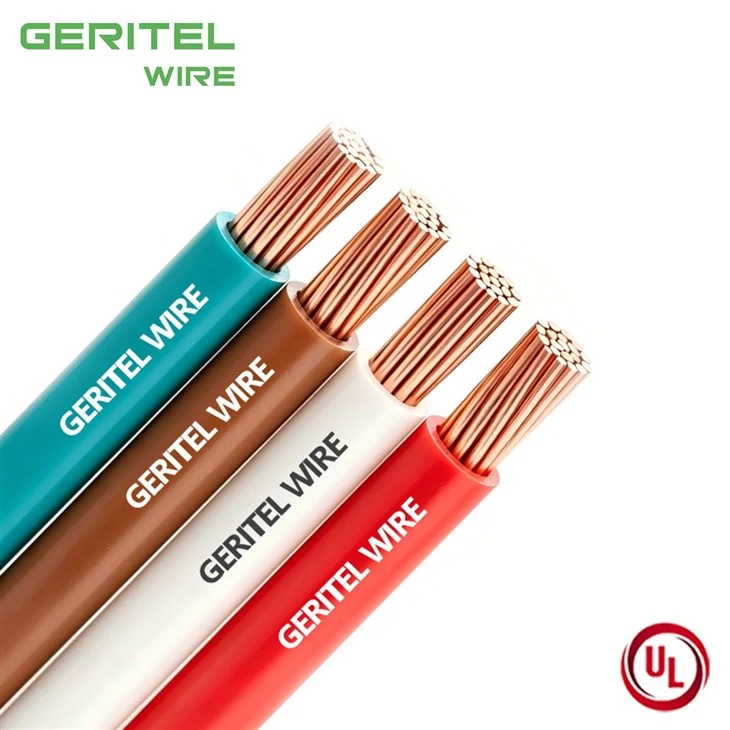

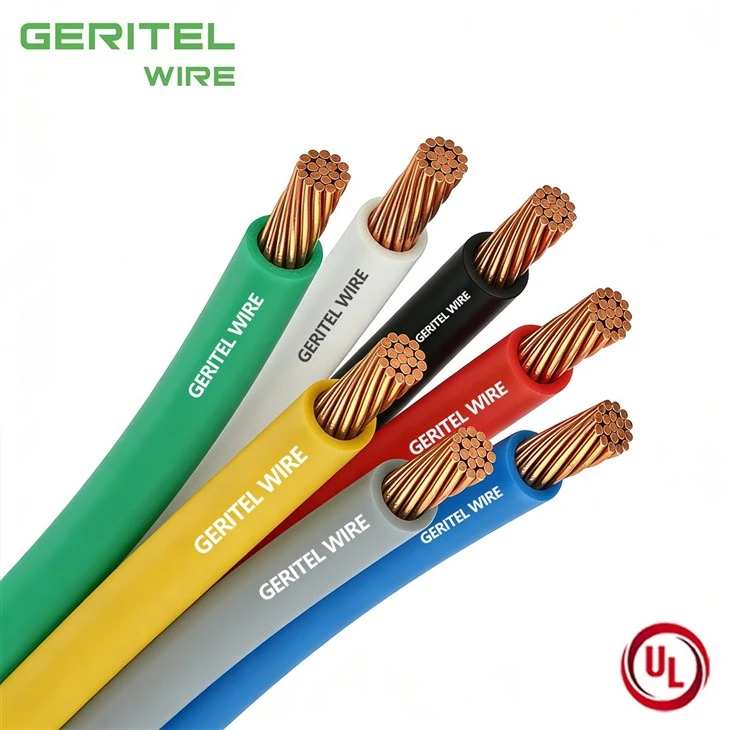

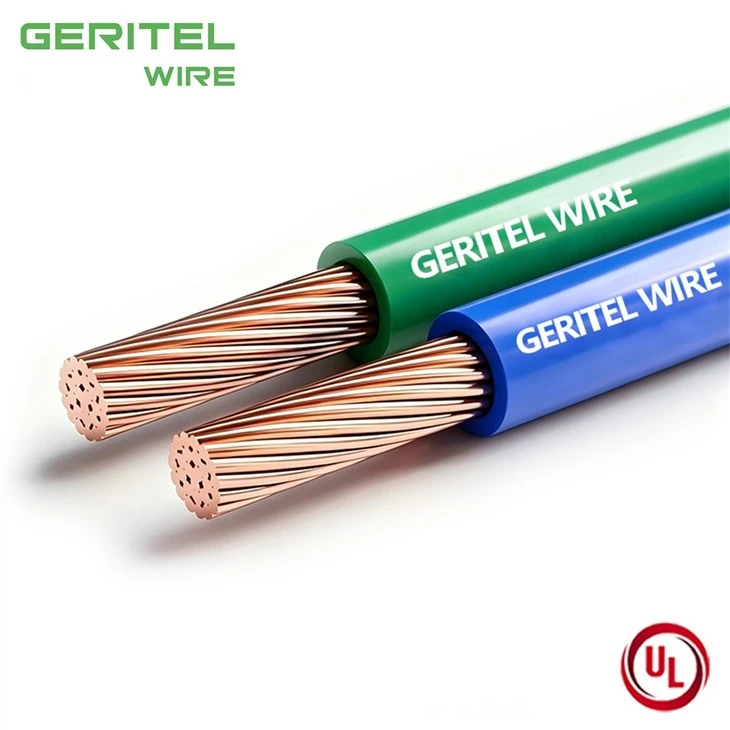

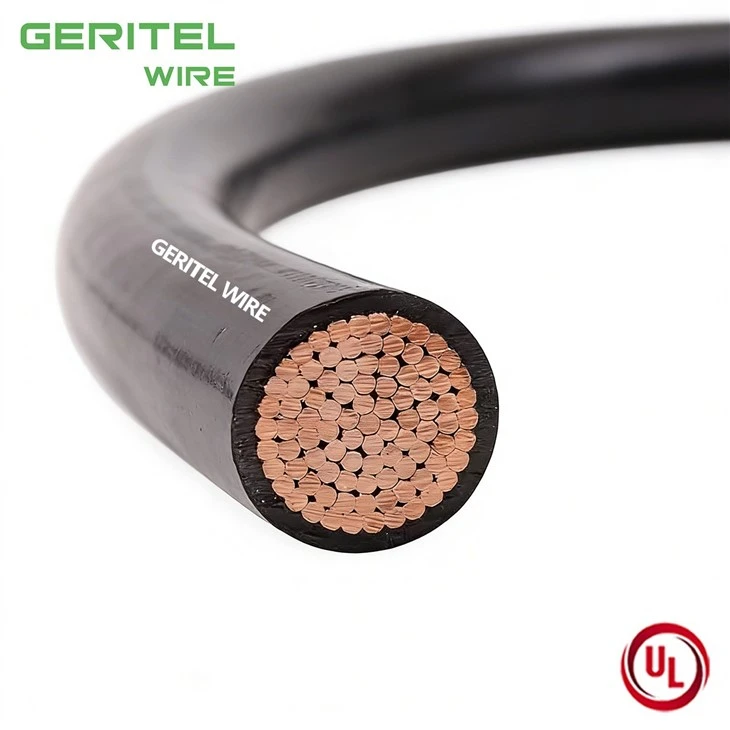

PRODUCT REAL SHOT

data center premium single conductor building wire

data center flexible THW wire

Dependable wiring for plant distribution and equipment zones

Factories require robust building distribution around production lines, electrical rooms and maintenance areas. GERITEL WIRE THW Industrial Cable combines stranded copper conductivity with durable PVC insulation for suitable 600V fixed circuits in approved conduit and raceway systems. This Factory Electrical Wire can be used for feeders, panel connections, workshop circuits and other facility power applications according to conductor size and design requirements. The flexible stranded construction supports routing through industrial raceways, while color options help maintenance teams identify circuits more easily. GERITEL WIRE offers wooden-drum and reel packing for larger conductor quantities, supporting both new factory construction and electrical upgrades.

PRODUCT SPECIFICATIONS

data center flexible THW cable

Application and Description

The THW conductor is suitable for most current wiring solutions for residential, commercial and industrial environments. It is used in service entrance, feeders and branch circuits for permanent installations.THWconductors in sizes 14 AWG to 1000 Kcmil (MCM) can be installed in conduits and other raceways.The temperature of installation shall not exceed 75°C(THW), not exceed 90°C(THW-2).

SPECIFICATIONS
Conductor	Bare annealed copper conductor, solid or stranded
Insulation	PVC 75°C insulation
Color	upon request, black is preferable
Technical Compliances	ASTM B3, B8 UL 83 - Thermoplastic-Insulated Wires and Cables UL 1581 - Electrical Wires, Cables and Flexible Cords

AWG or kcmil	Strand	Nominal Insulation Thickness		Nominl Overall Diameter		Cable Weight
AWG or kcmil	Strand	Inch	mm	Inch	mm	Lbs/kft	kg/km
14	1	0.030	0.76	0.169	4.3	22	33
12	1	0.030	0.76	0.189	4.8	32	47
10	1	0.030	0.76	0.213	5.4	46	68
8	1	0.045	1.14	0.240	6.1	67	100
6	1	0.060	1.52	0.276	7	101	151
14	7	0.030	0.76	0.177	4.5	24	36
12	7	0.030	0.76	0.201	5.1	34	50
10	7	0.030	0.76	0.228	5.8	49	73
8	7	0.045	1.14	0.291	7.4	79	118
6	7	0.060	1.52	0.335	8.5	117	174
4	7	0.060	1.52	0.386	9.8	172	256
2	7	0.080	2.03	0.445	11.3	263	391
1	19	0.080	2.03	0.531	13.5	339	505
1/0	19	0.080	2.03	0.575	14.6	418	622
2/0	19	0.080	2.03	0.622	15.8	515	767
3/0	19	0.080	2.03	0.677	17.2	638	950
4/0	37	0.080	2.03	0.740	18.8	792	1179
250	37	0.095	2.14	0.823	20.9	943	1404
300	37	0.095	2.14	0.882	22.4	1118	1664
350	37	0.095	2.14	0.937	23.8	1292	1923
400	37	0.095	2.14	0.984	25	1465	2180
500	61	0.095	2.14	1.079	27.4	1810	2694
600	61	0.110	2.79	1.197	30.4	2178	3241
700	61	0.110	2.79	1.272	32.3	2521	3751
750	61	0.110	2.79	1.307	33.2	2693	4007
800	61	0.110	2.79	1.343	34.1	2863	4260
900	61	0.110	2.79	1.409	35.8	3205	4769
1000	61	0.110	2.79	1.472	37.4	3538	5265

CERTIFICATIONS

data center flexible THW copper wire

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Commercial Building Conduit and Junction Box Installation

data center flexible thermoplastic high heat resistant wire

Industrial Control Panel and Power Distribution Wiring

data center flexible water resistant building wire

Residential Commercial Distribution Panel Wiring

CASE

KBANK Muangthong Thani

data center flexible PVC insulated cable

MAHANAKHON

data center flexible single conductor building wire

Terminal 21 Korat
