The conductor of the UF-B cable is made of 14-10 AWG solid soft bare copper wire that meets the ASTM-B3 standard, and 8 AWG and larger sizes are stranded uncoated copper conductors that meet the ASTM-B8 standard, which have excellent conductivity. The insulation layer is a colored polyvinyl chloride (PVC) material that meets the required thickness of THHN or THWN-2 type and is covered with a heat-resistant nylon sheath that can withstand working conditions in a dry environment of 90°C and a humid environment of 75°C. In addition, the cable is equipped with a soft bare copper grounding conductor, and the system grounding is safe and reliable.

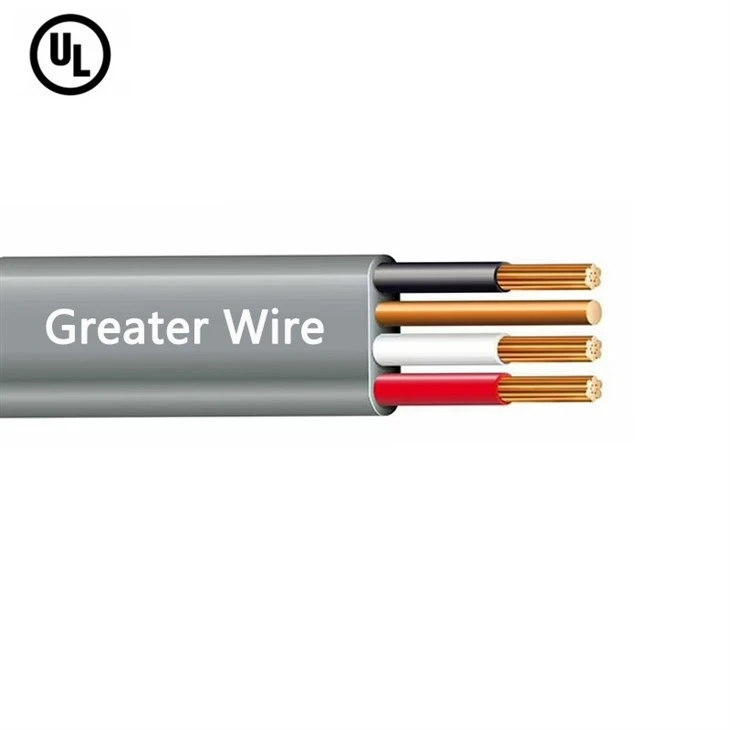

The outer layer of the cable is a gray PVC sheath with excellent anti-sunlight and anti-fungus properties, suitable for long-term outdoor or underground use. The cable structure is reasonably designed, and the insulated conductors of the 2-core and 3-core structures are arranged in parallel. When equipped with a ground wire, the ground wire is located in the groove between the insulated conductors for easy wiring and installation.
Application
UF-B (Underground Feeder-B) cable is a high-performance, widely used electrical cable that complies with the relevant provisions of Article 340 of the National Electrical Code (NEC) and is suitable for a variety of electrical installation environments. It is designed to be used as indoor wiring in humid, dry or corrosive environments, with an operating temperature not exceeding 90°C, but its current carrying capacity must be calculated according to the limit of 60°C conductor to ensure the safe operation of the cable.
.
Feature
Certifications and Standards:
- UL Standards:
UL 83 - Standard for Thermoplastic Insulated Wire
UL 493 - Standard for Thermoplastic Insulated Underground Feeder and Branch Cable
UL 1581 - General Standard for Materials and Durability Tests for Wire and Cable
UL 2556 - Standard for Cable Test Procedures
- Federal Specifications:
Federal Specification A-A-59544 - General Government Specification for Cable Materials
- ASTM Standards:
ASTM B3 - Specification for Solid Soft Copper Conductors
ASTM B8 - Specification for Stranded Soft Copper Conductors
- NEMA Standards:
NEMA RV 2-2011 - Industry Recommended Standard for Low Voltage Cable
National Electrical Code (NEC®):
NFPA 70, Article 340 - Applicable Provisions for Underground Feeder Cable
- Environmental Compliance:
RoHS Compliant - Complies with the EU Restriction of Hazardous Substances Directive (Environmentally Friendly Lead-Free)
Government Procurement Compliance:
ARRA 2009 Section 1605 - "Buy American" Compliance (for U.S. government projects)
- Master Spec Division 26:
Section 260519 – Electrical Wire and Cable (Low Voltage)
Section 260523 – Control Cable
Underwriters Laboratories Standards UL-83, UL-493, UL-1581, UL-2556; Federal Specification A-A-59544; ASTM-B3 and B8;
NEMA RV 2-2011; NFPA 70 (NEC®) Article 340; ARRA 2009 Section 1605 "Buy American" Compliant;
- RoHS Compliant;
MasterSpec Division 26 Sections 260519, 260523; UL Listing #E-123776
Certification
As an electrical cable specially used for underground laying and multi-environment applications, UF-B cable (Underground Feeder Cable) has strictly passed a number of international and industry authoritative certifications, and has excellent performance in safety, durability, and compliance. The cable has passed multiple standard tests and certifications of UL (Underwriters Laboratories). In addition, the cable also complies with ASTM B3 and B8 standards to ensure excellent performance of conductor materials; it meets the scope of use and technical requirements in indoor, humid, corrosive, and direct buried environments.
Package
Production Line
Greater Wire is a professional UF-B cable manufacturer with more than 30 years of experience in wire and cable production. It is committed to providing safe, stable and high-performance power supply solutions for residential, agricultural and light industrial projects. The cables we produce are manufactured in strict accordance with UL international standards. In addition, Greater Wire provides a variety of types and specifications of UL cables, supporting customized colors and packaging to meet different installation needs. With rich engineering project experience and 24-hour professional service support, Greater Wire not only provides high-quality products, but also brings fast delivery and technical support guarantees to customers.
customer
Partner
FAQ
Q: Can you use UF-B indoors?
A: Yes, the cable can be used indoors
Q: Does UFB need to be in conduit?
Q: Can UF-B be used in wet locations?
Hot Tags: direct bury uf-b cable electrical wire, China direct bury uf-b cable electrical wire manufacturers, suppliers, factory
| Conductor | Insulation Thickness (mils) | Ground Wire | Approx.Cable Dimension (mils) | Approx.Net wt. per 1000'(lbs.) | Allowable Ampacity + | Standard Package | |||
| Size (AWG or kcmil) | No.of conductors | No.of strands | Size (AWG ) | No.of strands | |||||
| TWO CONDUCTOR | |||||||||
| 14 | 1 | 19 | 30 | 14 | 1 | 423x168 | 70 | 15 | AC |
| 12 | 1 | 19 | 30 | 12 | 1 | 463x183 | 95 | 20 | ACDE |
| 12 | 1 | 19 | 30 | Without Ground | 386x183 | 70 | 20 | AC | |
| 10 | 1 | 24 | 30 | 10 | 1 | 518x215 | 138 | 30 | ACDE |
| 8 | 7 | 35 | 45 | 10 | 1 | 678x302 | 222 | 40 | BCE |
| 6 | 7 | 35 | 45 | 10 | 1 | 770x338 | 303 | 55 | BCE |
| THREE CONDUCTOR | |||||||||
| 14 | 1 | 19 | 30 | 14 | 1 | 581x168 | 95 | 15 | AC |
| 12 | 1 | 19 | 30 | 12 | 1 | 626x183 | 129 | 20 | ACD |
| 12 | 1 | 19 | 30 | Without Ground | 581x183 | 107 | 20 | A | |
| 10 | 1 | 24 | 30 | 10 | 1 | 727x215 | 191 | 30 | ABC |
| 8 | 7 | 35 | 45 | 10 | 1 | 1059x319 | 344 | 40 | BCE |
| 6 | 7 | 35 | 45 | 10 | 1 | 1223x361 | 478 | 55 | BCE |
