PRODUCT REAL SHOT

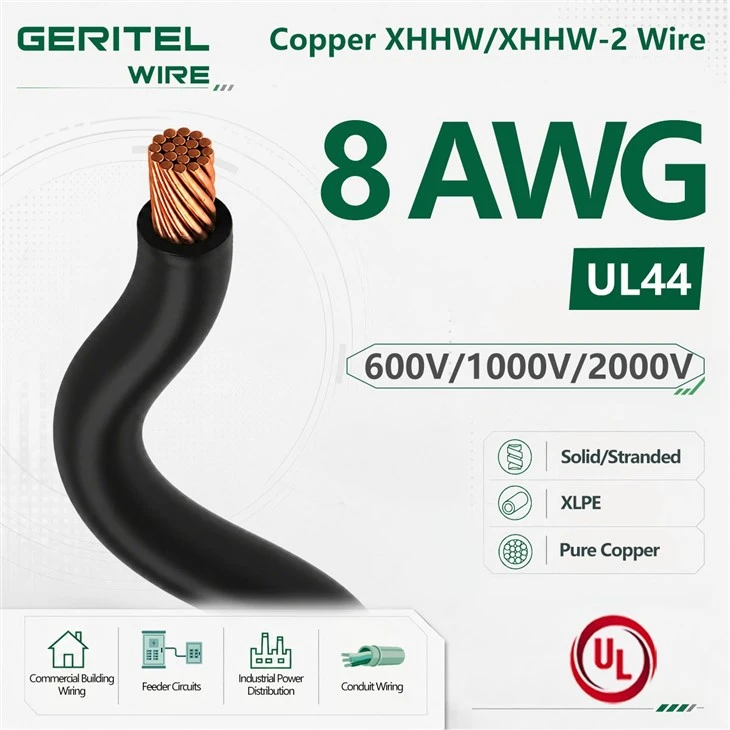

8 AWG 600V UL44 XHHW2 Copper Wire
This 8 AWG XHHW-2 copper building wire is UL 44 certified with premium XLPE thermoset insulation and annealed bare copper conductor. Rated 600V and 90℃ for both dry and wet locations, it offers stable ampacity, excellent moisture resistance and easy pulling performance for conduit installations. It is the standard choice for lighting feeders, small motor circuits and commercial branch power distribution, fully compliant with NEC wiring requirements.
PRODUCT SPECIFICATIONS
|
Size (AWG/kcmil) |
Strands No./OD. (mm) |
XLPE Insulation Average Thinkness (mm) |
Approx. O.D. (mm) |
Max.DC Resistance (20℃,Ω/km) (Bare Copper) |
Max.DC Resistance (20℃, Ω/km) (Tinned Copper) |
Approx. Weight (kg/km) |
||
|---|---|---|---|---|---|---|---|---|
| 8 | 7/1.23 | 1.14 | 6.09 | 2.14 | 2.23 | 93.01 | ||
CERTIFICATIONS
PACKAGING
Roll
Small Wooden Reel
Large Wooden Reel
APPLICATION
Underground Conduit Installation
Conduit Wiring
Feeder Circuit Wiring
CASE
Tesla Gigafactory Texas
Stanford University California USA
Mayo Clinic Hospital, Saint Marys Campus
WHY CHOOSE US
in one-stop service
Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.
With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.
We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.
Greater Cable - Certified Quality. Reliable Supply. Engineering Value.
PLANT EQUIPMENT
GLOBAL CERTIFICATIONS
CUSTOMER PHOTOS
INTERNATIONL TRANSPORTATION
01
Sea Freight
We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.
02
Air Freight
For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.
03
International Express
Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.
COOPERATIVE PARTNER
We are looking for a cooperative partner to expand our business.
Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.
Our address
Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China
Phone Number
+86 136 6257 9592
+86 135 1078 4550
manager01@greaterwire.com
FAQ
What is the rated ampacity of 8 AWG XHHW-2 copper conductor wire?
Per NEC Table 310.15(B)(16), 8 AWG XHHW-2 copper wire with a 90°C insulation rating has a base allowable ampacity of 55 amps when installed with 3 current-carrying conductors in a raceway at 30°C ambient temperature. Actual working ampacity must be adjusted using appropriate derating factors based on the number of bundled conductors, actual site ambient temperature, and specific installation conditions. We recommend verifying the final circuit sizing with your project's licensed electrical engineer.
What are the most common applications for 8 AWG UL44 XHHW-2 building wire?
As a versatile mid-gauge specification, 8 AWG XHHW-2 wire is widely used in commercial, light industrial and multi-unit residential projects. Typical use cases include lighting main feeders and branch circuits, power supply for small motors, pumps and HVAC equipment, sub-feeder circuits in distribution panels, and residential service entrance branch wiring. Its balanced ampacity and bending flexibility make it ideal for conduit and raceway installations with multiple junction points.
Why choose UL 44 XHHW-2 wire over standard THHN/THWN-2 for damp location projects?
UL 44 XHHW-2 uses cross-linked XLPE thermoset insulation, while standard THHN/THWN-2 falls under UL 83 with PVC+nylon thermoplastic insulation. In prolonged damp or humid environments, XLPE insulation resists moisture penetration, hydrolysis and environmental stress cracking far better than PVC-nylon, avoiding premature insulation brittleness and failure. XHHW-2 also maintains a full 90°C temperature rating in both dry and wet locations, delivering longer service life and higher reliability for underground conduit, basement and outdoor enclosed raceway installations.
Can 8 AWG XHHW-2 wire be used for direct burial or fully exposed outdoor installation?
Standard 8 AWG XHHW-2 building wire is designed for installation inside conduit, raceways and enclosed wiring systems. It can be safely used in damp locations within protected enclosed raceways, but it does not carry a direct burial rating and is not approved for unrestricted exposed outdoor use. For underground direct burial projects, we recommend UL 44 listed USE-2 wire; for exposed cable tray runs, our UL 1277 TC-ER cables provide a fully code-compliant alternative.
