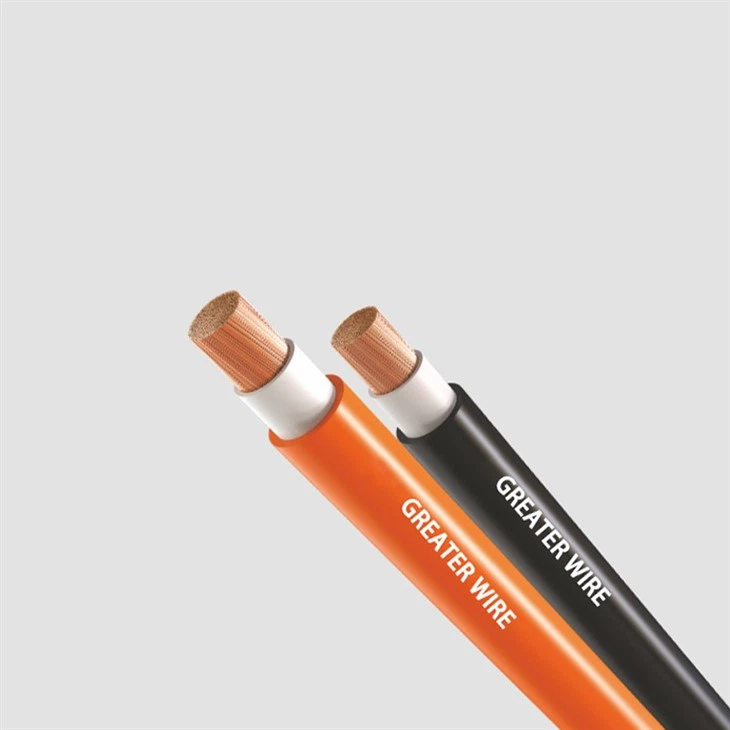

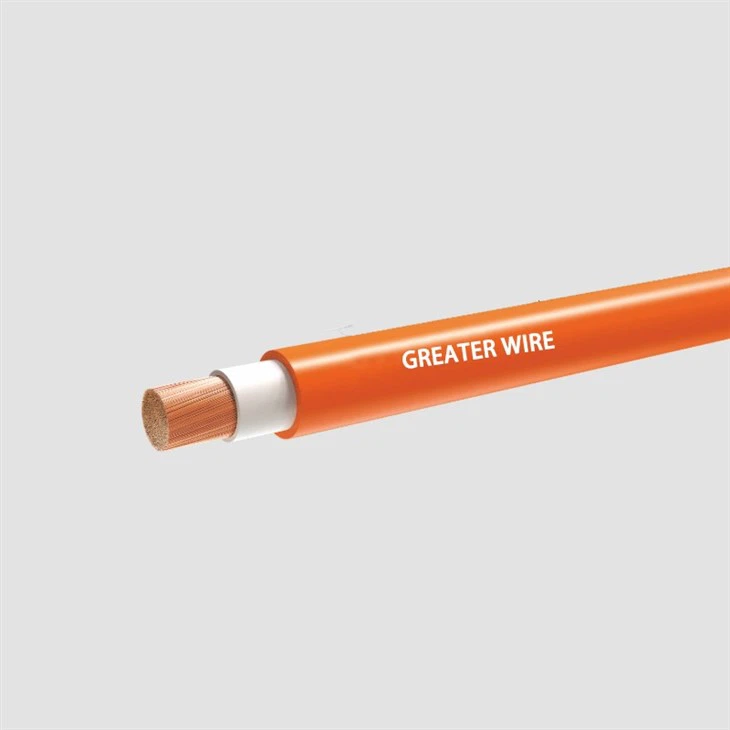

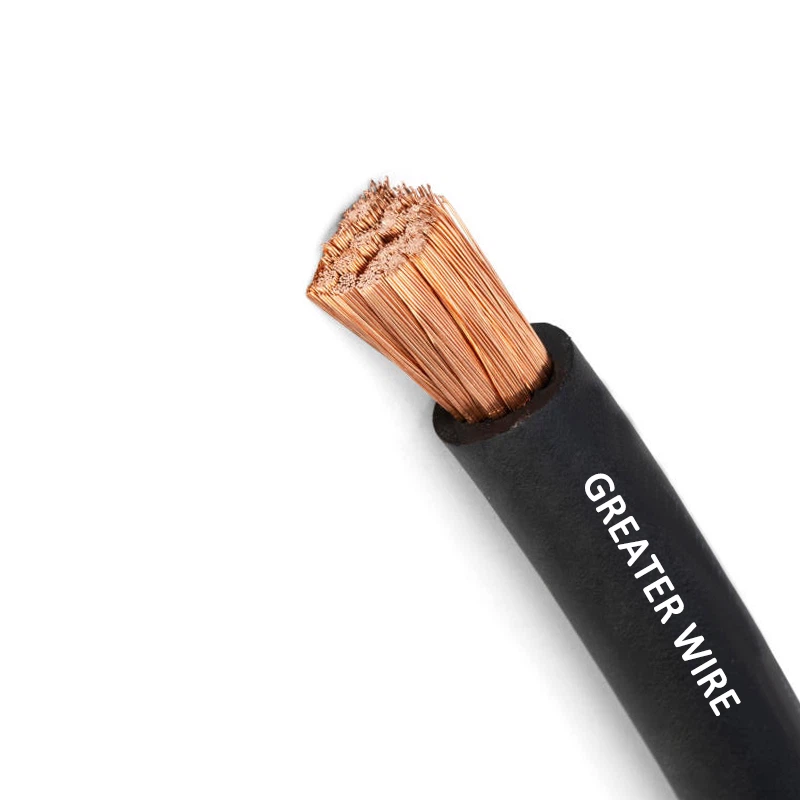

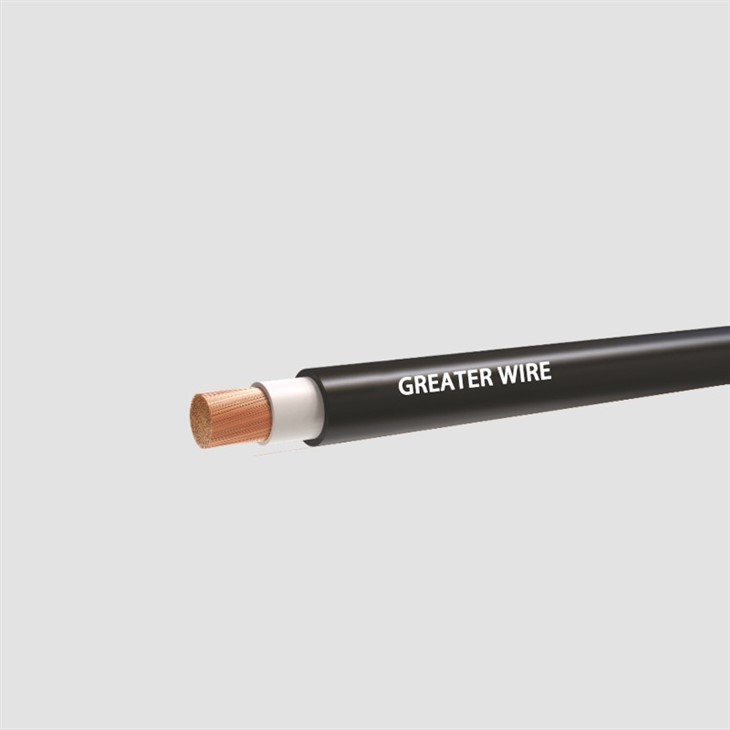

HOFR NBR Rubber Extra Flexible Pure Copper Welding Cable

• Conductor: High conductivity, bare annealed copper flexible conductor, EC copper class 5 and class 6 generally conforms to lEC 60228, DIN VDE 0281
• Insulation: NBR Insulated fexible Nitrile rubber (NBR) insulated
• Colour Code: Orange & Black Jacket
• Fixed installation :-30℃ to max.+ 90℃
• Nominal voltage:600V
• Test voltage:2500V
• Mechanical Properties: Tensile strength = 10 N/mm2 Min. Elongation = 300 Min.
• Min. bending radius: 6 x cable diameter
• Flame propagation :Flame retardant test as per lEC 60332-1

HOFR NBR rubber extra flexible pure copper welding cable is a high-performance welding cable designed for high-current connections. The cable uses high-conductivity bare soft copper conductors (category 5 and 6 conductors in accordance with IEC 60228 and DIN VDE 0281 standards) to ensure excellent electrical performance and excellent flexibility. The insulation layer is made of oil-resistant and wear-resistant NBR nitrile rubber material, which has excellent heat resistance, oil resistance, and mechanical wear resistance. The rated voltage is 600V, the test voltage is up to 2500V, and it can work stably in a wide temperature range of -30℃ to +90℃.

Dongguan Greater Wire & Cable Co., Ltd. has more than 30 years of manufacturing experience, specializing in the production of cross-linked polyethylene cables, PVC cables, THHN cables, solar cables, silicone cables, etc. that meet national standards such as UL, CSA, TUV, etc. We not only provide a wide range of product options, but also tailor-made construction advice and technical support for you. Whether you are building a residential building, a commercial building, or expanding an industrial plant, choosing the right cable is the key to ensuring the safe and efficient operation of the power system.
