Name: China 3x185+1x70E 0.6/1kV 3 Core + Earth Industrial Cable Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 311433063

Description

Technical Parameters

Certification

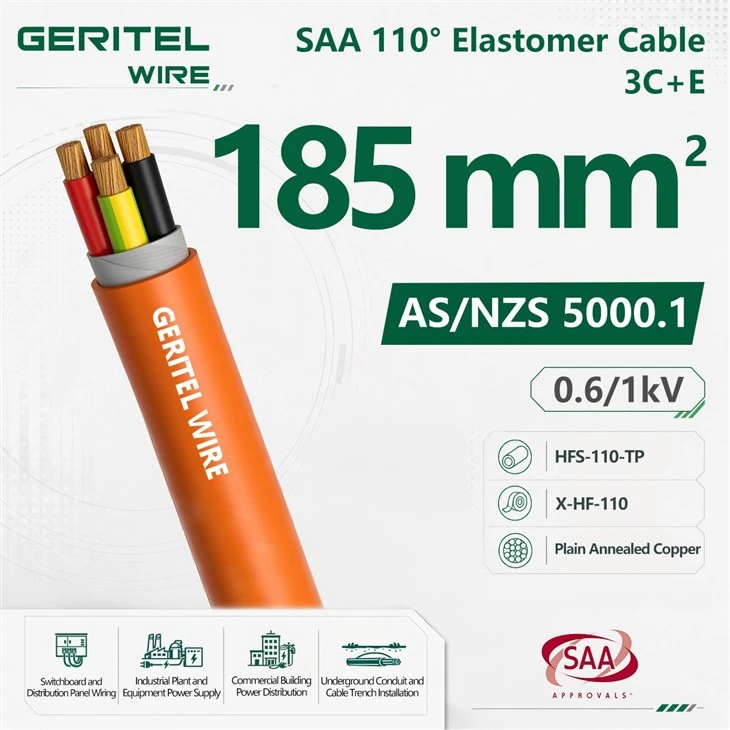

3×185+1×70E 110°C elastomer cable

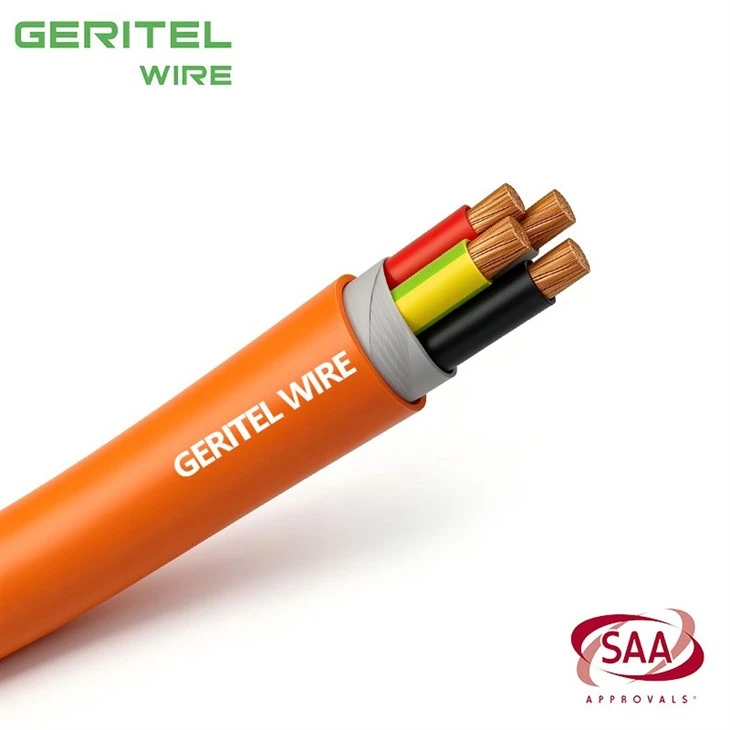

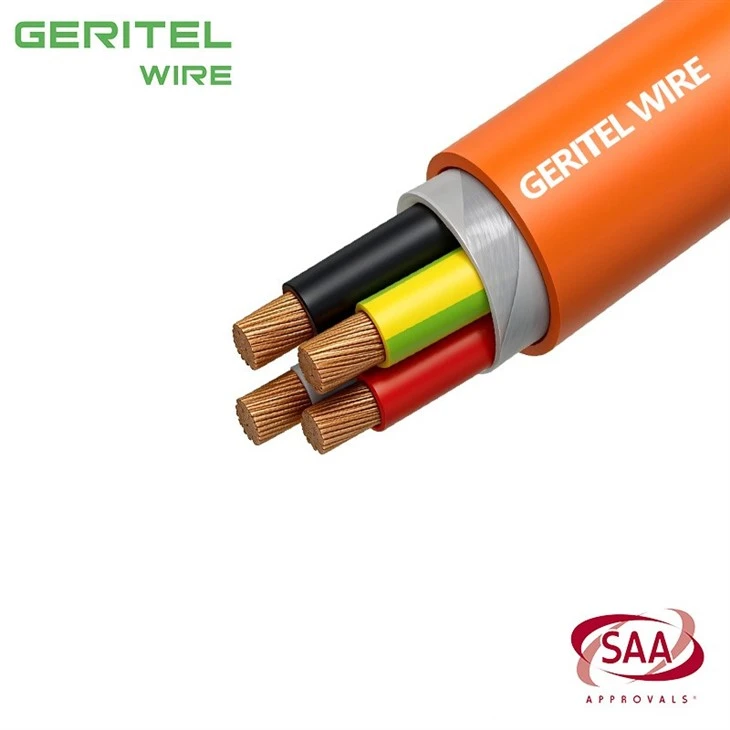

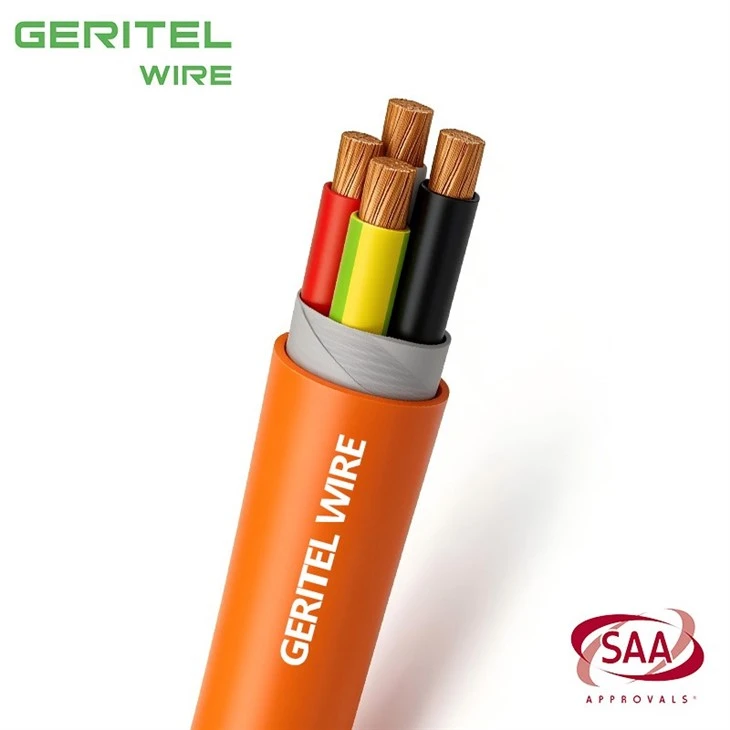

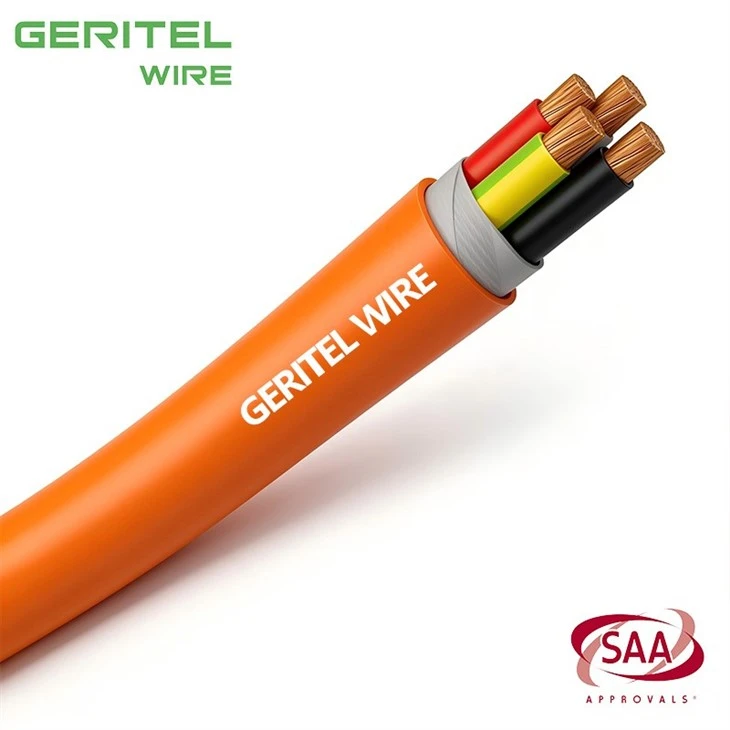

PRODUCT REAL SHOT

3×185+1×70E 3 core + earth cable

Heavy Industrial Multicore Feeder Cable for Substation Services

The 3x185+1x70E 3C+E cable is designed for high-capacity fixed power distribution in heavy industrial and infrastructure projects. Its Class 5 copper conductors provide improved handling for large cable routes while maintaining a dedicated earth conductor within one multicore sheath. It can be selected as an industrial multicore cable for mining sites where the route is protected from unsuitable mechanical or chemical exposure. The construction is also applicable as a 3C+E cable for substations and auxiliary distribution. With X-HF-110 insulation and HFS-110-TP sheathing, it can serve as a 110C cable for mining MCC panels with LSZH and flame-retardant properties. GERITEL WIRE supports SAA documents, test records, inspection and export drum planning.

PRODUCT SPECIFICATIONS

3×185+1×70E SAA cable

Applications

Flexible single core X-HF-110 insulated and HFS-110-TP sheathed cable for mains, submains and subcircuits unenclosed, enclosed in conduit or in underground ducts for building and industrial plants where not subject to mechanical damage. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed applications only in accordance with AS/NZS 3000+AS/NZS 5000.1
Behaviour in flame and fire:	Flame propagation - AS/NZS IEC 60332-1
Temperature range	Maximum operating temperature: +110°C Minimum operating temperature: -25°C
Minimum bending radius	Installed cables: 4D During installation: 6D
Resistance to	Chemical exposure: OccasionaI Mechanical impact: Light Water exposure: Uccasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Flexible bunched annealed copper conductor to A5/NZ5 1125 (Class 5). Insulation: X-HF-110 Colour:Natural Sheath: HFS-110-TP Colour: Orange
Installation conditions	In free air In conduit In trench In duct

Core x cross- section mm²
	Conductor Diameter		Nominal insulation thicknes (mm)		Nominal sheath thickness (mm)	Approx. overall diamete (mm)	Approx. weight (kg/km)
	phase	earth	phase	earth	Nominal sheath thickness (mm)	Approx. overall diamete (mm)	Approx. weight (kg/km)
3x10+1x4E	0.40	0.30	0.7	0.7	1.8	19.6	689
3x25+1x6E	0.40	0.30	0.9	0.7	1.8	22.8	974
3x35+1x10E	0.40	0.40	0.9	0.7	1.8	26.0	1327
3x50+1x16E	0.40	0.40	1.0	0.7	1.8	30.1	1846
3x70+1x25E	0.50	0.40	1.1	0.9	1.9	35.1	2581
3x95+1x25E	0.50	0.40	1.1	0.9	2.0	38.4	3238
3x120+1x35E	0.50	0.40	1.2	0.9	2.1	42.8	4117
3x150+1x50E	0.50	0.40	1.4	1.0	2..3	48.2	5196
3x185+1x70E	0.50	0.50	1.6	1.1	2.5	53.7	6430
3x240+1x95E	0.50	0.50	1.7	1.1	2.6	60.4	8358

mm²	Reactance at 50Hz (ohm/km)
		Current Rating (A)				Electrical Characteristics
		Spaced	Touching surface	Metallic wiring enclosure in air	Underground duct one duct	Maximum DC Resistance 20°C Ω/km
16	0.0779	106	99	84	91	1.21
25	0.0783	140	131	112	118	0.780
35	0.0761	173	162	137	143	0.554
50	0.0754	218	204	175	178	0.386
70	0.0744	273	255	217	217	0.272
95	0.0729	327	306	263	259	0.206
120	0.0723	387	360	306	298	0.161
150	0.0728	444	413	356	341	0.129
185	0.0730	505	470	402	381	0.106
240	0.0722	602	559	489	453	0.0801

CERTIFICATIONS

3×185+1×70E SAA approved cable

3×185+1×70E X-HF-110 cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment and Motor Power Supply

Switchboard and Distribution Panel Wiring

Underground Cable Trench and Conduit Installation

CASE

Induction Melting Furnace Power System

Mining Processing Plant MCC and Substation UpgradeModular Homes

Steel Mill Walking Beam Furnace Electrical Installation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

3×185+1×70E three phase plus earth cable

GLOBAL CERTIFICATIONS

3C+E cable for mains wiring

CUSTOMER PHOTOS

3C+E cable for submains wiring

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

multicore feeder cable for main distribution

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Do I need to derate the cable in a group?

Yes, grouped cables can run hotter because they dissipate less heat. The designer should apply grouping and ambient derating to the 3C+E cable ampacity rather than using a catalogue figure without adjustment. GERITEL WIRE can provide conductor and installation data for the calculation.

How do I calculate voltage drop on a long feeder?

Voltage drop depends on current, route length, conductor resistance, reactance and power factor. GERITEL WIRE can provide the electrical parameters needed for a 3C+E voltage drop calculation so the project engineer can confirm whether the selected size remains acceptable over the full run.

How is the protective earth size checked?

The reduced earth must satisfy the applicable fault-current and protective-device requirements. A three phase cable sizing with reduced earth review therefore considers both normal current in the phase cores and short-duration fault duty in the earth conductor. GERITEL WIRE states both sizes clearly for engineering approval.

Can two 3C+E cables be installed in parallel?

Parallel circuits may be possible when cable lengths, conductor sizes, routing, termination and impedance are carefully matched. GERITEL WIRE can supply matched 3C+E parallel cable lengths and clear drum identification, but the parallel arrangement must be approved by the electrical designer.
