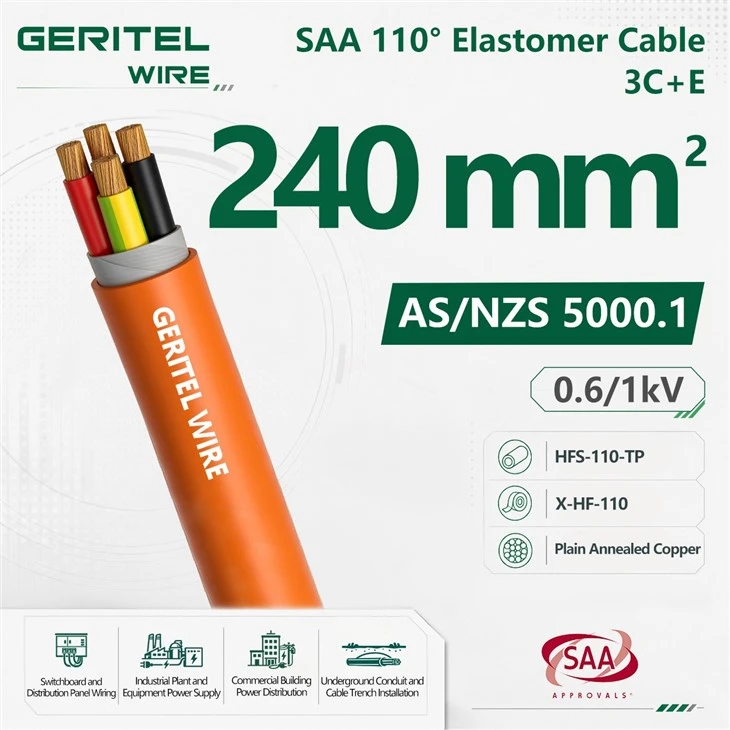

3×240+1×95E 110°C elastomer cable

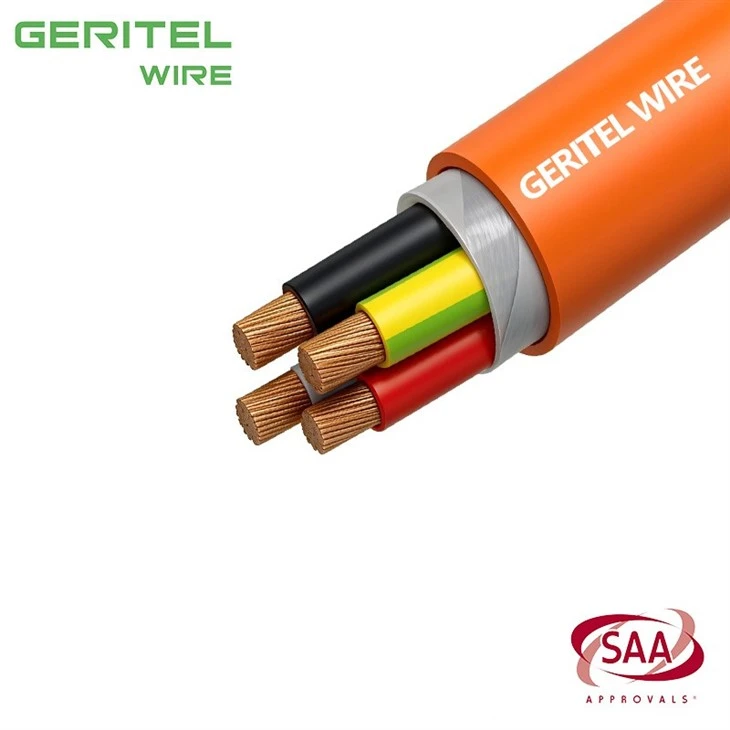

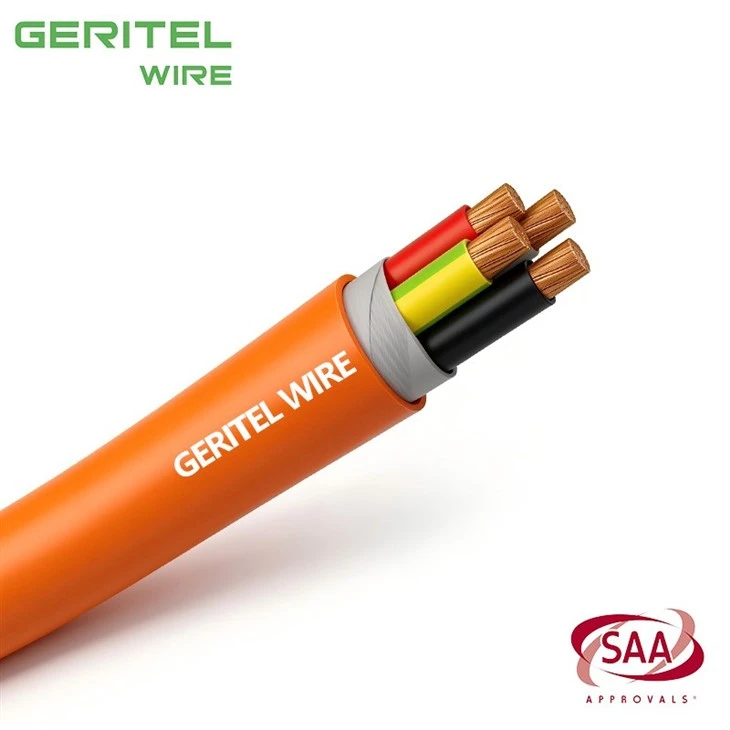

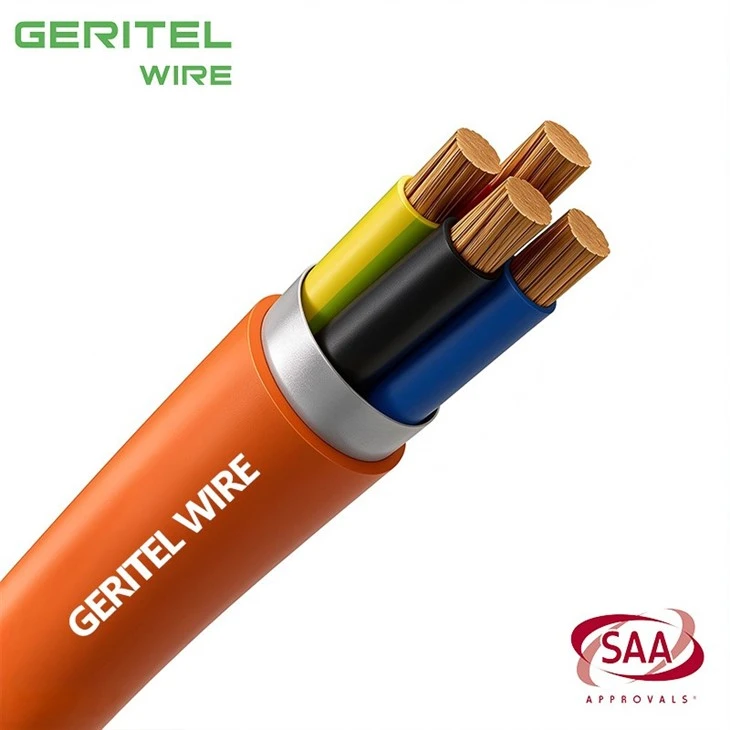

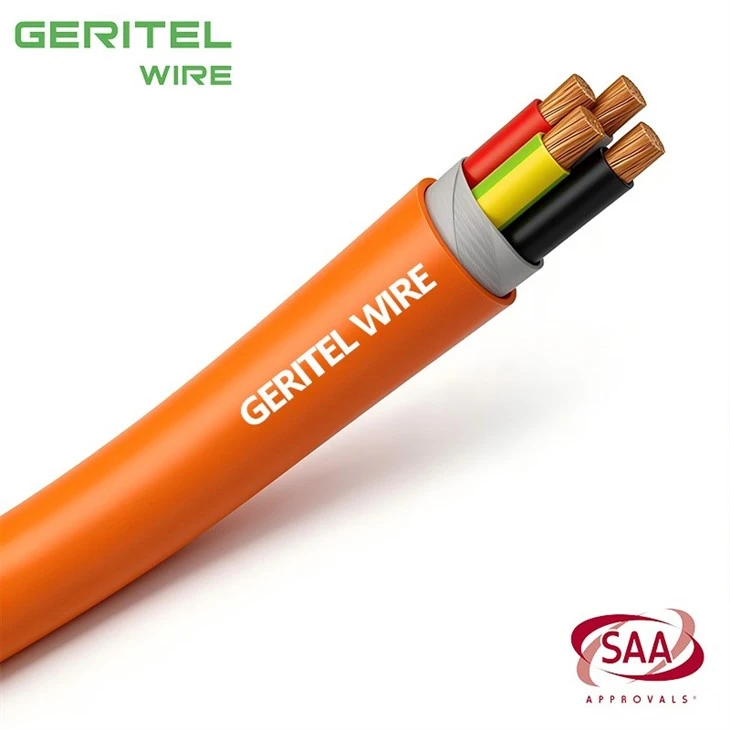

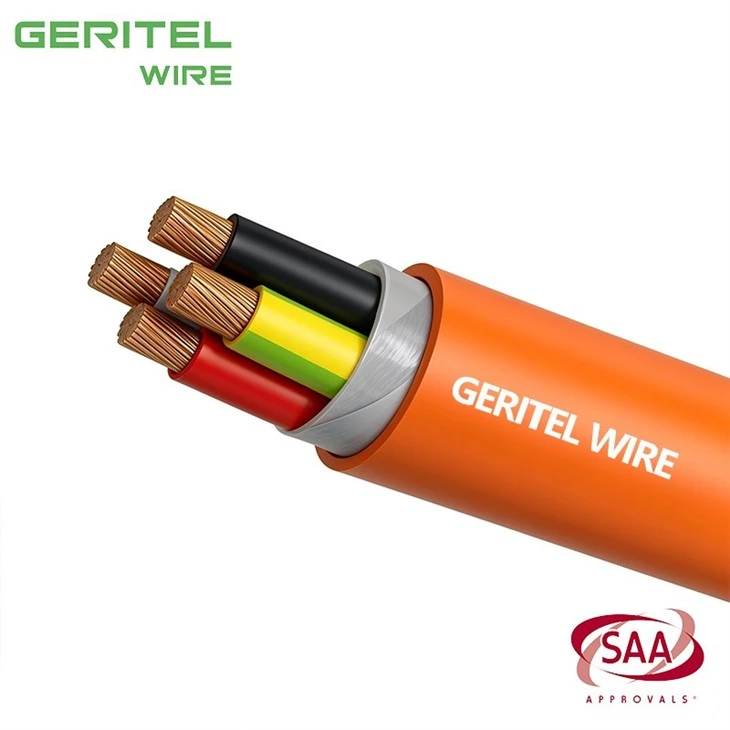

PRODUCT REAL SHOT

3×240+1×95E 3 core + earth cable

Large 3C+E Main Feeder Cable for High Current Distribution

The 3x240+1x95E high temperature 3C+E cable is the largest size in this product matrix and is intended for major fixed three-phase feeders. Three 240mm² flexible copper active conductors and a 95mm² protective earth create a robust multicore feeder cable with earth for protected 0.6/1kV distribution. The Class 5 construction improves routing into main boards and makes the cable suitable as a 3C+E cable for LV switchgear when bending radius, current rating and fault performance are verified. X-HF-110 insulation and HFS-110-TP sheathing support a 110°C conductor rating, allowing the product to function as a 3C+E power feeder cable in demanding plant environments. GERITEL WIRE provides SAA documentation, technical review, testing and drum engineering.

PRODUCT SPECIFICATIONS

3×240+1×95E SAA cable

Applications

Flexible single core X-HF-110 insulated and HFS-110-TP sheathed cable for mains, submains and subcircuits unenclosed, enclosed in conduit or in underground ducts for building and industrial plants where not subject to mechanical damage. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed applications only in accordance with AS/NZS 3000+AS/NZS 5000.1
Behaviour in flame and fire:	Flame propagation - AS/NZS IEC 60332-1
Temperature range	Maximum operating temperature: +110°C Minimum operating temperature: -25°C
Minimum bending radius	Installed cables: 4D During installation: 6D
Resistance to	Chemical exposure: OccasionaI Mechanical impact: Light Water exposure: Uccasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Flexible bunched annealed copper conductor to A5/NZ5 1125 (Class 5). Insulation: X-HF-110 Colour:Natural Sheath: HFS-110-TP Colour: Orange
Installation conditions	In free air In conduit In trench In duct

Core x cross- section mm²
	Conductor Diameter		Nominal insulation thicknes (mm)		Nominal sheath thickness (mm)	Approx. overall diamete (mm)	Approx. weight (kg/km)
	phase	earth	phase	earth	Nominal sheath thickness (mm)	Approx. overall diamete (mm)	Approx. weight (kg/km)
3x10+1x4E	0.40	0.30	0.7	0.7	1.8	19.6	689
3x25+1x6E	0.40	0.30	0.9	0.7	1.8	22.8	974
3x35+1x10E	0.40	0.40	0.9	0.7	1.8	26.0	1327
3x50+1x16E	0.40	0.40	1.0	0.7	1.8	30.1	1846
3x70+1x25E	0.50	0.40	1.1	0.9	1.9	35.1	2581
3x95+1x25E	0.50	0.40	1.1	0.9	2.0	38.4	3238
3x120+1x35E	0.50	0.40	1.2	0.9	2.1	42.8	4117
3x150+1x50E	0.50	0.40	1.4	1.0	2..3	48.2	5196
3x185+1x70E	0.50	0.50	1.6	1.1	2.5	53.7	6430
3x240+1x95E	0.50	0.50	1.7	1.1	2.6	60.4	8358

mm²	Reactance at 50Hz (ohm/km)
		Current Rating (A)				Electrical Characteristics
		Spaced	Touching surface	Metallic wiring enclosure in air	Underground duct one duct	Maximum DC Resistance 20°C Ω/km
16	0.0779	106	99	84	91	1.21
25	0.0783	140	131	112	118	0.780
35	0.0761	173	162	137	143	0.554
50	0.0754	218	204	175	178	0.386
70	0.0744	273	255	217	217	0.272
95	0.0729	327	306	263	259	0.206
120	0.0723	387	360	306	298	0.161
150	0.0728	444	413	356	341	0.129
185	0.0730	505	470	402	381	0.106
240	0.0722	602	559	489	453	0.0801

CERTIFICATIONS

3×240+1×95E SAA approved cable

3×240+1×95E X-HF-110 cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment and Motor Power Supply

Switchboard and Distribution Panel Wiring

Underground Cable Trench and Conduit Installation

CASE

Induction Melting Furnace Power System

Mining Processing Plant MCC and Substation UpgradeModular Homes

Steel Mill Walking Beam Furnace Electrical Installation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

3×240+1×95E three phase plus earth cable

low fire hazard cable for high rise buildings

GLOBAL CERTIFICATIONS

3C+E cable for commercial plant rooms

CUSTOMER PHOTOS

orange circular cable for commercial power

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

flexible multicore cable for building services

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

3C+E cable for factory power distribution

three phase earth cable for industrial machinery

flexible multicore cable for process plants

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

3C+E cable for fixed industrial equipment

FAQ

What data do I need for a short-circuit calculation?

The engineer normally needs fault current, clearing time, conductor material, conductor area and temperature limits. GERITEL WIRE can provide construction data for 3C+E short circuit sizing and identify the reduced earth conductor separately so the correct adiabatic check can be completed.

Why do cable diameters differ between brands?

Manufacturers may use different permitted strand arrangements, insulation dimensions, fillers and sheath thicknesses. Therefore a 3C+E cable dimensions table should come from the actual supplier rather than a competitor catalogue. GERITEL WIRE provides the relevant dimensions for gland, tray and pulling calculations.

Can I select the cable only by motor kW?

Motor kW is only one input. Starting current, protective device, route length, installation method, ambient temperature and voltage drop also matter. GERITEL WIRE can help identify likely 3 phase motor feeder cable options, but final cable sizing should follow the full project design.

Which size is best for a main switchboard feeder?

There is no single best size because the required current and route conditions vary by project. GERITEL WIRE offers multiple 3C+E main feeder cable sizes and can provide data from 3x16+1x6E up to 3x240+1x95E so the engineer can compare capacity, diameter and installation practicality.
