mv 105 15kv cable

The American standard mv105 15kv cable is a cable that meets American standard specifications and is mainly used in high-voltage application scenarios. This cable has a rated voltage of 15kV, a temperature resistance rating of 105 ℃, complies with UL standards, and is commonly used in industrial and commercial applications such as power stations, distribution stations, substations, and power regulation equipment.

characteristics

The characteristics of the American standard mv 105 15kv cable include high flexibility and good shielding system. It greatly improves the flexibility of cables, simplifies installation procedures, and reduces downtime and labor costs required for installation through a braided shielding system. In addition, the cable also has strong resistance to sunlight and oil, and has even passed the -40 º C cold bending test. According to NEC standards, it can be directly buried, making it an ideal choice for power stations, distribution stations, substations, and power regulation equipment

Feature

Conductor: Electrolytic Compressed aluminum class 2 or copper class 2 (Soft Copper or 1350-H19 aluminum)
UL1072
FT2 FT1 VW-1 - All Sizes
Sunlight Resistant - Sizes 8 AWG and larger
RoHS/REACH Compliant
UL & CSA certification
Conductor screen: Semi conductive extruded layer
Outer sheath: Sun resistant LLDPE sheath
Rated voltage (U): 5~35 kV

Certification

Our products have achieved various prestigious international certifications, including UL, TUV, EU CPR, CE, ROHS, and others.

Package

THHN wire package

Production Line

Greater Wire & Cable Manufacturer is an integration of smart and digital factories designed to increase production speed and more importantly ensure the highest quality standards, with automated production equipment accuracy up to 0.002mm. Every cable produced undergoes a comprehensive 100% inspection throughout the production and inspection process, creating a new era of precision and efficiency. The advanced setup eliminates the inherent errors and defects associated with manual assembly, building on the promise of delivering a product with unparalleled reliability.

Case

Company cases

Partner

greater wire Partner

FAQ

Q: What is mv 105 15kv cable used for?

A:mv 105 15kv cable are mainly used for high-voltage power transmission and distribution. This type of wire is suitable for scenarios that require high voltage transmission, such as transmission lines, substations, industrial plants, and residential areas

Q: What does MV 15 kV cable mean?

A: 15 kV cable indicates that the rated line voltage of the cable is 15 kV. This cable is suitable for transmitting electricity and can operate stably within a voltage range of 15 kV

Q: Is 15kV medium-voltage cable?

A: Yes, 15kV is a medium voltage cable. Medium voltage cables typically refer to those used for voltages between 1000V and 30kV, with 15kV specifically falling within this range, and therefore can be considered as medium voltage cables

Hot Tags: mv 105 15kv cable, China mv 105 15kv cable manufacturers, suppliers, factory, XLPE Copper Cable, 300V CSA VW 1 UL1007 Hook Up Wire, rubber cable, 250 440V Ordinary Duty Multicore Flexible Cable, CU XLPE STA Cable, xlpe power cable

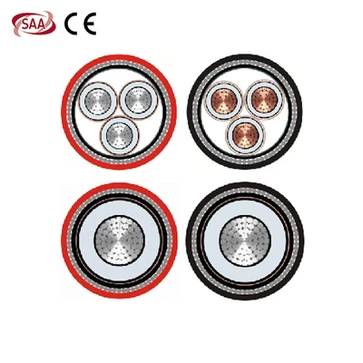

3C copper MV Cable

3C copper MV power Cable

No. of Cores	Core Cross sectional Area	Nominal Diameter
No. of Cores	Core Cross sectional Area	Under metallic screen	Under metallic screen	Overall
No.	mm2	mm	mm	mm
3	16	11.9	13.4	33.0
3	25	13.1	14.6	35.0
3	35	14.1	15.6	38.0
3	50	15.2	16.7	40.0
3	70	16.9	18.4	44.0
3	95	18.4	19.9	48.0
3	120	20	21.5	51.0
3	150	21.4	22.9	55.0
3	185	23.1	24.6	58.0
3	240	25.4	26.9	64.0
3	300	27.4	28.9	68.0
3	400	30.2	31.7	75.0
3	500	34	35.5	83.0

• Above mentioned parameters are based on 3k A/sec earth fault current capacity of copper screen

ELECTRICAL CHARACTERISTICS:

No.of Cores	Core Cross sectional Area	Max. DC Resistance at 20˚C	Max. AC Resistance at 90˚C	Approx. Capacitance	Approx. Inductance	Approx. Reactance	Continuous Current Rating
No.of Cores	Core Cross sectional Area	Max. DC Resistance at 20˚C	Max. AC Resistance at 90˚C	Approx. Capacitance	Approx. Inductance	Approx. Reactance	Buried direet in ground	In a buried duct	In Air
No.	mm2	Ω/km	Ω/km	µF/km	mH/km	Ω/km	Amps
3	16	1.15	1.446	0.26	0.600	0.189	101	87	109
3	25	0.727	0.927	0.3	0.569	0.179	129	112	142
3	35	0.524	0.668	0.34	0.551	0.173	153	133	170
3	50	0.387	0.494	0.38	0.534	0.168	181	158	204
3	70	0.268	0.342	0.44	0.505	0.159	221	193	253
3	95	0.193	0.247	0.49	0.492	0.154	262	231	304
3	120	0.153	0.196	0.55	0.477	0.150	298	264	351
3	150	0.124	0.159	0.59	0.468	0.147	334	297	398
3	185	0.0991	0.127	0.65	0.459	0.144	377	336	455
3	240	0.0754	0.097	0.73	0.450	0.141	434	390	531
3	300	0.0601	0.078	0.8	0.441	0.139	489	441	606
3	400	0.047	0.062	0.9	0.433	0.136	553	501	696
3	500	0.0366	0.049	0.93	0.427	0.134	632	574	800

*: Current Ratings are based on IEC 60502-2 & IEC 60287, Max. Conductor Temperature at 90℃, Ambient temperature at 30℃ in Air / at 20℃ in Ground, Thermal resistivity of Soil 1.5 k.m/W & for earthenware ducts 1.2k.m/W and Depth of Laying 0.8m.

Current rating de-rating factors for other than 30℃ ambient air temperature.

20	25	35	40	45	50	55	60
1.08	1.04	0.96	0.91	0.87	0.82	0.76	0.71

Current rating de-rating factors for other than 20℃ ground temperature.

10	15	25	30	35	40	45	50
1.07	1.04	0.96	0.93	0.89	0.85	0.80	0.76

No.of Cores	Core Cross sectional Area	Max. pulling tension on conductor	Charging Current per phase	Zero sequence impedance	Electric Stress at Conductor Screen	Short circuit rating of Phase conductor
No.	mm²	kN	Amps/Km	Ohms/Km	kV/mm	kA, I sec
3	16	1.12	0.16	2.63	1.3	2.3
3	25	1.75	0.18	2.09	1.2	3.6
3	35	2.45	0.2	1.83	1.2	5.0
3	50	3.5	0.23	1.65	1.1	7.2
3	70	4.9	0.26	1.50	1.1	10.0
3	95	6.65	0.29	1.41	1.1	13.6
3	120	8.4	0.33	1.36	1.1	17.1
3	150	10.5	0.35	1.32	1.1	21.4
3	185	12.95	0.39	1.29	1.1	26.4
3	240	16.8	0.44	1.26	1.0	34.3
3	300	21	0.48	1.24	1.0	42.8
3	400	28	0.54	1.22	1.0	56.9
3	500	35	0.56	1.21	0.9	71.5
