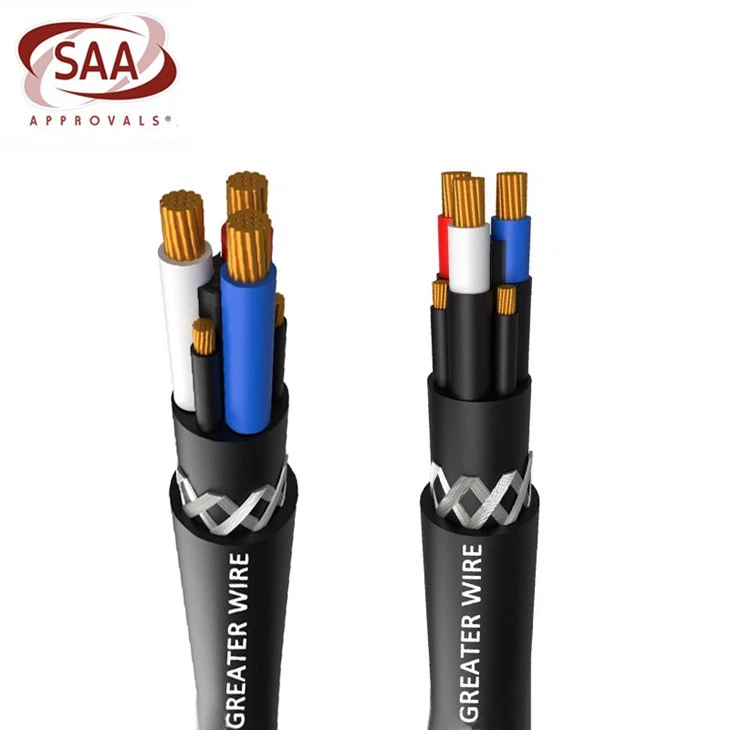

- 3xConductors: Flexible stranded tinned annealed copper conductor.
- Insulation: EPR.
- Cradle Separator: Semiconductive PCP.
- Overall Core Screen: Semiconductive PCP filling and covering
- 3xlnterstitial Earth Conductor: Semiconductive PCP covered flexible stranded tinned copper conductor
- 1 xCentral Extensible Pilot: EPR covered flexible stranded tinned copper conductor.
- Textile Reinforcement: Open-weave braid reinforcement.
- Sheath: Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.
Application
Certification
Mining wire is SAA certified. Obtaining SAA certification ensures that mining wire has been rigorously tested for electrical performance, durability and safety, making it safe to operate in demanding environments. Certification not only increases customer confidence, but also opens the door to large projects, and many organizations and government entities require certification for procurement.
Package
Company Introduction
Greater Wire & Cable is a well-known manufacturer specializing in low and medium voltage wires and cables with over 20 years of experience in the industry. With over 20 years of experience, Greater Wire & Cable has accumulated a wealth of knowledge and expertise in wire and cable manufacturing. Our factory covers an area of 12,000 square meters and is equipped with state-of-the-art production lines. This setup ensures an efficient manufacturing process and high production capacity. Greater Wire & Cable has a range of international certifications, including CSA, UL, CUL, CE, CB, TUV, BPS, SAA and PSE. These certifications demonstrate compliance with strict safety, quality and environmental standards in different regions and markets.
customer
Partner
FAQ
Q: Do cables need to have tensile strength?
Q: Is there a length limit for cables?
Hot Tags: type 275 1.111.1kv mining wire, China type 275 1.111.1kv mining wire manufacturers, suppliers, factory, AC Power Cable, HO7Z K 90 LSOH, UL BPS Certificated THHN THWN Copper Building Wire, tuv solar cable, Solar Cable 1500V H1Z2Z2 K TUV UL EN 50618 Solar PV Cable, 300V CSA VW 1 UL1007 Hook Up Wire
|
Nominal
Conductor
Area
|
Strand Size
|
Insulation
Thickness
|
Core Screen
|
Pilot Conductor
|
Thickness of Sheath Including SC PCP Layer |
Nominal
Overall
Diameter
|
Nominal
Weight
|
||
|
Strand Size
|
Area of
Screen
|
Strand Size
|
Thickness
of Covering
|
||||||
|
mm²
|
No/mm
|
mm
|
No/mm
|
mm
|
No/mm
|
mm
|
mm
|
mm
|
kg/100m
|
| Type 275 | |||||||||
| 16 | 126/0.40 | 1.6 | 60/0.30 | 1.0 | 24/0.20 | 0.8 | 3.8 | 30.2 | 145 |
| 25 | 209/0.40 | 1.6 | 100/0.30 | 1.0 | 24/0.20 | 0.8 | 4.0 | 33.9 | 204 |
| 35 | 285/0.40 | 1.6 | 140/0.30 | 1.0 | 24/0.20 | 0.8 | 4.3 | 37.9 | 270 |
| 50 | 380/0.40 | 1.7 | 99/0.4 | 1.0 | 40/0.20 | 0.8 | 4.7 | 41.6 | 333 |
