Type 260 1.1 To 11KV Underground Mining Cable

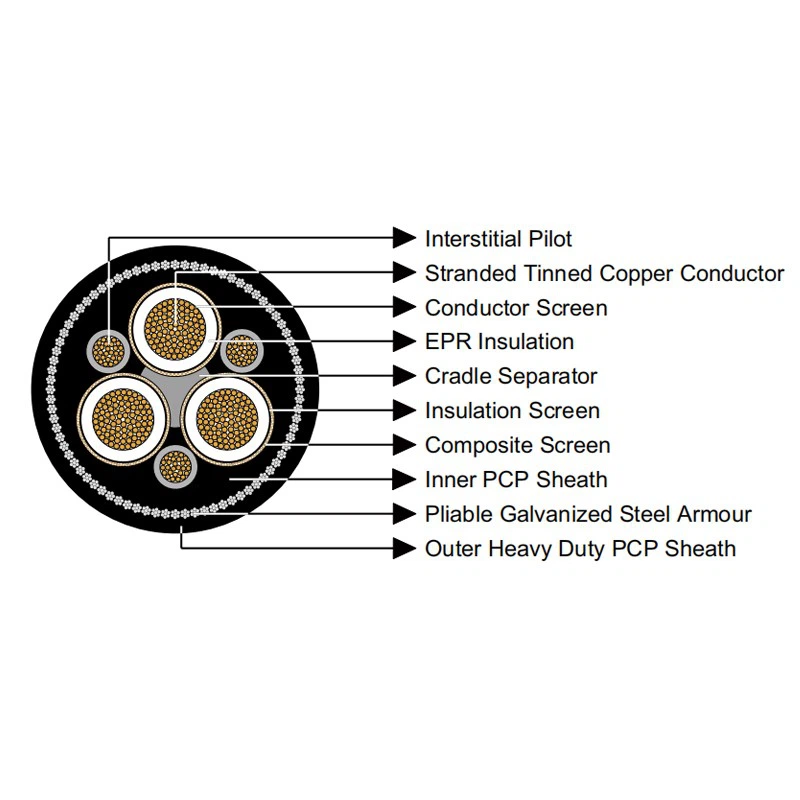

• 3×Conductors: Flexible stranded tinned annealed copper conductor.
• Conductor Screen: Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above).
• Insulation: EPR.
• Insulation Screen: Semiconductive elastomer.
• Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.
• Cradle Separator: Semiconductive PCP.
• 3×Interstitial Pilot: EPR covered flexible stranded tinned copper conductor.
• Inner Sheath: PCP sheath. CPE/CSP sheath can be offered upon request.
• Pliable Armour: Galvanized low carbon (mild) steel strands.
• Outer Sheath: Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request.
