10mm2 orange circular power cable 0.6/1kv

PRODUCT REAL SHOT

2 x 25mm2 + 1 x 6mm2 earth orange circular cable

50mm2 2c+e xlpe pvc orange cable

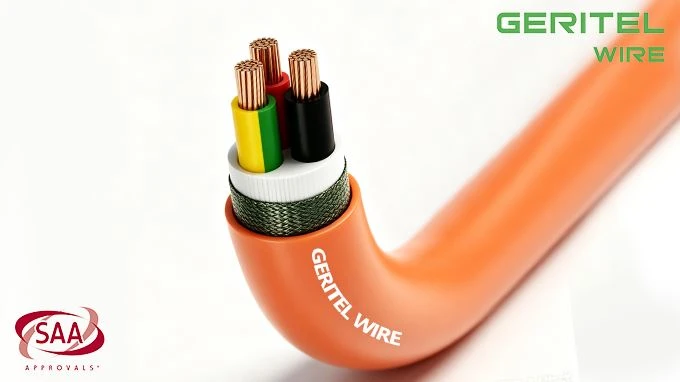

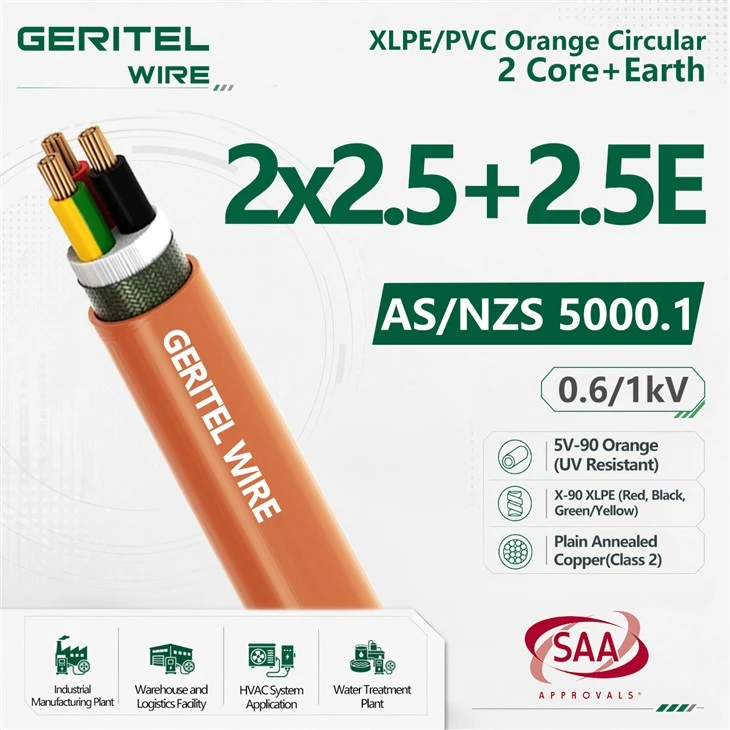

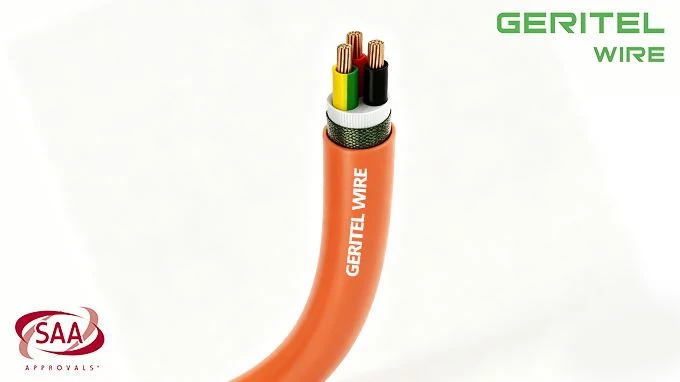

2 x 2.5mm² + 2.5mm² Earth Orange Circular Cable – Versatile 2C+E Power Cable for General Industrial Use

Designed for general-purpose power distribution, this Australian orange circular cable features two 2.5mm² XLPE insulated phase conductors and a 2.5mm² earth conductor, all protected by a rugged orange PVC sheath. The 0.6/1kV rating makes it suitable for a wide range of industrial and commercial applications, from equipment feeders to sub-main distribution. The XLPE insulation ensures excellent thermal stability and resistance to moisture, while the UV-resistant orange sheath enables reliable outdoor installation. AS/NZS 5000.1 compliant and SAA approved, this cable delivers dependable performance for manufacturing plants, warehouses, and HVAC systems where moderate current capacity is required.

PRODUCT SPECIFICATIONS

50mm2 orange circular cable price

Product Description

Suitable for mains, submains and subcircuits unenclosed, in conduit, buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage and where out of balance currents may require a neutral equal in size to the active. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed installations only, in accordance with AS/NZS 5000.1 PVC Best practice guidelines - GBCA
Behaviour in flame and fire	Flame Retardant
Temperature range	Maximum operating temperature: +90℃ Minimum operating temperature: -15°C
Minimum bending radius	Diameter 25.0 mm and below: Installed cables: 4D During installation: 6D Greater than 25.0 mm: Installed cables: 6D During installation: 9D
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure: Occasional condensation Solar radiation and weather exposure: Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 (Class 2). Insulation: X-90 XLPE Colour: Red, White, Blue, Black, Green/yellow Sheath： 5V-90 PVC Colour: Orange
Installation conditions	Industrial equipment In free air In conduit Machines Min. installation temperature: -0°C In trench In ground with protection Induct External building

XLPE/PVC Orange Circular 4 Core+Earth

Core x cross- section mm²	Conductor No.		Nominal insulation thickness		Nominal sheath thickness mm	Approx. Overall Diameter in (mm)	Approx. Weight kg/km
	phase	earth	phase mm	earth mm
	phase	earth	phase mm	earth mm
2x1.5+1x1.5E	7	7	0.7	0.5	1.8	9.8	114
2x2.5+1x2.5E	7	7	0.7	0.6	1.8	11.1	159
2x4+1x2.5E	7	7	0.7	0.6	1.8	11.9	196
2x6+1x2.5E	7	7	0.7	0.6	1.8	12.9	242
2x10+1x4E	7	7	0.7	0.7	1.8	14.9	352
2x16+1x6E	7	7	0.7	0.7	1.8	16.9	501
2x25+1x6E	7	7	0.7	0.7	1.8	20.2	714
2x35+1x10E	7	7	0.7	0.7	1.8	22.0	948
2x50+1x16E	19	7	1.0	0.7	1.8	24.8	1268
2x70+1x25E	19	7	1.1	0.9	1.8	28.4	1788

Conductor Size mm²	Min. Bending Radius mm	Unenclosed Spaced (A)	Unenclosed Touching (A)	Unenclosed partially surrounded by themal insulation (A)	Enclosed partially surrounded by themal insulation (A)	Buried direct (A)	Underground Wiring Enclosure (A)


1.5	45	24	22	18	16	24	24
2.5	50	34	31	25	23	34	34
4	55	45	42	33	29	45	45
6	60	57	53	42	37	56	56
10	70	78	73	58	51	75	75
16	75	104	97	78	66	132	98
25	90	140	131	105	88	170	128
35	100	173	162	129	106	205	154
50	170	211	197	158	130	244	185
70	190	268	250	200	160	300	228

CERTIFICATIONS

orange circular cable for pump motors

PACKAGING

orange circular cable for hvac equipment

Plastic Reel

orange circular cable for residential mains

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment Power Supply

orange circular cable for conveyor systems

Warehouse Electrical Distribution

Water Treatment Pump System

CASE

Mondelēz Manufacturing & Distribution Facility

Portside Distribution Centre

Western Sydney Recycled Water Scheme

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

orange cable for refrigeration equipment

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

orange circular cable for infrastructure projects

2 core and earth orange cable amp rating

orange circular cable short circuit rating

GLOBAL CERTIFICATIONS

orange circular cable outer diameter

CUSTOMER PHOTOS

2 core and earth cable manufacturer

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

orange circular cable supplier australia

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Why is this 2.5mm² cable preferred over 1.5mm² for many industrial applications?

2.5mm² offers higher current capacity and lower voltage drop, making it more suitable for circuits with moderate loads or longer cable runs where 1.5mm² would be marginal.

Can this cable be directly buried?

Yes, when installed in accordance with AS/NZS 3000 and local regulations, this cable with XLPE insulation and PVC sheath is suitable for direct burial applications.

What is the maximum operating temperature of this cable?

The XLPE insulation allows continuous operation at 90°C, with emergency overload capability up to 130°C and short-circuit withstand up to 250°C.

Is this cable suitable for use in wet areas?

Yes, the XLPE insulation and PVC sheath provide excellent moisture resistance, making this cable suitable for wet and damp locations.
