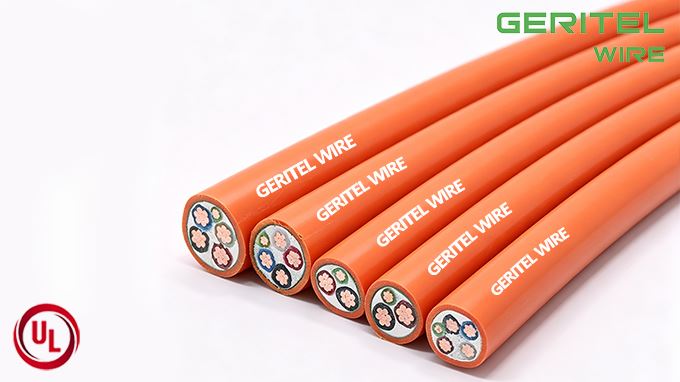

PRODUCT REAL SHOT

australian power cable

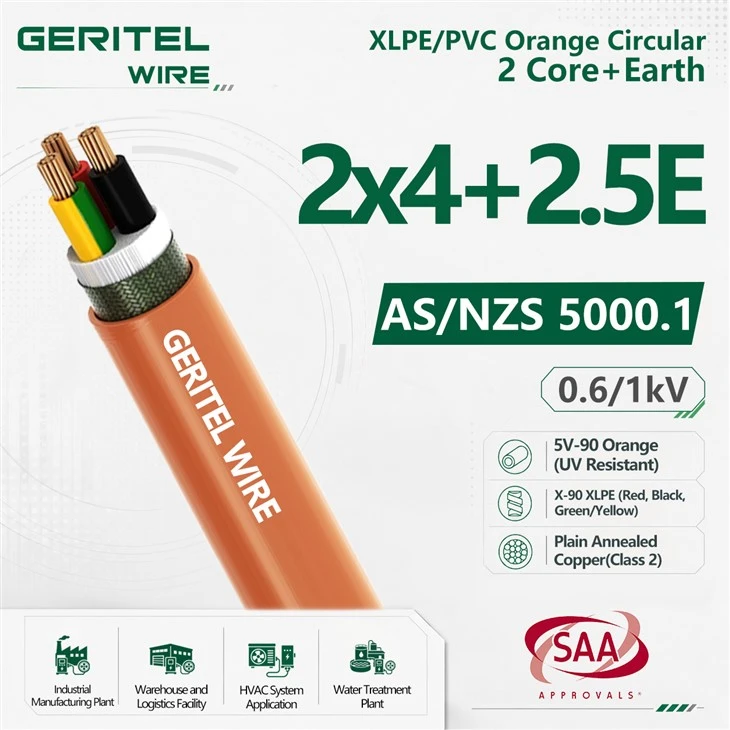

2 x 4mm² + 2.5mm² Earth Orange Circular Cable – High-Capacity 2C+E Cable for Mains and Sub-Mains Distribution

Engineered for higher current capacity, this Australian orange circular cable features two 4mm² XLPE insulated phase conductors and a 2.5mm² earth conductor in a durable orange PVC sheath. Rated 0.6/1kV, this cable is ideal for mains and sub-mains distribution, equipment feeders, and larger control circuits in industrial and commercial facilities. The XLPE insulation provides excellent thermal stability and short-circuit withstand capability, while the orange sheath offers superior UV resistance for outdoor applications. Fully compliant with AS/NZS 5000.1 and SAA approved, this cable delivers reliable performance for manufacturing plants, warehouses, HVAC systems, and water treatment facilities requiring robust power distribution.

PRODUCT SPECIFICATIONS

multicore orange circular cable

Product Description

Suitable for mains, submains and subcircuits unenclosed, in conduit, buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage and where out of balance currents may require a neutral equal in size to the active. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed installations only, in accordance with AS/NZS 5000.1 PVC Best practice guidelines - GBCA
Behaviour in flame and fire	Flame Retardant
Temperature range	Maximum operating temperature: +90℃ Minimum operating temperature: -15°C
Minimum bending radius	Diameter 25.0 mm and below: Installed cables: 4D During installation: 6D Greater than 25.0 mm: Installed cables: 6D During installation: 9D
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure: Occasional condensation Solar radiation and weather exposure: Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125 (Class 2). Insulation: X-90 XLPE Colour: Red, White, Blue, Black, Green/yellow Sheath： 5V-90 PVC Colour: Orange
Installation conditions	Industrial equipment In free air In conduit Machines Min. installation temperature: -0°C In trench In ground with protection Induct External building

XLPE/PVC Orange Circular 4 Core+Earth

Core x cross- section mm²	Conductor No.		Nominal insulation thickness		Nominal sheath thickness mm	Approx. Overall Diameter in (mm)	Approx. Weight kg/km
	phase	earth	phase mm	earth mm
	phase	earth	phase mm	earth mm
2x1.5+1x1.5E	7	7	0.7	0.5	1.8	9.8	114
2x2.5+1x2.5E	7	7	0.7	0.6	1.8	11.1	159
2x4+1x2.5E	7	7	0.7	0.6	1.8	11.9	196
2x6+1x2.5E	7	7	0.7	0.6	1.8	12.9	242
2x10+1x4E	7	7	0.7	0.7	1.8	14.9	352
2x16+1x6E	7	7	0.7	0.7	1.8	16.9	501
2x25+1x6E	7	7	0.7	0.7	1.8	20.2	714
2x35+1x10E	7	7	0.7	0.7	1.8	22.0	948
2x50+1x16E	19	7	1.0	0.7	1.8	24.8	1268
2x70+1x25E	19	7	1.1	0.9	1.8	28.4	1788

Conductor Size mm²	Min. Bending Radius mm	Unenclosed Spaced (A)	Unenclosed Touching (A)	Unenclosed partially surrounded by themal insulation (A)	Enclosed partially surrounded by themal insulation (A)	Buried direct (A)	Underground Wiring Enclosure (A)


1.5	45	24	22	18	16	24	24
2.5	50	34	31	25	23	34	34
4	55	45	42	33	29	45	45
6	60	57	53	42	37	56	56
10	70	78	73	58	51	75	75
16	75	104	97	78	66	132	98
25	90	140	131	105	88	170	128
35	100	173	162	129	106	205	154
50	170	211	197	158	130	244	185
70	190	268	250	200	160	300	228

CERTIFICATIONS

orange mains cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment Power Supply

Warehouse Electrical Distribution

Water Treatment Pump System

CASE

Mondelēz Manufacturing & Distribution Facility

Portside Distribution Centre

Western Sydney Recycled Water Scheme

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

active neutral earth orange circular cable

GLOBAL CERTIFICATIONS

x-90 insulated orange circular cable

CUSTOMER PHOTOS

round orange power cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

orange circular cable supplier australia

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Why does this cable use a smaller earth conductor than the phase conductors?

The 2.5mm² earth conductor is sized according to AS/NZS 3000 requirements for fault current capacity, which is adequate for the 4mm² phase conductors in typical fault conditions.

What applications typically use 4mm² 2C+E cable?

This cable is commonly used for sub-mains distribution, air conditioning units, larger motors, and equipment feeders in industrial and commercial buildings.

Can this cable be terminated on standard 4mm² terminals?

Yes, the 4mm² conductors are compatible with standard terminals and lugs designed for 4mm² conductors. Always verify termination compatibility.

Is this cable resistant to oils and chemicals?

The PVC sheath and XLPE insulation provide good resistance to oils and many industrial chemicals, making it suitable for industrial environments with moderate chemical exposure.
