Name: China RV Flat TPS Cable | AS/NZS 5000.2 Building Wire Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312602870

Description

Technical Parameters

Certification

residential lighting circuits V90 cable

PRODUCT REAL SHOT

residential lighting circuits 2 core and earth cable

residential lighting circuits SAA building cable

residential lighting circuits wiring cable supplier

residential lighting circuits electrical cable manufacturer

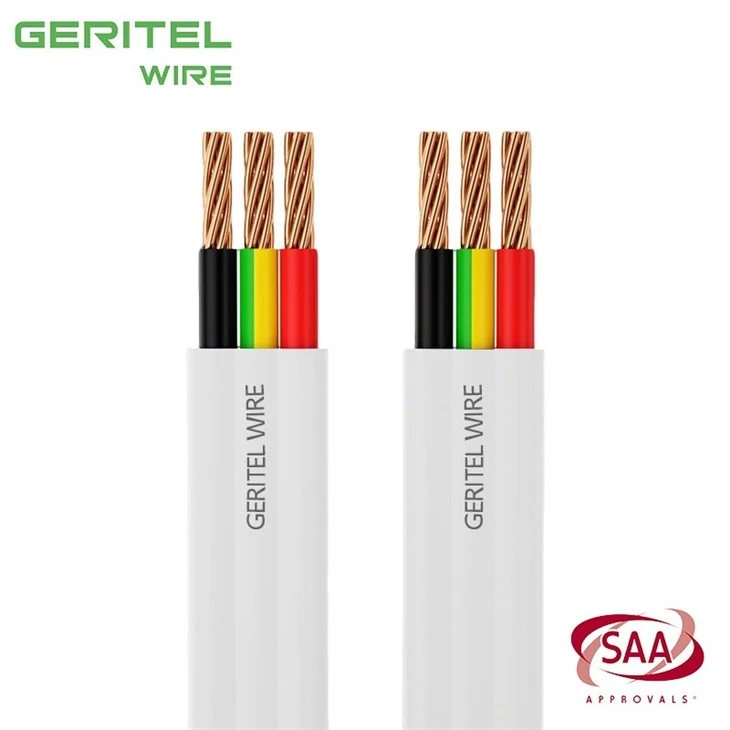

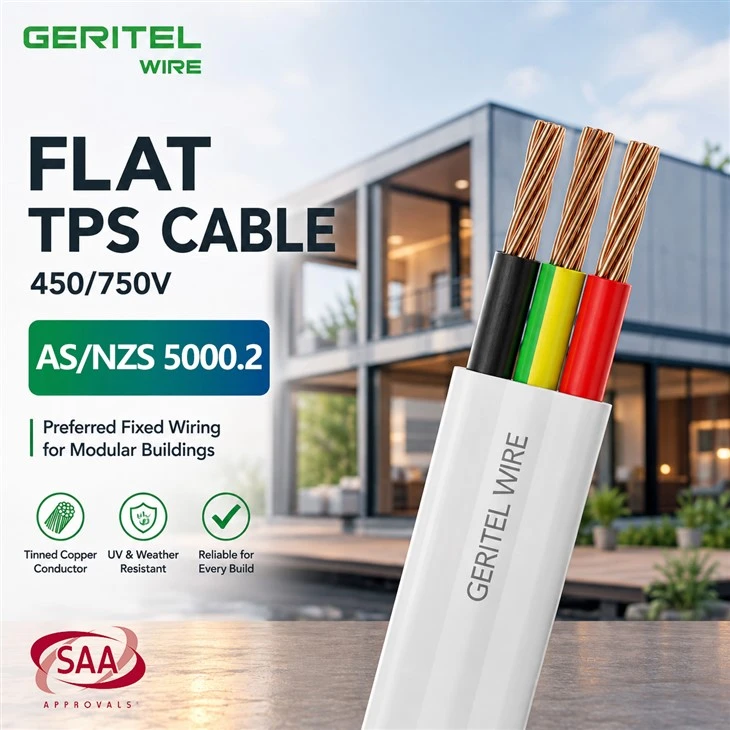

RV Fixed AC Wiring Cable with Copper Conductors and PVC Sheath

For projects sourcing RV flat TPS cable, the focus is reliable fixed installation, clear construction and repeatable project supply. It uses copper conductors with V-90 PVC insulation and a PVC sheath; relevant 450/750V constructions can be supplied to AS/NZS 5000.2. For RVs, use should be limited to suitable fixed AC sections under the applicable mobile-premises rules; it is not a 12/24V battery lead. Related search terms include RV fixed AC wiring cable and building cable for RV electrical systems. For modular buildings, RV production and capsule accommodation, GERITEL WIRE provides OEM identification and stable batch delivery. Final size, core configuration and installation method should follow the project drawings and local electrical rules.

PRODUCT SPECIFICATIONS

cable for residential lighting circuits power and lighting circuits

Applications

For general wiring, unenclosed, enclosed in conduit,for domestic, commercial and industrial installations where not subject to mechanical damage.

SPECIFICATIONS
Cable description	PVC insulated laid flat and PVC sheathed cableto A5/NZ5 5000.2
Approvals	A5/NZS5000.2
Behaviour in flame and fire	Flame retardant
Temperature range	Normal operating temperature: +90°C Minimum operating temperature: 0°C
Flexibility	Semi-rigid
Resistance to	Chemical exposure: Occasional Mechanical impact: Light Water exposure:Occasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Plain annealed copper conductor to AS/NZS 1125Can also be operated at temperatures up to 90°Cwhen not exposed to mechanical deformation(see AS/NZS 3008.1). Insulation: V-90 PVC Colours: Red, Black Sheath:3V-90PVC Colour: White
Installation conditions	In free air In conduit In ground with protection In duct External building with protection

	Conductor
Insulation Colours	Conductor			Cable						Min. installed bending radius(a) mm
	Nominal C.S.A mm²	Nominal diameter of wires No/mm	Nominal diameter mm	Nominal insulation thickness mm	Overall diameter mm				Approx. mass kg/100m
					Minimum		Maximum
					Major axis	Major axis	Major axis	Major axis
TWIN FLAT PVC
Red,Black	1.0	7/0.42	1.26	0.6	6.4	4.2	6.6	4.3	5.2	15
Red,Black	1.5	7/0.50	1.56	0.6	7.1	4.5	7.3	4.6	6.4	20
Red,Black	2.5	7/0.67	2.0	0.7	8.7	5.4	8.9	5.5	10	20
Red,Black	4	7/0.85	2.6	0.8	10.4	6.3	10.7	6.5	15	25
Red,Black	6	7/1.04	3.1	0.8	11.5	6.9	11.9	7.1	20	30
Red,Black	10	7/1.35	4.1	1	14.2	8.4	15.0	8.8	31	35
Red,Black	16	7/1.70	5.1	1	16.7	9.7	17.3	10.0	45	40
TWIN ACTIVE FLAT PVC
Red, White	1.0	7/0.42	1.26	0.6	6.4	4.2	11.7	4.3	5.2	15
Red, White	1.5	7/0.50	1.56	0.6	7.1	4.5	12.8	4.6	6.4	20
Red, White	2.5	7/0.67	2.0	0.7	8.7	5.4	15.8	5.5	10	20
Red, White	4	7/0.85	2.6	0.8	10.4	6.3	18.3	6.5	15	25
Red, White	6	7/1.04	3.1	0.8	11.5	6.9	20.1	7.1	20	30
Red, White	10	7/1.35	4.1	1.0	14.2	8.4	25.8	8.8	31	35
Red, White	16	7/1.70	5.1	1.0	16.7	9.7	17.3	10.0	45	40

CERTIFICATIONS

flat TPS cable for residential power circuits

PACKAGING

Roll

residential power circuits flat TPS cable

Plastic Reel

Small Wooden Reel

APPLICATION

Capsule Accommodation

Prefabricated Housing

Recreational Vehicle Wiring

CASE

2020 Ford Transit AWD Camper Van Conversion

residential power circuits electrical wiring cable

Epping Forest District Council Modular Homes

Wethersfield Modular Accommodation Deployment

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

residential power circuits fixed wiring cable

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

residential power circuits power wiring cable

residential power circuits lighting wiring cable

GLOBAL CERTIFICATIONS

residential power circuits building wire

CUSTOMER PHOTOS

residential power circuits 450/750V cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

residential power circuits AS/NZS 5000.2 cable

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

residential power circuits twin and earth cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

residential power circuits 2 core and earth cable

FAQ

How can GERITEL WIRE help a commercial electrical contractor?

GERITEL WIRE can support contractors with product data, multiple sizes, OEM marking, packing coordination and export documentation so project procurement is more organized. Buyers searching the market may encounter commercial building wiring cable and flat TPS cable supplier; GERITEL WIRE recommends confirming size, cores and standard before treating products as equivalent. GERITEL WIRE can provide product data and available certificate documents so engineering and purchasing teams can review the model before ordering. Where conditions differ from normal protected fixed wiring, select the cable only after a project-specific review.

Why is Flat TPS Cable useful in modular-home factories?

Its flat profile works well in framed wall and ceiling cavities used in factory-built modules. GERITEL WIRE can also supply repeatable markings and packaging for production-line use. In international sourcing, useful equivalent search terms include modular homes flat TPS cable and modular home wiring cable, but final approval should be based on the technical specification. If the project has special installation or certification requirements, GERITEL WIRE can review them before quotation to reduce later changes. The electrician or project engineer should confirm final cable selection for the actual installation.

Can Flat TPS Cable be pre-installed in prefabricated house wall panels?

Yes, when the panel design provides protected fixed routes and the installation complies with the project rules. Cable support and protection at panel joints remain important. Related catalog descriptions include prefabricated houses TPS cable and prefab house wiring cable; the correct choice still depends on the ordered model and application. For project orders, GERITEL WIRE can align cable size, core arrangement, packaging and documentation with the approved BOM. Clear technical confirmation before purchase helps reduce rework, approval delays and site substitutions.

Is Flat TPS Cable suitable for integrated housing projects?

It can be used for suitable internal fixed power and lighting circuits in integrated housing. GERITEL WIRE helps buyers standardize sizes and markings across repeated units. For procurement, this requirement may be listed as integrated housing TPS cable or integrated housing electrical wiring cable, so the datasheet and core configuration should be checked with the supplier. For distributors and OEM builders, GERITEL WIRE can support stable production batches, custom identification and export-ready packaging. For regulated projects, certificate scope and installation requirements should be checked together.
