UL Type PLTC / ITC Tray Fieldbus / Profibus PA 300V cable is a professional bus cable designed specifically for digital communication in industrial process automation. It features an independent twisted-pair shielding structure, which effectively resists interference. It also meets the installation specifications of UL PLTC and ITC, is suitable for cable trays and instrument circuits, and fully complies with Foundation Fieldbus H1 and Profibus PA system standards, ensuring reliable connection and long-term stable operation of field equipment.
Application
Fieldbus/Profibus PA PLTC/ITC Cables
Unarmored PLTC/ITC Fieldbus/Profibus PA cables are widely used in industrial automation and process control systems to connect field instruments, sensors, actuators, and controllers, enabling digital bus communication. They can be laid in cable trays or control loops in industries such as oil, chemicals, power, and water treatment, supporting multiple devices sharing the same bus, improving wiring efficiency. Independent twisted-pair shielding and flame-retardant sheaths ensure signal stability and strong anti-interference capabilities. They are particularly suitable for Foundation Fieldbus H1 and Profibus PA systems to build reliable fieldbus networks for automated monitoring and data acquisition.
Multiple options available

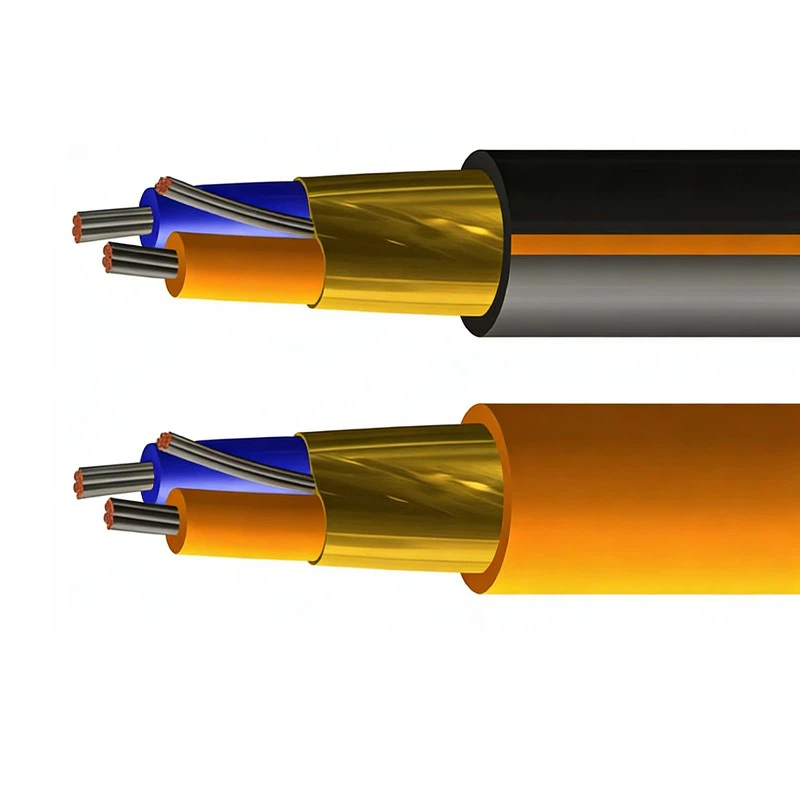

1. Conductor: Multi-strand tinned copper conductor, common sizes: AWG 16 / AWG 18
2. Insulation: Flame-retardant XLPE (cross-linked polyethylene);
- Wet temperature rating: 60 °C;
- Dry temperature rating: 105 °C
3. Shielding: Individual aluminum/mylar shield with Drainwire over each pair
4. Jacket: Standard flame-retardant PVC sheath
- Orange: Foundation Fieldbus
- Purple: Profibus PA
- Blue: Intrinsically safe (IS) circuit
- Black with orange stripes: Special engineering identification application
5. Electrical Performance
- Rated voltage: 300 V
- Supports Fieldbus / Profibus PA digital communication
- Single bus can connect up to approximately 32 field devices
- Maximum communication distance up to approximately 1900 meters (depending on device current and system design)
Certification
PLTC/ITC cables have passed multiple international authoritative certifications, complying with UL 13 (PLTC) and UL 2250 (ITC) standards. They can be safely laid in cable trays and instrument circuits, meeting the stringent electrical safety and flame-retardant performance requirements of industrial control systems. Furthermore, these cables comply with Foundation Fieldbus FF-844 H1 and Profibus PA communication specifications, ensuring stable digital bus signal transmission. They have also passed multiple flame-retardant tests (such as UL 1685/FT4 and IEEE 1202/383), maintaining necessary safety protection even in fire or high-temperature environments, providing a reliable communication and control foundation for industrial automation systems.
package
package

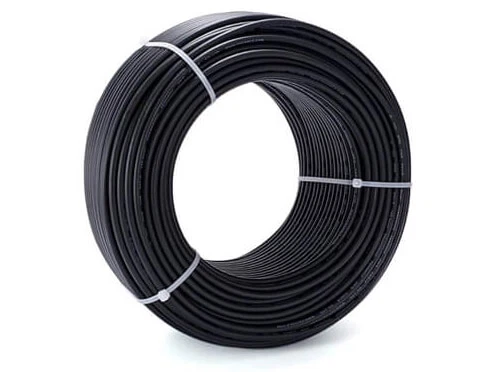

PLTC/ITC instrumentation cables are offered in coiled form, on wooden reels, or on large wooden reels, with custom packaging available upon request.
Production Line
Greater Wire is a professional UL PLTC/ITC cables manufacturer, offering not only standard models but also highly flexible structural design capabilities. Our factory can produce single-pair, multi-pair, three-core, multi-core, fully shielded, or twisted-pair shielded PLTC/ITC cables, supporting various configurations including AIA armor, aluminum tape shielding, and tinned copper braided shielding. This structural versatility allows us to meet the application needs of diverse industrial automation, process control, and field instrumentation systems.
Professional Technical Team
Our professionals have a systematic understanding of UL's technical requirements for power-limiting cables and instrument tray cables.
Quality Assurance
Each batch of products undergoes conductor resistance testing, withstand voltage testing, insulation performance testing, and flame retardancy testing before leaving the factory.
50,000M²
Factory
Area
30+Years
Production
Experience
50+Servings
Product
Certifications
80+Countries
Export
Experience
Hot Tags: ul type pltc / itc fieldbus/profibus pa cable 300 v, China ul type pltc / itc fieldbus/profibus pa cable 300 v manufacturers, suppliers, factory
| NUMBER OF PAIRS |
CONDUCTOR SIZE | NOMINAL DIAMETER OVERALL CABLE |
CABLE WEIGHT | MAX PULLING TENSION (PULLING EYE) |
MIN BEND RADIUS (PULL) |
| (AWG/kcmil) | (in/mm) | (lbs/1000ft) (kg/km) | (lb/kg) | (in/mm) | |
| 1 | 16 | 0.357/9.1 | 66/98 | 41/19 | 6.4/163 |
| 2 | 16 | 0.557/14.2 | 149/222 | 82 /37 | 10/255 |
| 4 | 16 | 0.672 /17.1 | 230/342 | 165/75 | 12.1/307 |
| 6 | 16 | 0.807/20.5 | 330/491 | 247/112 | 14.5/369 |
| 8 | 16 | 0.877 /22.3 | 410/610 | 330/150 | 15.8/401 |
| 12 | 16 | 1.092/27.7 | 607/903 | 494/224 | 19.7/499 |
| 16 | 16 | 1.220/31.0 | 762/1134 | 659/299 | 22/558 |
| 24 | 16 | 1.541 /39.1 | 1139/1695 | 989/449 | 27.7/705 |
| 1 | 18 | 0.313/8.0 | 49/73 | 26/12 | 5.6/143 |
| 2 | 18 | 0.485 /12.3 | 111/165 | 52/24 | 8.7/222 |
| 4 | 18 | 0.564/14.3 | 157/233 | 104/47 | 10.2/258 |
| 6 | 18 | 0.696/17.7 | 236/351 | 156/71 | 12.5/318 |
| 8 | 18 | 0.754/19.2 | 291/432 | 208/94 | 13.6/345 |
| 12 | 18 | 0.937/23.8 | 425/633 | 312/142 | 16.9/429 |
| 16 | 18 | 1.102/28.0 | 593/882 | 468/212 | 19.8/504 |
| 24 | 18 | 1.315/33.4 | 793/1180 | 624/283 | 23.7/601 |
