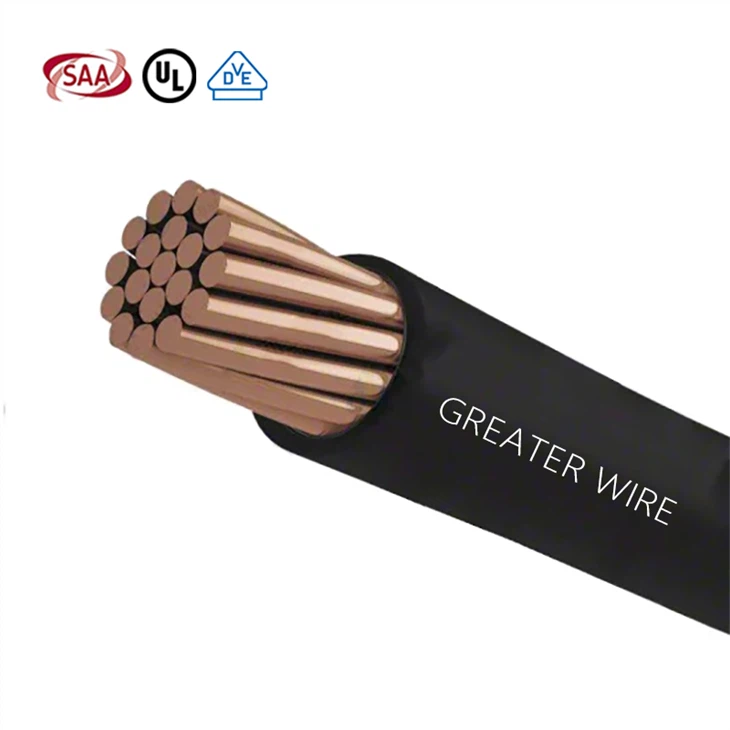

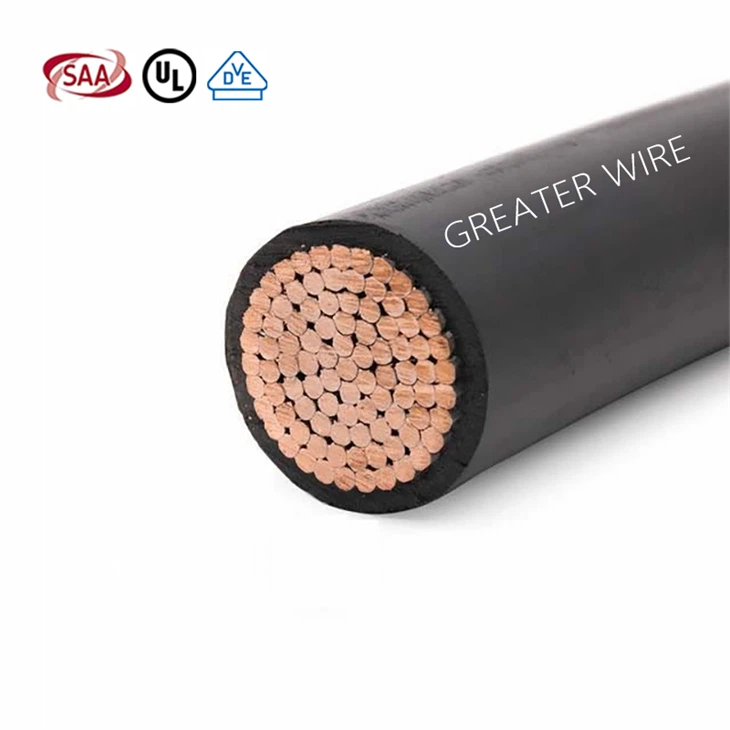

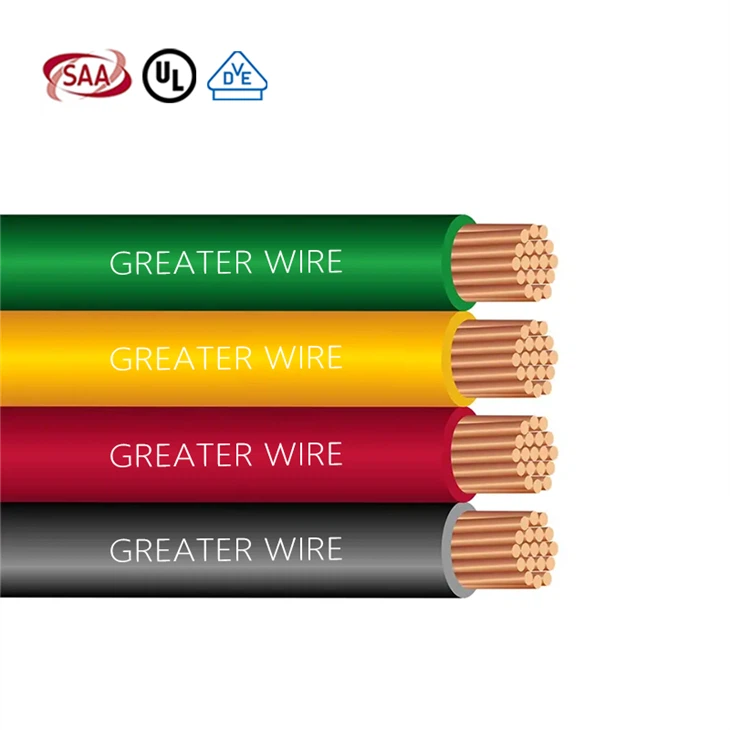

Copper RHW/RHW-2 wire is a high-performance cable with annealed (soft) copper conductors for excellent electrical conductivity. Its insulation material is cross-linked polyethylene (XLPE), which has excellent heat and moisture resistance, and can operate in dry or humid environments with a maximum operating temperature of up to 90°C. The RHW-2 cable is rated for 600 volts.
Application
Copper RHW/RHW-2 wire conductor is a high-performance cable type widely used in power transmission and distribution scenarios that require high temperature, wet, or dry environments. According to the 2011 National Electrical Code (NEC), when used with conduit, the conductor temperature of RHW-2 conductor shall not exceed 90°C in wet or dry environment. This conductor has good heat and moisture resistance, which can ensure the stable operation of electrical systems in complex environments. In addition, the rated voltage of RHW-2 conductor is 600 volts, which is suitable for most medium and low voltage power transmission applications, such as building power supply systems, industrial power distribution, and outdoor laying projects.
Feature
RHW and RHW-2 cables are both insulated with cross-linked polyethylene (XLPE) and designed for use in wet or dry locations. However, RHW cable is rated for 75°C in wet locations and is primarily used in general-purpose wiring where moderate thermal performance is acceptable. RHW-2 cable is an upgraded version that offers a higher temperature rating of 90°C in both wet and dry environments.
Certification
RHW/RHW-2 cables have passed UL certification. The RHW cable is UL certified under number UL-US-2561144-0, while the RHW-2 cable holds certification number UL-US-2561143-0. These certifications are publicly verifiable in the UL official database, providing transparency and traceability.
Whether installing in residential, commercial, or industrial environments, our cables meet all applicable NEC requirements. They are tested for thermal endurance, insulation integrity, moisture resistance, and long-term durability, ensuring safe and reliable performance even under challenging conditions.
Package
Production Line
Greater Wire is an RHW/RHW-2 manufacturer. We produce all kinds of professional wires and cables, such as Canadian cables, SAA cables, UL wires, and others. We have advanced production equipment and process flow, complete testing equipment, and strong product technology. After years of hard work and support from customers around the world, we have developed rapidly and won a high honor and share in the overseas market. We have passed ISO9001 quality management system certification, national high-tech enterprise certification, and national specialized and new enterprise certification.
customer
Partner
FAQ
Q: What does RHW mean?
Q: What is the difference between RHW-2 and use-2?
USE-2: Underground Service Entrance, designed for direct burial or service entrance applications, insulation is more focused on moisture and soil exposure, optimized for direct burial and harsh soil conditions, but less useful in other applications.
Q: Can RHW-2 be directly buried?
Hot Tags: copper rhw/rhw-2 wire, China copper rhw/rhw-2 wire manufacturers, suppliers, factory, CUL Standard XLPE Copper RW75 RW9O RWU75 RWU90 Cable, ul thhn wire, australia cable, orange circular cable, HO5RN F Cable, ul1007 hook up wire
| Conductor | Insulation Thickness (mils) | Nominal 0.D.(mils) | Approx.Net Wt.Per 1000'(lbs.) | Allowable Ampacities+ | |||
| Size (AWG or kcmil) | No.of strands | 60℃ | 75℃ | 90℃ | |||
| 14* | 7 | 30 | 130 | 24 | 15 | 15 | 15 |
| 12* | 1 | 30 | 141 | 18 | 20 | 20 | 20 |
| 10* | 1 | 30 | 147 | 26 | 30 | 30 | 30 |
| 12* | 7 | 30 | 162 | 37 | 15 | 15 | 15 |
| 10* | 7 | 30 | 171 | 40 | 20 | 20 | 20 |
| 8 | 7 | 45 | 232 | 65 | 30 | 30 | 30 |
| 6 | 7 | 45 | 268 | 96 | 40 | 50 | 55 |
| 4 | 7 | 45 | 311 | 147 | 55 | 65 | 75 |
| 3 | 7 | 45 | 337 | 183 | 70 | 85 | 100 |
| 2 | 7 | 45 | 367 | 227 | 85 | 100 | 115 |
| 1 | 19 | 55 | 435 | 291 | 95 | 115 | 130 |
| 1/0 | 19 | 55 | 477 | 363 | 110 | 130 | 145 |
| 2/0 | 19 | 55 | 521 | 453 | 125 | 150 | 170 |
| 3/0 | 19 | 55 | 571 | 565 | 145 | 175 | 195 |
| 4/0 | 19 | 55 | 627 | 706 | 165 | 200 | 225 |
| 250 | 37 | 65 | 695 | 835 | 195 | 230 | 260 |
| 300 | 37 | 65 | 748 | 995 | 215 | 255 | 290 |
| 350 | 37 | 65 | 798 | 1155 | 240 | 285 | 320 |
| 400 | 37 | 65 | 843 | 1314 | 260 | 310 | 350 |
| 500 | 37 | 65 | 927 | 1633 | 280 | 335 | 380 |
| 600 | 61 | 80 | 1033 | 1965 | 320 | 380 | 430 |
| 750 | 61 | 80 | 1102 | 2282 | 350 | 420 | 475 |
| 1000 | 61 | 80 | 1284 | 3229 | 455 | 545 | 615 |
