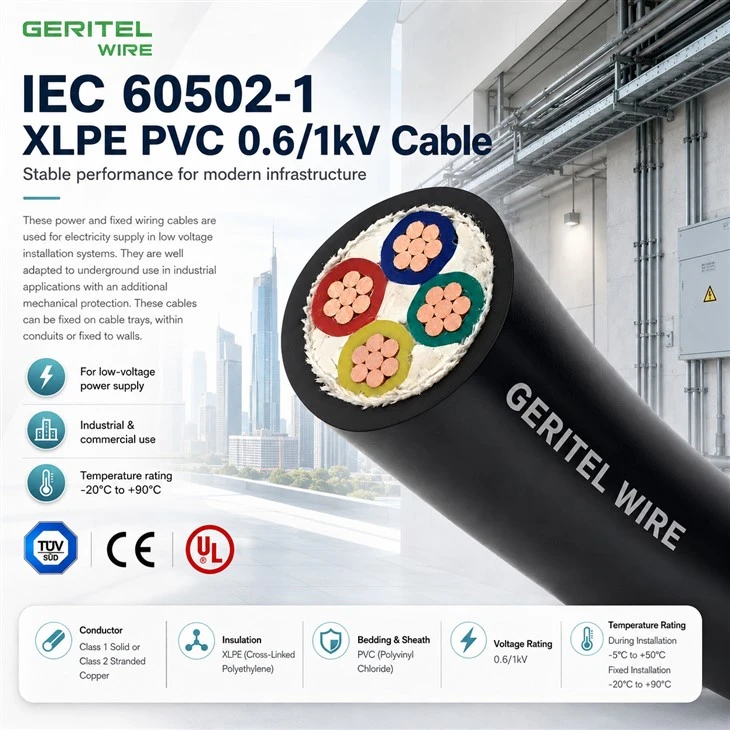

N2XY-J Power Cable With Green-Yellow Protective Conductor For German Projects

N2XY-J Power Cable With Green-Yellow Protective Conductor For German Projects
Details:
·Conductor:RE: Class 1 solid copper conductor RM: Class 2 stranded circular or circular compacted SM: Class 2 stranded sectoral shaped
·Insulation: XLPE (Cross-Linked Polyethylene)
·Bedding: PVC (Polyvinyl Chloride)
·Sheath: PVC (Polyvinyl Chloride)
·Voltage Rating Uo/U: 0.6/1kV
·Temperature Rating:During installation -5℃ to +50℃ Fixed Installation: -20℃ to +90℃
·Standards：IEC 60502-1, Gen to VDE 0276-603, IEC/EN 60228 Flame retardant according to IEC/EN 60332-1-2
Send Inquiry
Download
Description
Technical Parameters
Certification

câble électrique 0,6/1 kV Maroc

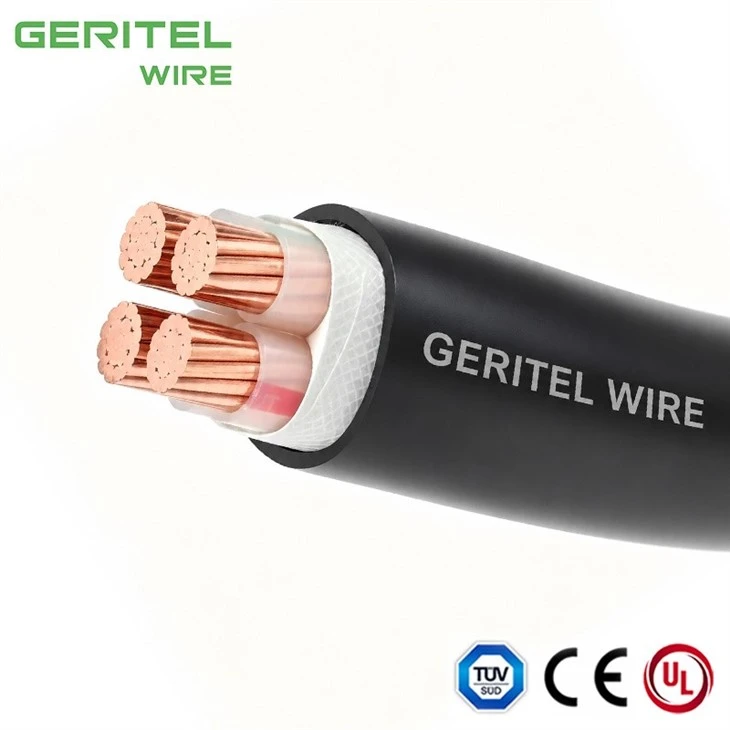

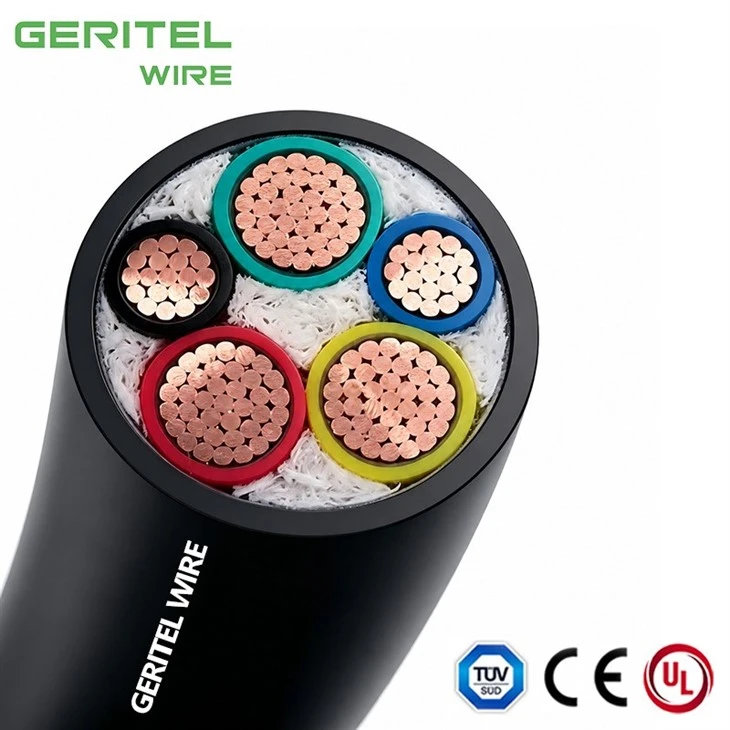

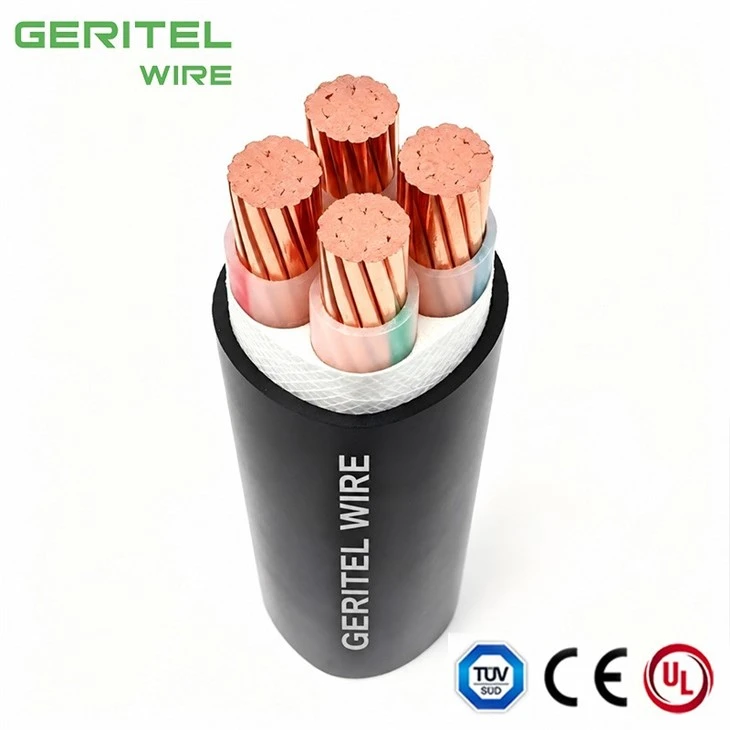

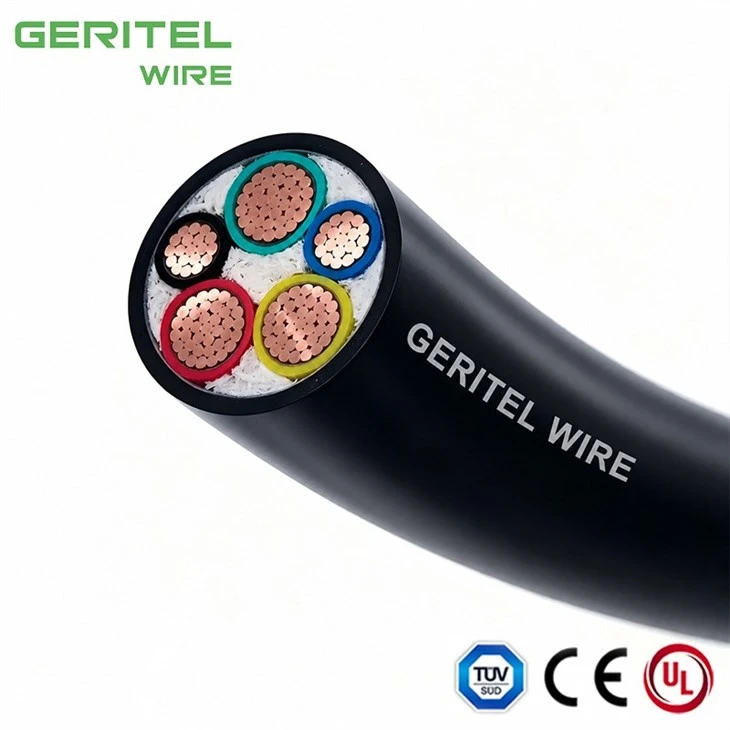

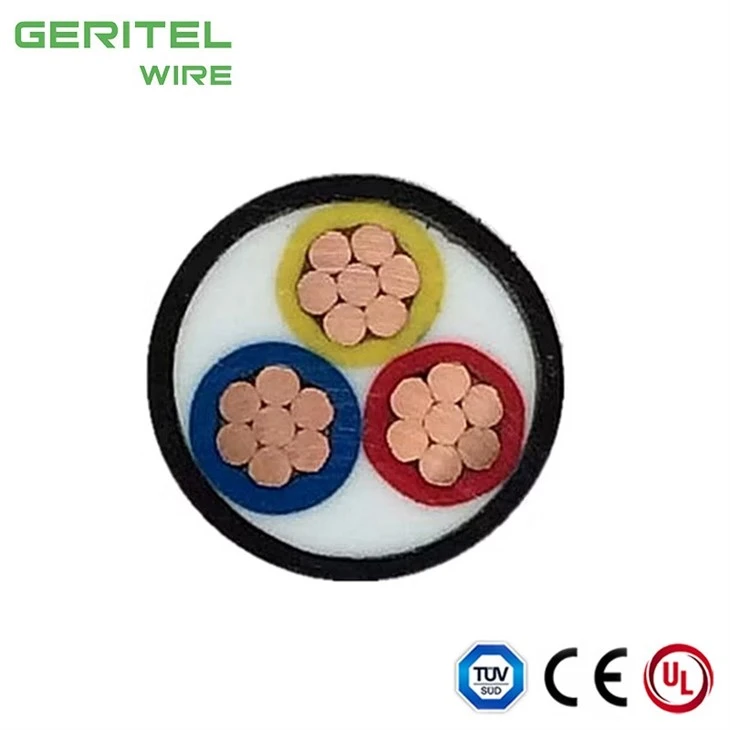

PRODUCT REAL SHOT



câble U1000 R2V Maroc
câble U1000 R2V Algérie
câble U1000 R2V Tunisie

fournisseur câble R2V Afrique du Nord

German standard XLPE PVC cable option for earthed multicore fixed installations
This Germany-focused landing page targets cable schedules that call for an N2XY-J configuration with a green-yellow protective conductor. At the product core are copper conductors with XLPE insulation and a PVC oversheath, configured as an unarmoured 0.6/1 kV power cable. Buyers using the phrase N2XY-J 0.6/1kV copper cable supplier can compare this exact construction without mixing it with aluminium, armoured, LSZH or Class 5 flexible cable. GERITEL WIRE offers technical review against the submitted schedule and can coordinate production, inspection and shipping documents for EU-bound orders. Panel builders, electrical wholesalers and EPC teams can request exact core colours, conductor cross-sections, drum markings and test documentation.
PRODUCT SPECIFICATIONS



fabricant câble U-1000 R2V

Applications



These power and fixed wiring cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.

SPECIFICATIONS
Voltage Rating Uo/U 0.6/1kV
Temperature Rating

During installation -5°C to +50°C

Fixed Installation: -20°C to +90°C
Minimum Bending Radius Fixed: 12 x overall diameter
Conductor

RE: Class 1 solid copper conductor

RM: Class 2 stranded circular or circular compacted

SM: Class 2 stranded sectoral shaped
Insulation XLPE (Cross-Linked Polyethylene)
Bedding PVC (Polyvinyl Chloride)
Sheath PVC (Polyvinyl Chloride)
Core Identification

3 core: Green/Yellow,Blue,Brown4 core

4 core: Green/Yellow,Brown,Black,Grey

5 core: Green/Yellow,Blue,Brown,Black,Grey

7 cores and above: Black cores and,White numbers
Sheath Colour Black
STANDARDS IEC 60502-1, Gen to VDE 0276-603, IEC/EN 60228 Flame retardant according to IEC/EN 60332-1-2

DIMENSIONS

NO. OF
CORES

NOMINALCROSS

SECTIONALAREA

mm²

CONDUCTOR

TYPE

NOMINAL

THICKNESS

OF INSULATION

mm

NOMINAL

THICKNESS

OF SHEATH

mm²

NOMINAL OVERALL

DIAMETER

mm

NOMINAL WEIGHT

kg/km
1 16 RM 0.7 1.8 9.8 216
1 25 RM 0.9 1.8 11.5 318
1 35 RM 0.9 1.8 12.6 415
1 50 RM 1 1.8 14.1 543
1 70 RM 1.1 1.8 15.6 746
1 95 RM 1.1 1.8 17.6 1000
1 120 RM 1.2 1.8 19.2 1239
1 150 RM 1.4 1.8 21.2 1515
1 185 RM 1.6 1.8 23.1 1872
1 240 RM 1.7 1.8 25.8 2403
1 300 RM 1.8 1.8 2.78 2974
1 400 RM 2 1.9 31.1 3834
1 500 RM 2.2 2 34.9 4892
1 630 RM 2.8 2.8 46.6 6544
2 1.5 RE 0.7 1.8 10.1 145
2 2.5 RE 0.7 1.8 10.9 179
2 4 RE 0.7 1.8 11.8 226
2 6 RE 0.7 1.8 12.8 284
2 6 RM 0.7 1.8 13.1 295
2 10 RM 0.7 1.8 15 416
2 16 RM 0.7 1.8 17 581
2 25 RM 0.9 1.8 20.4 859
2 35 RM 0.9 1.8 22.5 1109
3 1.5 RE 0.7 1.8 10.5 162
3 2.5 RE 0.7 1.8 11.4 205
3 4 RE 0.7 1.8 12.4 265
3 6 RE 0.7 1.8 13.4 338
3 10 RM 0.7 1.8 15.8 505
3 16 RM 0.7 1.8 18 719
3 25 RM 0.9 1.8 21.6 1072
3 35 RM 0.9 1.8 23.9 1403
3 50 SM 1 1.9 23.8 1581
3 16/10 SM 0.7 1.8 19.8 875.5
3 25/16 SM 0.9/0.7 1.8 22.4 1223
3 35/16 SM 0.9/0.7 1.8 24.3 1557
3 50/25 SM 1/0.9 1.9 26.9 1863
3 70/35 SM 1.1/0.9 2 30 2594
3 95/50 SM 1.1/1 2.2 33.8 3505
3 120/70 SM 1.2/1.1 2.3 37 4440
3 150/70 SM 1.4/1.1 2.4 41.6 5333
3 185/95 SM 1.6/1.1 2.6 45.8 6701
3 240/120 SM 1.7/1.2 2.8 51.6 8674
3 300/150 SM 1.8/1.4 3 67.2 10624
4 1.5 RE 0.7 1.8 11.3 188
4 2.5 RE 0.7 1.8 12.2 240
4 4 RE 0.7 1.8 13.3 314
4 6 RE 0.7 1.8 14.5 408
4 10 RE 0.7 1.8 17.1 615
4 16 RE 0.7 1.8 19.6 885
4 25 RE 0.9 1.8 23.7 1330
4 35 RE 0.9 1.8 26.2 1758
4 50 SM 1 2 27.1 2082
4 70 SM 1.1 2.1 31.4 2937
4 95 SM 1.1 2.2 35 3955
4 120 SM 1.2 2.4 39.3 4979
4 150 SM 1.4 2.6 43.6 6129
4 185 SM 1.6 2.7 48 7591
4 240 SM 1.7 2.9 53.9 9875
4 300 SM 1.8 2.6 68.9 15124
5 1.5 RE 0.7 1.8 12.1 218
5 2.5 RE 0.7 1.8 13.1 281
5 4 RE 0.7 1.8 14.3 372
5 6 RE 0.7 1.8 15.6 486
5 10 RM 0.7 1.8 18.6 740
5 16 RM 0.7 1.8 21.3 1071
5 25 RM 0.9 1.8 25.9 1619
5 35 RM 0.9 1.8 28.8 2138
5 50 RM 1 2.1 29.4 2578
5 70 RM 1.1 2.2 33.7 3616
5 95 RM 1.1 2.4 38.6 4933
5 120 RM 1.2 2.5 42.6 6153
5 150 RM 1.4 2.7 47.7 7587
5 185 RM 1.6 2.9 52.8 9454
5 240 RM 1.7 3.1 58.7 12242
7 1.5 RE 0.7 1.8 12.9 260
7 2.5 RE 0.7 1.8 14 342
7 4 RE 0.7 1.8 15.4 461
10 1.5 RE 0.7 1.8 15.6 357
10 2.5 RE 0.7 1.8 17.2 475
10 4 RE 0.7 1.8 19 646
12 1.5 RE 0.7 1.8 16.1 394
12 2.5 RE 0.7 1.8 17.6 528
14 1.5 RE 0.7 1.8 16.8 436
14 2.5 RE 0.7 1.8 18.5 592
16 4 RM 0.7 1.8 23 971
19 1.5 RE 0.7 1.8 18.4 543
19 2.5 RE 0.7 1.8 20.3 746
24 1.5 RE 0.7 1.8 21.2 675
24 2.5 RE 0.7 1.8 23.4 931
30 1.5 RE 0.7 1.8 22.3 788
30 2.5 RM 0.7 1.8 26.3 7764
40 1.5 RE 0.7 1.8 24.6 995
40 2.5 RE 0.7 1.9 27.5 1416

CONDUCTORS

Class 1 Solid Conductors for Single-Core and Multi-Core Cables

NOMINAL CROSSS

ECTIONAL AREA

mm²

MAXIMUM RESISTANCE OF CONDUCTOR AT 20°C

ohms/km
Circular, Annealed Copper Conductors
Plain
0.5 36
0.75 24.5
1 18.1
1.5 12.1
2.5 7.41
4 4.61
6 3.08



Class 2 Stranded Conductors for Single-Core and Multi-Core Cables

NOMINAL CROSS

SECTIONAL AREA

mm²

 MINIMUM NO. OF WIRES IN THE CONDUCTOR

MAXIMUM RESISTANCE OF CONDUCTOR AT 20°C

ohms/km
Circular Circular Compacted Annealed Copper Conductors
Cu Cu Plain Wires
4 7 6 4.51
6 7 6 3.08
10 7 6 1.83
16 7 6 1.15
25 7 6 0.727
35 7 6 0.524
50 19 6 0.387
70 19 12 0.268
95 19 15 0.193
120 37 18 0.153
150 37 18 0.124
185 37 30 0.0991
240 37 34 0.0754
300 61 34 0.0601
400 61 53 0.0470
500 61 53 0.0366

ELECTRICAL CHARACTERISTICS

Current Carrying Capacity at 30°C

NOMINAL CROSS

SECTIONAL AREA

mm²

 SINGLE CORE

2-40 CORE

Amps
In Ground In Air In Ground In Air
Flat Trefoil Flat Trefoil
1.5 - - - - 31 24
2.5 - - - - 40 32
4 82 54 57 44 52 42
6 102 67 72 56 64 53
10 136 89 99 77 86 74
16 176 115 131 102 112 98
25 229 148 177 138 145 133
35 275 177 217 170 174 162
50 326 209 265 207 206 197
70 400 256 336 263 254 250
95 480 307 415 325 305 308
120 548 349 485 380 348 359
150 616 393 557 437 392 412
185 698 445 646 507 444 475
240 815 517 774 604 517 564
300 927 663 901 697 585 649
400 1064 749 1060 811 - -
500 1227 843 1252 940 - -

DE-RATING FACTORS

For Ground Temperatures other than 20°C

AIR TEMPERATURE 10°C 15°C 20°C 25°C 30°C 35°C 40°C 45°C 50°C
DE-RATING FACTOR 1.07 1.04 1.00 0.96 0.93 0.89 0.85 0.80 0.76



For Air Temperatures other than 30°C

AIR TEMPERATURE 20°C 25°C 30°C 35°C 40°C 45°C 50°C 55°C 60°C
DE-RATING FACTOR 1.08 1.04 1.00 0.96 0.91 0.87 0.82 0.76 0.71
CERTIFICATIONS



prix câble U1000 R2V

PACKAGING



câble U-1000 R2V Sénégal

Roll

Côte d'Ivoire câble U1000 R2V

Small Wooden Reel

kabel pro pevné uložení XLPE

Steel Wooden Reel

APPLICATION



1-CXKY výrobce
High-Rise Commercial Building Main Power Distribution
câble R2V Cameroun
Industrial Plant Low-Voltage Power Distribution
câble R2V RDC

Municipal Water Treatment and Pumping Station Power Supply



CASE



EXVB kabel leverancier

Babanusa–Adila Power Transmission Project

câble cuivre XLPE PVC Afrique

Italy Electricity Test Project

câble de distribution 0,6/1 kV

Oyu Tolgoi Copper Mine Project

WHY CHOOSE US



30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

câble d'alimentation industriel R2V

15K
Finished Projects
150+
professional staff
15K
happy clients
92+
awards & certifacates
PLANT EQUIPMENT



fournisseur câble électrique R2V Afrique

câble non armé 1 kV

fabricant câble XLPE PVC Afrique

YMvK copper XLPE PVC cable

grossiste câble U1000 R2V

câble 4 conducteurs R2V

GLOBAL CERTIFICATIONS



Cu XLPE PVC cable Egypt

CUSTOMER PHOTOS


0.6/1kV XLPE PVC power cable Egypt

INTERNATIONL TRANSPORTATION



01

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

02

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

03

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

IEC 60502-1 power cable Egypt
COOPERATIVE PARTNER



We are looking for a cooperative partner to expand our business.

N2XY cable Egypt
copper XLPE cable Ethiopia
CU/XLPE/PVC cable Ethiopia
0.6/1kV power cable Sudan
kabel YKXS
kabel miedziany XLPE PVC
XLPE PVC cable Libya
unarmoured power cable North Africa
4 core copper XLPE cable Egypt
YKXS producent
How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

5 core copper XLPE cable Egypt
FAQ



Is XVB the Belgian equivalent of Cu/XLPE/PVC cable?
XVB is a common Belgian installation-cable name and can overlap with the requested material structure. Exact core colours, conductor class, fire class, dimensions and local declarations still need approval before the name is used on an order. A reliable XVB cable equivalent Cu XLPE PVC decision therefore needs an approved construction and installation basis. GERITEL WIRE can prepare an RFQ response covering construction, approximate weight, packaging and document scope. Confirm conductor class, core colours, drum lengths and inspection scope before production.
What should Dutch buyers call this cable: YJV or YMvK?
Dutch buyers often search YMvK, while export RFQs may use Cu/XLPE/PVC or IEC 60502-1. The correct sales name depends on the approved Dutch construction and CPR documentation, not only on the three materials. For buyers searching YMvK alternative to YJV cable, GERITEL WIRE supports OEM marking and project packing while keeping certificate claims tied to verified scope. Use project-specific ampacity and voltage-drop calculations rather than a generic marketing value.
Is YKXS the Polish name for this copper XLPE cable?
When customers ask about YKXS copper XLPE cable equivalent, the practical answer is: YKXS is a high-intent Polish search designation for low-voltage XLPE power cable. The offered conductor, sheath, core identification, dimensional tolerances and conformity files must be checked against the project specification. GERITEL WIRE can organize batch traceability, test documentation and shipment identification for project supply. Where mechanical, fire or environmental duty is higher, request the appropriate alternative construction.
Do Spain and Portugal use RV or XV for this cable?
RV is widely searched in Spain and XV in Portugal for related fixed power constructions. National standards, fire-performance obligations and exact marking determine whether either designation can be used for a particular Cu/XLPE/PVC order. GERITEL WIRE treats RV XV cable Cu XLPE PVC as a project-specific requirement, not a label-only substitution. GERITEL WIRE helps distributors compare the requested model name with the actual Cu/XLPE/PVC construction. Include certificate scope and destination-market requirements in the technical approval process.



Hot Tags: n2xy-j power cable with green-yellow protective conductor for german projects, China n2xy-j power cable with green-yellow protective conductor for german projects manufacturers, suppliers, factory, XLPE Copper Cable, xlpe unarmoured cable

You Might Also Like

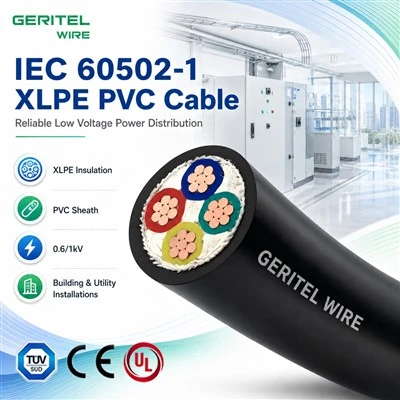

  • 0.6/1kV Power Cable Kenya For Contractors And Electrical Wholesalers
    0.6/1kV Power Cable Kenya For Contractors And Electr...

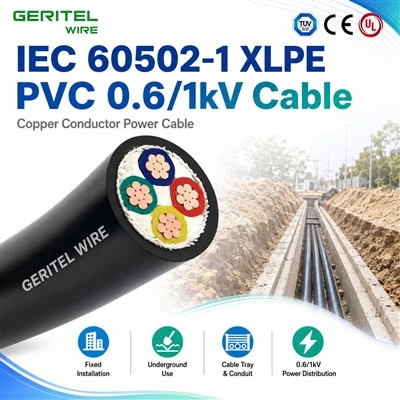

  • Copper XLPE Cable Ghana For Building, Factory And Utility Feeders
    Copper XLPE Cable Ghana For Building, Factory And Ut...

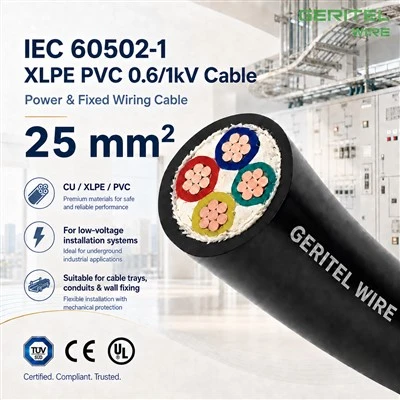

  • Renewable-Energy AC Feeder: 25mm2 IEC 60502-1 Copper Cable
