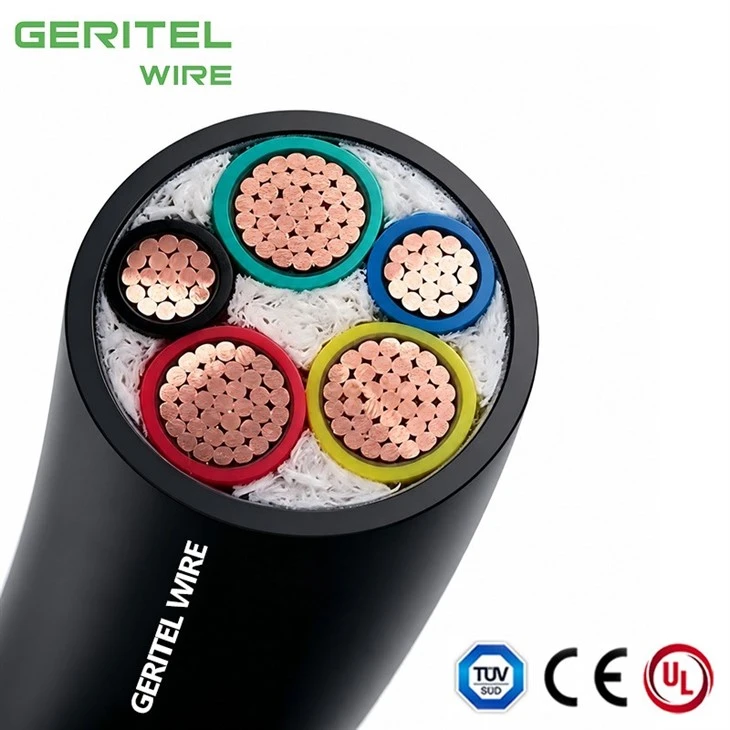

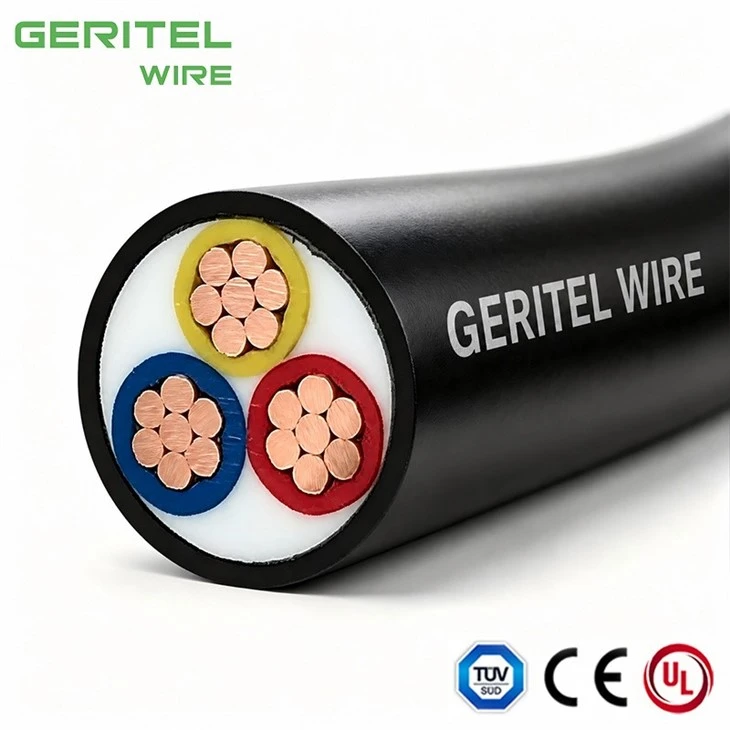

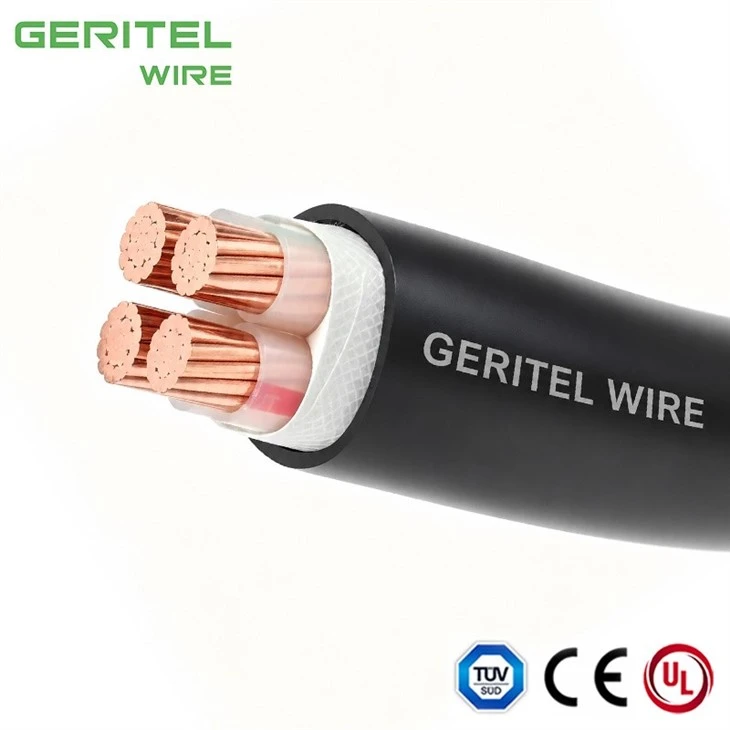

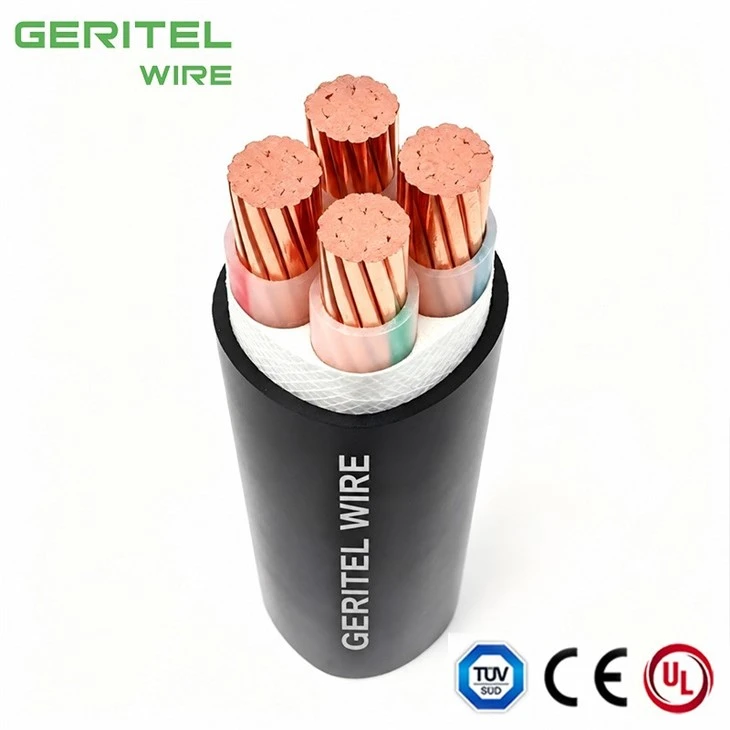

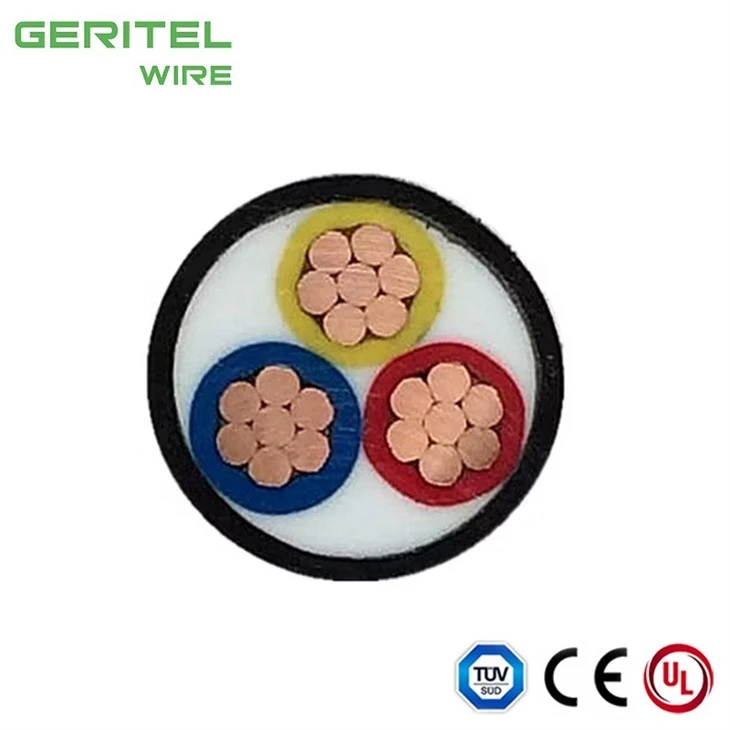

U-1000 R2V Cable Supply For French Low-Voltage Power Distribution

U-1000 R2V Cable Supply For French Low-Voltage Power Distribution
Details:
·Conductor:RE: Class 1 solid copper conductor RM: Class 2 stranded circular or circular compacted SM: Class 2 stranded sectoral shaped
·Insulation: XLPE (Cross-Linked Polyethylene)
·Bedding: PVC (Polyvinyl Chloride)
·Sheath: PVC (Polyvinyl Chloride)
·Voltage Rating Uo/U: 0.6/1kV
·Temperature Rating:During installation -5℃ to +50℃ Fixed Installation: -20℃ to +90℃
·Standards：IEC 60502-1, Gen to VDE 0276-603, IEC/EN 60228 Flame retardant according to IEC/EN 60332-1-2
Send Inquiry
Download
Description
Technical Parameters
Certification

IEC 60502-1 Cu/XLPE/PVC cable supplier Kenya

PRODUCT REAL SHOT



IEC 60502-1 Cu/XLPE/PVC cable manufacturer Kenya
IEC 60502-1 Cu/XLPE/PVC cable price Kenya
IEC 60502-1 Cu/XLPE/PVC cable distributor Kenya

buy IEC 60502-1 Cu/XLPE/PVC cable Kenya

French 0.6/1kV copper cable for bâtiments, industrie and infrastructure projects
This French-market page is written for buyers searching the familiar U-1000 R2V name for 0.6/1 kV copper power distribution. Designed for permanent low-voltage circuits, the cable pairs Class 1 or Class 2 copper with XLPE insulation and a durable PVC jacket. Buyers using the phrase U1000 R2V copper XLPE PVC cable manufacturer can compare this exact construction without mixing it with aluminium, armoured, LSZH or Class 5 flexible cable. Potential applications include tertiary buildings, industrial services, technical rooms, cable trays, ducts and protected exterior connections. GERITEL WIRE provides an export-oriented response with technical sheets, marking proposals, packing data and pre-shipment quality documentation.
PRODUCT SPECIFICATIONS



IEC 60502-1 Cu/XLPE/PVC cable datasheet Kenya

Applications



These power and fixed wiring cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.

SPECIFICATIONS
Voltage Rating Uo/U 0.6/1kV
Temperature Rating

During installation -5°C to +50°C

Fixed Installation: -20°C to +90°C
Minimum Bending Radius Fixed: 12 x overall diameter
Conductor

RE: Class 1 solid copper conductor

RM: Class 2 stranded circular or circular compacted

SM: Class 2 stranded sectoral shaped
Insulation XLPE (Cross-Linked Polyethylene)
Bedding PVC (Polyvinyl Chloride)
Sheath PVC (Polyvinyl Chloride)
Core Identification

3 core: Green/Yellow,Blue,Brown4 core

4 core: Green/Yellow,Brown,Black,Grey

5 core: Green/Yellow,Blue,Brown,Black,Grey

7 cores and above: Black cores and,White numbers
Sheath Colour Black
STANDARDS IEC 60502-1, Gen to VDE 0276-603, IEC/EN 60228 Flame retardant according to IEC/EN 60332-1-2

DIMENSIONS

NO. OF
CORES

NOMINALCROSS

SECTIONALAREA

mm²

CONDUCTOR

TYPE

NOMINAL

THICKNESS

OF INSULATION

mm

NOMINAL

THICKNESS

OF SHEATH

mm²

NOMINAL OVERALL

DIAMETER

mm

NOMINAL WEIGHT

kg/km
1 16 RM 0.7 1.8 9.8 216
1 25 RM 0.9 1.8 11.5 318
1 35 RM 0.9 1.8 12.6 415
1 50 RM 1 1.8 14.1 543
1 70 RM 1.1 1.8 15.6 746
1 95 RM 1.1 1.8 17.6 1000
1 120 RM 1.2 1.8 19.2 1239
1 150 RM 1.4 1.8 21.2 1515
1 185 RM 1.6 1.8 23.1 1872
1 240 RM 1.7 1.8 25.8 2403
1 300 RM 1.8 1.8 2.78 2974
1 400 RM 2 1.9 31.1 3834
1 500 RM 2.2 2 34.9 4892
1 630 RM 2.8 2.8 46.6 6544
2 1.5 RE 0.7 1.8 10.1 145
2 2.5 RE 0.7 1.8 10.9 179
2 4 RE 0.7 1.8 11.8 226
2 6 RE 0.7 1.8 12.8 284
2 6 RM 0.7 1.8 13.1 295
2 10 RM 0.7 1.8 15 416
2 16 RM 0.7 1.8 17 581
2 25 RM 0.9 1.8 20.4 859
2 35 RM 0.9 1.8 22.5 1109
3 1.5 RE 0.7 1.8 10.5 162
3 2.5 RE 0.7 1.8 11.4 205
3 4 RE 0.7 1.8 12.4 265
3 6 RE 0.7 1.8 13.4 338
3 10 RM 0.7 1.8 15.8 505
3 16 RM 0.7 1.8 18 719
3 25 RM 0.9 1.8 21.6 1072
3 35 RM 0.9 1.8 23.9 1403
3 50 SM 1 1.9 23.8 1581
3 16/10 SM 0.7 1.8 19.8 875.5
3 25/16 SM 0.9/0.7 1.8 22.4 1223
3 35/16 SM 0.9/0.7 1.8 24.3 1557
3 50/25 SM 1/0.9 1.9 26.9 1863
3 70/35 SM 1.1/0.9 2 30 2594
3 95/50 SM 1.1/1 2.2 33.8 3505
3 120/70 SM 1.2/1.1 2.3 37 4440
3 150/70 SM 1.4/1.1 2.4 41.6 5333
3 185/95 SM 1.6/1.1 2.6 45.8 6701
3 240/120 SM 1.7/1.2 2.8 51.6 8674
3 300/150 SM 1.8/1.4 3 67.2 10624
4 1.5 RE 0.7 1.8 11.3 188
4 2.5 RE 0.7 1.8 12.2 240
4 4 RE 0.7 1.8 13.3 314
4 6 RE 0.7 1.8 14.5 408
4 10 RE 0.7 1.8 17.1 615
4 16 RE 0.7 1.8 19.6 885
4 25 RE 0.9 1.8 23.7 1330
4 35 RE 0.9 1.8 26.2 1758
4 50 SM 1 2 27.1 2082
4 70 SM 1.1 2.1 31.4 2937
4 95 SM 1.1 2.2 35 3955
4 120 SM 1.2 2.4 39.3 4979
4 150 SM 1.4 2.6 43.6 6129
4 185 SM 1.6 2.7 48 7591
4 240 SM 1.7 2.9 53.9 9875
4 300 SM 1.8 2.6 68.9 15124
5 1.5 RE 0.7 1.8 12.1 218
5 2.5 RE 0.7 1.8 13.1 281
5 4 RE 0.7 1.8 14.3 372
5 6 RE 0.7 1.8 15.6 486
5 10 RM 0.7 1.8 18.6 740
5 16 RM 0.7 1.8 21.3 1071
5 25 RM 0.9 1.8 25.9 1619
5 35 RM 0.9 1.8 28.8 2138
5 50 RM 1 2.1 29.4 2578
5 70 RM 1.1 2.2 33.7 3616
5 95 RM 1.1 2.4 38.6 4933
5 120 RM 1.2 2.5 42.6 6153
5 150 RM 1.4 2.7 47.7 7587
5 185 RM 1.6 2.9 52.8 9454
5 240 RM 1.7 3.1 58.7 12242
7 1.5 RE 0.7 1.8 12.9 260
7 2.5 RE 0.7 1.8 14 342
7 4 RE 0.7 1.8 15.4 461
10 1.5 RE 0.7 1.8 15.6 357
10 2.5 RE 0.7 1.8 17.2 475
10 4 RE 0.7 1.8 19 646
12 1.5 RE 0.7 1.8 16.1 394
12 2.5 RE 0.7 1.8 17.6 528
14 1.5 RE 0.7 1.8 16.8 436
14 2.5 RE 0.7 1.8 18.5 592
16 4 RM 0.7 1.8 23 971
19 1.5 RE 0.7 1.8 18.4 543
19 2.5 RE 0.7 1.8 20.3 746
24 1.5 RE 0.7 1.8 21.2 675
24 2.5 RE 0.7 1.8 23.4 931
30 1.5 RE 0.7 1.8 22.3 788
30 2.5 RM 0.7 1.8 26.3 7764
40 1.5 RE 0.7 1.8 24.6 995
40 2.5 RE 0.7 1.9 27.5 1416

CONDUCTORS

Class 1 Solid Conductors for Single-Core and Multi-Core Cables

NOMINAL CROSSS

ECTIONAL AREA

mm²

MAXIMUM RESISTANCE OF CONDUCTOR AT 20°C

ohms/km
Circular, Annealed Copper Conductors
Plain
0.5 36
0.75 24.5
1 18.1
1.5 12.1
2.5 7.41
4 4.61
6 3.08



Class 2 Stranded Conductors for Single-Core and Multi-Core Cables

NOMINAL CROSS

SECTIONAL AREA

mm²

 MINIMUM NO. OF WIRES IN THE CONDUCTOR

MAXIMUM RESISTANCE OF CONDUCTOR AT 20°C

ohms/km
Circular Circular Compacted Annealed Copper Conductors
Cu Cu Plain Wires
4 7 6 4.51
6 7 6 3.08
10 7 6 1.83
16 7 6 1.15
25 7 6 0.727
35 7 6 0.524
50 19 6 0.387
70 19 12 0.268
95 19 15 0.193
120 37 18 0.153
150 37 18 0.124
185 37 30 0.0991
240 37 34 0.0754
300 61 34 0.0601
400 61 53 0.0470
500 61 53 0.0366

ELECTRICAL CHARACTERISTICS

Current Carrying Capacity at 30°C

NOMINAL CROSS

SECTIONAL AREA

mm²

 SINGLE CORE

2-40 CORE

Amps
In Ground In Air In Ground In Air
Flat Trefoil Flat Trefoil
1.5 - - - - 31 24
2.5 - - - - 40 32
4 82 54 57 44 52 42
6 102 67 72 56 64 53
10 136 89 99 77 86 74
16 176 115 131 102 112 98
25 229 148 177 138 145 133
35 275 177 217 170 174 162
50 326 209 265 207 206 197
70 400 256 336 263 254 250
95 480 307 415 325 305 308
120 548 349 485 380 348 359
150 616 393 557 437 392 412
185 698 445 646 507 444 475
240 815 517 774 604 517 564
300 927 663 901 697 585 649
400 1064 749 1060 811 - -
500 1227 843 1252 940 - -

DE-RATING FACTORS

For Ground Temperatures other than 20°C

AIR TEMPERATURE 10°C 15°C 20°C 25°C 30°C 35°C 40°C 45°C 50°C
DE-RATING FACTOR 1.07 1.04 1.00 0.96 0.93 0.89 0.85 0.80 0.76



For Air Temperatures other than 30°C

AIR TEMPERATURE 20°C 25°C 30°C 35°C 40°C 45°C 50°C 55°C 60°C
DE-RATING FACTOR 1.08 1.04 1.00 0.96 0.91 0.87 0.82 0.76 0.71
CERTIFICATIONS



IEC 60502-1 Cu/XLPE/PVC cable catalogue Kenya

PACKAGING



IEC 60502-1 Cu/XLPE/PVC cable current rating Kenya

Roll

IEC 60502-1 Cu/XLPE/PVC cable wholesale Kenya

Small Wooden Reel

Cu XLPE PVC power cable 0.6/1kV Tanzania

Steel Wooden Reel

APPLICATION



Cu XLPE PVC power cable 0.6/1kV supplier Tanzania
High-Rise Commercial Building Main Power Distribution
Cu XLPE PVC power cable 0.6/1kV manufacturer Tanzania
Industrial Plant Low-Voltage Power Distribution
Cu XLPE PVC power cable 0.6/1kV distributor Tanzania

Municipal Water Treatment and Pumping Station Power Supply



CASE



Cu XLPE PVC power cable 0.6/1kV datasheet Tanzania

Babanusa–Adila Power Transmission Project

Cu XLPE PVC power cable 0.6/1kV current rating Tanzania

Italy Electricity Test Project

600/1000V copper XLPE PVC unarmoured cable Tanzania

Oyu Tolgoi Copper Mine Project

WHY CHOOSE US



30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

600/1000V copper XLPE PVC unarmoured cable manufacturer Tanzania

15K
Finished Projects
150+
professional staff
15K
happy clients
92+
awards & certifacates
PLANT EQUIPMENT



600/1000V copper XLPE PVC unarmoured cable distributor Tanzania

N2XY-J 0.6/1kV Germany

600/1000V copper XLPE PVC unarmoured cable datasheet Tanzania

600/1000V copper XLPE PVC unarmoured cable current rating Tanzania

IEC 60502-1 Cu/XLPE/PVC cable Tanzania

IEC 60502-1 Cu/XLPE/PVC cable supplier Tanzania

GLOBAL CERTIFICATIONS



IEC 60502-1 Cu/XLPE/PVC cable manufacturer Tanzania

CUSTOMER PHOTOS


IEC 60502-1 Cu/XLPE/PVC cable distributor Tanzania

INTERNATIONL TRANSPORTATION



01

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

02

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

03

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

buy IEC 60502-1 Cu/XLPE/PVC cable Tanzania
COOPERATIVE PARTNER



We are looking for a cooperative partner to expand our business.

IEC 60502-1 Cu/XLPE/PVC cable datasheet Tanzania
IEC 60502-1 Cu/XLPE/PVC cable catalogue Tanzania
IEC 60502-1 Cu/XLPE/PVC cable current rating Tanzania
Cu XLPE PVC power cable 0.6/1kV Uganda
N2XY kablo
0.6/1kV unarmoured cable Balkans
Cu XLPE PVC power cable 0.6/1kV supplier Uganda
Cu XLPE PVC power cable 0.6/1kV manufacturer Uganda
Cu XLPE PVC power cable 0.6/1kV distributor Uganda
N2XY kablo 0,6/1 kV
How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

buy Cu XLPE PVC power cable 0.6/1kV Uganda
FAQ



What does the 0.6/1kV voltage marking actually mean?
The first value is the rated voltage between a conductor and earth; the second is the rated voltage between conductors. The complete system voltage, earthing arrangement and applicable standard still need to be checked by the project designer. GERITEL WIRE treats 0.6/1kV cable voltage rating as a project-specific requirement, not a label-only substitution. GERITEL WIRE can review destination requirements and separate the standard PVC design from LSZH or armoured alternatives. The final choice must follow the approved datasheet, local code and installation design.
What does CU/XLPE/PVC mean on a power-cable datasheet?
For CU XLPE PVC power cable meaning: CU identifies the copper conductor, XLPE the cross-linked polyethylene insulation and PVC the outer sheath. This shorthand does not state armour, fire class, core arrangement, conductor class or national certification, so those fields belong in the RFQ. GERITEL WIRE supports repeat orders through approved specifications, production records and consistent identification. State any CPR, flame, UV, water or mechanical requirement separately in the enquiry.
What does unarmoured power cable mean?
Unarmoured means the cable has no metallic wire or tape armour. It is suitable where trays, ducts, conduits, walls or other route design provide adequate mechanical protection; exposed impact zones may require an armoured alternative. A reliable unarmoured Cu XLPE PVC cable decision therefore needs an approved construction and installation basis. GERITEL WIRE can supply bilingual technical and shipping documents when these are agreed before manufacture. Confirm conductor class, core colours, drum lengths and inspection scope before production.
Why is this cable described as fixed installation cable?
Its Class 1 or Class 2 conductor and overall construction are designed to remain stationary after installation. It is not intended for repeated flexing, reeling, robotic motion or portable equipment leads. For buyers searching fixed installation XLPE power cable, GERITEL WIRE can review the cable schedule and issue a construction-specific datasheet before quotation. Use project-specific ampacity and voltage-drop calculations rather than a generic marketing value.
