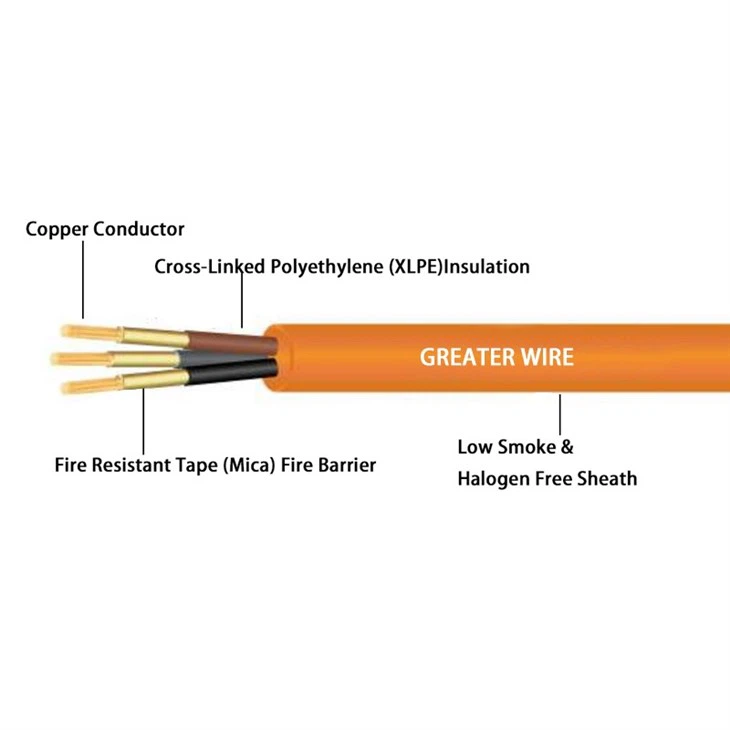

Conductor: Round concentric lay stranded or Compact round stranded copper
-
Fire Barrier: Fire resistant tape (Mica).
-
Insulation: Cross-linked polyethylene (XLPE)
-
Insulation Colour: Brown, Black, Grey Colour.
-
Outer Sheath: Flame retardant Low smoke & halogen free compound (LSHF:S T8)
-
Sheath Colour: Orange Colour. Other colours to special order.
-
Voltage Test: 3.5 kVac or 8.4 kVdc
-
Maximum conductor temperature: 90°C
-
Rated voltage Uo/U (Um):0.6/1 (1.2) kV
600 Volts between conductor and earth
1000 Volts between conductors
1200 Volts maximum system voltage
Application
application scenarios
0.6/1(1.2) kV IEC 60332-1 flame retardant cable (3 Core) is a high-security cable designed for various building and infrastructure projects in the Philippine market. It is widely used in places where flame retardancy, low smoke and toxic emissions, and circuit integrity in case of fire are required. It can be laid in the air, cable trays, metal conduits, underground trenches, and tray systems, not only meeting electrical safety and fire protection regulations, but also meeting the strict requirements of the Philippines for building wires and cables in terms of environmental protection, smoke emission, and fire control.
Schools
Halogen free flame retardant cables are used in school lighting, broadcasting and fire protection systems. If the power is not interrupted when a fire occurs, teachers and students can evacuate safely.
Factory
Fire resistant and flame retardant cables are used in power and control systems in factories. Equipment can continue to operate in high temperature or fire environments, improving production safety.
Railway
Flame retardant cables are used in railway signal, lighting and communication systems. In the event of a fire, the circuit remains intact to ensure the safety of train operation and passengers.
Power stations
Flame resistant cables are widely used in control and emergency systems of power stations. Key equipment can continue to be powered during a fire to ensure stable operation of the system.
Certification
0.6/1(1.2) kV IEC 60332-1 flame retardant cable (3 core) passed the Philippines BPS certification. Fire retardant electrical cables meet multiple international and regional standards, including IEC 60332-1 (single cable flame retardant), IEC 60332-3-22 Class A (bundled cable flame retardant), BS 6387 CWZ (integrity test under simultaneous action of flame, impact and water spray), and IEC 60331-21 (fire resistance integrity test).
Package
Flame Retardant Cable Packaging
Cables are mainly packaged in various forms, such as roll packaging, plastic reels, and wooden cable reels. The choice of packaging will be customized according to the specifications and models of the cables, the total length of the cables, and the customer's installation environment. It is necessary to facilitate the loading and unloading of cables, and to ensure that the cables are safe and reliable during transportation and storage.
Factory
We Are Flame Retardant Wire Manufacturer
Dongguan Greater Wire & Cable Co., Ltd. is a professional flame retardant cable manufacturer with over 30 years of cable production experience and over 10 years of international export experience. It provides wires and cables to more than 80 countries or regions and is committed to providing global customers with high-safety, high-performance, flame-retardant cable solutions that meet international standards.
-
30 years +experience in wire and cable manufacturing
-
80 countries +Export wire and cable
Case
Success Case
Greater Wire Manufacturer has rich experience in exporting to the Philippines, supplying reliable wire and cable products for a wide range of projects. Our solutions have been successfully applied across diverse sectors, including airports, medical facilities, educational institutions, hospitality buildings, industrial plants, and more, meeting the demanding requirements of each application with consistent quality and performance.
FAQ
Q: Where is your factory?
Q: What payment methods do you accept for wire and cable orders?
A: We accept T/T (bank transfer), Visa, Mastercard, PayPal, and PANPAY for your convenience.
Q: What types of packaging can you provide?
A: We provide roll-type, wooden reel, and pallet packaging. If you have special packaging requirements, we're happy to customize the solution for you.
Q: What delivery options are available for cable shipments?
A: We can arrange delivery via express services, air transport, truck freight, or ocean shipping. Contact us to choose the best logistics option for your order.
Hot Tags: 0.6/1(1.2) kv iec 60332-1 flame retardant cable 3 core, China 0.6/1(1.2) kv iec 60332-1 flame retardant cable 3 core manufacturers, suppliers, factory
| SIZE Core x mm2 |
Conductor | Nominal Thickness of Insulation (mm) |
Nominal Thickness of Insulation (mm) |
Overall Diameter (Approx.) (mm) |
Cable Weight (Approx.) (kg/km) |
Maximum Conductor Resistance at 20°C (Ω/km) |
Minimum Insulation Resistance at 20°C (MΩ " km) |
Allowable Ampacities in Free Air at 40°C(ambient) A |
||
| Cross Sectional Area (mm2) |
Minimum Number of Wires |
Diameter (Approx.) (mm) |
||||||||
| 3 x 1.5 | 1.5 | 7 | 1.6 | 0.7 | 1.8 | 15 | 273 | 12.1 | 734 | 22 |
| 3 x 2.5 | 2.5 | 7 | 2 | 0.7 | 1.8 | 16 | 326 | 7.41 | 643 | 30 |
| 3 x 4 | 4 | 7 | 2.5 | 0.7 | 1.8 | 16 | 335 | 4.61 | 558 | 39 |
| 3 x 6 | 6 | 7 | 3 | 0.7 | 1.8 | 16 | 419 | 3.08 | 490 | 50 |
| 3 x 10 | 10 | 6 | 3.7 | 0.7 | 1.8 | 18 | 569 | 1.83 | 428 | 67 |
| 3 x 16 | 16 | 6 | 4.7 | 0.7 | 1.8 | 20 | 788 | 1.15 | 363 | 89 |
| 3 x 25 | 25 | 6 | 5.9 | 0.9 | 1.8 | 23 | 1165 | 0.727 | 379 | 120 |
| 3 x 35 | 35 | 6 | 6.9 | 0.9 | 1.8 | 26 | 1506 | 0.524 | 332 | 147 |
| 3 x 50 | 50 | 6 | 8.1 | 1.0 | 1.8 | 29 | 1966 | 0.387 | 321 | 179 |
| 3 x 70 | 70 | 12 | 9.8 | 1.1 | 1.9 | 33 | 2723 | 0.268 | 300 | 224 |
| 3 x 95 | 95 | 15 | 11.3 | 1.1 | 2.0 | 37 | 3591 | 0.193 | 265 | 277 |
| 3 x 120 | 120 | 18 | 12.8 | 1.2 | 2.1 | 41 | 4464 | 0.153 | 259 | 323 |
| 3 x 150 | 150 | 18 | 14.3 | 1.4 | 2.3 | 45 | 5517 | 0.124 | 270 | 368 |
| 3 x 185 | 185 | 30 | 15.7 | 1.6 | 2.4 | 49 | 6812 | 0.0991 | 282 | 427 |
| 3 x 240 | 240 | 34 | 18.4 | 1.7 | 2.6 | 56 | 8862 | 0.0754 | 260 | 504 |
| 3 x 300 | 300 | 34 | 20.3 | 1.8 | 2.7 | 61 | 10885 | 0.0601 | 251 | 578 |
| 3 x 400 | 400 | 53 | 23.0 | 2.0 | 3.0 | 68 | 14088 | 0.047 | 247 | 672 |
