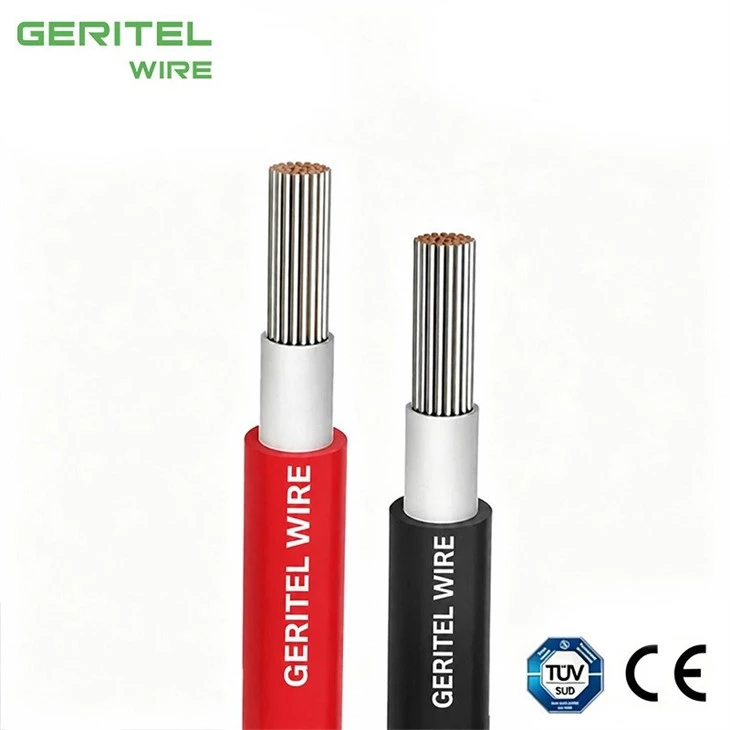

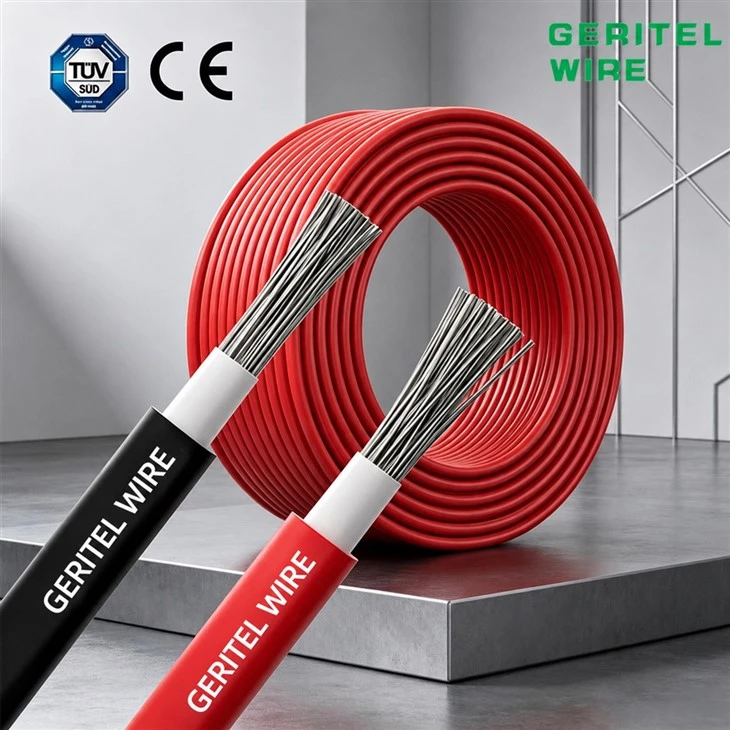

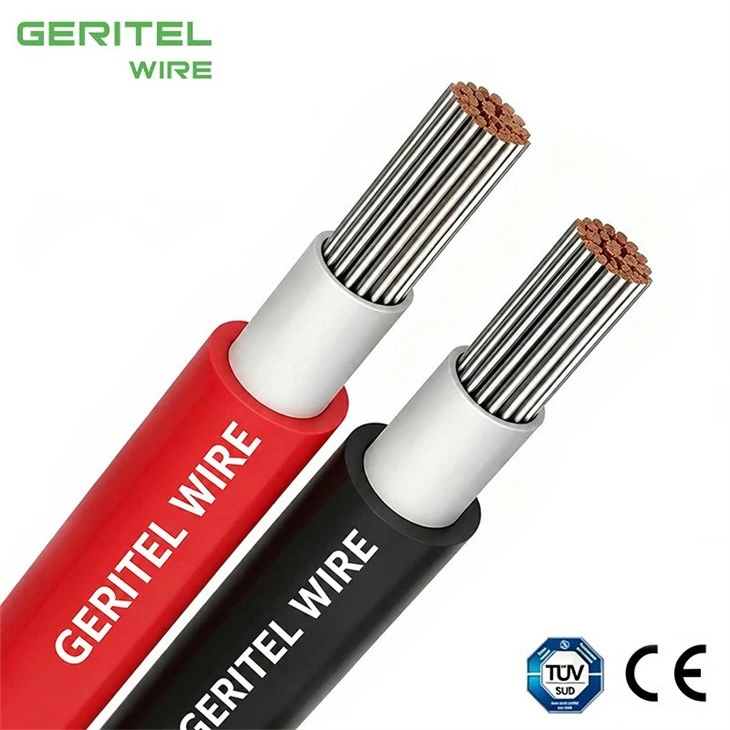

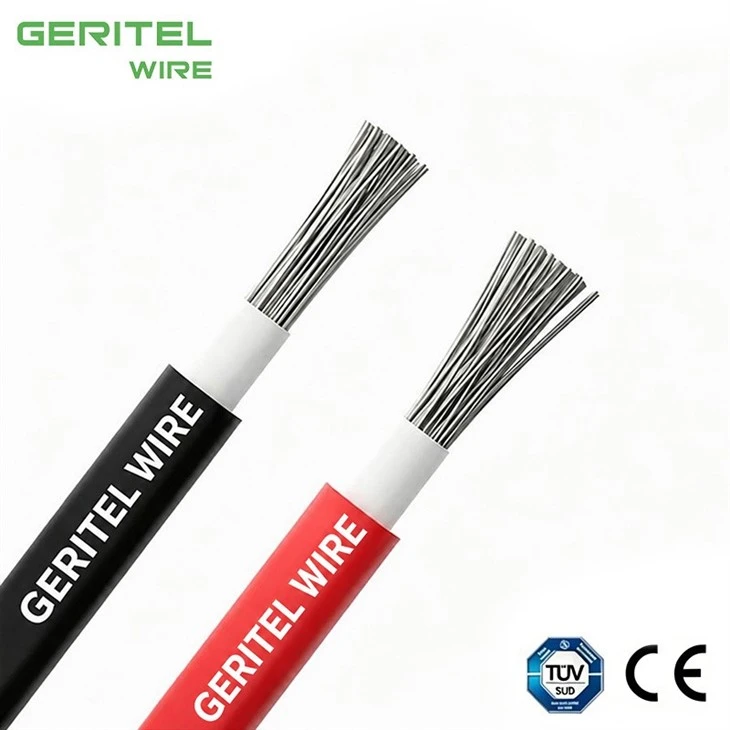

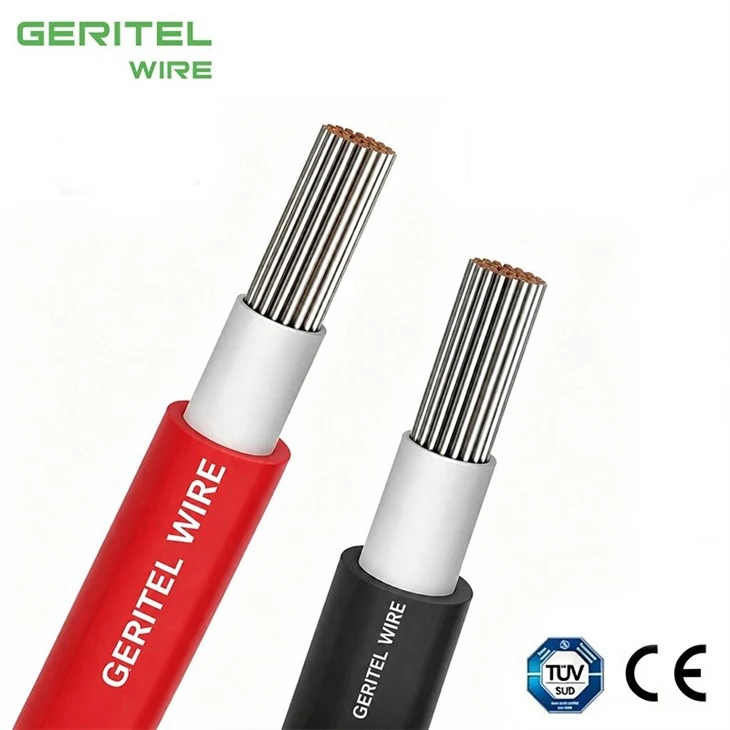

Name: China H1Z2Z2-K Solar Cable For Outdoor Solar Power Systems Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312579566

Description

Technical Parameters

Certification

LSZH photovoltaic cable

PRODUCT REAL SHOT

solar panel interconnection cable

EN 50618 PV Cable – Designed for Long-Term Outdoor Photovoltaic Service

For buyers sourcing European-standard PV wiring, GERITEL WIRE focuses this product page on european standard, giving buyers a clear cable option for rooftop, commercial and utility photovoltaic systems. For customers using the terms photovoltaic solar cable and flexible solar wire, the product combines flexible handling with an outdoor-oriented construction suitable for photovoltaic DC wiring. The construction combines fine-stranded Class 5 tinned copper with halogen-free cross-linked insulation and sheath materials for flexible, outdoor-oriented photovoltaic wiring. Its performance profile is aimed at long-term solar installations where heat, sunlight, humidity and weather resistance are important selection factors. GERITEL WIRE can support OEM marking, project packaging, technical documentation and export-oriented supply for distributors and EPC buyers.

PRODUCT SPECIFICATIONS

water resistant photovoltaic cable

Application

The GERITEL WIRE PV H1Z2Z2-K cable, which is TUV certifiedaccording to EN 50618 and AENOR certified according to IEC62930, it is suitable for both fixed and mobile solar installations(solar farms, rooftop solar installations and floating plants).It is a highly flexible cable compatible with all major connectorsand specially designed for the connection of photovoltaic panels.

This versatile single-conductor cable is designed to meet the varying needs of the solar industry.

Suitable for wet, damp and humid locations.

Solar PV installations string cable.

SPECIFICATIONS
Conductor	Electrolytic annealed tinned copper, class 5 (flexible) according toIEC 60228 and EN 60228.
Insulation	Halogen free cross-linked rubber according to table B1 in Annex Bof EN 50618 and IEC 62930.
Outer sheath	Halogen free cross-linked flexible rubber according to table B1 inAnnex B of EN 50618 and IEC 62930. Red or black colour.
Electrical performance	Low voltage: 1,5 (1,8) kV DC. 1,0/1,0 kV AC.
Thermal performance	Maximum conductor temperature:90°C (120°C during 20.000 h).Maximum short-circuit temperature: 250°C (max. 5 s).Minimum service temperature: -40°C (fixed and protected installations).
Fire performance	Flame non-propagation according to EN 60332-1-2 / IEC 60332-1-2. Fire non-propagation according to EN 50399.Reaction to fire CPR: Caa-slb, d2, al according to EN 50575.Low smoke halogen free according to EN 60754-1/IEC 60754-1.Low corrosive gases emission according to EN 60754-2 / IEC60754-2. Low smoke emission according to EN 61034 /IEC 61034: Light transmittance > 60%.
Mechanical performance	Minimum bending radius: 4x cable diameter (cable diameter ≤ 8 mm) 5x cable diameter (8 < cable diameter s 12 mm) 6x cable diameter (cable diameter >12 mm). Impact resistance: AG2 Medium severity.
Environmental performance	Chemical & Oil resistance: Excellent. Grease & mineral oils resistance: Excellent. Ozone resistant according to EN 50618. UV Resistant according to EN 50618 and IEC 62930. Water resistance: AD7+ Immersion. AD8 Submersion.
Installation conditions	Open Air. Buried. In conduit.

Conductor	Conductor Stranding	Insulation Thickness	Jacket Thickness	Nominal O.D.	Approx Net Weight	Allowable Ampacities(1) @30℃ Ambient
Nominal Area(mm2)	Number of Strands	mils	mils	Inch	lbs/1000ft	75℃	90℃
1X1.5	1.57	0.7	0.8	4.7	38	860	0.86	13.7
1X2.5	2.04	0.7	0.8	5.2	45	690	0.69	8.21
1X4	2.6	0.7	0.8	5.6	60	580	0.58	5.09
1X6	3.16	0.7	0.8	6.3	90	500	0.50	3.39
1X10	4.5	0.7	0.8	7.6	131	420	0.42	1.95
1X16	5.7	0.7	0.9	9.0	187	340	0.34	1.24
1X25	7.2	0.9	1.0	11.2	267	340	0.34	0.795
1X35	8.5	0.9	1.1	12.7	368	290	0.29	0.565
1X50	9.4	1.0	1.2	14.5	560	270	0.27	0.393
1X70	11.1	1.1	1.2	16.5	756	250	0.25	0.277
1X95	13.1	1.1	1.3	18.7	1036	220	0.22	0.210
1X120	14.8	1.2	1.3	20.4	1309	210	0.21	0.164
1X150	16.5	1.4	1.4	22.7	1636	210	0.21	0.132
1X185	18.3	1.6	1.6	25.2	2000	200	0.20	0.108
1X240	21.0	1.7	1.7	28.5	2607	200	0.20	0.0817
2X1.5	1.57	0.7	0.8	4.8*10.5	78	860	0.86	13.7
2X2.5	2.04	0.7	0.8	5.2*11.8	92	690	0.69	8.21
2X4	2.6	0.7	0.8	5.6*12.8	122	580	0.58	5.09
2X6	3.16	0.7	0.8	6.3*13.7	182	500	0.50	3.39
2X10	4.5	0.7	0.8	8.0*16.8	264	420	0.42	1.95
2X16	5.7	0.7	0.9	9.0*19.8	376	340	0.34	1.24

CERTIFICATIONS

flame retardant PV cable

PACKAGING

1,Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

Residential Rooftop Solar System

Solar Carport + EV Charging

Utility-Scale Solar Far

CASE

TÜV solar cable for industrial microgrid

Mauritius Henrietta Solar Power Plant Wire Export

photovoltaic cable for industrial microgrid

Somalia Mogadishu Solar PV System Project

solar array wiring for industrial microgrid

Tunisia Hammamet New City Industrial Park Solar PV Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

TÜV solar cable for commercial microgrid

photovoltaic cable for commercial microgrid

solar array wiring for commercial microgrid

GLOBAL CERTIFICATIONS

TÜV solar cable for remote microgrid

CUSTOMER PHOTOS

photovoltaic cable for remote microgrid

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

photovoltaic cable for off grid microgrid

solar array wiring for off grid microgrid

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Is the cable low smoke?

Yes. The product specification references low-smoke testing and light transmittance requirements under IEC/EN 61034. Low smoke solar cable can be valuable where PV wiring enters buildings or enclosed service areas. GERITEL WIRE focuses on matching the ordered construction to the applicable certificate and can provide supporting technical documents for project review.

Is the cable resistant to oils and grease?

The supplied environmental-performance description rates chemical/oil resistance and grease/mineral-oil resistance as excellent. An oil resistant solar cable can be useful in industrial or agricultural PV sites where contamination risk is higher. GERITEL WIRE can assist with OEM marking and packaging while keeping the electrical construction aligned with the approved product specification.

Can the cable resist acids and alkalis?

PV cable standards include chemical/environmental resistance requirements, but the actual chemicals, concentration and exposure time matter. For a chemical resistant PV cable project, provide the specific chemical environment so compatibility can be checked before ordering. GERITEL WIRE can help confirm the requested standard, size, color and marking before quotation so the cable matches the project specification.

How is the cable protected from corrosion?

The tinned-copper conductor, cross-linked insulation and outdoor sheath all contribute to environmental durability. A corrosion resistant solar cable still needs properly sealed connectors and installation practices because most field failures occur at exposed or poorly terminated points. For project orders, GERITEL WIRE can support technical clarification, cable marking, reel or drum packaging and export documentation.

Hot Tags: h1z2z2-k solar cable for outdoor solar power systems, China h1z2z2-k solar cable for outdoor solar power systems manufacturers, suppliers, factory, solar cable, Solar Cable 1500V H1Z2Z2 K TUV UL EN 50618 Solar PV Cable, tuv solar cable
