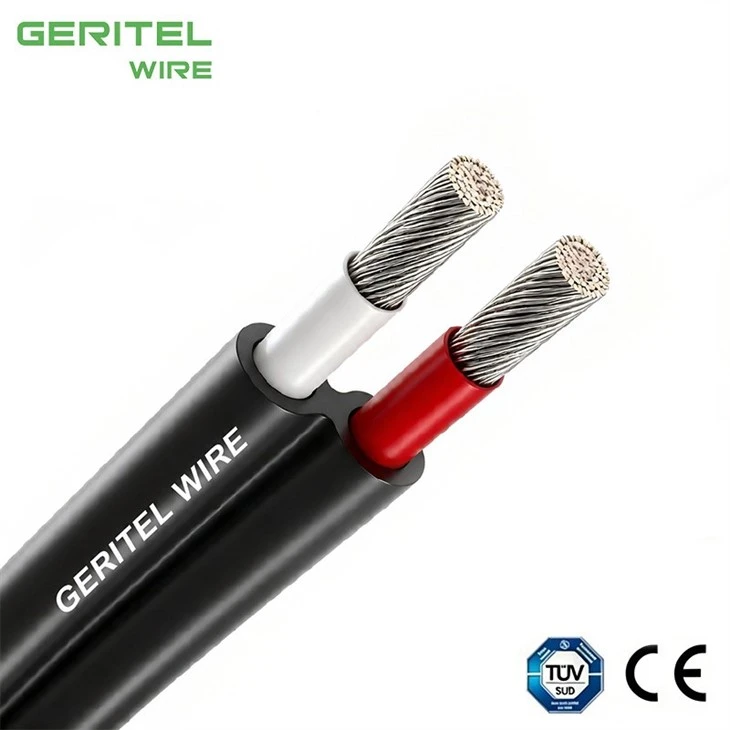

PRODUCT REAL SHOT

TÜV solar cable for prefabricated building

LSZH Solar Power Wire – For Professional Rooftop and Ground-Mount PV Wiring

Created for commercial and infrastructure projects, this GERITEL WIRE solution is positioned around low smoke and practical use in solar wiring passing through protected building areas. Searches for low smoke zero halogen cable often focus on durability and installation flexibility; the same buyers may also use PV cable for enclosed routes when sourcing cable for photovoltaic projects. The construction combines fine-stranded Class 5 tinned copper with halogen-free cross-linked insulation and sheath materials for flexible, outdoor-oriented photovoltaic wiring. Its performance profile is aimed at long-term solar installations where heat, sunlight, humidity and weather resistance are important selection factors. GERITEL WIRE can support OEM marking, project packaging, technical documentation and export-oriented supply for distributors and EPC buyers.

PRODUCT SPECIFICATIONS

H1Z2Z2-K cable for prefabricated building

Application

The GERITEL WIRE PV H1Z2Z2-K cable, which is TUV certifiedaccording to EN 50618 and AENOR certified according to IEC62930, it is suitable for both fixed and mobile solar installations(solar farms, rooftop solar installations and floating plants).It is a highly flexible cable compatible with all major connectorsand specially designed for the connection of photovoltaic panels.

This versatile single-conductor cable is designed to meet the varying needs of the solar industry.

Suitable for wet, damp and humid locations.

Solar PV installations string cable.

SPECIFICATIONS
Conductor	Electrolytic annealed tinned copper, class 5 (flexible) according toIEC 60228 and EN 60228.
Insulation	Halogen free cross-linked rubber according to table B1 in Annex Bof EN 50618 and IEC 62930.
Outer sheath	Halogen free cross-linked flexible rubber according to table B1 inAnnex B of EN 50618 and IEC 62930. Red or black colour.
Electrical performance	Low voltage: 1,5 (1,8) kV DC. 1,0/1,0 kV AC.
Thermal performance	Maximum conductor temperature:90°C (120°C during 20.000 h).Maximum short-circuit temperature: 250°C (max. 5 s).Minimum service temperature: -40°C (fixed and protected installations).
Fire performance	Flame non-propagation according to EN 60332-1-2 / IEC 60332-1-2. Fire non-propagation according to EN 50399.Reaction to fire CPR: Caa-slb, d2, al according to EN 50575.Low smoke halogen free according to EN 60754-1/IEC 60754-1.Low corrosive gases emission according to EN 60754-2 / IEC60754-2. Low smoke emission according to EN 61034 /IEC 61034: Light transmittance > 60%.
Mechanical performance	Minimum bending radius: 4x cable diameter (cable diameter ≤ 8 mm) 5x cable diameter (8 < cable diameter s 12 mm) 6x cable diameter (cable diameter >12 mm). Impact resistance: AG2 Medium severity.
Environmental performance	Chemical & Oil resistance: Excellent. Grease & mineral oils resistance: Excellent. Ozone resistant according to EN 50618. UV Resistant according to EN 50618 and IEC 62930. Water resistance: AD7+ Immersion. AD8 Submersion.
Installation conditions	Open Air. Buried. In conduit.

Conductor	Conductor Stranding	Insulation Thickness	Jacket Thickness	Nominal O.D.	Approx Net Weight	Allowable Ampacities(1) @30℃ Ambient
Nominal Area(mm2)	Number of Strands	mils	mils	Inch	lbs/1000ft	75℃	90℃
1X1.5	1.57	0.7	0.8	4.7	38	860	0.86	13.7
1X2.5	2.04	0.7	0.8	5.2	45	690	0.69	8.21
1X4	2.6	0.7	0.8	5.6	60	580	0.58	5.09
1X6	3.16	0.7	0.8	6.3	90	500	0.50	3.39
1X10	4.5	0.7	0.8	7.6	131	420	0.42	1.95
1X16	5.7	0.7	0.9	9.0	187	340	0.34	1.24
1X25	7.2	0.9	1.0	11.2	267	340	0.34	0.795
1X35	8.5	0.9	1.1	12.7	368	290	0.29	0.565
1X50	9.4	1.0	1.2	14.5	560	270	0.27	0.393
1X70	11.1	1.1	1.2	16.5	756	250	0.25	0.277
1X95	13.1	1.1	1.3	18.7	1036	220	0.22	0.210
1X120	14.8	1.2	1.3	20.4	1309	210	0.21	0.164
1X150	16.5	1.4	1.4	22.7	1636	210	0.21	0.132
1X185	18.3	1.6	1.6	25.2	2000	200	0.20	0.108
1X240	21.0	1.7	1.7	28.5	2607	200	0.20	0.0817
2X1.5	1.57	0.7	0.8	4.8*10.5	78	860	0.86	13.7
2X2.5	2.04	0.7	0.8	5.2*11.8	92	690	0.69	8.21
2X4	2.6	0.7	0.8	5.6*12.8	122	580	0.58	5.09
2X6	3.16	0.7	0.8	6.3*13.7	182	500	0.50	3.39
2X10	4.5	0.7	0.8	8.0*16.8	264	420	0.42	1.95
2X16	5.7	0.7	0.9	9.0*19.8	376	340	0.34	1.24

CERTIFICATIONS

prefab housing solar cable

PACKAGING

1,Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

Residential Rooftop Solar System

Solar Carport + EV Charging

Utility-Scale Solar Far

CASE

Mauritius Henrietta Solar Power Plant Wire Export

Somalia Mogadishu Solar PV System Project

TÜV solar cable for factory built housing

Tunisia Hammamet New City Industrial Park Solar PV Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

H1Z2Z2-K cable for factory built housing

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

TÜV solar cable for panelized building

CUSTOMER PHOTOS

H1Z2Z2-K cable for panelized building

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

TÜV solar cable for volumetric modular building

H1Z2Z2-K cable for volumetric modular building

energy efficient modular home solar cable

TÜV solar cable for energy efficient modular home

H1Z2Z2-K cable for energy efficient modular home

TÜV solar cable for solar ready modular home

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

H1Z2Z2-K cable for solar ready modular home

FAQ

Can solar cable be run under plaster or inside building routes?

Indoor PV cable installation can be possible in conduit or trunking systems, but building routes may trigger fire-performance and cable-management requirements that differ from open-air array wiring. GERITEL WIRE can help confirm the requested standard, size, color and marking before quotation so the cable matches the project specification.

Can I run PV cable near hot inverter surfaces?

Even heat resistant PV cable should not be routed against hot equipment surfaces unless the design allows it. Maintain spacing from heat sources so conductor temperature stays within the cable rating. For project orders, GERITEL WIRE can support technical clarification, cable marking, reel or drum packaging and export documentation.

Can I use metal clips directly on the cable?

Solar cable clips should support the cable without cutting, crushing or abrading the sheath. Stainless module-frame clips can work well when designed for PV wiring and the correct cable diameter. GERITEL WIRE can review the buyer's voltage, route length, current and installation environment before recommending a suitable cable size.

How do I protect PV cable at sharp metal edges?

Solar cable mechanical protection can include edge guards, grommets, conduit, suitable clips and controlled routing. Do not rely on the outer sheath alone where repeated rubbing or sharp edges are present. For distributors and EPC buyers, GERITEL WIRE can provide specification confirmation, project packaging and documentation support.
