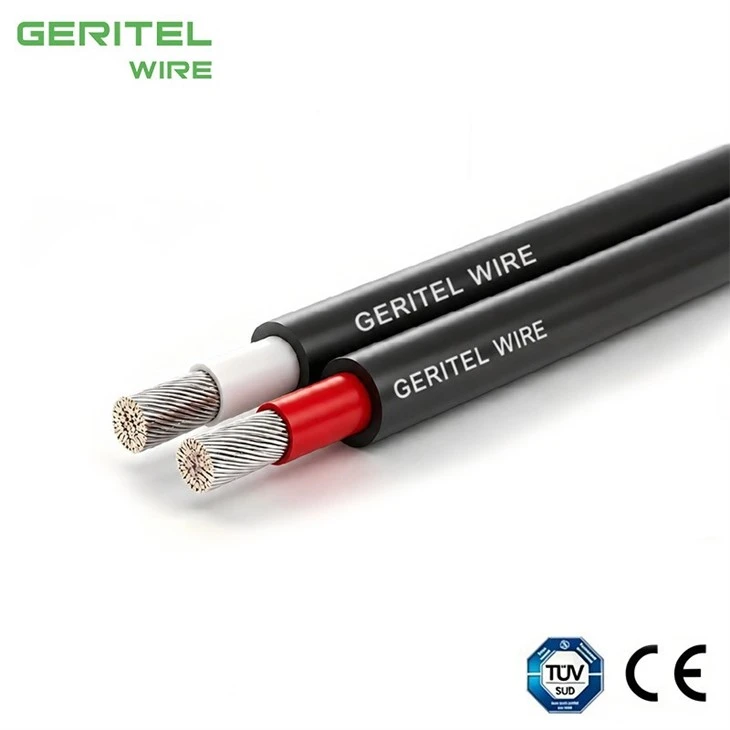

PRODUCT REAL SHOT

off grid cabin solar 2 core PV cable

Flexible PV Copper Wire – For Professional Rooftop and Ground-Mount PV Wiring

This GERITEL WIRE page targets buyers prioritizing conductor quality looking for dependable photovoltaic wiring in flexible photovoltaic routing and corrosion-conscious projects, with a strong focus on tinned copper. The page naturally targets Class 5 solar cable and tinned copper PV cable, two buyer phrases commonly associated with professional solar cable selection and project sourcing. GERITEL WIRE builds the cable with a flexible Class 5 electrolytic annealed tinned-copper conductor, halogen-free cross-linked insulation and a durable cross-linked outer sheath. For photovoltaic DC service, the cable supports demanding outdoor conditions including UV exposure, ozone, moisture and temperature variation. GERITEL WIRE focuses on consistent construction, flexible packaging and technical support to make photovoltaic cable procurement easier.

PRODUCT SPECIFICATIONS

off grid cabin solar dual core solar cable

Application

The GERITEL WIRE PV H1Z2Z2-K cable, which is TUV certifiedaccording to EN 50618 and AENOR certified according to IEC62930, it is suitable for both fixed and mobile solar installations(solar farms, rooftop solar installations and floating plants).It is a highly flexible cable compatible with all major connectorsand specially designed for the connection of photovoltaic panels.

This versatile single-conductor cable is designed to meet the varying needs of the solar industry.

Suitable for wet, damp and humid locations.

Solar PV installations string cable.

SPECIFICATIONS
Conductor	Electrolytic annealed tinned copper, class 5 (flexible) according toIEC 60228 and EN 60228.
Insulation	Halogen free cross-linked rubber according to table B1 in Annex Bof EN 50618 and IEC 62930.
Outer sheath	Halogen free cross-linked flexible rubber according to table B1 inAnnex B of EN 50618 and IEC 62930. Red or black colour.
Electrical performance	Low voltage: 1,5 (1,8) kV DC. 1,0/1,0 kV AC.
Thermal performance	Maximum conductor temperature:90°C (120°C during 20.000 h).Maximum short-circuit temperature: 250°C (max. 5 s).Minimum service temperature: -40°C (fixed and protected installations).
Fire performance	Flame non-propagation according to EN 60332-1-2 / IEC 60332-1-2. Fire non-propagation according to EN 50399.Reaction to fire CPR: Caa-slb, d2, al according to EN 50575.Low smoke halogen free according to EN 60754-1/IEC 60754-1.Low corrosive gases emission according to EN 60754-2 / IEC60754-2. Low smoke emission according to EN 61034 /IEC 61034: Light transmittance > 60%.
Mechanical performance	Minimum bending radius: 4x cable diameter (cable diameter ≤ 8 mm) 5x cable diameter (8 < cable diameter s 12 mm) 6x cable diameter (cable diameter >12 mm). Impact resistance: AG2 Medium severity.
Environmental performance	Chemical & Oil resistance: Excellent. Grease & mineral oils resistance: Excellent. Ozone resistant according to EN 50618. UV Resistant according to EN 50618 and IEC 62930. Water resistance: AD7+ Immersion. AD8 Submersion.
Installation conditions	Open Air. Buried. In conduit.

Conductor	Conductor Stranding	Insulation Thickness	Jacket Thickness	Nominal O.D.	Approx Net Weight	Allowable Ampacities(1) @30℃ Ambient
Nominal Area(mm2)	Number of Strands	mils	mils	Inch	lbs/1000ft	75℃	90℃
1X1.5	1.57	0.7	0.8	4.7	38	860	0.86	13.7
1X2.5	2.04	0.7	0.8	5.2	45	690	0.69	8.21
1X4	2.6	0.7	0.8	5.6	60	580	0.58	5.09
1X6	3.16	0.7	0.8	6.3	90	500	0.50	3.39
1X10	4.5	0.7	0.8	7.6	131	420	0.42	1.95
1X16	5.7	0.7	0.9	9.0	187	340	0.34	1.24
1X25	7.2	0.9	1.0	11.2	267	340	0.34	0.795
1X35	8.5	0.9	1.1	12.7	368	290	0.29	0.565
1X50	9.4	1.0	1.2	14.5	560	270	0.27	0.393
1X70	11.1	1.1	1.2	16.5	756	250	0.25	0.277
1X95	13.1	1.1	1.3	18.7	1036	220	0.22	0.210
1X120	14.8	1.2	1.3	20.4	1309	210	0.21	0.164
1X150	16.5	1.4	1.4	22.7	1636	210	0.21	0.132
1X185	18.3	1.6	1.6	25.2	2000	200	0.20	0.108
1X240	21.0	1.7	1.7	28.5	2607	200	0.20	0.0817
2X1.5	1.57	0.7	0.8	4.8*10.5	78	860	0.86	13.7
2X2.5	2.04	0.7	0.8	5.2*11.8	92	690	0.69	8.21
2X4	2.6	0.7	0.8	5.6*12.8	122	580	0.58	5.09
2X6	3.16	0.7	0.8	6.3*13.7	182	500	0.50	3.39
2X10	4.5	0.7	0.8	8.0*16.8	264	420	0.42	1.95
2X16	5.7	0.7	0.9	9.0*19.8	376	340	0.34	1.24

CERTIFICATIONS

twin core solar cable for off grid cabin solar

PACKAGING

1,Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

twin core solar cable for tiny house solar

Residential Rooftop Solar System

Solar Carport + EV Charging

Utility-Scale Solar Far

CASE

Mauritius Henrietta Solar Power Plant Wire Export

Somalia Mogadishu Solar PV System Project

Tunisia Hammamet New City Industrial Park Solar PV Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

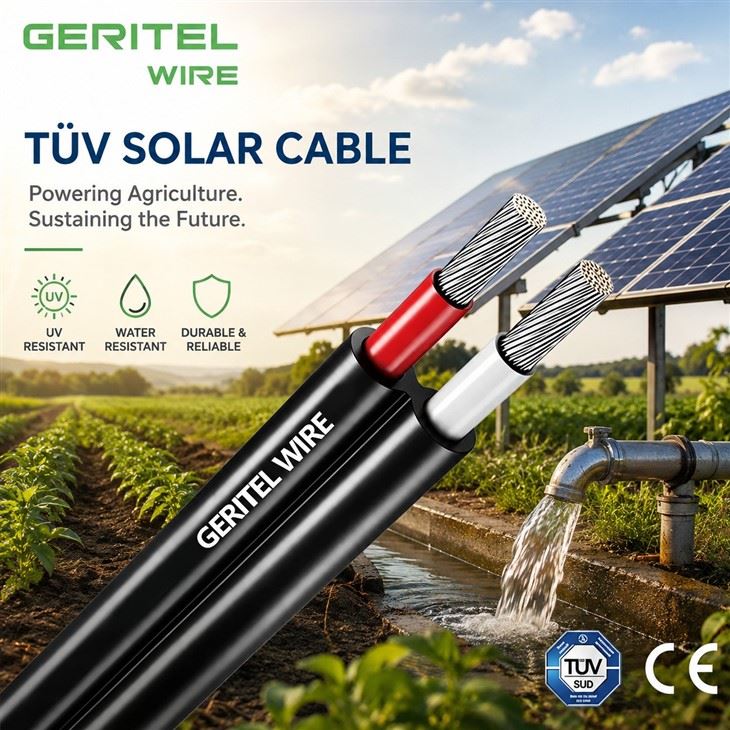

twin core solar cable for solar water pump

solar street lighting dual core solar cable

GLOBAL CERTIFICATIONS

twin core solar cable for solar street lighting

CUSTOMER PHOTOS

portable solar system twin core cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

portable solar system dual core solar cable

twin core solar cable for portable solar system

solar generator system dual core solar cable

twin core solar cable for solar generator system

solar panel to charge controller twin core cable

solar panel to charge controller 2 core PV cable

solar panel to charge controller dual core solar cable

twin core solar cable for solar panel to charge controller

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Should I size PV cable using Isc or operating current?

PV cable current sizing should follow the applicable design standard and project rules, which normally consider array short-circuit current plus required safety factors. The cable should also be checked for voltage drop at normal operating current. For project orders, GERITEL WIRE can support technical clarification, cable marking, reel or drum packaging and export documentation.

Does a long cable run always mean I should use 6mm²?

A long run solar cable often needs more cross-section, but the required size depends on current and system voltage. A low-current high-voltage string can tolerate more length than a low-voltage high-current circuit for the same percentage voltage drop. GERITEL WIRE can review the buyer's voltage, route length, current and installation environment before recommending a suitable cable size.

Can I use 10mm² solar cable with MC4 connectors?

A 10mm² solar cable connector must be specifically rated for that conductor size and outside diameter. Many common PV connectors are designed around smaller sizes, so do not force a large cable into a contact or seal intended for 4mm² or 6mm². For distributors and EPC buyers, GERITEL WIRE can provide specification confirmation, project packaging and documentation support.

Why are 4mm² and 6mm² solar cables so common?

4mm² 6mm² PV cable sizes are common because they fit many module-string current levels while balancing flexibility, connector compatibility and voltage drop. Larger sizes are used when current or distance requires more conductor area. GERITEL WIRE focuses on matching the ordered construction to the applicable certificate and can provide supporting technical documents for project review.
