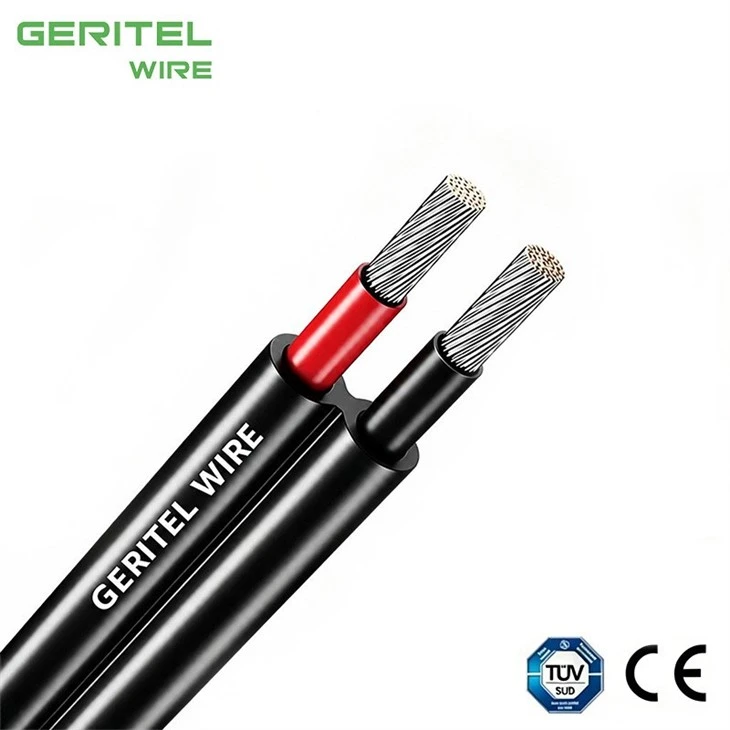

residential rooftop solar twin core cable

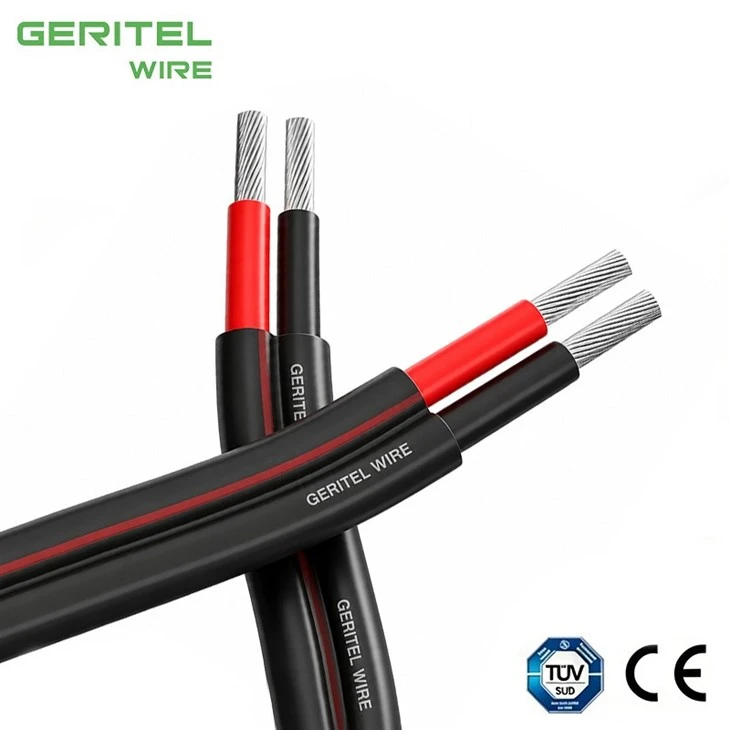

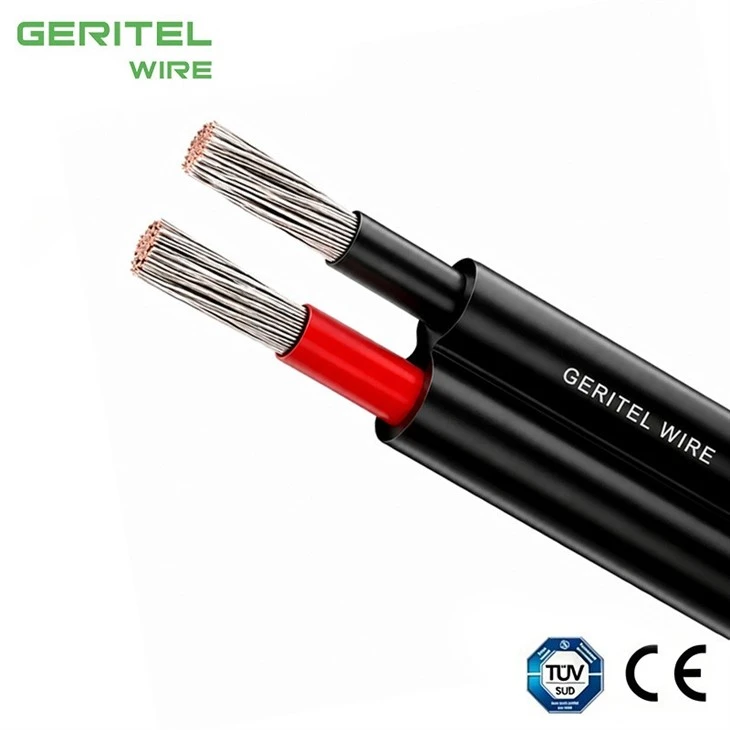

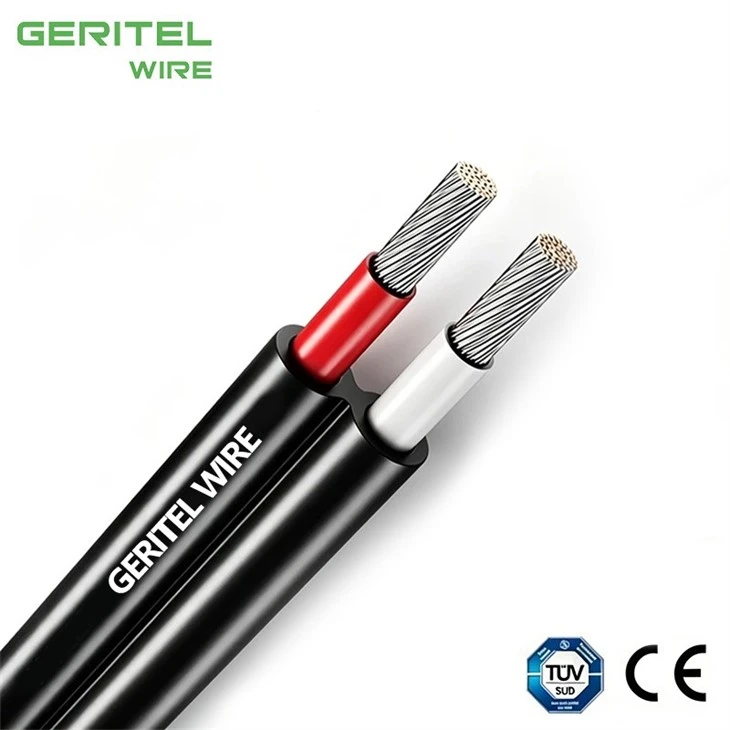

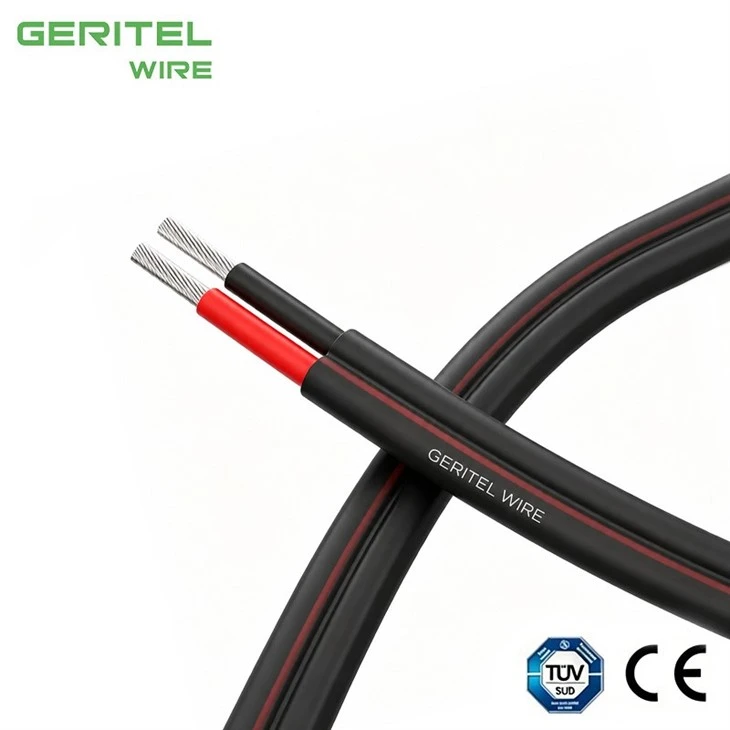

PRODUCT REAL SHOT

residential rooftop solar 2 core PV cable

residential rooftop solar dual core solar cable

twin core solar cable for residential rooftop solar

small commercial rooftop solar twin core cable

PV String Wire – Engineered for Demanding Solar DC Applications

For string-level PV installers, GERITEL WIRE focuses this product page on string wiring, giving buyers a clear cable option for module-to-module and string-to-combiner connections. For customers using the terms solar module cable and PV interconnection cable, the product combines flexible handling with an outdoor-oriented construction suitable for photovoltaic DC wiring. Fine-stranded tinned copper forms the flexible conductor, protected by cross-linked halogen-free insulation and a weather-ready outer sheath for photovoltaic DC service. It is engineered for modern high-voltage PV DC circuits, with strong thermal performance plus resistance to sunlight, ozone, humidity and changing weather conditions. Buyers can work with GERITEL WIRE on marking, packaging, technical clarification and export documentation for practical order execution.

PRODUCT SPECIFICATIONS

small commercial rooftop solar 2 core PV cable

Application

The GERITEL WIRE PV H1Z2Z2-K cable, which is TUV certifiedaccording to EN 50618 and AENOR certified according to IEC62930, it is suitable for both fixed and mobile solar installations(solar farms, rooftop solar installations and floating plants).It is a highly flexible cable compatible with all major connectorsand specially designed for the connection of photovoltaic panels.

This versatile single-conductor cable is designed to meet the varying needs of the solar industry.

Suitable for wet, damp and humid locations.

Solar PV installations string cable.

SPECIFICATIONS
Conductor	Electrolytic annealed tinned copper, class 5 (flexible) according toIEC 60228 and EN 60228.
Insulation	Halogen free cross-linked rubber according to table B1 in Annex Bof EN 50618 and IEC 62930.
Outer sheath	Halogen free cross-linked flexible rubber according to table B1 inAnnex B of EN 50618 and IEC 62930. Red or black colour.
Electrical performance	Low voltage: 1,5 (1,8) kV DC. 1,0/1,0 kV AC.
Thermal performance	Maximum conductor temperature:90°C (120°C during 20.000 h).Maximum short-circuit temperature: 250°C (max. 5 s).Minimum service temperature: -40°C (fixed and protected installations).
Fire performance	Flame non-propagation according to EN 60332-1-2 / IEC 60332-1-2. Fire non-propagation according to EN 50399.Reaction to fire CPR: Caa-slb, d2, al according to EN 50575.Low smoke halogen free according to EN 60754-1/IEC 60754-1.Low corrosive gases emission according to EN 60754-2 / IEC60754-2. Low smoke emission according to EN 61034 /IEC 61034: Light transmittance > 60%.
Mechanical performance	Minimum bending radius: 4x cable diameter (cable diameter ≤ 8 mm) 5x cable diameter (8 < cable diameter s 12 mm) 6x cable diameter (cable diameter >12 mm). Impact resistance: AG2 Medium severity.
Environmental performance	Chemical & Oil resistance: Excellent. Grease & mineral oils resistance: Excellent. Ozone resistant according to EN 50618. UV Resistant according to EN 50618 and IEC 62930. Water resistance: AD7+ Immersion. AD8 Submersion.
Installation conditions	Open Air. Buried. In conduit.

Conductor	Conductor Stranding	Insulation Thickness	Jacket Thickness	Nominal O.D.	Approx Net Weight	Allowable Ampacities(1) @30℃ Ambient
Nominal Area(mm2)	Number of Strands	mils	mils	Inch	lbs/1000ft	75℃	90℃
1X1.5	1.57	0.7	0.8	4.7	38	860	0.86	13.7
1X2.5	2.04	0.7	0.8	5.2	45	690	0.69	8.21
1X4	2.6	0.7	0.8	5.6	60	580	0.58	5.09
1X6	3.16	0.7	0.8	6.3	90	500	0.50	3.39
1X10	4.5	0.7	0.8	7.6	131	420	0.42	1.95
1X16	5.7	0.7	0.9	9.0	187	340	0.34	1.24
1X25	7.2	0.9	1.0	11.2	267	340	0.34	0.795
1X35	8.5	0.9	1.1	12.7	368	290	0.29	0.565
1X50	9.4	1.0	1.2	14.5	560	270	0.27	0.393
1X70	11.1	1.1	1.2	16.5	756	250	0.25	0.277
1X95	13.1	1.1	1.3	18.7	1036	220	0.22	0.210
1X120	14.8	1.2	1.3	20.4	1309	210	0.21	0.164
1X150	16.5	1.4	1.4	22.7	1636	210	0.21	0.132
1X185	18.3	1.6	1.6	25.2	2000	200	0.20	0.108
1X240	21.0	1.7	1.7	28.5	2607	200	0.20	0.0817
2X1.5	1.57	0.7	0.8	4.8*10.5	78	860	0.86	13.7
2X2.5	2.04	0.7	0.8	5.2*11.8	92	690	0.69	8.21
2X4	2.6	0.7	0.8	5.6*12.8	122	580	0.58	5.09
2X6	3.16	0.7	0.8	6.3*13.7	182	500	0.50	3.39
2X10	4.5	0.7	0.8	8.0*16.8	264	420	0.42	1.95
2X16	5.7	0.7	0.9	9.0*19.8	376	340	0.34	1.24

CERTIFICATIONS

small commercial rooftop solar dual core solar cable

PACKAGING

twin core solar cable for small commercial rooftop solar

1,Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

Residential Rooftop Solar System

twin core solar cable for off grid solar

Solar Carport + EV Charging

Utility-Scale Solar Far

CASE

Mauritius Henrietta Solar Power Plant Wire Export

Somalia Mogadishu Solar PV System Project

Tunisia Hammamet New City Industrial Park Solar PV Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

twin core solar cable for motorhome solar

GLOBAL CERTIFICATIONS

twin core solar cable for RV solar

CUSTOMER PHOTOS

campervan solar twin core cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

twin core solar cable for campervan solar

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can I connect a 6mm² extension to a 4mm² panel lead?

A 6mm² to 4mm² solar cable transition can be acceptable if the 4mm² section is itself adequately rated and the connector/termination is designed for the actual conductor sizes. The smallest section remains the limiting part of the circuit. For distributors and EPC buyers, GERITEL WIRE can provide specification confirmation, project packaging and documentation support.

How far can I run 4mm² PV cable?

There is no fixed 4mm² PV cable distance because allowable length depends on string current, system voltage and target voltage drop. Calculate the complete DC loop instead of using a distance rule without electrical data. GERITEL WIRE focuses on matching the ordered construction to the applicable certificate and can provide supporting technical documents for project review.

How far can I run 6mm² PV cable?

6mm² PV cable distance depends on operating current, system voltage and acceptable voltage drop. A longer route usually favors 6mm² over 4mm², but the design should be calculated rather than guessed. GERITEL WIRE can assist with OEM marking and packaging while keeping the electrical construction aligned with the approved product specification.

What information do you need to recommend a solar cable size?

For a solar cable size calculation, provide system DC voltage, string current/Isc, one-way route length, installation method, ambient temperature, grouping, preferred voltage-drop limit and connector/terminal constraints. GERITEL WIRE can help confirm the requested standard, size, color and marking before quotation so the cable matches the project specification.
