Name: China Solar System Cable For Solar Arrays And Inverter Connections Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312583863

Description

Technical Parameters

Certification

TÜV solar cable for rural communication solar system

PRODUCT REAL SHOT

photovoltaic cable for rural communication solar system

solar array cable for rural communication solar system

off grid telecom microgrid PV cable

PV DC Power Cable – Built for Flexible and Durable Solar Installation

This GERITEL WIRE page targets solar system integrators looking for dependable photovoltaic wiring in panel, string, combiner and inverter DC wiring, with a strong focus on pv system wiring. The page naturally targets solar electrical cable and photovoltaic system wire, two buyer phrases commonly associated with professional solar cable selection and project sourcing. The construction combines fine-stranded Class 5 tinned copper with halogen-free cross-linked insulation and sheath materials for flexible, outdoor-oriented photovoltaic wiring. Its performance profile is aimed at long-term solar installations where heat, sunlight, humidity and weather resistance are important selection factors. GERITEL WIRE can support OEM marking, project packaging, technical documentation and export-oriented supply for distributors and EPC buyers.

PRODUCT SPECIFICATIONS

TÜV solar cable for off grid telecom microgrid

Application

The GERITEL WIRE PV H1Z2Z2-K cable, which is TUV certifiedaccording to EN 50618 and AENOR certified according to IEC62930, it is suitable for both fixed and mobile solar installations(solar farms, rooftop solar installations and floating plants).It is a highly flexible cable compatible with all major connectorsand specially designed for the connection of photovoltaic panels.

This versatile single-conductor cable is designed to meet the varying needs of the solar industry.

Suitable for wet, damp and humid locations.

Solar PV installations string cable.

SPECIFICATIONS
Conductor	Electrolytic annealed tinned copper, class 5 (flexible) according toIEC 60228 and EN 60228.
Insulation	Halogen free cross-linked rubber according to table B1 in Annex Bof EN 50618 and IEC 62930.
Outer sheath	Halogen free cross-linked flexible rubber according to table B1 inAnnex B of EN 50618 and IEC 62930. Red or black colour.
Electrical performance	Low voltage: 1,5 (1,8) kV DC. 1,0/1,0 kV AC.
Thermal performance	Maximum conductor temperature:90°C (120°C during 20.000 h).Maximum short-circuit temperature: 250°C (max. 5 s).Minimum service temperature: -40°C (fixed and protected installations).
Fire performance	Flame non-propagation according to EN 60332-1-2 / IEC 60332-1-2. Fire non-propagation according to EN 50399.Reaction to fire CPR: Caa-slb, d2, al according to EN 50575.Low smoke halogen free according to EN 60754-1/IEC 60754-1.Low corrosive gases emission according to EN 60754-2 / IEC60754-2. Low smoke emission according to EN 61034 /IEC 61034: Light transmittance > 60%.
Mechanical performance	Minimum bending radius: 4x cable diameter (cable diameter ≤ 8 mm) 5x cable diameter (8 < cable diameter s 12 mm) 6x cable diameter (cable diameter >12 mm). Impact resistance: AG2 Medium severity.
Environmental performance	Chemical & Oil resistance: Excellent. Grease & mineral oils resistance: Excellent. Ozone resistant according to EN 50618. UV Resistant according to EN 50618 and IEC 62930. Water resistance: AD7+ Immersion. AD8 Submersion.
Installation conditions	Open Air. Buried. In conduit.

Conductor	Conductor Stranding	Insulation Thickness	Jacket Thickness	Nominal O.D.	Approx Net Weight	Allowable Ampacities(1) @30℃ Ambient
Nominal Area(mm2)	Number of Strands	mils	mils	Inch	lbs/1000ft	75℃	90℃
1X1.5	1.57	0.7	0.8	4.7	38	860	0.86	13.7
1X2.5	2.04	0.7	0.8	5.2	45	690	0.69	8.21
1X4	2.6	0.7	0.8	5.6	60	580	0.58	5.09
1X6	3.16	0.7	0.8	6.3	90	500	0.50	3.39
1X10	4.5	0.7	0.8	7.6	131	420	0.42	1.95
1X16	5.7	0.7	0.9	9.0	187	340	0.34	1.24
1X25	7.2	0.9	1.0	11.2	267	340	0.34	0.795
1X35	8.5	0.9	1.1	12.7	368	290	0.29	0.565
1X50	9.4	1.0	1.2	14.5	560	270	0.27	0.393
1X70	11.1	1.1	1.2	16.5	756	250	0.25	0.277
1X95	13.1	1.1	1.3	18.7	1036	220	0.22	0.210
1X120	14.8	1.2	1.3	20.4	1309	210	0.21	0.164
1X150	16.5	1.4	1.4	22.7	1636	210	0.21	0.132
1X185	18.3	1.6	1.6	25.2	2000	200	0.20	0.108
1X240	21.0	1.7	1.7	28.5	2607	200	0.20	0.0817
2X1.5	1.57	0.7	0.8	4.8*10.5	78	860	0.86	13.7
2X2.5	2.04	0.7	0.8	5.2*11.8	92	690	0.69	8.21
2X4	2.6	0.7	0.8	5.6*12.8	122	580	0.58	5.09
2X6	3.16	0.7	0.8	6.3*13.7	182	500	0.50	3.39
2X10	4.5	0.7	0.8	8.0*16.8	264	420	0.42	1.95
2X16	5.7	0.7	0.9	9.0*19.8	376	340	0.34	1.24

CERTIFICATIONS

photovoltaic cable for off grid telecom microgrid

PACKAGING

solar array cable for off grid telecom microgrid

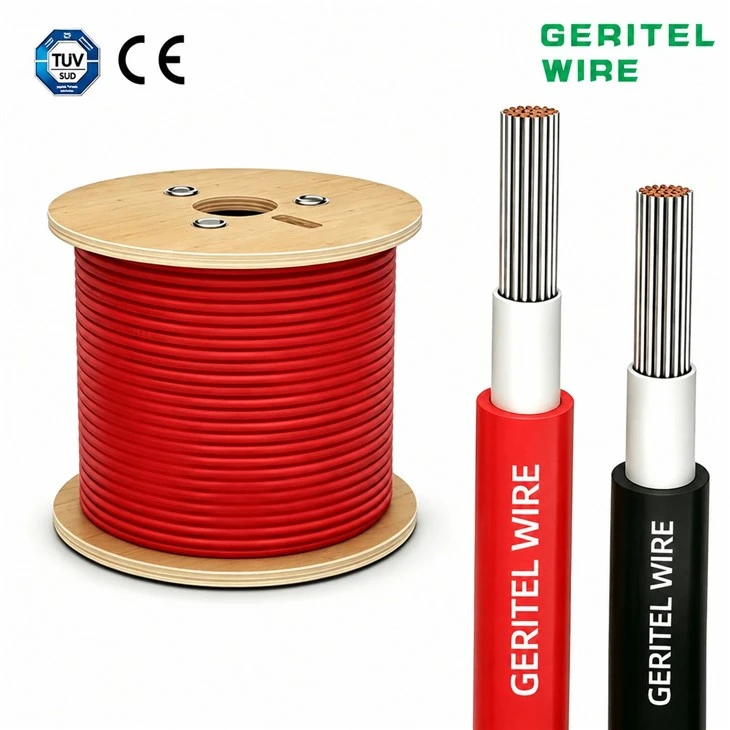

1,Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

Residential Rooftop Solar System

Solar Carport + EV Charging

photovoltaic wiring for agrivoltaic system

Utility-Scale Solar Far

CASE

Mauritius Henrietta Solar Power Plant Wire Export

Somalia Mogadishu Solar PV System Project

Tunisia Hammamet New City Industrial Park Solar PV Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

photovoltaic wiring for solar greenhouse

TÜV solar cable for solar irrigation system

H1Z2Z2-K cable for solar irrigation system

photovoltaic wiring for solar irrigation system

GLOBAL CERTIFICATIONS

solar water pumping system solar cable

CUSTOMER PHOTOS

solar water pumping system PV cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

TÜV solar cable for solar water pumping system

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

H1Z2Z2-K cable for solar water pumping system

photovoltaic wiring for solar water pumping system

TÜV solar cable for floating solar plant

photovoltaic wiring for floating solar plant

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What is the minimum service temperature?

The supplied specification lists -40°C as the minimum service temperature for fixed/protected installation. A -40°C solar cable still needs correct handling during installation because minimum handling temperature can be different from fixed-service temperature. GERITEL WIRE can help confirm the requested standard, size, color and marking before quotation so the cable matches the project specification.

Can I install the cable below freezing?

Cold weather PV cable can operate in low temperatures, but bending and handling a cold cable may require a higher minimum installation temperature than its fixed-service rating. Avoid forcing tight bends when the cable is extremely cold. For project orders, GERITEL WIRE can support technical clarification, cable marking, reel or drum packaging and export documentation.

How much current can 4mm² solar cable carry?

There is no single 4mm² solar cable amp rating that applies to every installation. Allowable current depends on conductor temperature, ambient conditions, grouping, routing and the applicable standard table; voltage drop may require upsizing even before thermal current capacity is reached. GERITEL WIRE can review the buyer's voltage, route length, current and installation environment before recommending a suitable cable size.

How much current can 6mm² solar cable carry?

A 6mm² solar cable current rating depends on the installation method and thermal conditions, not only the cross-section. For long runs, voltage drop is often the reason designers choose 6mm² instead of 4mm². For distributors and EPC buyers, GERITEL WIRE can provide specification confirmation, project packaging and documentation support.

Hot Tags: solar system cable for solar arrays and inverter connections, China solar system cable for solar arrays and inverter connections manufacturers, suppliers, factory, solar cable, Solar Cable 1500V H1Z2Z2 K TUV UL EN 50618 Solar PV Cable, tuv solar cable
