Name: China 2×16mm² 2 Core Solar Cable Positive & Negative Paired PV Wire Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312591163

Description

Technical Parameters

Certification

2x16mm2 solar cable

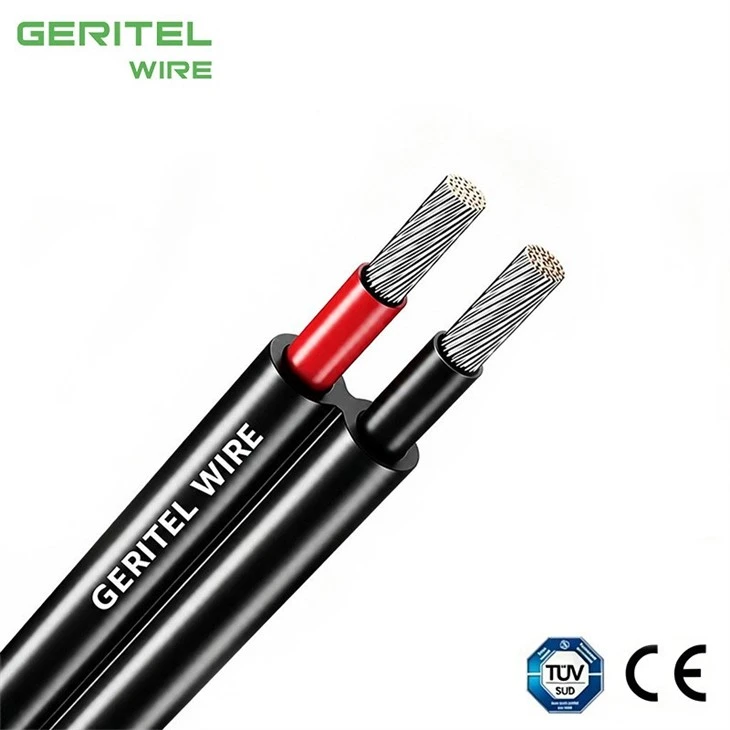

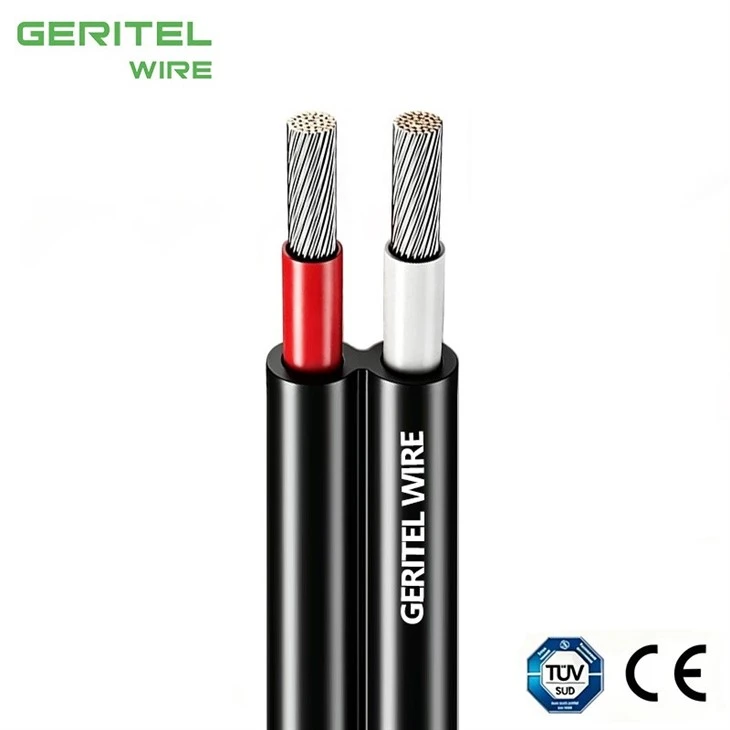

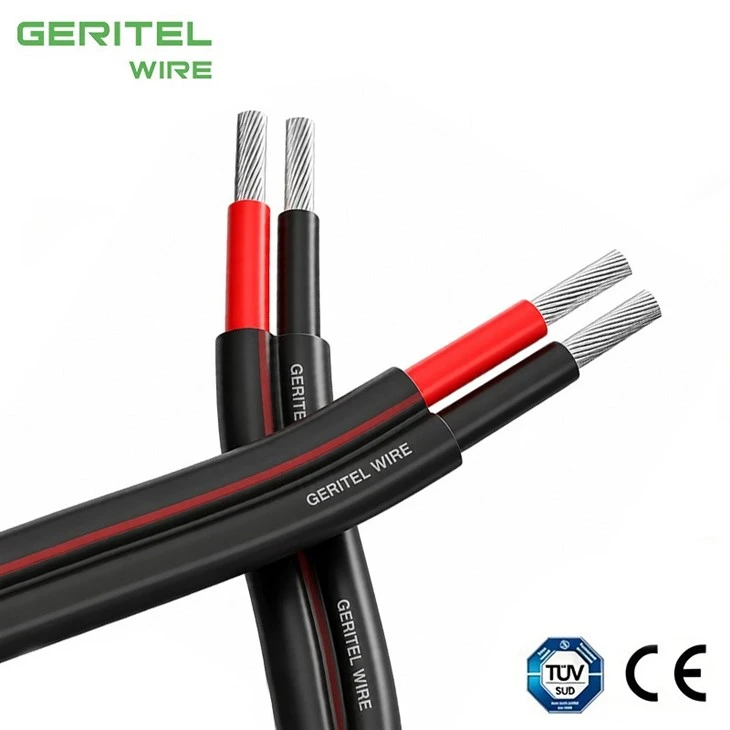

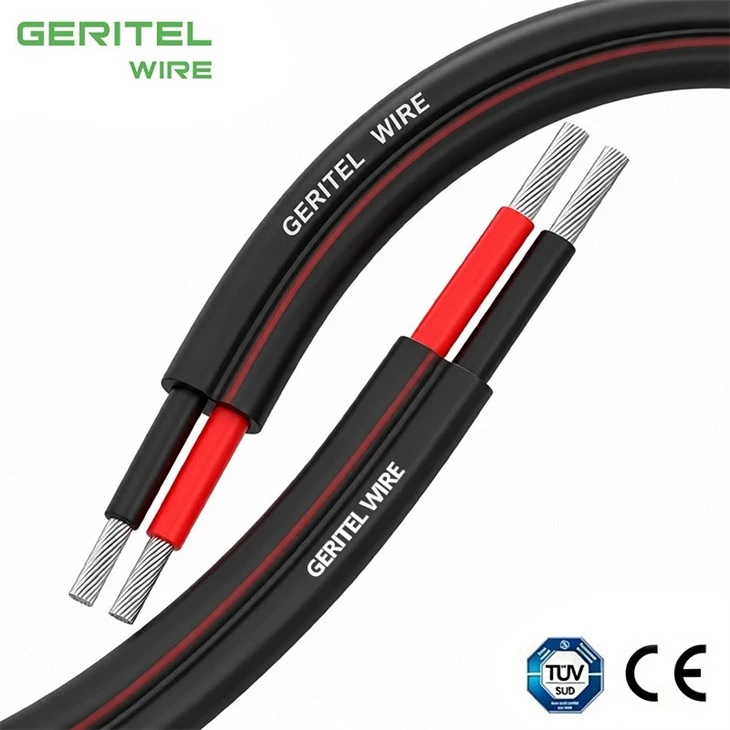

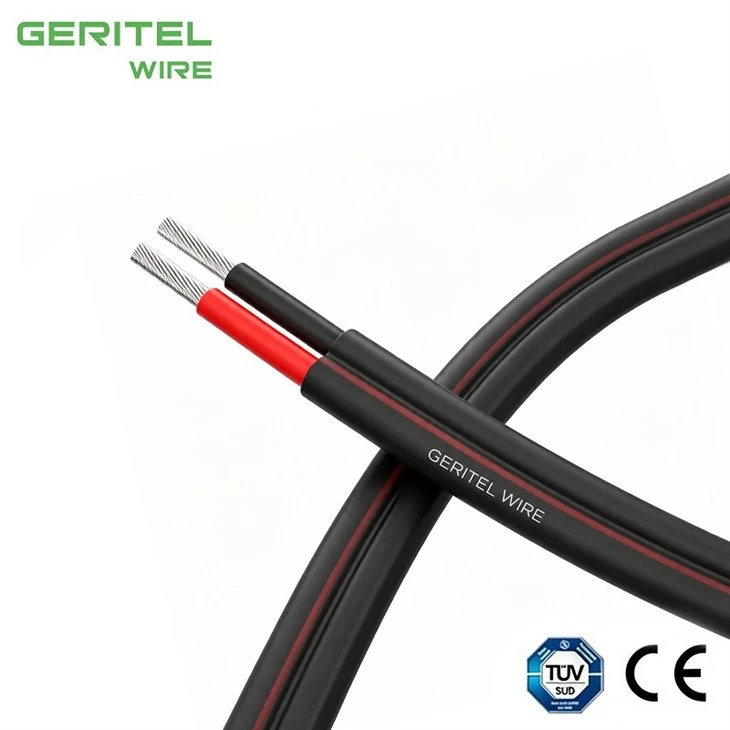

PRODUCT REAL SHOT

dual core 16mm2 solar cable

2×16mm² Dual Conductor Solar Cable for Rooftop and Off-Grid PV Installations

Designed for heavy-duty paired photovoltaic wiring, GERITEL WIRE offers this 2×16mm² paired option for high-current off-grid and larger rooftop systems. The 2x16mm2 twin core solar cable keeps two conductors together to simplify positive/negative routing while maintaining flexibility. GERITEL WIRE uses flexible Class 5 tinned copper with halogen-free cross-linked insulation and an outdoor-duty cross-linked sheath. The cable is designed for 1.5kV DC photovoltaic circuits with 90°C thermal performance plus UV, ozone and water resistance. Buyers searching for high current 2 core solar cable can match this size to project current, route length and voltage-drop requirements. GERITEL WIRE focuses on consistent construction, practical packaging and export-oriented technical support.

PRODUCT SPECIFICATIONS

double core 16mm2 PV cable

Application

The GERITEL WIRE PV H1Z2Z2-K cable, which is TUV certifiedaccording to EN 50618 and AENOR certified according to IEC62930, it is suitable for both fixed and mobile solar installations(solar farms, rooftop solar installations and floating plants).It is a highly flexible cable compatible with all major connectorsand specially designed for the connection of photovoltaic panels.

This versatile single-conductor cable is designed to meet the varying needs of the solar industry.

Suitable for wet, damp and humid locations.

Solar PV installations string cable.

SPECIFICATIONS
Conductor	Electrolytic annealed tinned copper, class 5 (flexible) according toIEC 60228 and EN 60228.
Insulation	Halogen free cross-linked rubber according to table B1 in Annex Bof EN 50618 and IEC 62930.
Outer sheath	Halogen free cross-linked flexible rubber according to table B1 inAnnex B of EN 50618 and IEC 62930. Red or black colour.
Electrical performance	Low voltage: 1,5 (1,8) kV DC. 1,0/1,0 kV AC.
Thermal performance	Maximum conductor temperature:90°C (120°C during 20.000 h).Maximum short-circuit temperature: 250°C (max. 5 s).Minimum service temperature: -40°C (fixed and protected installations).
Fire performance	Flame non-propagation according to EN 60332-1-2 / IEC 60332-1-2. Fire non-propagation according to EN 50399.Reaction to fire CPR: Caa-slb, d2, al according to EN 50575.Low smoke halogen free according to EN 60754-1/IEC 60754-1.Low corrosive gases emission according to EN 60754-2 / IEC60754-2. Low smoke emission according to EN 61034 /IEC 61034: Light transmittance > 60%.
Mechanical performance	Minimum bending radius: 4x cable diameter (cable diameter ≤ 8 mm) 5x cable diameter (8 < cable diameter s 12 mm) 6x cable diameter (cable diameter >12 mm). Impact resistance: AG2 Medium severity.
Environmental performance	Chemical & Oil resistance: Excellent. Grease & mineral oils resistance: Excellent. Ozone resistant according to EN 50618. UV Resistant according to EN 50618 and IEC 62930. Water resistance: AD7+ Immersion. AD8 Submersion.
Installation conditions	Open Air. Buried. In conduit.

Conductor	Conductor Stranding	Insulation Thickness	Jacket Thickness	Nominal O.D.	Approx Net Weight	Allowable Ampacities(1) @30℃ Ambient
Nominal Area(mm2)	Number of Strands	mils	mils	Inch	lbs/1000ft	75℃	90℃
1X1.5	1.57	0.7	0.8	4.7	38	860	0.86	13.7
1X2.5	2.04	0.7	0.8	5.2	45	690	0.69	8.21
1X4	2.6	0.7	0.8	5.6	60	580	0.58	5.09
1X6	3.16	0.7	0.8	6.3	90	500	0.50	3.39
1X10	4.5	0.7	0.8	7.6	131	420	0.42	1.95
1X16	5.7	0.7	0.9	9.0	187	340	0.34	1.24
1X25	7.2	0.9	1.0	11.2	267	340	0.34	0.795
1X35	8.5	0.9	1.1	12.7	368	290	0.29	0.565
1X50	9.4	1.0	1.2	14.5	560	270	0.27	0.393
1X70	11.1	1.1	1.2	16.5	756	250	0.25	0.277
1X95	13.1	1.1	1.3	18.7	1036	220	0.22	0.210
1X120	14.8	1.2	1.3	20.4	1309	210	0.21	0.164
1X150	16.5	1.4	1.4	22.7	1636	210	0.21	0.132
1X185	18.3	1.6	1.6	25.2	2000	200	0.20	0.108
1X240	21.0	1.7	1.7	28.5	2607	200	0.20	0.0817
2X1.5	1.57	0.7	0.8	4.8*10.5	78	860	0.86	13.7
2X2.5	2.04	0.7	0.8	5.2*11.8	92	690	0.69	8.21
2X4	2.6	0.7	0.8	5.6*12.8	122	580	0.58	5.09
2X6	3.16	0.7	0.8	6.3*13.7	182	500	0.50	3.39
2X10	4.5	0.7	0.8	8.0*16.8	264	420	0.42	1.95
2X16	5.7	0.7	0.9	9.0*19.8	376	340	0.34	1.24

CERTIFICATIONS

TUV 2x16mm2 solar cable

PACKAGING

1,Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

Residential Rooftop Solar System

Solar Carport + EV Charging

Utility-Scale Solar Far

CASE

Mauritius Henrietta Solar Power Plant Wire Export

Somalia Mogadishu Solar PV System Project

Tunisia Hammamet New City Industrial Park Solar PV Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

2x16mm2 solar power cable

CUSTOMER PHOTOS

2x16mm2 solar extension cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

When would I use 150mm² solar cable?

150mm² solar cable can be appropriate for large ground-mounted or utility-scale photovoltaic feeder circuits. The correct choice cannot be made from size name alone; calculate design current, route length, voltage drop, ambient temperature, grouping and termination limits. GERITEL WIRE can assist with OEM marking and packaging while keeping the electrical construction aligned with the approved product specification.

When would I use 185mm² solar cable?

185mm² solar cable can be appropriate for heavy-duty solar plant DC distribution. The correct choice cannot be made from size name alone; calculate design current, route length, voltage drop, ambient temperature, grouping and termination limits. GERITEL WIRE can help confirm the requested standard, size, color and marking before quotation so the cable matches the project specification.

When would I use 240mm² solar cable?

240mm² solar cable can be appropriate for very large PV DC feeder applications requiring a large conductor cross-section. The correct choice cannot be made from size name alone; calculate design current, route length, voltage drop, ambient temperature, grouping and termination limits. For project orders, GERITEL WIRE can support technical clarification, cable marking, reel or drum packaging and export documentation.

Should I choose 4mm² or 6mm² solar cable?

The 4mm² vs 6mm² solar cable decision is usually driven by current, route length and voltage drop. 4mm² is common on module leads and many short strings, while 6mm² is often chosen for longer or higher-current runs to reduce losses. GERITEL WIRE can review the buyer's voltage, route length, current and installation environment before recommending a suitable cable size.

Hot Tags: 2×16mm² 2 core solar cable positive & negative paired pv wire, China 2×16mm² 2 core solar cable positive & negative paired pv wire manufacturers, suppliers, factory, solar cable, Solar Cable 1500V H1Z2Z2 K TUV UL EN 50618 Solar PV Cable, tuv solar cable
