Name: China Class 5 PV Cable For Long-Term Solar DC Connections Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 312632668

Description

Technical Parameters

Certification

solar panel to inverter 2 core PV cable

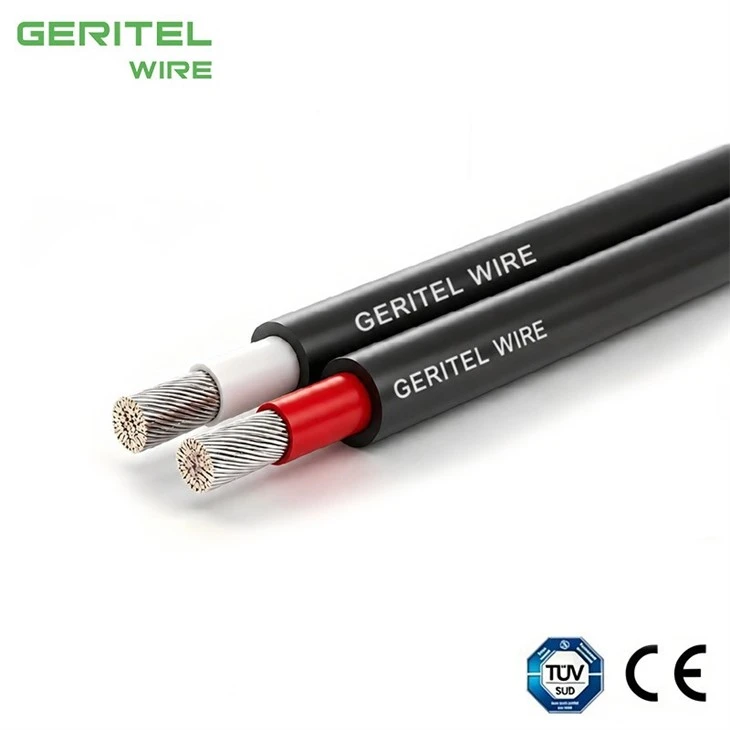

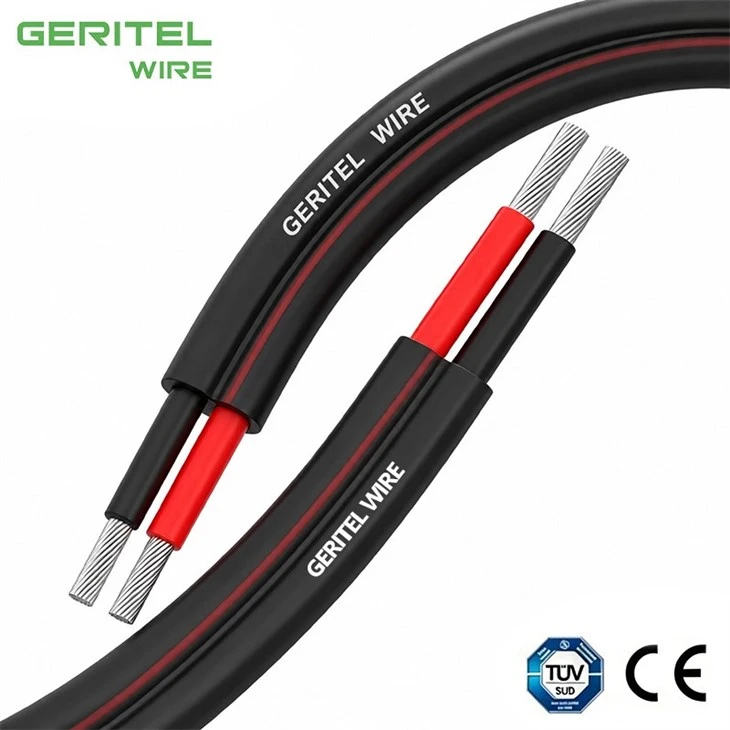

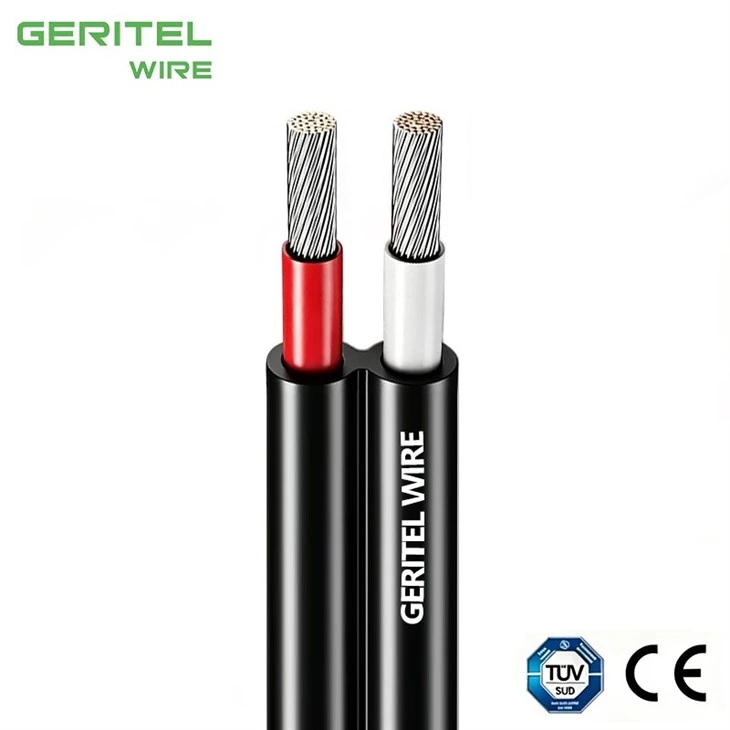

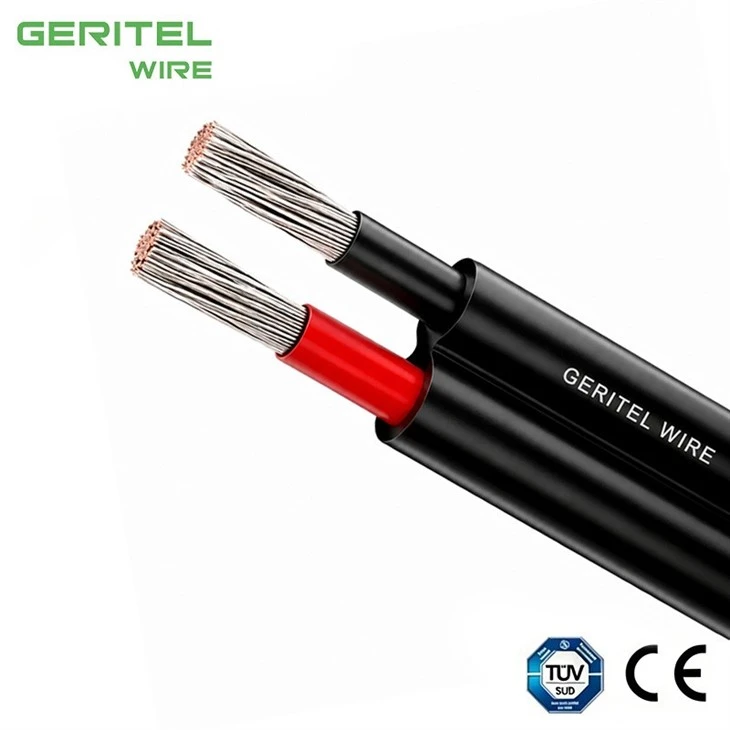

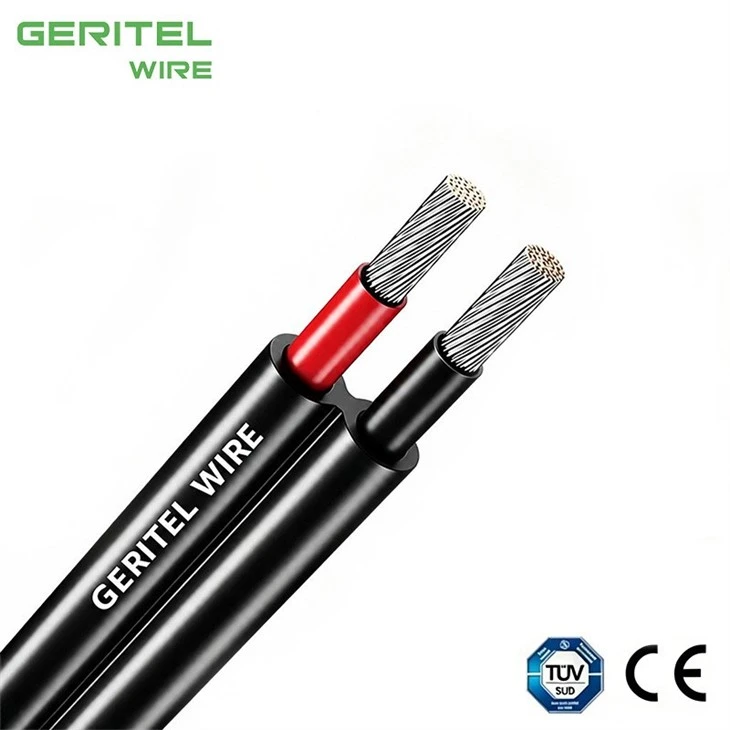

PRODUCT REAL SHOT

solar panel to inverter dual core solar cable

twin core solar cable for solar panel to inverter

solar panel to junction box twin core cable

solar panel to junction box 2 core PV cable

Flexible Solar Power Cable – Supporting Safe and Efficient Photovoltaic Connections

GERITEL WIRE developed this offer for installers needing easy routing who need reliable cable selection for tight bends, cable trays and complex module layouts, especially where class 5 flexibility is important. The flexible photovoltaic cable supports dependable DC connectivity, while buyers searching for fine stranded solar wire can compare the construction and environmental performance against project requirements. The construction combines fine-stranded Class 5 tinned copper with halogen-free cross-linked insulation and sheath materials for flexible, outdoor-oriented photovoltaic wiring. Its performance profile is aimed at long-term solar installations where heat, sunlight, humidity and weather resistance are important selection factors. GERITEL WIRE can support OEM marking, project packaging, technical documentation and export-oriented supply for distributors and EPC buyers.

PRODUCT SPECIFICATIONS

solar panel to junction box dual core solar cable

Application

The GERITEL WIRE PV H1Z2Z2-K cable, which is TUV certifiedaccording to EN 50618 and AENOR certified according to IEC62930, it is suitable for both fixed and mobile solar installations(solar farms, rooftop solar installations and floating plants).It is a highly flexible cable compatible with all major connectorsand specially designed for the connection of photovoltaic panels.

This versatile single-conductor cable is designed to meet the varying needs of the solar industry.

Suitable for wet, damp and humid locations.

Solar PV installations string cable.

SPECIFICATIONS
Conductor	Electrolytic annealed tinned copper, class 5 (flexible) according toIEC 60228 and EN 60228.
Insulation	Halogen free cross-linked rubber according to table B1 in Annex Bof EN 50618 and IEC 62930.
Outer sheath	Halogen free cross-linked flexible rubber according to table B1 inAnnex B of EN 50618 and IEC 62930. Red or black colour.
Electrical performance	Low voltage: 1,5 (1,8) kV DC. 1,0/1,0 kV AC.
Thermal performance	Maximum conductor temperature:90°C (120°C during 20.000 h).Maximum short-circuit temperature: 250°C (max. 5 s).Minimum service temperature: -40°C (fixed and protected installations).
Fire performance	Flame non-propagation according to EN 60332-1-2 / IEC 60332-1-2. Fire non-propagation according to EN 50399.Reaction to fire CPR: Caa-slb, d2, al according to EN 50575.Low smoke halogen free according to EN 60754-1/IEC 60754-1.Low corrosive gases emission according to EN 60754-2 / IEC60754-2. Low smoke emission according to EN 61034 /IEC 61034: Light transmittance > 60%.
Mechanical performance	Minimum bending radius: 4x cable diameter (cable diameter ≤ 8 mm) 5x cable diameter (8 < cable diameter s 12 mm) 6x cable diameter (cable diameter >12 mm). Impact resistance: AG2 Medium severity.
Environmental performance	Chemical & Oil resistance: Excellent. Grease & mineral oils resistance: Excellent. Ozone resistant according to EN 50618. UV Resistant according to EN 50618 and IEC 62930. Water resistance: AD7+ Immersion. AD8 Submersion.
Installation conditions	Open Air. Buried. In conduit.

Conductor	Conductor Stranding	Insulation Thickness	Jacket Thickness	Nominal O.D.	Approx Net Weight	Allowable Ampacities(1) @30℃ Ambient
Nominal Area(mm2)	Number of Strands	mils	mils	Inch	lbs/1000ft	75℃	90℃
1X1.5	1.57	0.7	0.8	4.7	38	860	0.86	13.7
1X2.5	2.04	0.7	0.8	5.2	45	690	0.69	8.21
1X4	2.6	0.7	0.8	5.6	60	580	0.58	5.09
1X6	3.16	0.7	0.8	6.3	90	500	0.50	3.39
1X10	4.5	0.7	0.8	7.6	131	420	0.42	1.95
1X16	5.7	0.7	0.9	9.0	187	340	0.34	1.24
1X25	7.2	0.9	1.0	11.2	267	340	0.34	0.795
1X35	8.5	0.9	1.1	12.7	368	290	0.29	0.565
1X50	9.4	1.0	1.2	14.5	560	270	0.27	0.393
1X70	11.1	1.1	1.2	16.5	756	250	0.25	0.277
1X95	13.1	1.1	1.3	18.7	1036	220	0.22	0.210
1X120	14.8	1.2	1.3	20.4	1309	210	0.21	0.164
1X150	16.5	1.4	1.4	22.7	1636	210	0.21	0.132
1X185	18.3	1.6	1.6	25.2	2000	200	0.20	0.108
1X240	21.0	1.7	1.7	28.5	2607	200	0.20	0.0817
2X1.5	1.57	0.7	0.8	4.8*10.5	78	860	0.86	13.7
2X2.5	2.04	0.7	0.8	5.2*11.8	92	690	0.69	8.21
2X4	2.6	0.7	0.8	5.6*12.8	122	580	0.58	5.09
2X6	3.16	0.7	0.8	6.3*13.7	182	500	0.50	3.39
2X10	4.5	0.7	0.8	8.0*16.8	264	420	0.42	1.95
2X16	5.7	0.7	0.9	9.0*19.8	376	340	0.34	1.24

CERTIFICATIONS

twin core solar cable for solar panel to junction box

PACKAGING

1,Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

twin core solar cable for small PV array

Residential Rooftop Solar System

Solar Carport + EV Charging

Utility-Scale Solar Far

CASE

Mauritius Henrietta Solar Power Plant Wire Export

Somalia Mogadishu Solar PV System Project

Tunisia Hammamet New City Industrial Park Solar PV Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

agricultural solar dual core solar cable

twin core solar cable for agricultural solar

twin core solar cable for greenhouse solar

GLOBAL CERTIFICATIONS

remote telecom solar twin core cable

CUSTOMER PHOTOS

remote telecom solar 2 core PV cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

remote telecom solar dual core solar cable

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

twin core solar cable for remote telecom solar

security camera solar dual core solar cable

twin core solar cable for security camera solar

solar lighting system dual core solar cable

twin core solar cable for solar lighting system

mobile solar installation twin core cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

mobile solar installation 2 core PV cable

FAQ

Can GERITEL WIRE help calculate voltage drop before I order?

Yes. For PV cable sizing support, provide current, voltage, one-way length and installation conditions. The calculation can then compare candidate sizes and help avoid both excessive loss and unnecessary oversizing. GERITEL WIRE can assist with OEM marking and packaging while keeping the electrical construction aligned with the approved product specification.

Can H1Z2Z2-K be installed in open air?

Yes. Open air solar cable is a normal H1Z2Z2-K application when the cable is properly supported and protected from sharp edges and mechanical damage. UV resistance is especially important for exposed routes. GERITEL WIRE can help confirm the requested standard, size, color and marking before quotation so the cable matches the project specification.

Can the cable be installed in conduit?

Yes. Solar cable in conduit is permitted in many PV installations. Conduit fill, bend radius, heat dissipation, pulling force and local electrical rules should be considered during design. For project orders, GERITEL WIRE can support technical clarification, cable marking, reel or drum packaging and export documentation.

Can TÜV Solar Cable be buried?

The supplied product description includes buried installation, but direct burial requirements vary by exact cable approval and local rules. For a direct burial solar cable project, confirm the certificate/datasheet and installation method before laying cable in soil. GERITEL WIRE can review the buyer's voltage, route length, current and installation environment before recommending a suitable cable size.
